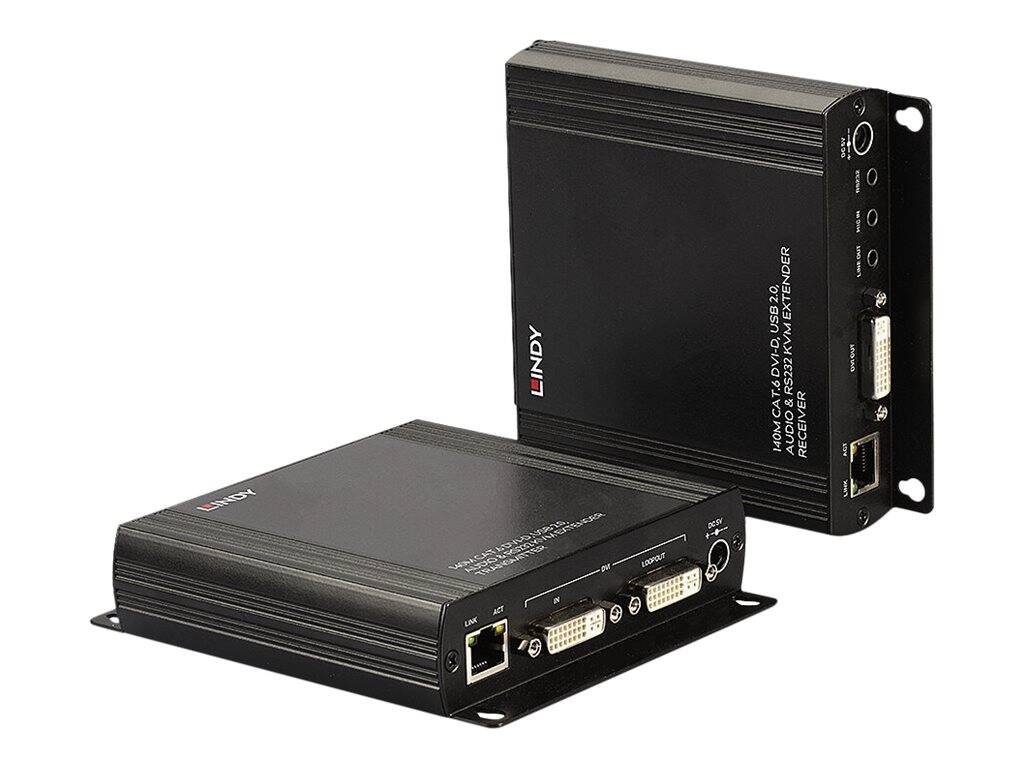

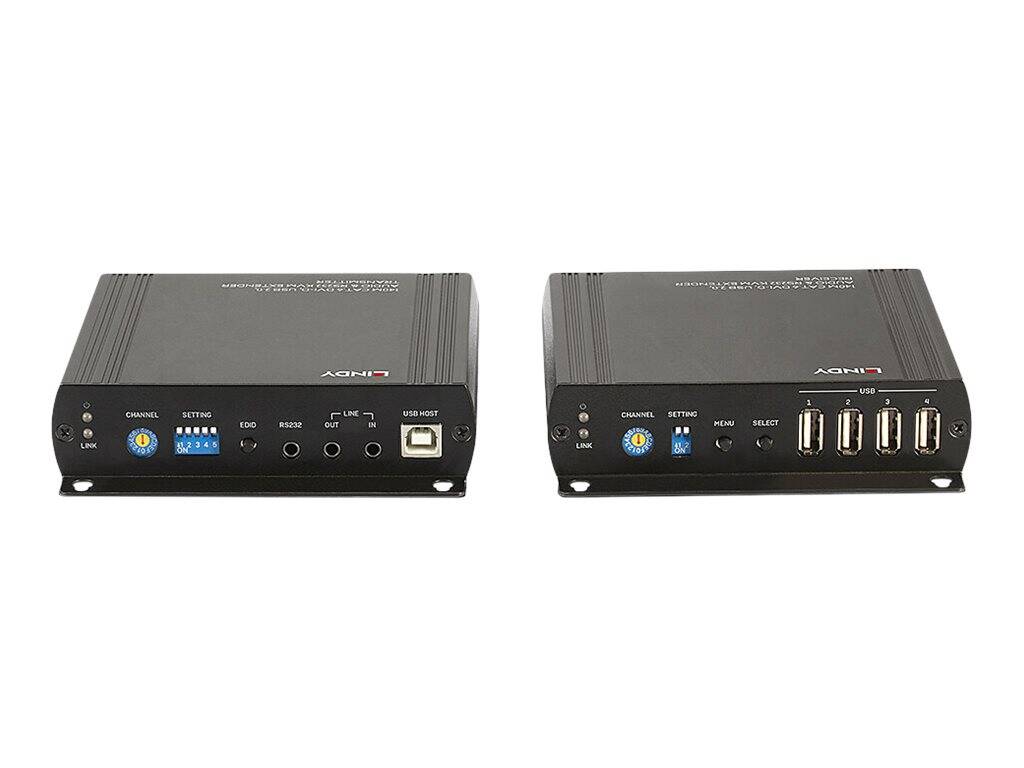

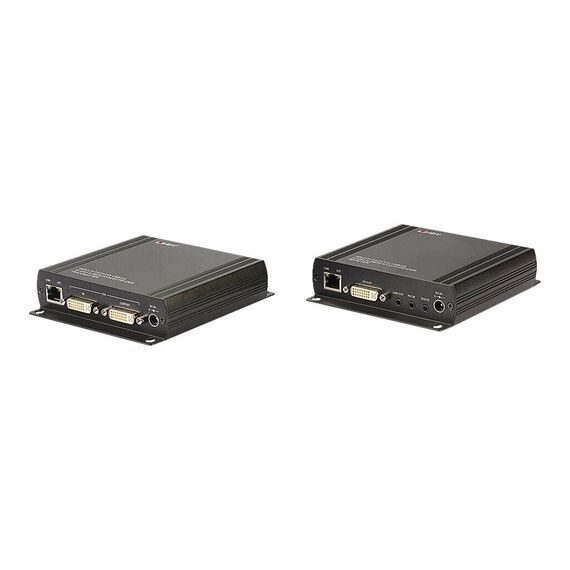

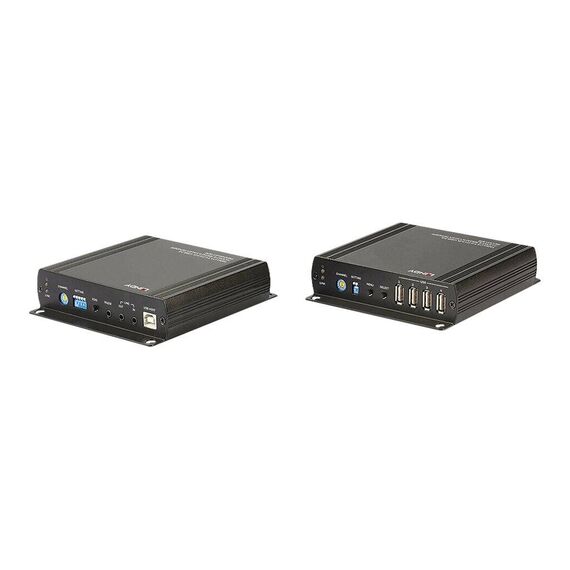

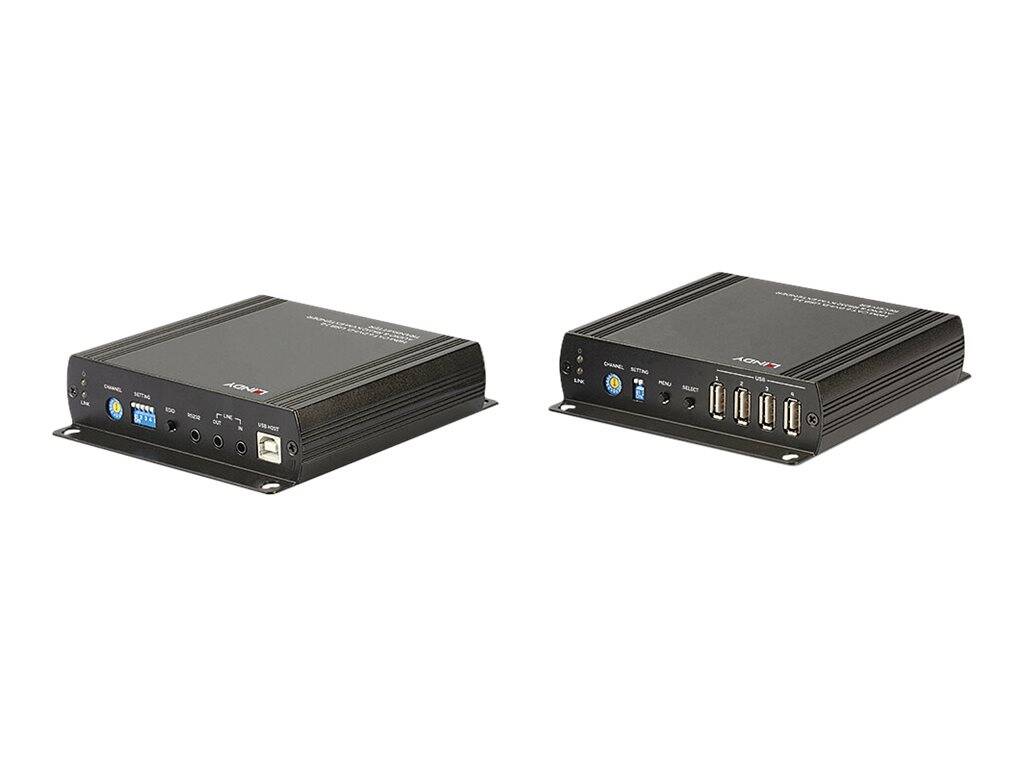

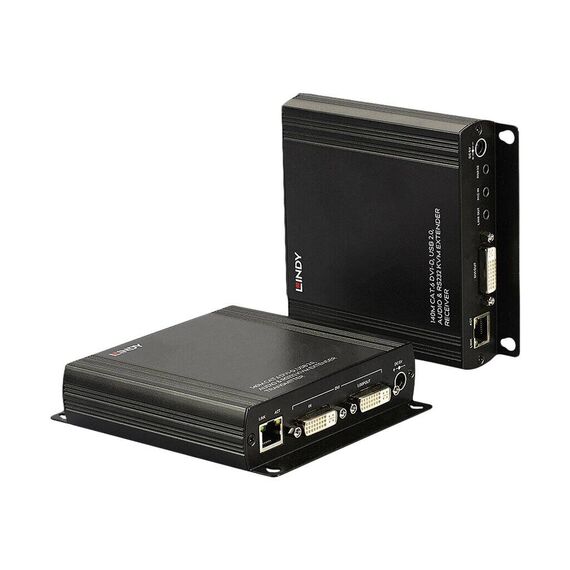

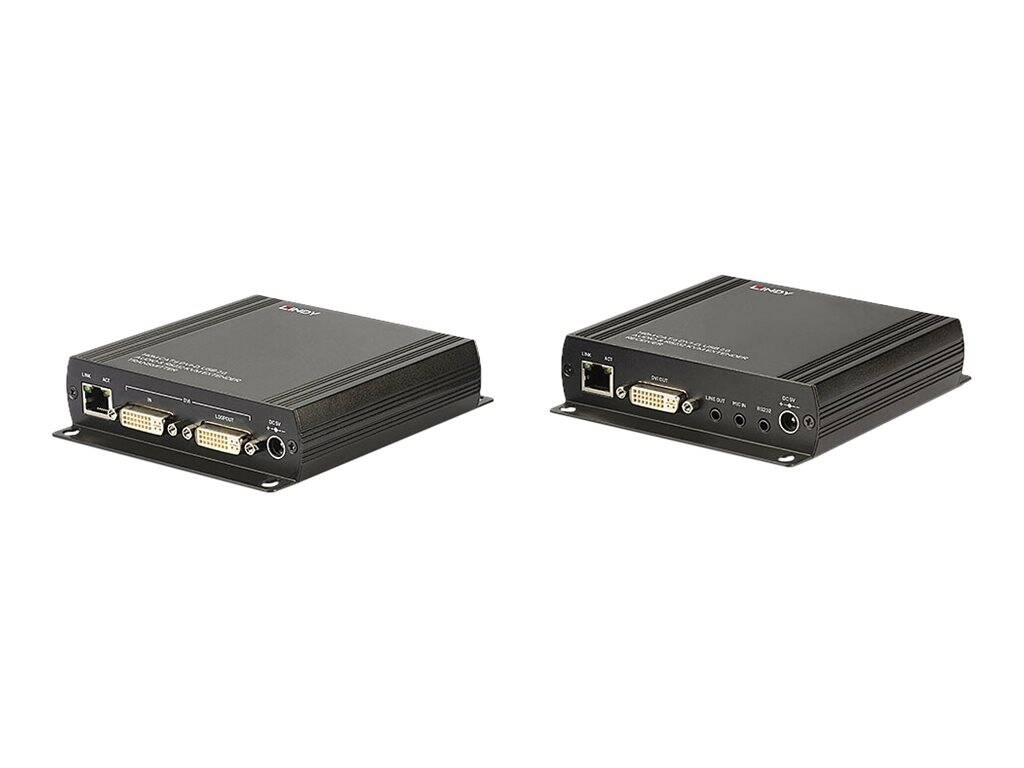

LINDY - Video/audio/USB/serial extender - over CAT 6 - up to 140 m | 39245
Please sign in so that we can notify you about a reply
Special Fetures
- Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable
- Supports DVI Single Link resolutions up to 1920x1200
- 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices
- Easy, user friendly installation - no software required
Product Specification
| Device Type | Video/audio/USB/serial extender |
| Form Factor | External |
| Colour | Black |
| Localisation | Australia, United Kingdom, United States, Europe |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 850 Mbps |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Max Transfer Distance | 140 m |
| Status Indicators | Power, link OK |
| Features | Built-in 4-port USB 2.0 hub, metal housing, EDID Management, bidirectional RS-232 |
| Compliant Standards | USB 2.0, HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 1 x DVI-I (transmitter input) ¦ 1 x DVI-I (transmitter output) ¦ 1 x RS-232 (transmitter) - mini jack ¦ 1 x audio line-in (transmitter) - mini jack ¦ 1 x audio line-out (transmitter) - mini jack ¦ 1 x USB 2.0 (transmitter input) - Type B ¦ 4 x USB 2.0 (receiver output) - Type A ¦ 1 x DVI-I (receiver output) ¦ 1 x audio line-out (receiver) - mini jack ¦ 1 x microphone (receiver) - mini jack ¦ 1 x RS-232 (receiver) - mini jack |
| Miscellaneous | |
| Included Accessories | 8 screws, 8 anchors |
| Cables Included | 1 x USB cable - 1.45 m ¦ 1 x DB-9 male to 3.5 mm serial adapter cable - 1.8 m ¦ 1 x DB-9 female to 3.5 mm serial adapter cable - 1.8 m |
| Compliant Standards | FCC, RoHS, REACH, CP65, EDID compatible |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 14 cm x 12.5 cm x 3 cm ¦ Receiver: 14 cm x 12.5 cm x 3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 41.5 cm |
| Shipping Depth | 37.5 cm |
| Shipping Height | 36.4 cm |
| Shipping Weight | 1.45 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Lindy - 39245
Length
>50m
More Details
Product Code
03:218271
EAN Code
4002888392457
Manufacturer
Lindy
