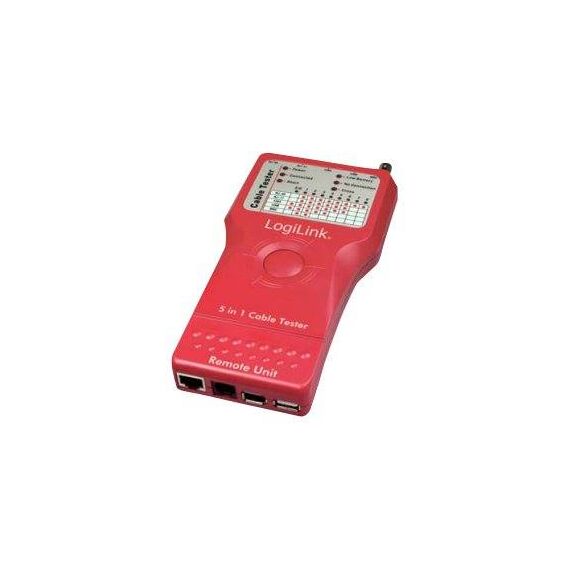

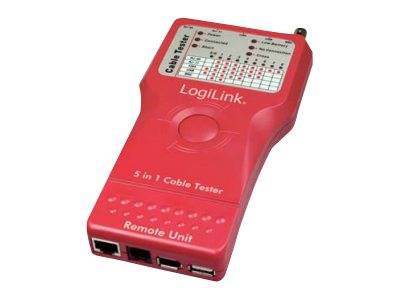

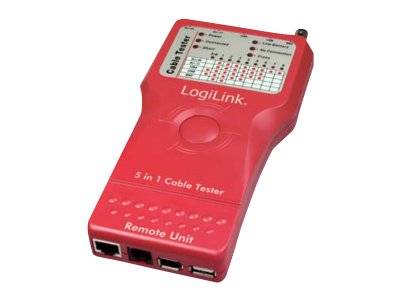

LogiLink 5 in 1 Cable Tester / Network tester kit | WZ0014
LogiLink 5 in 1 Cable Tester / Network tester kit | WZ0014
Description
The WZ0014 5 in 1 Cable Tester tests 5 common LAN and computer cables. It tests installed cables or patch cords with RJ-11, RJ-45, USB, IEEE1394 and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cables, or reverse wired telephone cables.
LogiLink 5 in 1 Cable Tester / Network tester kit | WZ0014< | WZ0014
Special Features
- Test 5 types of RJ-11, RJ-45, BNC, USB and IEEE1 394 cables
- Simple one button test
- Ergonomic portable handheld design
- Tests installed wiring or patch cables
- Remote unite stores in main unit
- 600 feet test distance for RJ-45/RJ-11 /BNC
- Convenient battery access
- Built in battery test
- LEDs indicate connections and faults
- Beeper provides audible annunciation of test results
- Tests shielded (STP) or unshielded (UTP) LAN cables
- Test shields in IEEE 1394 and USB cables
Product Specification
Device Type | Network tester kit |
Kit Content | Remote Unit |
Media | Copper |
Features | Status LED |
Cable Types | UTP, STP |
Included Accessories | Carrying case, BNC terminator |
Connectors | RJ-45, RJ-11, BNC, 4 pin USB type A, FireWire |
Compliant Standards | RoHS |
