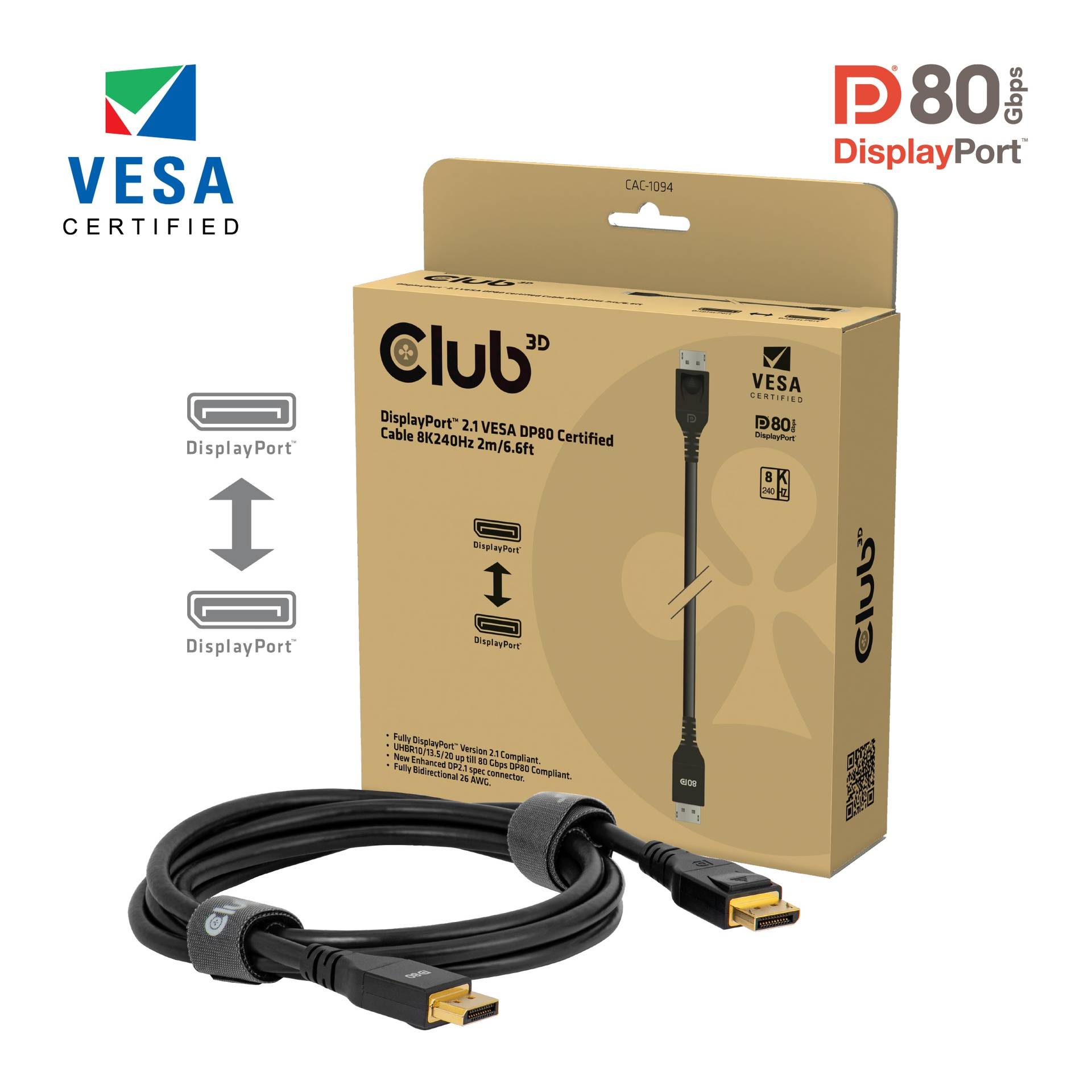

Club 3D CAC-1094 — DisplayPort 2.1 VESA DP80 Certified Cable, 2 m
VESA DP80 Certified80 Gbps UHBR208K240Hz or 10K60HzFully Bi-Directional
The Club 3D CAC-1094 is a 2-metre male-to-male DisplayPort 2.1 cable, VESA DP80 certified for the full 80 Gbps UHBR20 link rate — the longest cable Club 3D offers at the DP80 tier, for desks where 1.2 m or 1.6 m simply will not reach. Club 3D lists it under part number CAC-1094 with EAN 8719214473549, and its official datasheet rates it for 8K240Hz or 10K60Hz: 8K60Hz with HDR uncompressed, rising to 8K240Hz once Display Stream Compression is enabled. The cable is fully bidirectional, uses 26 AWG twisted-pair conductors inside a braided alloy shield, and weighs 150 g. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Both ends are full-size DisplayPort; Club 3D’s datasheet note reads “please use one of our Extension/Adapter cables to connect to your devices” if your host has a different socket. The 80 Gbps figure is a capability rather than a guarantee — your graphics card and monitor must both support UHBR20 to reach it, and on DP 1.4 or DP 1.2 hardware the cable negotiates the lower rate and works normally. Uncompressed, the rating is 8K60Hz with HDR; 8K240Hz requires Display Stream Compression enabled at both ends. Operating system support is listed as Windows 10 upwards and macOS 15 specifically. One discrepancy to be aware of: Club 3D’s shop specification table shows a Supported Resolutions row of “8K165Hz 4K540Hz (DSC)” for this cable — the identical string it uses for the 54 Gbps CAC-1093 — while this cable’s own title, its Max Resolution field and the entire datasheet state 8K240Hz. We publish the datasheet figures. Club 3D does not publish an HDCP version, a DSC version number, FEC support, a jacket material, a locking-connector claim or an operating-temperature range for the CAC-1094.
Key Features
The longest DP80 cable Club 3D makes
At 2 m this is as far as Club 3D stretches the DP80 tier, covering the UHBR10, UHBR13.5 and UHBR20 link rates for a full 80 Gbps. Its 3 m sibling, the CAC-1093, buys that extra metre by dropping to DP54 and 54 Gbps. If you need both the reach and the top DisplayPort 2.1 bandwidth, this is the part that does it.
8K240Hz with DSC, 8K60Hz HDR without it
Club 3D’s datasheet is explicit about the two ceilings: the cable carries a video signal up to 8K60Hz with HDR without compression, and with Display Stream Compression enabled the frequency can be increased to 8K240Hz. Supported resolutions are listed as 8K240Hz and 10K60Hz, alongside support for up to 32 inline audio channels.
26 AWG twisted pair with braided alloy shield
The conductors are 26 AWG twisted pairs inside a braided alloy shield for EMI protection, terminated in nickel-plated connectors with PVC strain relief on Club 3D’s enhanced DP 2.1 connector design. The cable is fully bidirectional, downwards compatible with older DisplayPort standards, weighs 150 g and meets RoHS, FCC and CE EMI requirements.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The CAC-1094 exists for one reason: it is the point where DP80 stops. Club 3D’s DisplayPort 2.1 ladder runs 1.2 m, 1.6 m and 2 m at the full 80 Gbps, and the next step up in length — the 3 m CAC-1093 — pays for that metre by dropping to DP54. So if your tower sits on the floor or across the desk and you want UHBR20 intact, 2 m is the ceiling and this is the cable. Be honest about whether you need it: unless both your graphics card and your display speak UHBR20, a DP 1.4 HBR3 cable from our DisplayPort cables and converters range performs identically today for less money. One caveat to carry into the decision — Club 3D’s own shop table quotes this cable the DP54 resolution string while its title and datasheet say 8K240Hz; we publish the datasheet, but if 8K240Hz is the whole reason you are buying, check what your monitor and GPU actually support first.
Buyer’s Guide
Buy it if
You need the full 80 Gbps UHBR20 link and 1.6 m does not reach — 2 m is as far as Club 3D stretches the DP80 tier. Your GPU and display both support UHBR20, or will after the next upgrade, and you want 8K60Hz HDR uncompressed with 8K240Hz available once DSC is switched on.
Skip it if
Your hardware tops out at DisplayPort 1.4 HBR3, in which case you would be paying for bandwidth you cannot use. Skip it too if you genuinely need 3 m: no DP80 cable reaches that length, and the 3 m option in this family drops to DP54.
Also consider
CAC-1092 at 1.6 m or CAC-1091 at 1.2 m if the run is shorter — both DP80, and the CAC-1092 uses a thicker 24 AWG conductor. CAC-1093 if you must have 3 m and can live with the DP54 54 Gbps tier. CAC-1563 if your host is USB-C rather than full-size DisplayPort.
Features - Club 3D - CAC-1094
Colour
black
Length
2m
More Details
Product Code
04:545670
EAN Code
8719214473549
Manufacturer
Club 3D
