LogiLink MP0056 Cat.6A DIN-Rail Adapter with Shielded RJ45 Inline Coupler Female to Female for 35 mm TS35 Rail Light Grey
Brand:
LogiLink
LogiLink MP0056 Cat.6A DIN-Rail Adapter with Shielded RJ45 Inline Coupler Female to Female for 35 mm TS35 Rail Light Grey
€7.44 inc. VAT
MP0056
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LogiLink MP0056 — Cat.6A DIN-Rail Adapter with RJ45 Inline Coupler
DIN rail TS35Cat.6A shieldedRJ45 F/FStackable

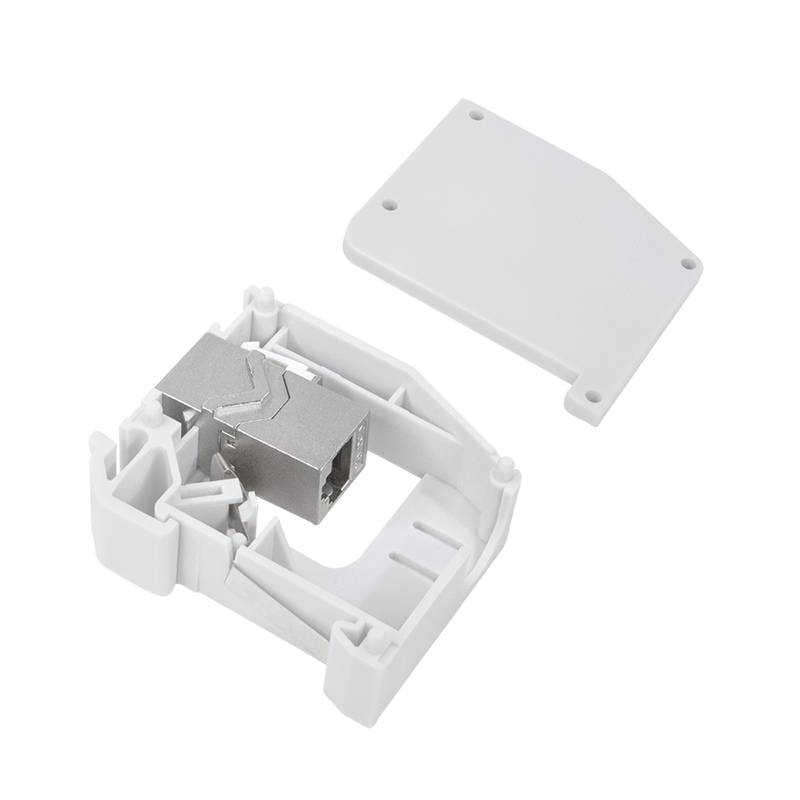

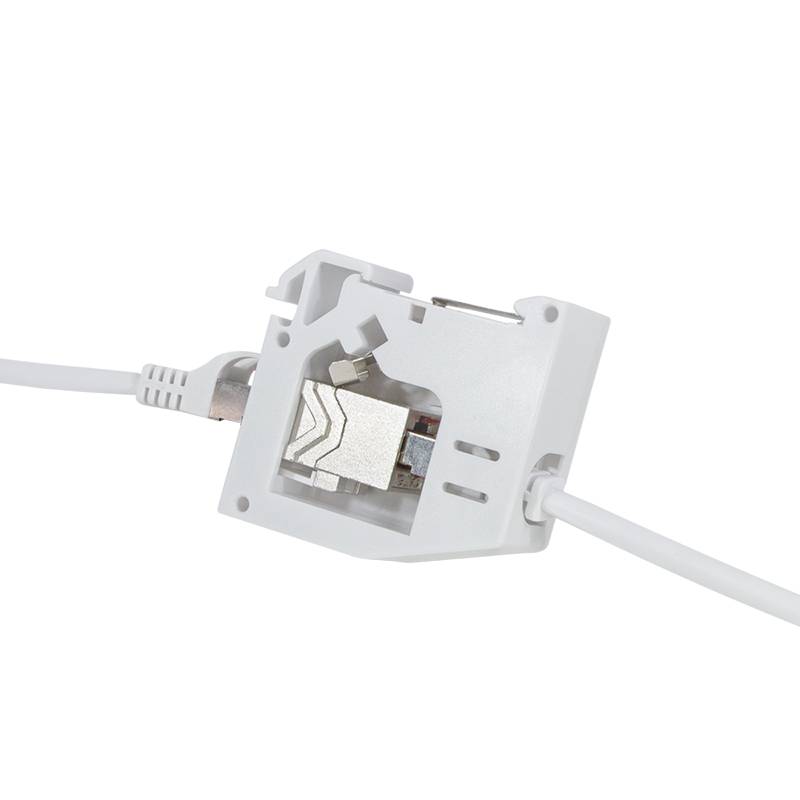

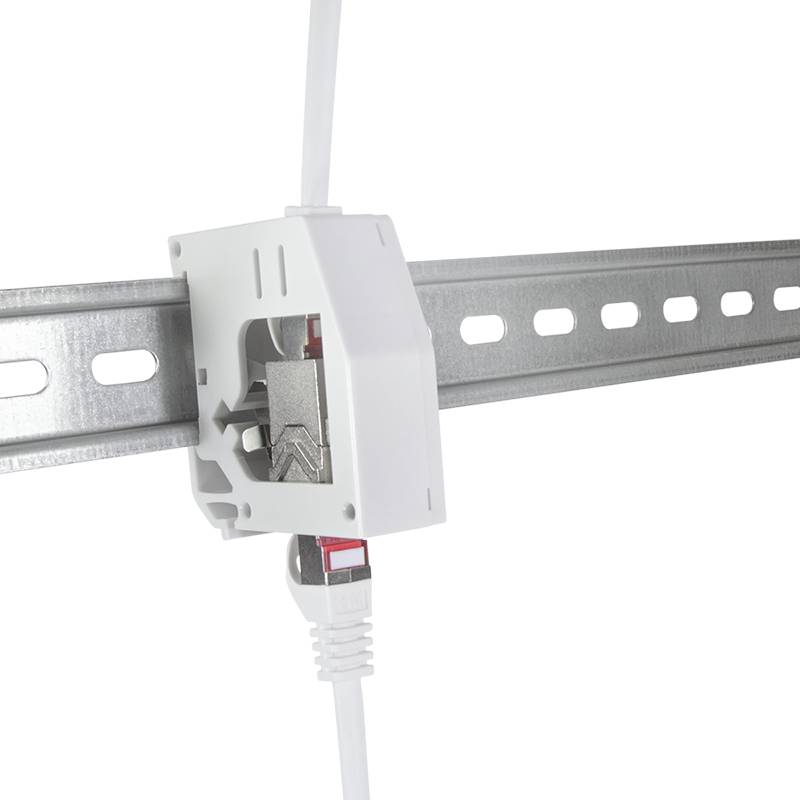

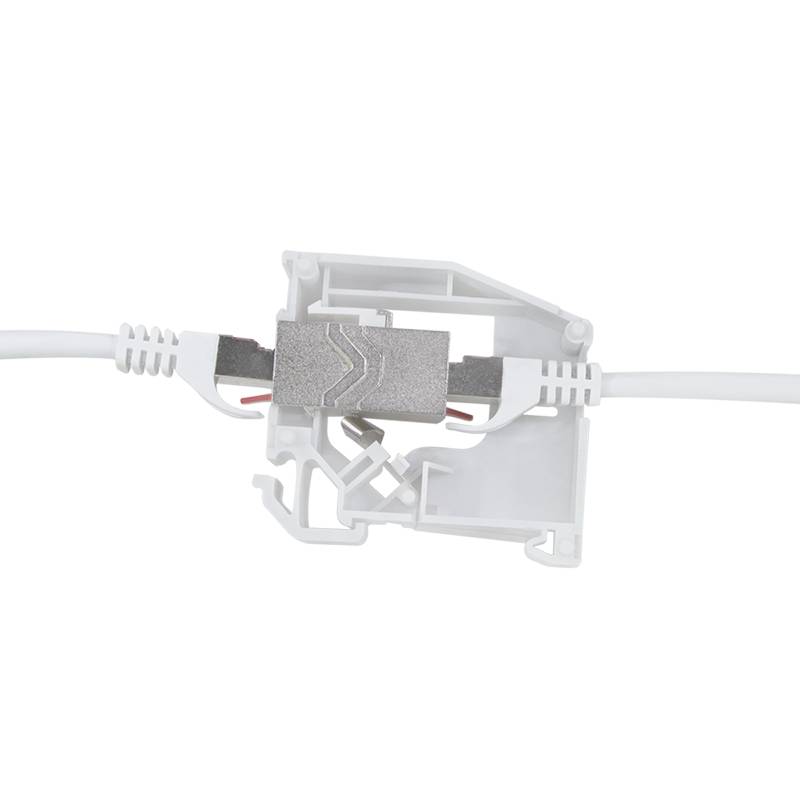

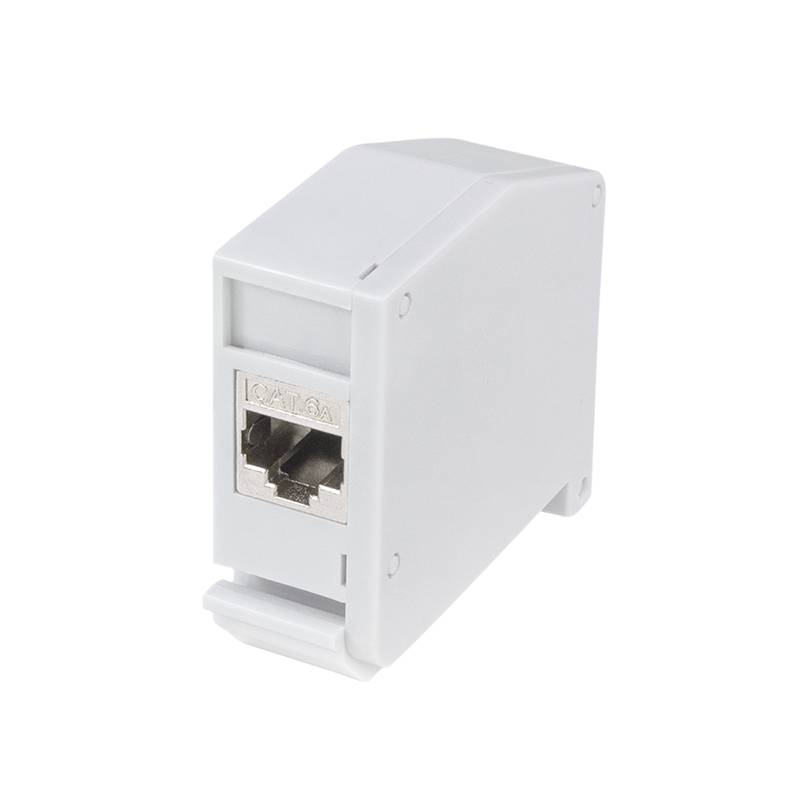

The LogiLink MP0056 brings a network connection into an electrical distribution board. It is a light-grey DIN-rail housing that snaps onto a standard 35 mm (TS35) rail and holds one shielded Cat.6A inline coupler — an RJ45 socket on each side, wired straight through. You plug the incoming cable into one side and a patch cable to the router, switch or smart-home controller into the other, so network links can be patched neatly next to breakers and control modules. The housing has a grounding spring, a label window and can be stacked side by side; it measures 60.5 × 21.6 × 56.3 mm and works with Cat.5e, Cat.6 and Cat.6A patch cables.
Compatibility — check before buying:
One coupler, two sockets: MP0056 holds a single RJ45 female/female coupler — one link, with a socket on each side. For two links in one housing LogiLink makes the MP0079 (2 couplers). Both sides are RJ45 sockets, so each side needs a patch cable with a plug; it does not terminate bare installation cable. LogiLink does not state a PoE rating for this article — if you run PoE through it, ask us first. Send us the board layout and we confirm.
Best For
✓ Electrical distribution boards
✓ Smart-home and KNX cabinets
✓ Routers and switches on DIN rail
✓ Industrial control panels
✓ Clean patching beside breakers
✓ Labelled network links
Key Features
35 mm DIN rail
Snaps onto standard TS35 rails in distribution boards.
Cat.6A shielded coupler
RJ45 female/female, works with Cat.5e, Cat.6 and Cat.6A cables.
Grounding spring
Earths the shielded coupler to the rail.
Stackable with label window
Mount several side by side and mark each link.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the MP0056 for home and building distribution boards where the fibre router or switch sits on the DIN rail and the links should be patched cleanly next to it. For two links per slot, the MP0079 saves space. Browse our networking accessories and network switches. Local support in Cyprus comes with every order.
Buyer’s Guide
Buy it if
You want one shielded RJ45 link patched inside a DIN-rail distribution board.
Skip it if
You need two links in one housing or a stated PoE rating — see MP0079.
Also consider
LogiLink MP0079 — DIN-rail adapter with 2 Cat.6A couplers.
Features - LogiLink - MP0056
Colour
grey
More Details
Product Code
04:430374
EAN Code
4052792065787
Manufacturer
LogiLink
