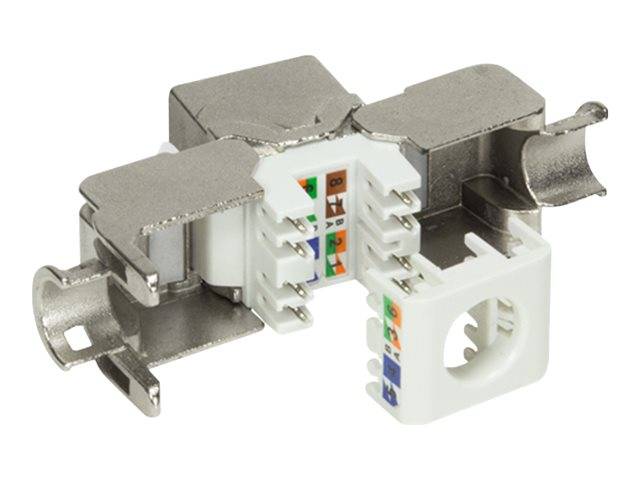

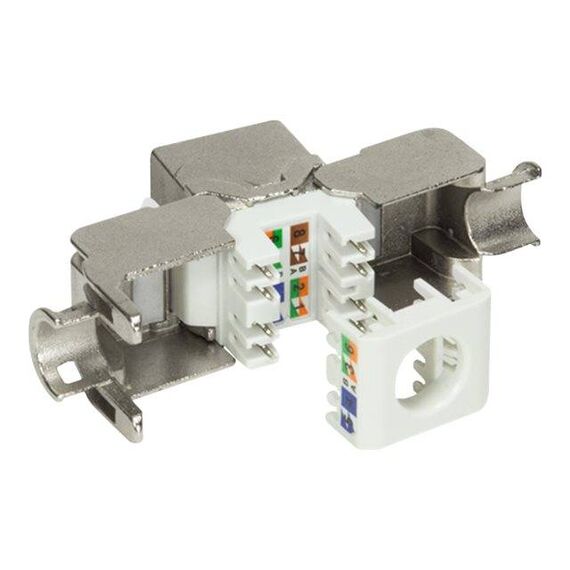

LogiLink NK4001 Cat.6A STP RJ45 Keystone Jack, Tool-Less, 17.2 mm

Brand:
LogiLink
LogiLink Modular insert NK4001
LogiLink NK4001 Cat.6A STP RJ45 Keystone Jack, Tool-Less, 17.2 mm
€4.94 inc. VAT
Buy
NK4001
€4.15
€4.94 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:272472
EAN Code
4052792026818
Manufacturer
LogiLink

Quick Specs

Supported conductor gauge
AWG 22-24 solid wire
Supported cable diameter
5.5-9 mm
Shielding support
360° shielding support with strain relief
PoE support
PoE, PoE+ and PoE++
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

LogiLink NK4001 Cat.6A STP RJ45 Keystone Jack

The LogiLink NK4001 is a shielded Cat.6A Class EA RJ45 Keystone jack for structured network installations requiring up to 10 Gbit/s Ethernet at 500 MHz. Its tool-less termination, 360° shielding support and compatibility with PoE, PoE+ and PoE++ make it a practical choice for installing or upgrading compatible network outlets and patch panels.
AWG 22-24 solid wire 5.5-9 mm 360° shielding support with strain relief PoE, PoE+ and PoE++

The LogiLink NK4001 is a shielded Cat.6A Class EA RJ45 Keystone jack for structured network installations requiring up to 10 Gbit/s Ethernet at 500 MHz. Its tool-less termination, 360° shielding support and compatibility with PoE, PoE+ and PoE++ make it a practical choice for installing or upgrading compatible network outlets and patch panels.

Best For
✓ This Keystone jack is suited to installers, network technicians

Key Features


Commercial Fit
The strongest reason to choose the NK4001 is its combination of tool-less termination, full shielding and 10G Ethernet support in a compact Keystone format. The 360° shielding support and PoE, PoE+ and PoE++ compatibility are useful for high-performance structured cabling installations.

Packaging Weight
Packaging Weight: 40 g

Product Weight
Product Weight: 31 g

Colour
Colour: Metallic/silver

Technical Specifications

Product Type Modular insert / RJ45 Keystone jack
Model NK4001
Category Cat.6A Class EA
Data Rate 10 Gbit/s Ethernet / 10GBase-T
Transmission Frequency 500 MHz
Connector 1 x RJ-45 female
Connector Type RJ45 Keystone module
Compatible Connector Type RJ-45
Shielding Fully shielded STP/S-UTP die-cast housing
Termination Tool-less termination
Cable Connection 180° cable connection, butterfly type
Supported Conductor Gauge AWG 22-24 solid wire
Supported Cable Diameter 5.5-9 mm
Wiring Scheme T568A/B
Shielding Support 360° shielding support with strain relief
PoE Support PoE, PoE+ and PoE++
Compliant Standards TIA/EIA 568 | ISO/IEC 11801 | DIN EN 50173-1 | TIA/EIA 568-C.2 | IEC 60603-7-51 Ed.1 | TIA/EIA 568, ISO/IEC 11801, DIN EN 50173-1, TIA/EIA 568-C.2 and IEC 60603-7-51 Ed.1
Construction Type Flat
Housing Material Zinc die-cast with nickel-plated housing
Contact Material Phosphor bronze IDC contacts with gold-plated prongs
Width 17.2 mm
Depth 41.4 mm
Height 26.4 mm
Product Weight 31 g
Packaging Weight 40 g
Colour Metallic/silver
Quantity per Pack 1 pc
RoHS Compliance Yes
Country of Manufacture China
Manufacturer LogiLink
EAN 4052792026818
SKU / EAN NK4001 | 4052792026818

Frequently Asked Questions

What should I know before buying?
Check that the installation accepts a compatible 17.2 mm Keystone module and that the cable uses AWG 22-24 solid conductors with a 5.5-9 mm diameter. This is a single RJ45 Keystone jack, not a complete network cable or outlet assembly.
What is it compatible with?
AWG 22-24 solid wire
What are the key specifications?
Packaging Weight: 40 g | Product Weight: 31 g | Colour: Metallic/silver
Singular Expert Insight
The strongest reason to choose the NK4001 is its combination of tool-less termination, full shielding and 10G Ethernet support in a compact Keystone format. The 360° shielding support and PoE, PoE+ and PoE++ compatibility are useful for high-performance structured cabling installations.

Buyer’s Guide

Buy it if
This Keystone jack is suited to installers, network technicians and home or business users building shielded Cat.6A cabling with RJ45 outlets, patch panels or other compatible Keystone systems.
Skip it if
Check that the installation accepts a compatible 17.2 mm Keystone module and that the cable uses AWG 22-24 solid conductors with a 5.5-9 mm diameter. This is a single RJ45 Keystone jack, not a complete network cable or outlet assembly.
