LogiLink MP0070 RJ45 Modular Plug Cat.6A Shielded with Guide Plate 50-Pack for Solid and Stranded Wire 24-27 AWG Gold Plated
Brand:
LogiLink
LogiLink MP0070 RJ45 Modular Plug Cat.6A Shielded with Guide Plate 50-Pack for Solid and Stranded Wire 24-27 AWG Gold Plated
€15.86 inc. VAT
MP0070
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Cat.6A Shielded RJ45 Plugs — 50-pack
Cat.6A shielded50 piecesGuide plateSolid & stranded

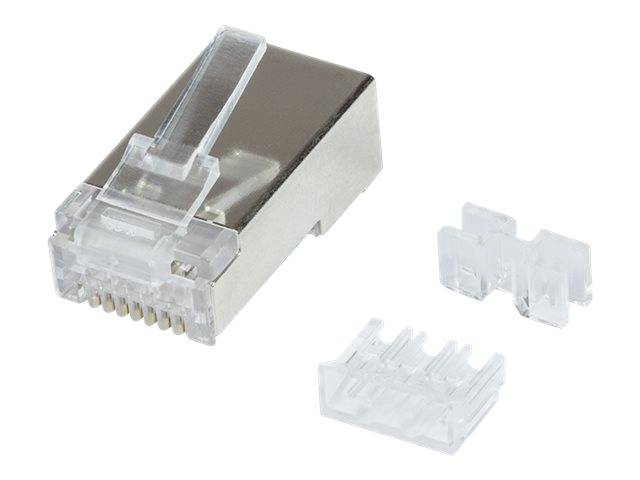

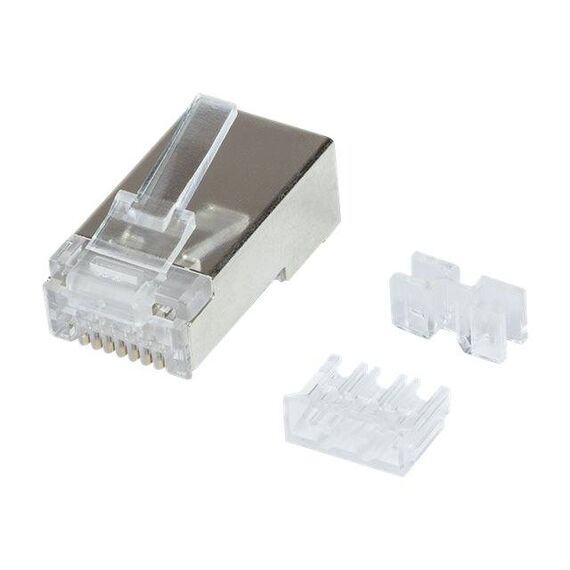

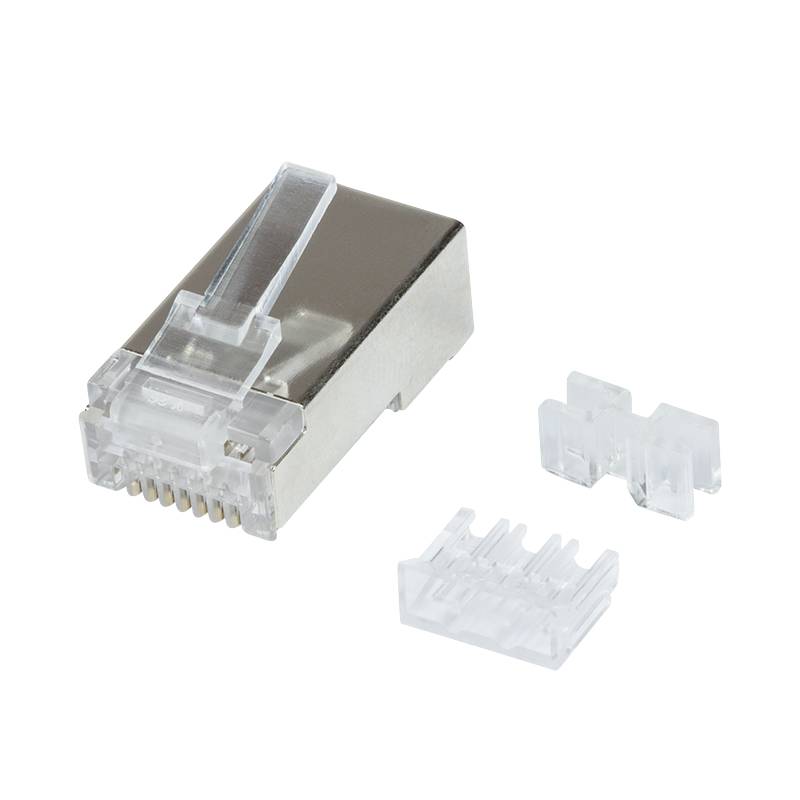

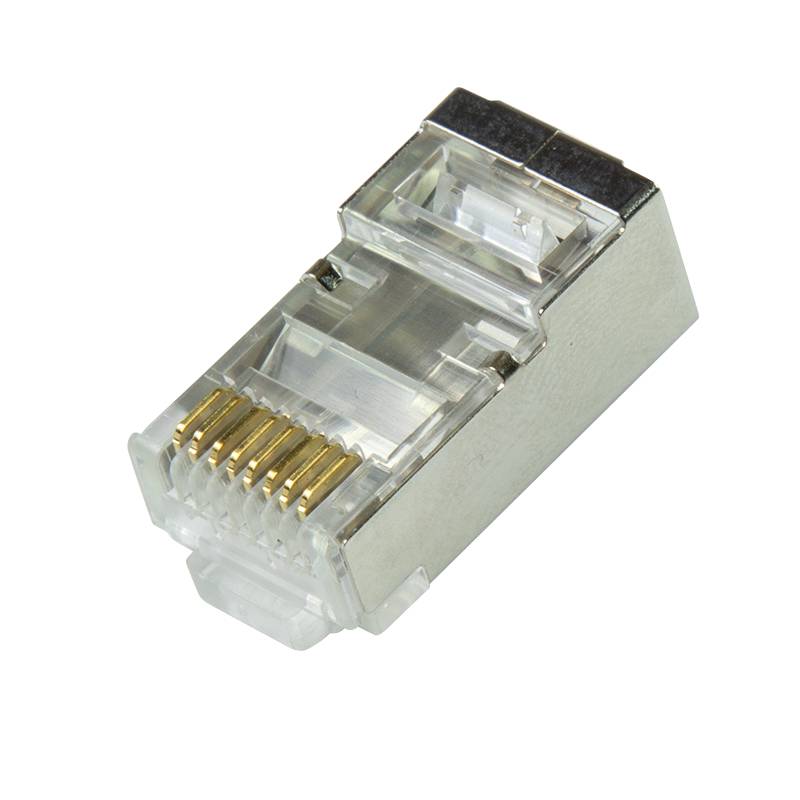

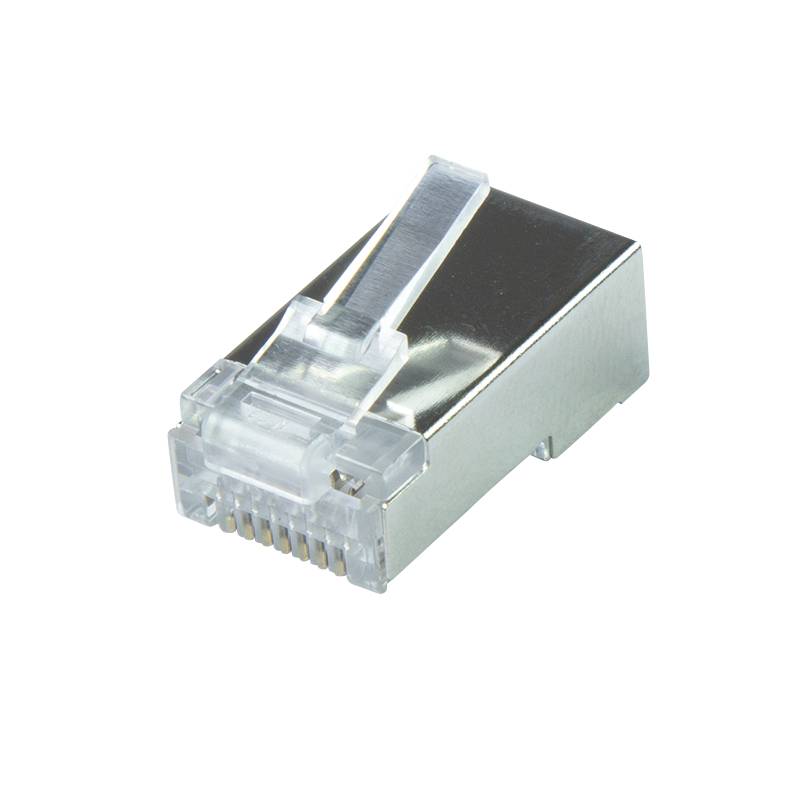

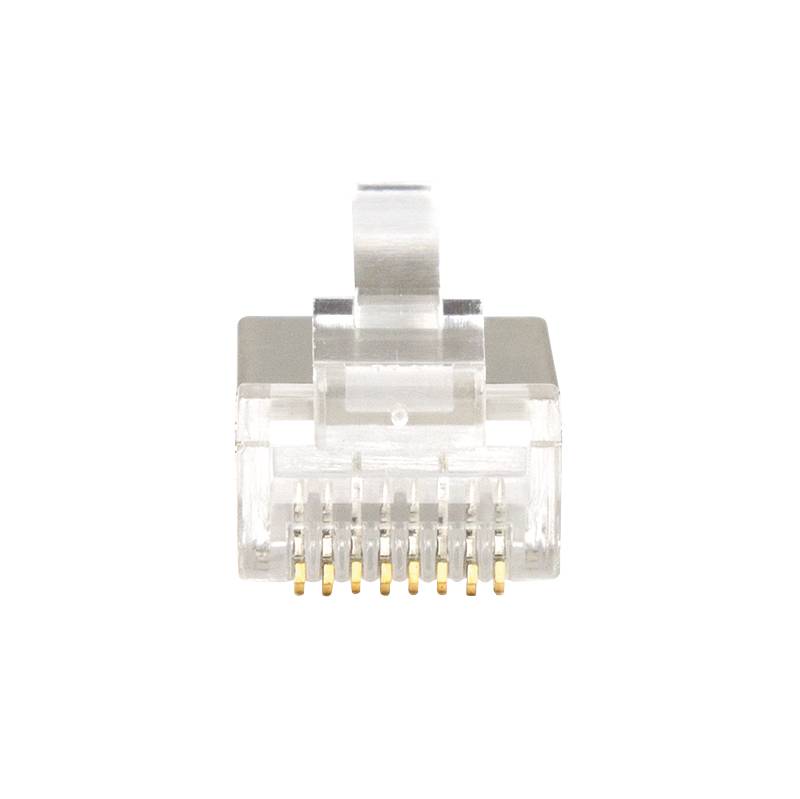

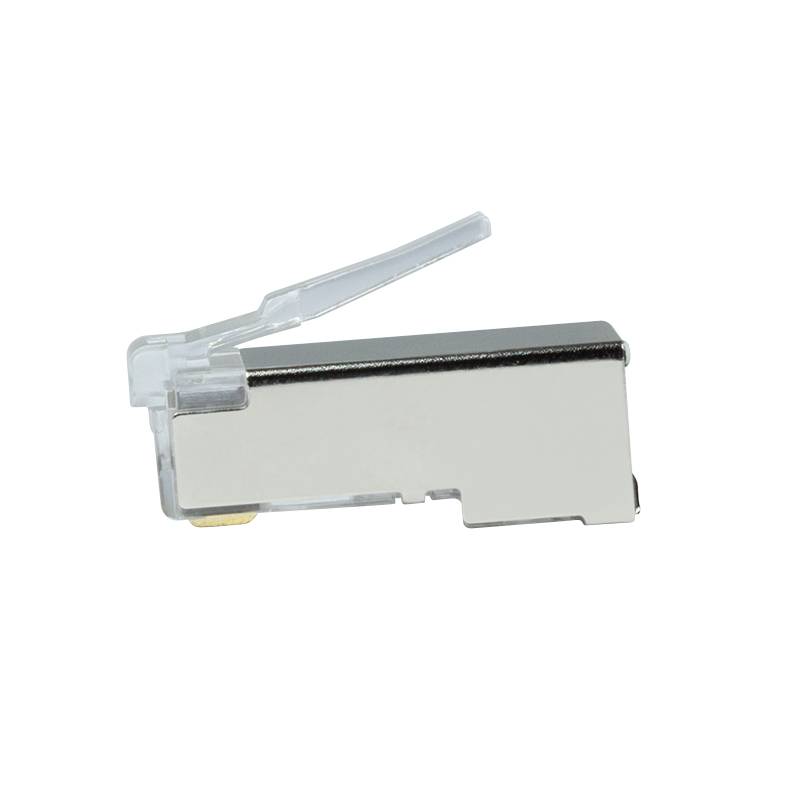

The LogiLink MP0070 is a pack of 50 shielded Cat.6A RJ45 modular plugs with guide plates, for building Cat.6 and Cat.6A patch cables to exact length. They take solid or stranded conductors of 24, 26 or 27 AWG in a cable with a 5.5–6.5 mm jacket, with conductor insulation up to 1.1 mm. The contacts are gold-plated with three prongs, and the guide plate (load bar) keeps the pairs in order while crimping. In practice they are the plugs for installers who make shielded 10G patch leads on site.
Compatibility — check before buying:
Check the cable before ordering: 24–27 AWG, jacket 5.5–6.5 mm and insulation up to 1.1 mm. Thick 22/23 AWG installation cable (many Cat.7 and some Cat.6A cables) will not fit — LogiLink offers MP0078 for that. Boots and the crimp tool are not included (LogiLink boots: MP0064 for 8.0 mm, MP0066 for 6.5 mm). Unshielded version: MP0071. Send us the cable data sheet and we match the plug.
Best For
✓ Custom-length patch cables
✓ Shielded Cat.6A patch leads
✓ Rack and cabinet wiring
✓ Access points and cameras on site
✓ Repairing damaged plugs
✓ Installer stock
Key Features
Shielded Cat.6A
Metal-shielded plugs for 10G patch cables.

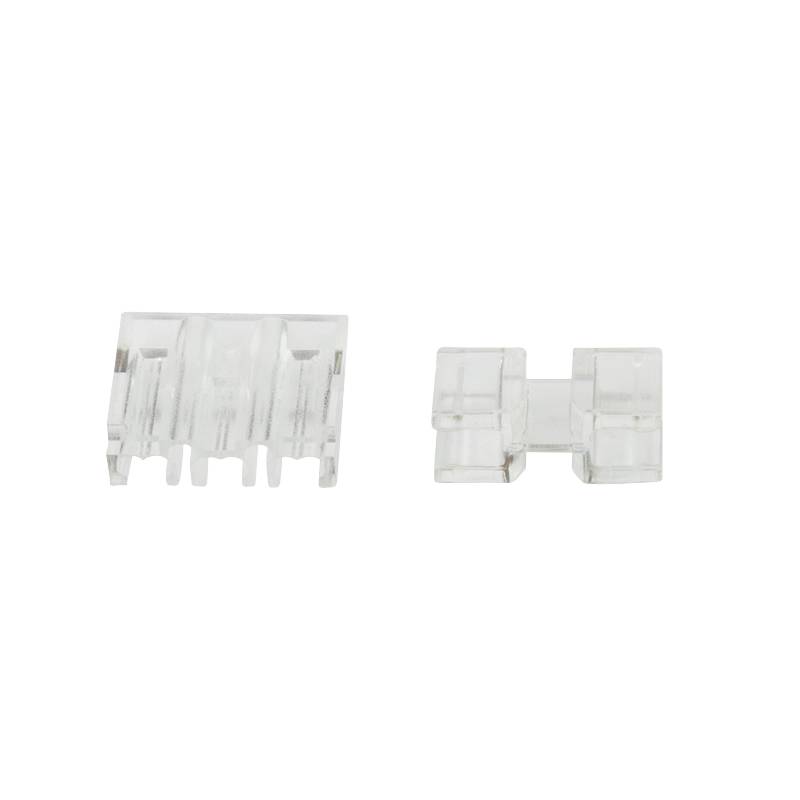

Guide plate included
Keeps the conductors in order for a clean crimp.
Solid and stranded
Works with both conductor types, 24–27 AWG.
50-piece pack
Enough plugs for 25 double-ended cables.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The most common mistake with field plugs is a cable that is too thick: check AWG and jacket diameter before ordering. For 10G links, a factory patch cable is still the most reliable choice; field plugs are best where exact lengths matter. For switches and network cards, see our switches and network cards. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.
Buyer’s Guide
Buy it if
You make shielded Cat.6/6A patch cables from 24–27 AWG cable.
Skip it if
Your cable is 22/23 AWG or you need unshielded plugs.
Also consider
LogiLink MP0071 — the same plug, unshielded (UTP).
Features - LogiLink - MP0070
More Details
Product Code
04:270944
EAN Code
4052792049350
Manufacturer
LogiLink
