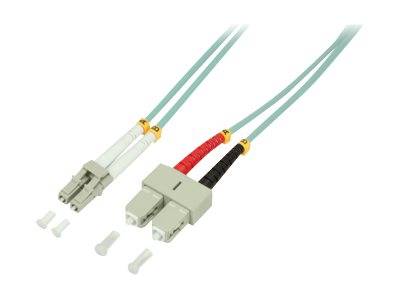

LogiLink FP3LS01 Fiber Optic Patch Cable, 1 m, OM3 Duplex, LC/UPC to SC/UPC

Brand:
LogiLink
LogiLink Patch cable SC multi-mode (M) to LC FP3LS01
LogiLink FP3LS01 Fiber Optic Patch Cable, 1 m, OM3 Duplex, LC/UPC to SC/UPC
€7.39 inc. VAT
Buy
FP3LS01
€6.21
€7.39 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:165173
EAN Code
4052792017922
Manufacturer
LogiLink

Quick Specs

Package dimensions
200 × 200 mm
Package weight
0.022 kg
Carton dimensions
420 × 250 × 250 mm
Carton weight
5.4 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

LogiLink FP3LS01 OM3 Duplex Fibre Patch Cable - 1 m

The LogiLink FP3LS01 is a 1 m duplex OM3 multimode fibre optic patch cable for connecting network equipment with LC/UPC and SC/UPC ports. Its aqua LSZH jacket, UPC-polished connectors and supplied measurement protocol make it a practical choice for structured fibre links up to 10 Gbit/s over distances up to 300 m.
200 × 200 mm 0.022 kg 420 × 250 × 250 mm 5.4 kg

The LogiLink FP3LS01 is a 1 m duplex OM3 multimode fibre optic patch cable for connecting network equipment with LC/UPC and SC/UPC ports. Its aqua LSZH jacket, UPC-polished connectors and supplied measurement protocol make it a practical choice for structured fibre links up to 10 Gbit/s over distances up to 300 m.

Best For
✓ A suitable choice for network installers
✓ IT teams
✓ Businesses that need a short duplex OM3 multimode connection between LC/UPC
✓ SC/UPC equipment or patching hardware

Key Features


Commercial Fit
The key advantage is the exact LC/UPC-to-SC/UPC duplex configuration combined with OM3 multimode fibre, a 1 m length, LSZH construction and a supplied measurement protocol for controlled installation work.

Carton Dimensions
Carton Dimensions: 420 × 250 × 250 mm

Package Dimensions
Package Dimensions: 200 × 200 mm

Carton Weight
Carton Weight: 5.4 kg

Technical Specifications

Product Type Fiber optic patch cord
Cable Type Duplex fiber patch cord
Fiber Mode Multimode
Fiber Category OM3
Fiber Specification I-VH 2G 50/125 µm OM3
Core/Cladding Diameter 50/125 µm
Cable Length 1 m
Connector Configuration LC/UPC to SC/UPC
Connector 1 LC male, UPC polished
Connector 2 SC male, UPC polished
Connector Polishing Ultra Physical Contact (UPC)
Number of Fibers 2
Maximum Application Up to 10 Gbit/s over 300 m
Jacket Material LSZH (Low Smoke Zero Halogen)
Jacket Colour Aqua
Cable Outer Diameter 2.0 mm
Halogen-Free Yes | IEC 60754-2
Low-Smoke Rating IEC 61034
Flame-Retardant Rating IEC 60332-1
Insertion Loss 97% ≤ 0.25 dB | mean ≤ 0.12 dB
Return Loss ≥ 30 dB
Quality Class Minimum Grade A/1 according to IEC 61753-222-2
Quality Control Each cable includes a measurement protocol
Standards DIN EN 50173-1 | IEC/ISO 11801
Package Contents 1 × Fiber Patch Cord OM3 50/125 µm
Package Dimensions 200 × 200 mm
Package Weight 0.022 kg
Carton Quantity 200 pcs
Carton Dimensions 420 × 250 × 250 mm
Carton Weight 5.4 kg
Country of Manufacture China
Manufacturer LogiLink
Manufacturer SKU FP3LS01
EAN 4052792017922

Frequently Asked Questions

What should I know before buying?
Check that both connected devices use LC/UPC and SC/UPC ports and that the installation requires duplex OM3 multimode fibre. This is a 1 m patch cable, so a different length or connector configuration may be needed for other layouts.
What is included in the box?
1 × Fiber Patch Cord OM3 50/125 µm
What are the key specifications?
Carton Dimensions: 420 × 250 × 250 mm | Package Dimensions: 200 × 200 mm | Carton Weight: 5.4 kg
Singular Expert Insight
The key advantage is the exact LC/UPC-to-SC/UPC duplex configuration combined with OM3 multimode fibre, a 1 m length, LSZH construction and a supplied measurement protocol for controlled installation work.

Buyer’s Guide

Buy it if
A suitable choice for network installers, IT teams and businesses that need a short duplex OM3 multimode connection between LC/UPC and SC/UPC equipment or patching hardware.
Skip it if
Check that both connected devices use LC/UPC and SC/UPC ports and that the installation requires duplex OM3 multimode fibre. This is a 1 m patch cable, so a different length or connector configuration may be needed for other layouts.

Features - LogiLink - FP3LS01

Length
1.0m
More Details
Product Code
04:165173
EAN Code
4052792017922
Manufacturer
LogiLink
