LogiLink NP0004 Cat.6 UTP Patch Panel 24-Port 19 Inch 1U 180 Degree LSA Termination 250 MHz EconLine Black RAL 9005

Brand:
LogiLink
LogiLink NP0004 Cat.6 UTP Patch Panel 24-Port 19in 1U
LogiLink NP0004 Cat.6 UTP Patch Panel 24-Port 19 Inch 1U 180 Degree LSA Termination 250 MHz EconLine Black RAL 9005
€30.08 inc. VAT
Buy
NP0004
€25.28
€30.08 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:86283
EAN Code
4260113562093
Manufacturer
LogiLink

Quick Specs

Ports
24 × RJ45 Cat.6
Format
19″ rack panel, 1U
Termination
180° LSA
Shielding
Unshielded (UTP)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

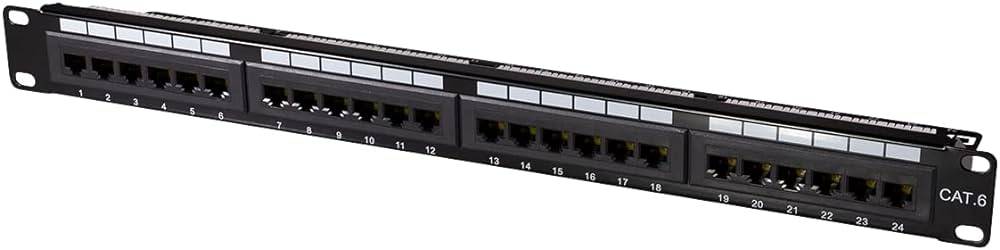

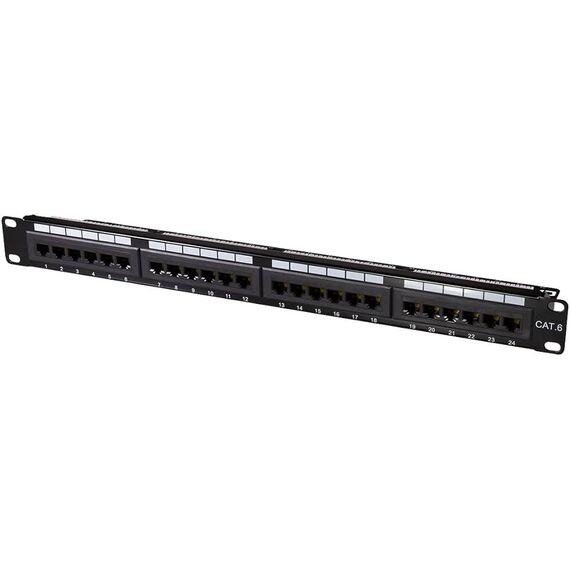

LogiLink NP0004 — Cat.6 24-Port UTP Patch Panel, 19″ 1U, Black

24 × RJ45 Cat.619″ rack, 1U180° LSAUnshielded

The LogiLink NP0004 is a 24-port Cat.6 unshielded patch panel for a standard 19-inch rack or network cabinet, taking one unit (1U) of height. It carries 24 RJ45 ports rated Cat.6 Class E at 250 MHz, with straight 180° LSA terminations for 22–26 AWG cable, labelling fields and a black steel frame one rack unit high. In practice every cable from the wall outlets is terminated once at the back and stays put, while short patch cords at the front connect the ports to your switch — so moving a desk or a phone is a one-cable change at the panel, not new cabling.

Compatibility — check before buying:
Check before buying: It is a 19″ panel and needs a 19″ rack or cabinet — it does not fit a 10″ mini rack. It is unshielded: with shielded cable (F/UTP, S/FTP) the shield has nothing to connect to, so choose a shielded panel for shielded installations. Not sure it suits your cabinet or cable? Send us the rack or cable type and we check it.

Best For

✓ Office network cabinets
✓ Server rooms and comms closets
✓ Terminating wall-outlet cable runs
✓ Neat patching to a switch
✓ Small business networks
✓ Structured cabling projects

Key Features


180° LSA terminations
Straight-through LSA terminations at the back take 22–26 AWG solid or stranded conductors with an LSA (Krone) tool.

T568A / T568B colour coding
Each connector is colour-coded for both wiring schemes, so the installer terminates to the standard already used in the building.

Performance class
Rated Class E, 250 MHz, for Gigabit Ethernet links on correctly installed Cat.6 cabling.

Labelling fields
Labelling fields on the front keep outlet-to-port records clear for anyone who patches later.

Technical Specifications

Identification
Brand LogiLink
Product Cat.6 Patch Panel 24-Port UTP, 180° Termination, EconLine
Part Number NP0004
EAN / GTIN 4260113562093
Colour Black (RAL 9005)
Connectivity
Ports 24 × RJ45
Category Cat.6 — Class E, 250 MHz
Speed Gigabit Ethernet
Shielding Unshielded (UTP)
Termination 180° LSA
Wiring EIA/TIA 568 A & B
Cable 22–26 AWG solid or stranded
Mechanical
Format 19″ rack panel, 1U
Dimensions 483 × 28 × 44.2 mm (W × D × H)
Weight 0.47 kg
Material Steel
Labelling Labelling fields included
Standards & Compliance
Standards ISO/IEC 11801, TIA/EIA 568B.2-1
Compliance Not published by LogiLink
Installation Notes
Planning Match the number of panel ports to your switch ports and allow one short patch cord per port; leave spare ports for future outlets.
Terminating Strip only as much jacket as needed, keep the pairs twisted up to the contacts and follow one wiring scheme (T568A or T568B) throughout the building.
Testing Test every run with a cable tester before patching it into the switch — it finds swapped pairs and poor terminations before users do.
In the Box
Included 1 × 19″ Cat.6 patch panel, 24 ports, UTP, black
Not Included LSA punch-down tool, patch cords, cage nuts and rack screws, cable management bar
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LogiLink does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my rack?
This is a 19″ rack panel, 1U. It needs a standard 19-inch rack or cabinet with one free unit; it does not fit 10-inch mini racks. Send us your cabinet model and we check the fit.
What tool do I need to terminate it?
An LSA (Krone) punch-down tool for the 180° LSA terminations. No tool is included.
Can I use shielded cable with it?
You can connect it, but the panel is unshielded, so the cable shield is not terminated or earthed and you lose its benefit. For shielded installations choose a shielded panel — we can suggest one.
Is it fast enough for my network?
It is rated Class E, 250 MHz for Gigabit Ethernet. The whole link — cable, outlets, patch cords — must be at least the same category to reach that speed. For 10 Gigabit over longer runs, the full link must be Cat6A.
Singular Expert Insight
We suggest the NP0004 as a straightforward 24-port Cat6 panel for a 24-port switch in a 19-inch cabinet: Gigabit, one unit, LSA terminations. At 28 mm deep it suits shallow wall cabinets. For shielded or 10 Gigabit installations choose a shielded Cat6A panel. If you are planning a new cabinet, tell us the number of outlets and the switch you use and we suggest the panel, patch cords and tools together. Every order comes with Singular’s local support in Cyprus. See our patch panels for other formats and port counts, and the network switches to connect them to.

Buyer’s Guide

Buy it if

You have up to 24 Cat6 UTP runs to terminate in a 19″ cabinet.

Skip it if

You run shielded cable or need Cat6A, or your rack is 10″.

Also consider

equip 235325, a 24-port Cat.5e panel with dual IDC.
