LogiLink 19-Inch 1U Rack PDU with On/Off Switch, 9 Schuko CEE 7/3 Sockets at 45°, 16 A, 2 m Cable, Aluminium, Black

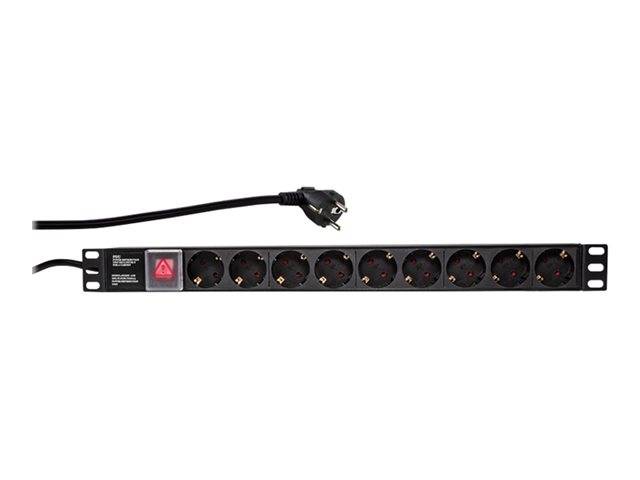

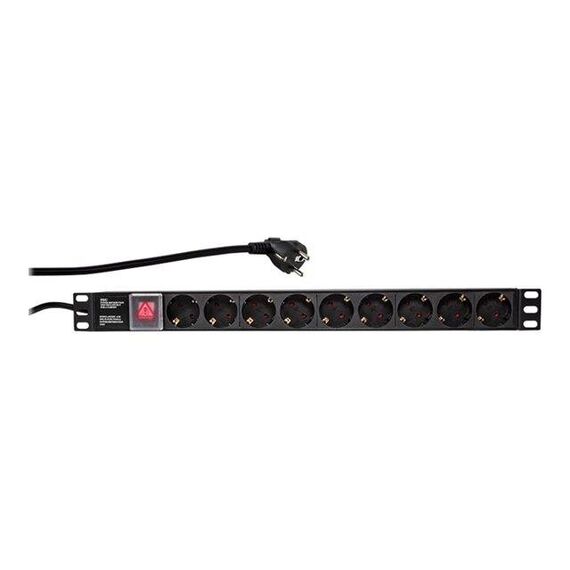

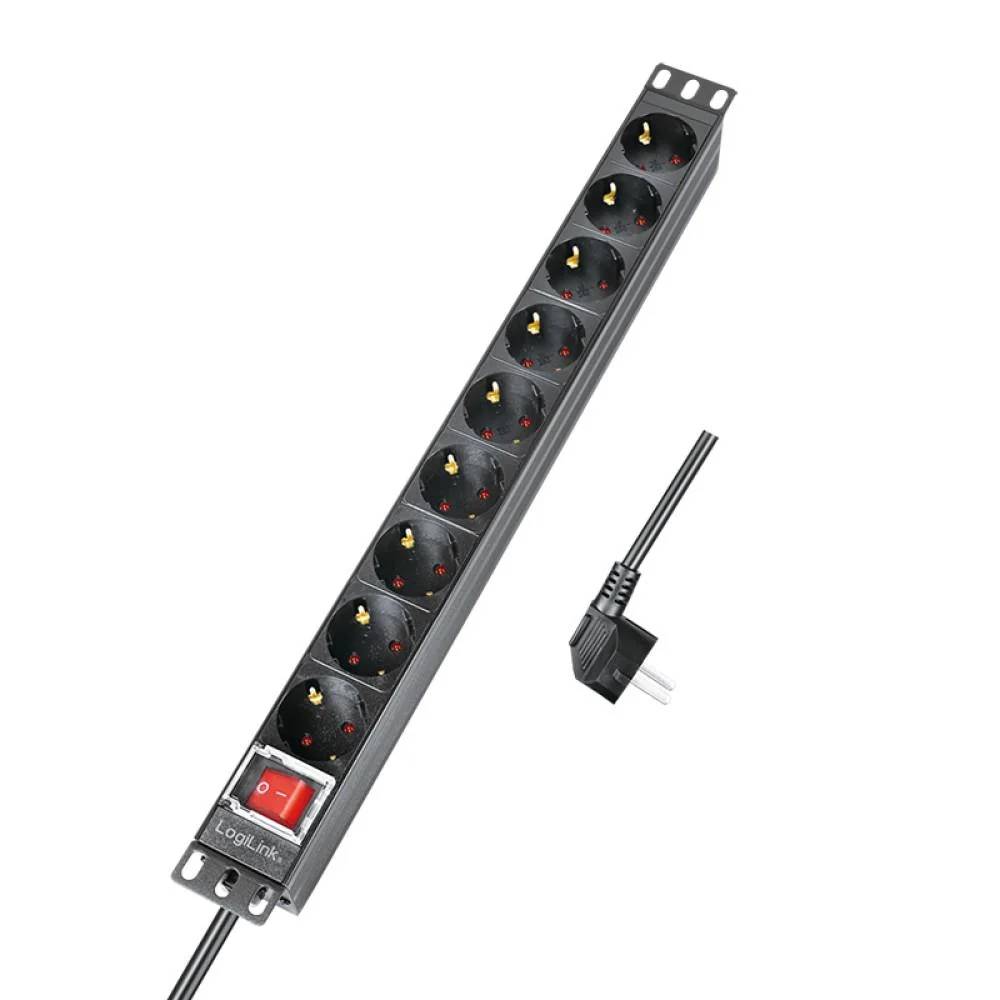

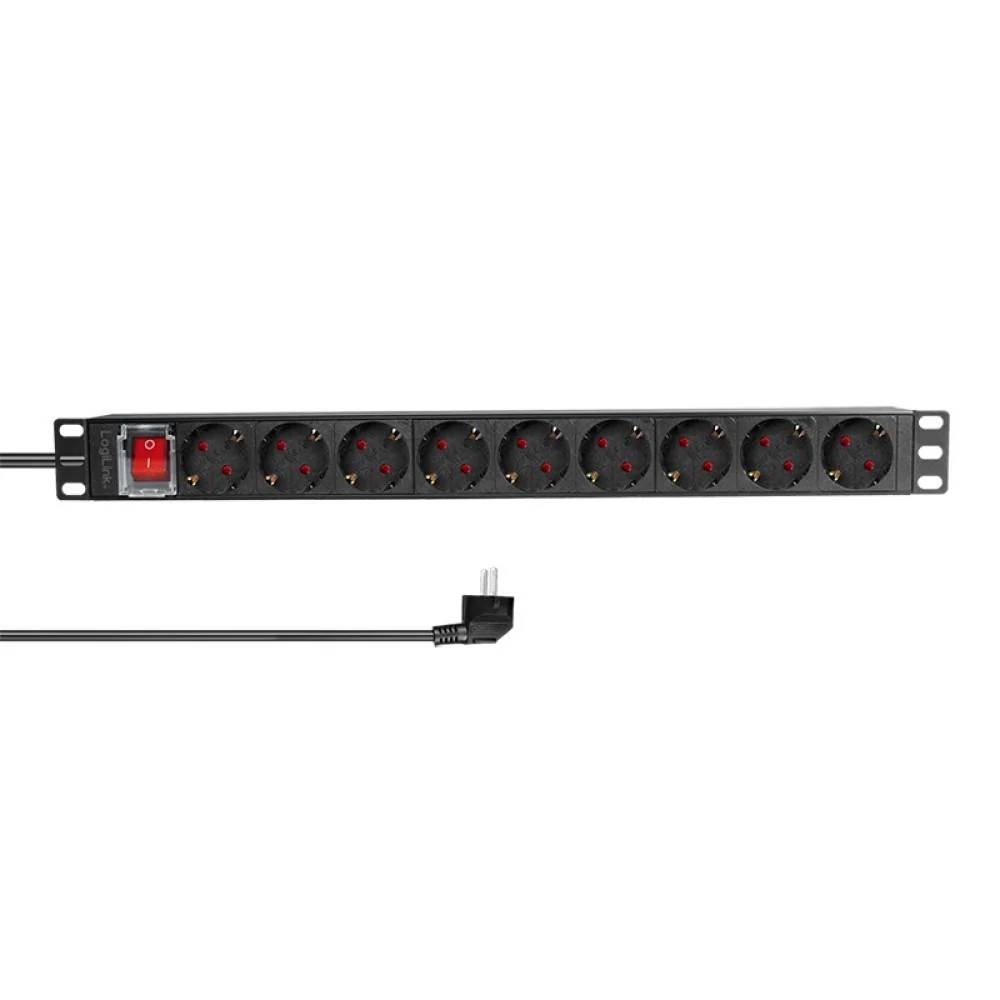

The LogiLink 9-way 19-inch rack PDU is a 1U aluminium power distribution strip with nine Schuko CEE 7/3 outlets offset at 45°, an on/off switch and a 2 m H05VV-F 3×1.5 mm² cable with angled CEE 7/7 plug, rated for 16 A at 230 V.

Fitted horizontally in 1U of a 19-inch cabinet or rack, it gives switches, routers, servers, NAS units and patch-room equipment their own Schuko power rail instead of a loose floor strip — tidier cabling, plugs that stay put, and power at the back of the rack where the equipment needs it.

• 1 × LogiLink 19-inch 1U PDU with 9 Schuko outlets, on/off switch and fixed 2 m cable
• Cage nuts and rack screws are not listed — use the ones supplied with your cabinet

• 9 Schuko outlets in a single rack unit — enough for a typical small-office rack with switch, router, firewall, NAS and a couple of servers.
• Nine outlets is the most you get in a single 1U Schuko PDU — useful when every rack unit counts.

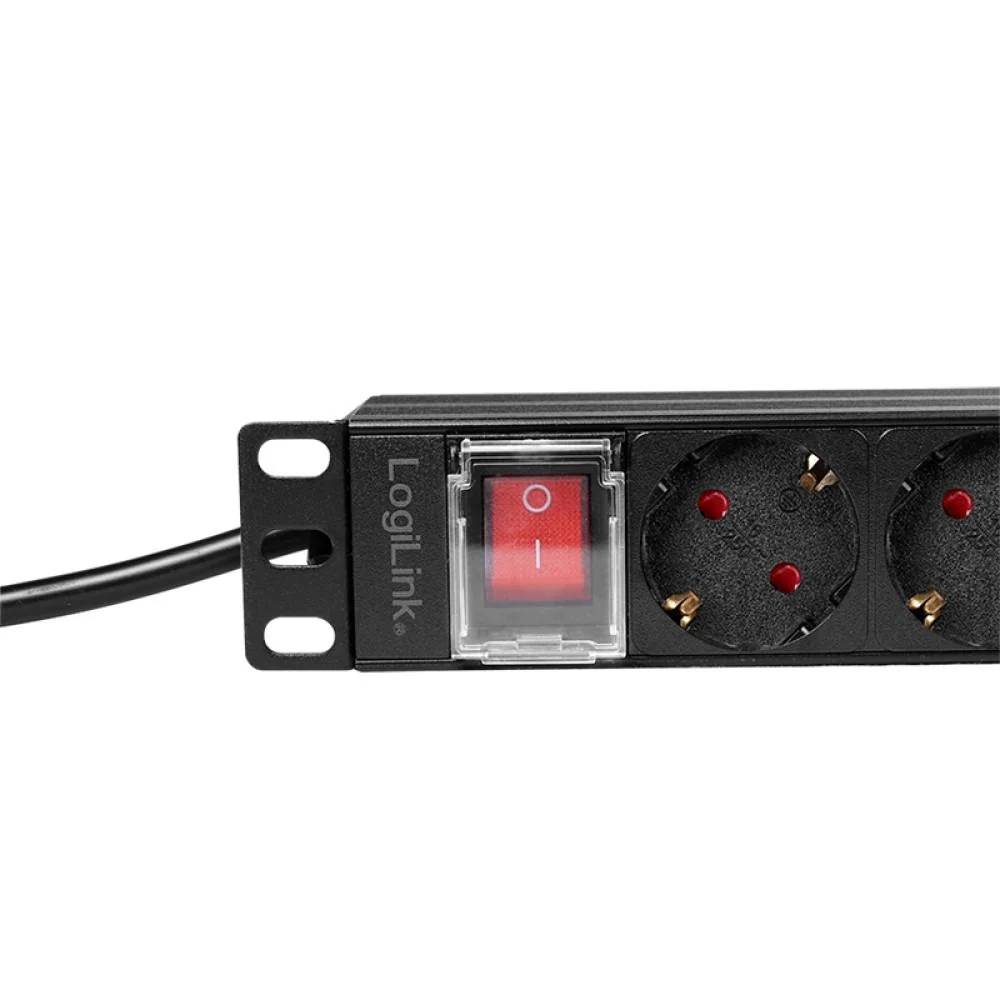

• The on/off switch powers the whole rack row down in one action for maintenance; in a shared cabinet keep it where it cannot be knocked by accident.

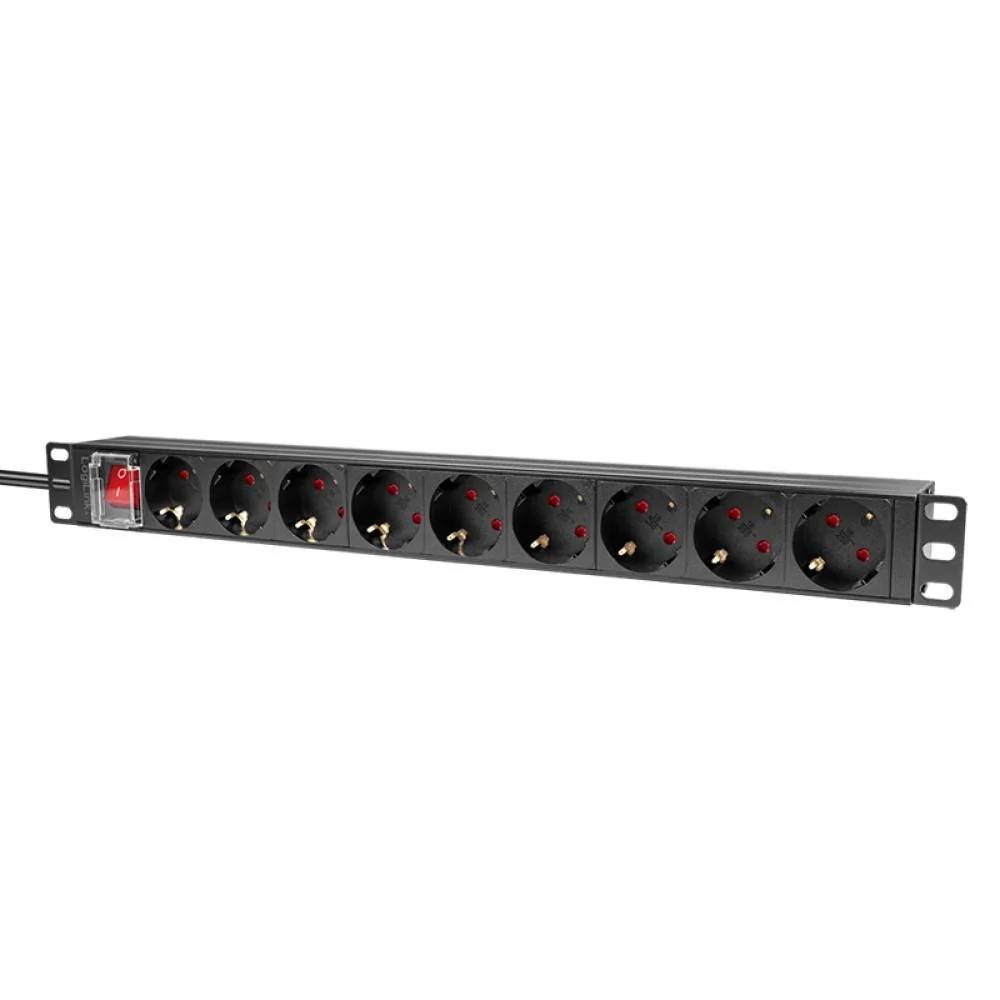

• Sockets turned 45° accept angled plugs and power bricks without blocking neighbours.
• Most rack equipment ships with IEC (C13) to Schuko power cords in Europe, so it plugs straight in; equipment with UK cords needs a Schuko cord or adapter.

• The Schuko plug will not fit a standard Cyprus wall socket without an adapter, and UK-plug devices will not fit the outlets.
• It is a passive distribution strip: no metering, no remote switching and no network management.
• There is no surge or overload protection listed for this model — rely on the building circuit breaker and a UPS for protection.
• Not for outdoor or damp areas (IP20).
• It does not keep equipment running during a power cut — put a UPS in front of it if uptime matters.
