LogiLink 19-inch 1U Rack PDU with 8 Schuko Outlets, 2 USB-A Charging Ports and Overload Protection, 16A, 1.8m, Black
Brand:
LogiLink
LogiLink 19-inch 1U Rack PDU with 8 Schuko Outlets, 2 USB-A Charging Ports and Overload Protection, 16A, 1.8m, Black
€44.09 inc. VAT
PDU8C02
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

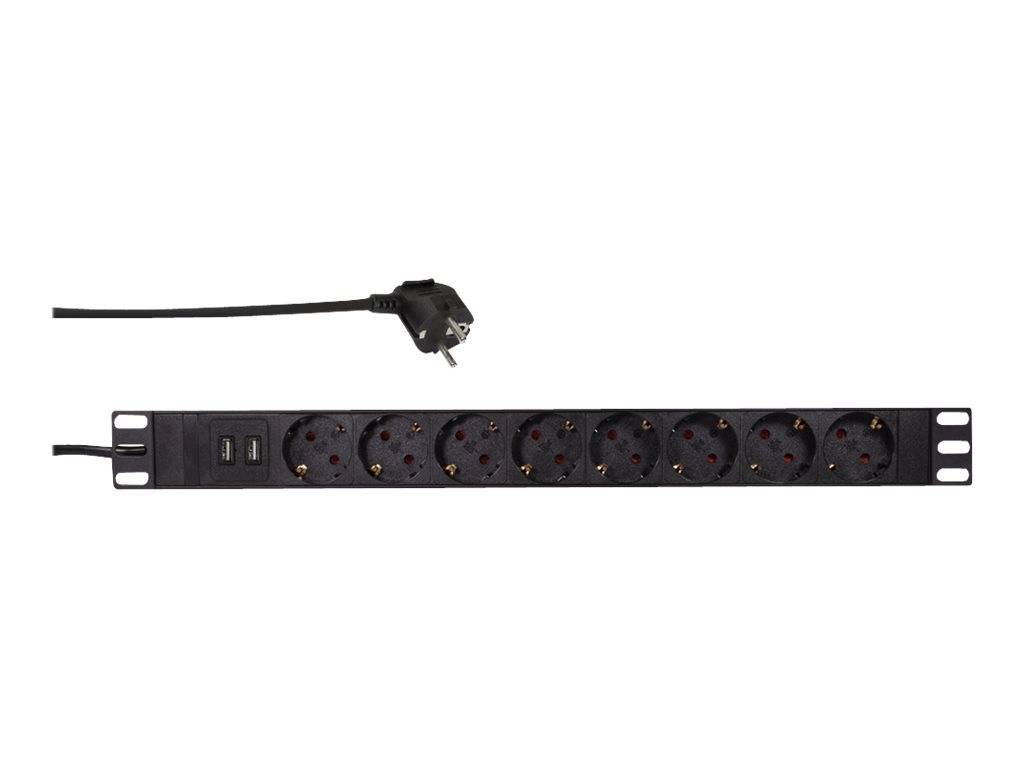

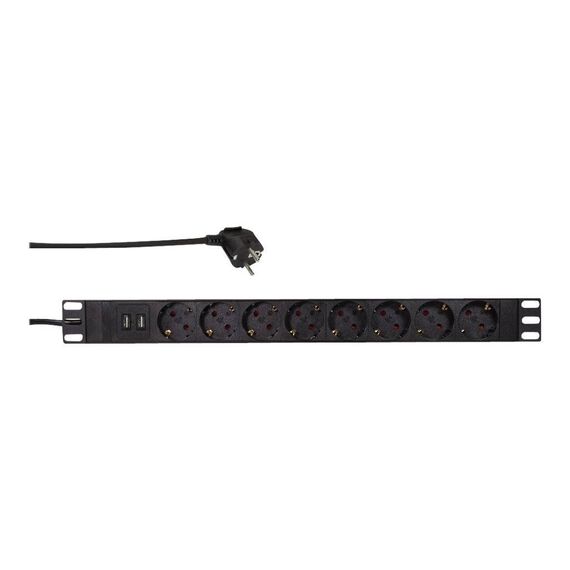

LogiLink PDU8C02 — 1U Rack PDU with 8 Schuko Outlets and 2 USB-A Ports
8 × Schuko 45°2 × USB-AOverload protection16 A
The LogiLink PDU8C02 is a 19-inch, 1U rack PDU with eight Schuko outlets, two USB-A charging ports and overload protection, for network cabinets that power ordinary Schuko-plugged devices plus small USB-powered accessories.
The sockets are turned 45° for power adapters, the black aluminium profile mounts horizontally in one rack unit, and the strip can also be used standalone. It connects to a wall socket or Schuko UPS output with a 1.8 m cable and angled plug.
Before you order: LogiLink publishes overload protection for this model, not surge protection. The USB-A ports are for charging small devices; they are not USB-C and not Power Delivery. Total load is 16 A for all outlets.
What's in the Box
- 1 × LogiLink PDU8C02 rack PDU with fixed 1.8 m cable
- 1 × screw package
- 1 × user manual
What It Means in Practice
- Eight Schuko sockets plus two USB-A ports cover a full small-office cabinet.
- USB-powered gadgets (media converters, small IoT hubs, a phone during maintenance) no longer need their own charger.
- Overload protection cuts in when too much is connected to the strip.
- The angled plug keeps the cable flat behind the rack.
What Will Not Work
- No surge protection is published — for surge-protected power look at LogiLink PDU8A01 (C13) or Equip 333315 (Schuko + USB).
- USB-A only: no USB-C, no fast charging or laptop charging.
- IEC C13 cords do not fit the Schuko outlets.
- No switch, metering or remote control is listed.
Key Features
Eight Schuko outlets
CEE 7/3 sockets turned 45° for adapters and angled plugs.
Two USB-A ports
Built-in USB-A charging ports for small devices.
Overload protection
Protection rated 16 A / 230 V.
Aluminium 1U housing
Black aluminium profile, IP20, rack or standalone use.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Good value when you want Schuko sockets and a couple of USB ports in one rack unit, and the cabinet already sits behind a UPS or protected circuit. For shelves, blanking panels and cable managers, see our rack accessories.
✓ Buy it if you need eight Schuko outlets plus USB-A charging in a 1U strip.
✕ Skip it if surge protection is a requirement, or you need USB-C PD.
→ Also consider Equip 333315 (7 Schuko, 2 USB, surge protection) or LogiLink PDU8A01 (8 × C13 with surge protection).
Tell us what you will connect, including USB devices, and we will check it fits before you order.
Features - LogiLink - PDU8C02
Colour
black
More Details
Product Code
04:331550
EAN Code
4052792055580
Manufacturer
LogiLink
