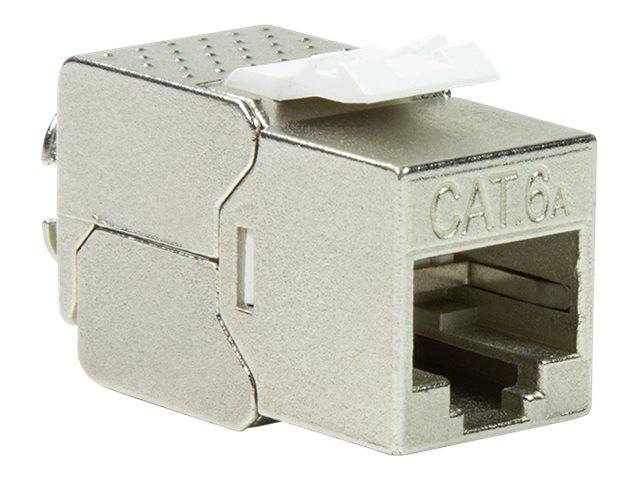

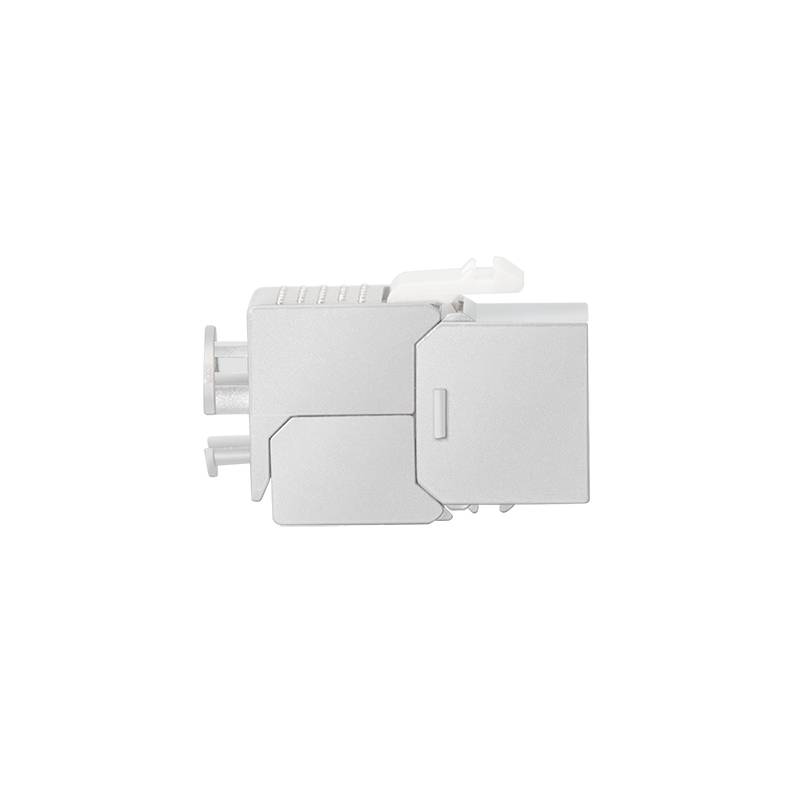

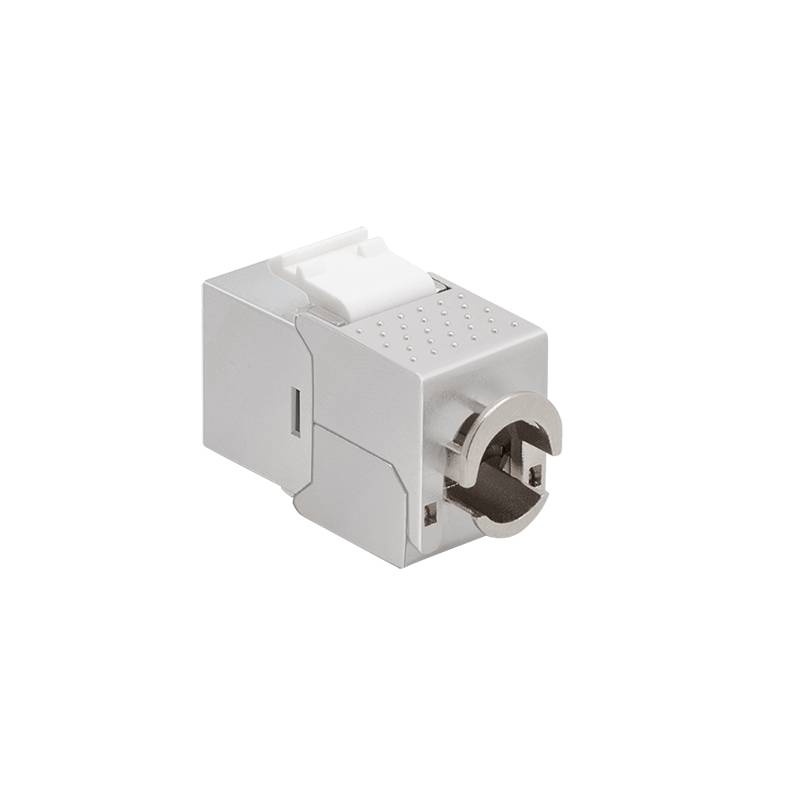

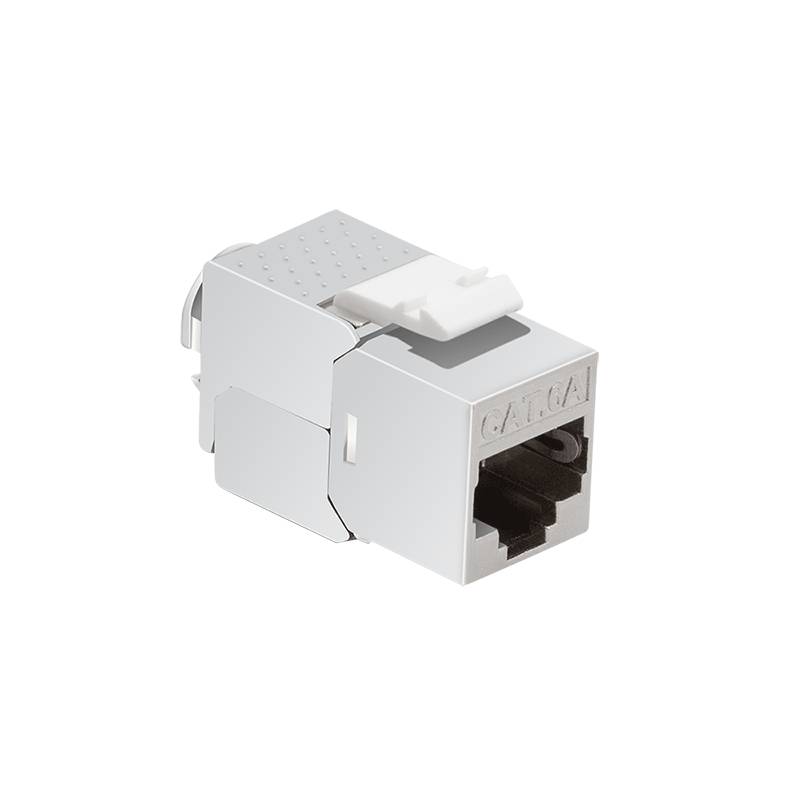

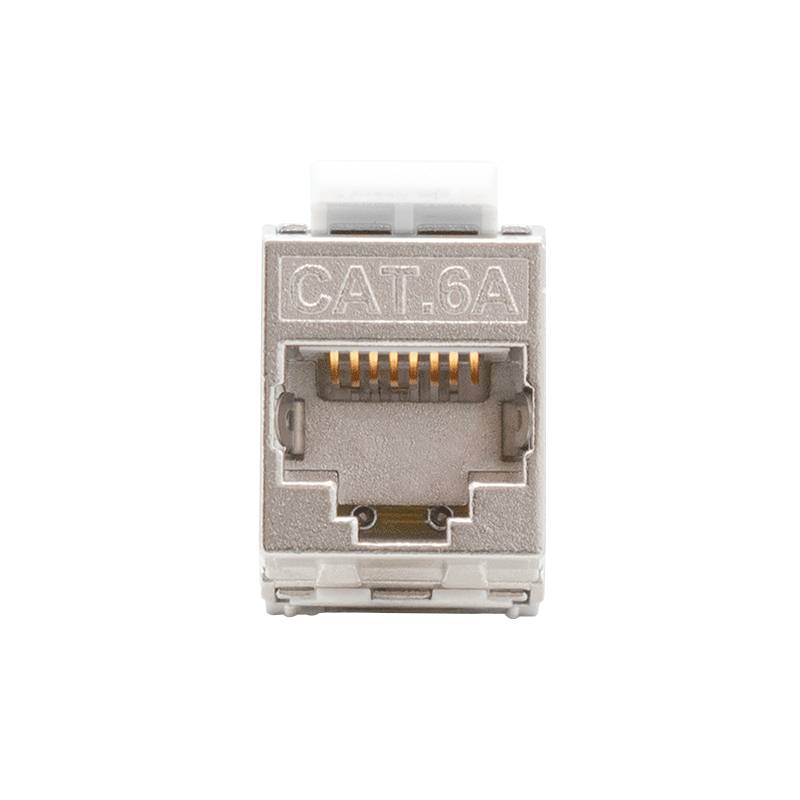

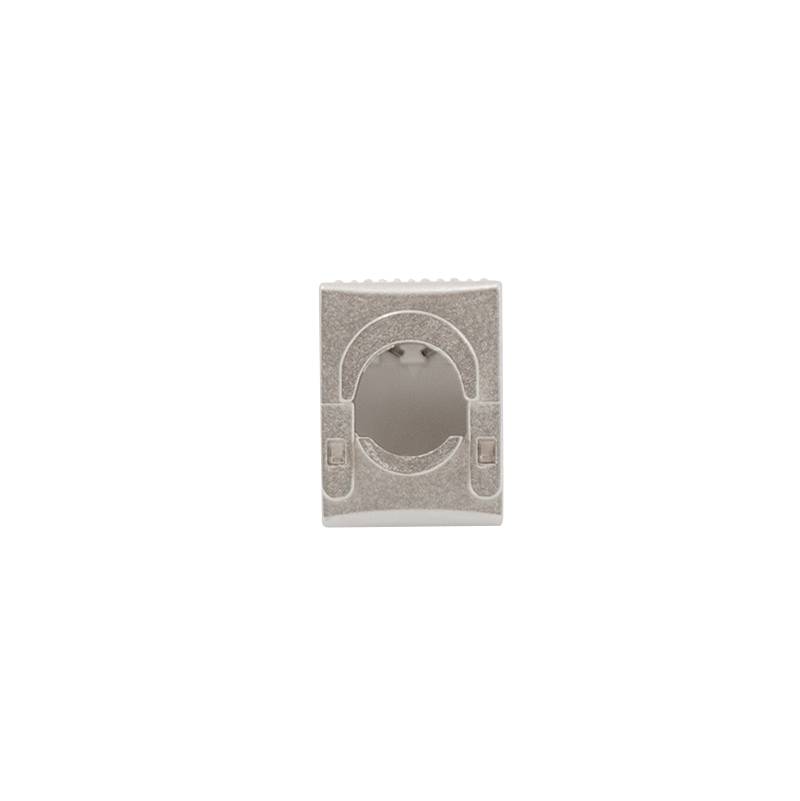

LogiLink PrimeLine / Keystone connector / RJ-45 (F) slim / STP / CAT 6a / IEEE 802.3af/IEEE 802.3at / silver | NK4019
Please sign in so that we can notify you about a reply
Special Features
- Modular RJ45 keystone jack Cat.6A, 10 Gbps, 500 MHz
- Cat.6A channel link verified (GHMT, 3P, Delta)
- SlimLine - super slim housing - only 14.5mm width
- According to ISO/IEC 11801 and TIA/EIA 568
- 360° shielded Zinc-alloy die-cast housing, crocodile type
- Suitable for AWG22-26 solid wire (0.40-0.65mm)
- Suitable for round cable 6 - 8.5mm outer dimension
- Design compatible, fits in all common outlets and panels
- Supports PoE, PoE+ and PoE++
- Suitable for keystone panels and outlets
Product Specification
| Network Cable Type | Keystone connector - CAT 6a - IEEE 802.3af/IEEE 802.3at |
| Technology | Shielded twisted pair (STP) |
| Shielding Material | Zinc alloy |
| Features | Toolless, PoE+ Ready, zinc die-cast housing, GHMT certified, PoE ready, PoE++ ready, snap closure |
| Width | 1.48 cm |
| Depth | 3.45 cm |
| Height | 1.91 cm |
| Weight | 20 g |
| Colour | Silver |
| Connectivity | Connectivity |
| Connector | RJ-45 - female - slim |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, WEEE, ISO/IEC 11801, TIA/EIA-568-C.2, IEC 60603-7-5, EN 50173-1:2011-09 - up to 500 MHz |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 12 cm |
| Shipping Depth | 7.9 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
Features - LogiLink - NK4019
More Details
Product Code
04:343972
EAN Code
4052792060256
Manufacturer
LogiLink
