LogiLink OR104B 19-inch 1U Cable Management Panel with 5 Adjustable Plastic Brackets, 1.5 mm Steel, Black

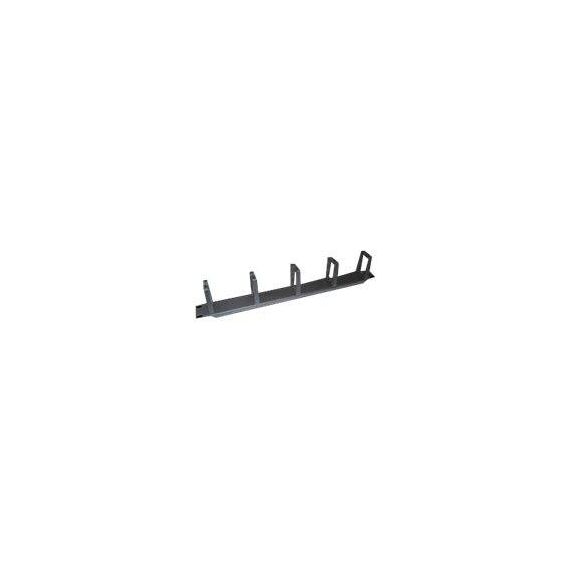

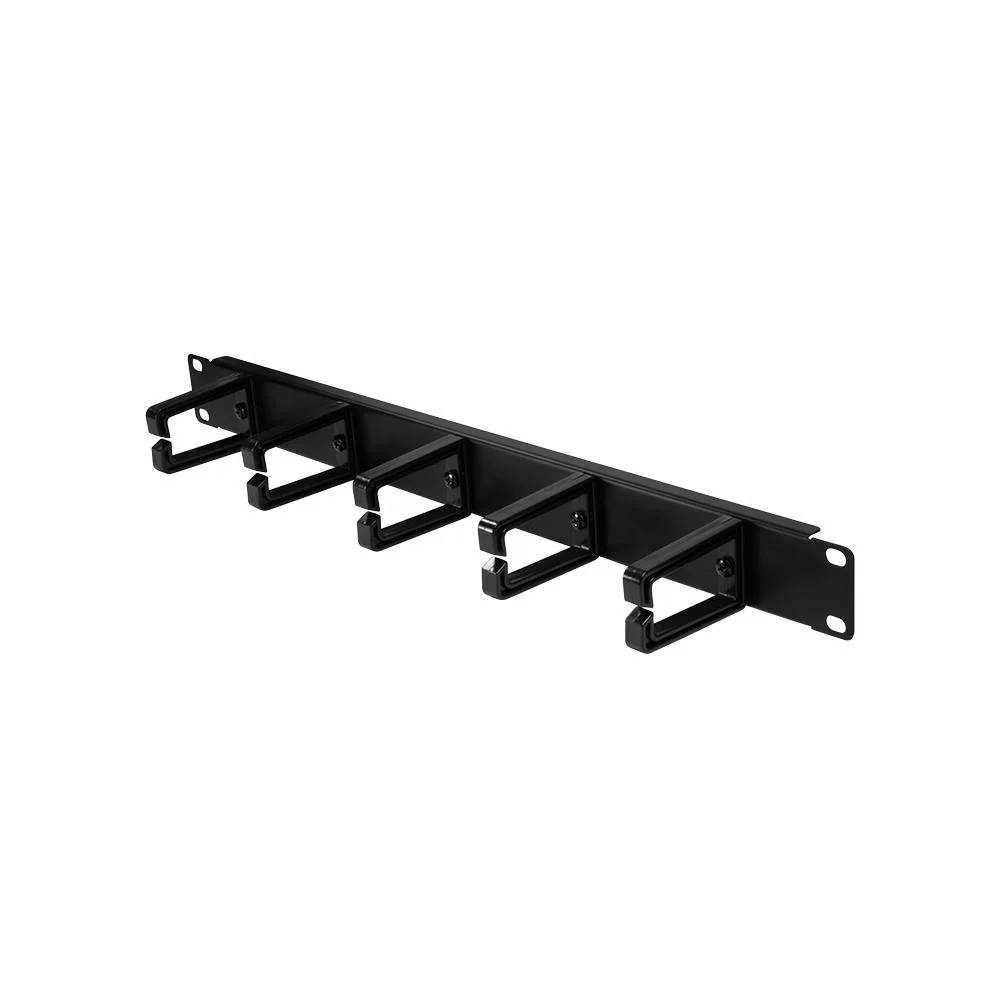

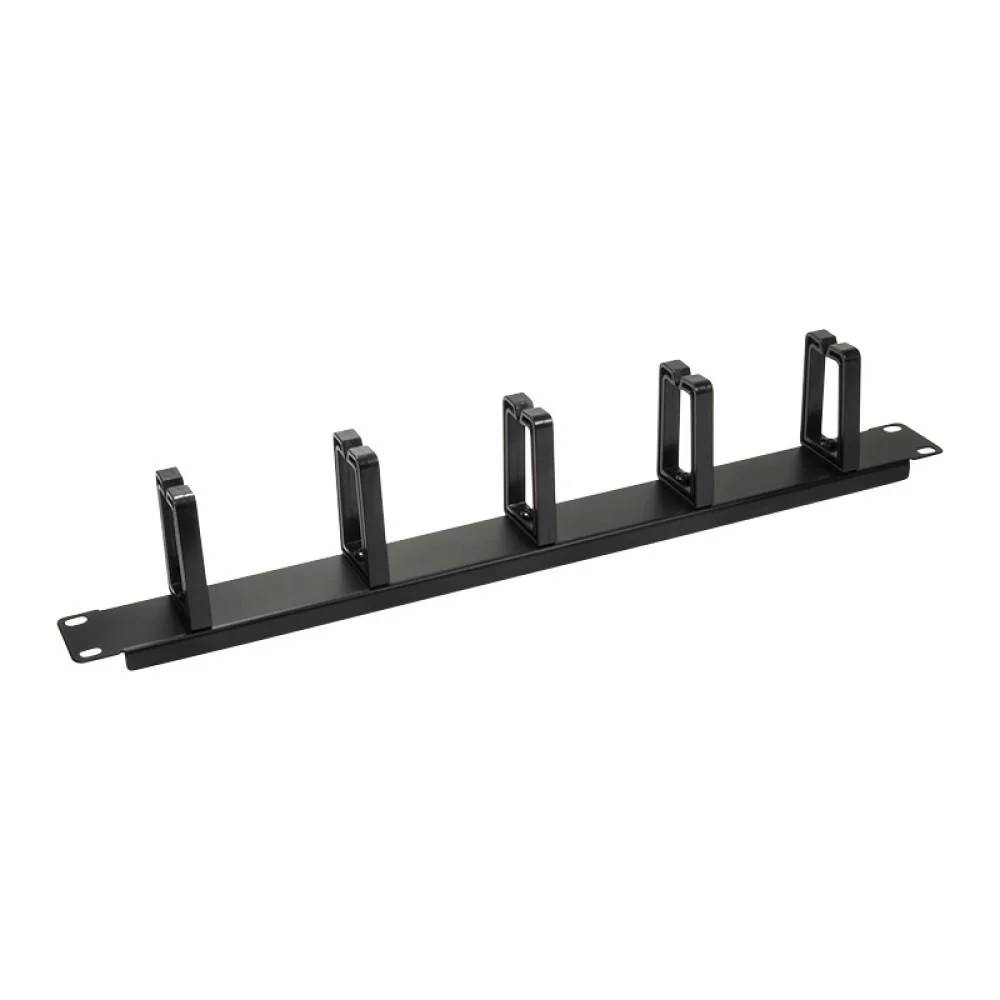

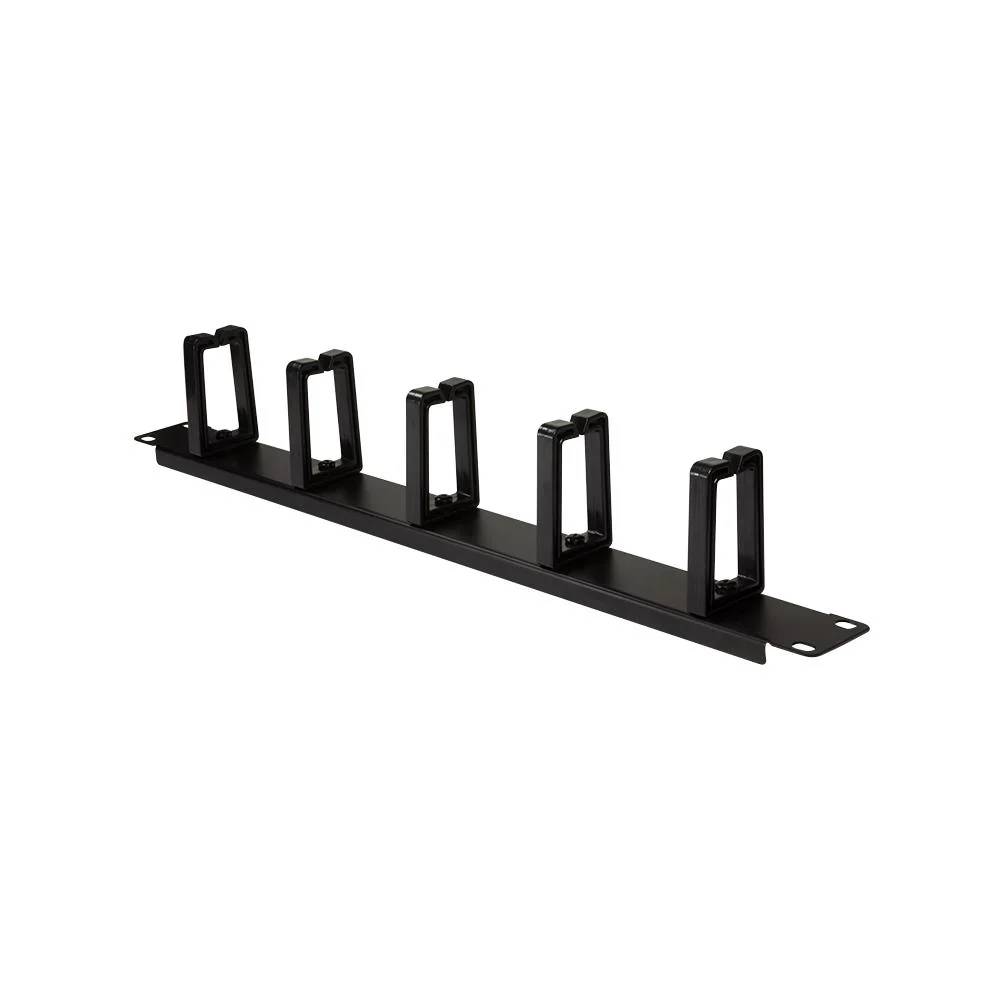

The LogiLink OR104B is a 19-inch 1U cable management panel with five adjustable plastic brackets on a painted 1.5 mm steel plate in black, for routing patch cords horizontally between switches and patch panels in a network rack.

Without cable management, patch cords hang in front of ports, block airflow and make it hard to trace a single connection. A 1U panel with brackets between a patch panel and a switch gives each group of cords a defined path: they run sideways through the brackets and drop to the right port. The rack stays readable, and changes take minutes instead of an hour of untangling.

• 1 × LogiLink 19-inch 1U cable management panel with 5 plastic brackets, black
• Mounting screws and cage nuts are not listed by LogiLink — have four on hand

• Takes one height unit. The usual layout is patch panel, cable manager, switch — repeated down the rack.
• Five brackets split the cords into groups, for example one bracket per block of ports.

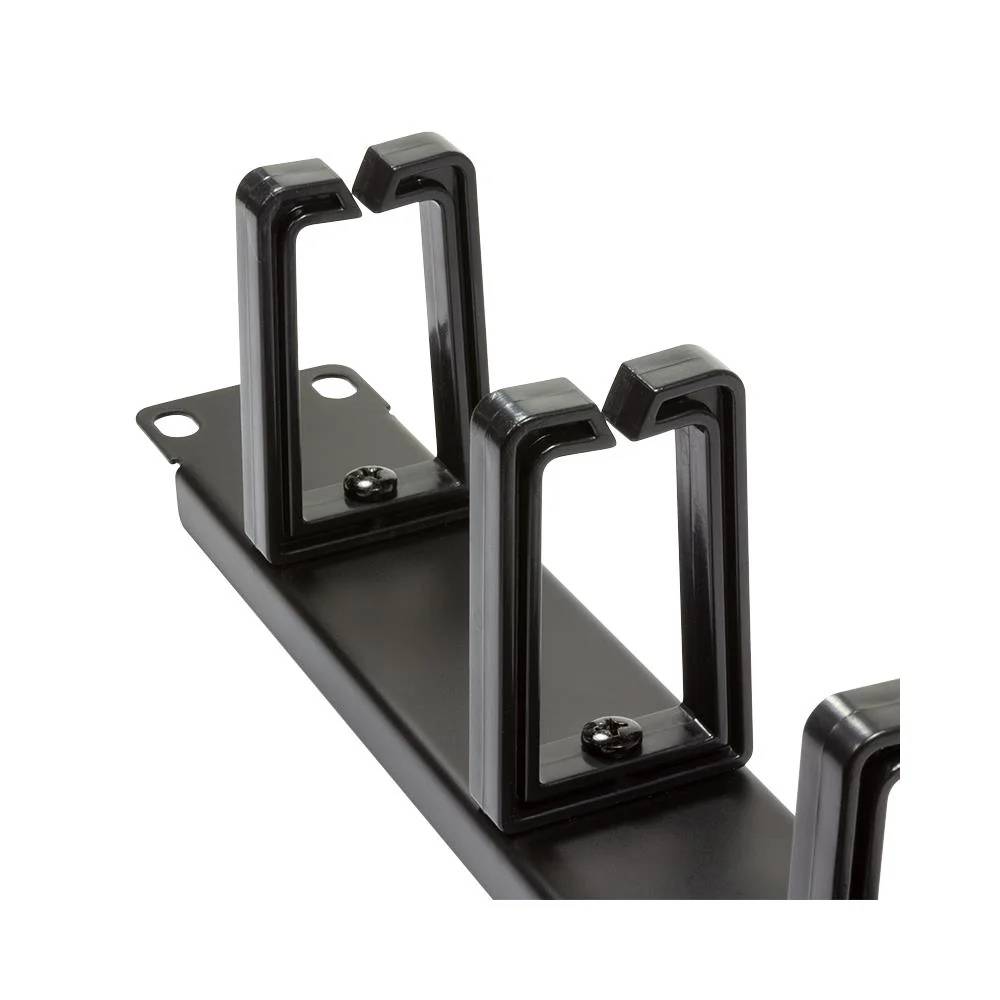

• The brackets are adjustable, so you can position them to match the port groups of your equipment.
• Installs in the 19-inch front profile plane, like any other 1U panel.

• 10-inch cabinets: the panel is made for 19-inch racks.
• Vertical cable management: this panel routes cables horizontally across the rack; for vertical runs use D-ring hooks on the side rails.
• Toolless fitting: it mounts with rack screws, which are not listed in the scope of delivery.
• Grey cabinets: the panel is black; the grey version is the OR104G.
