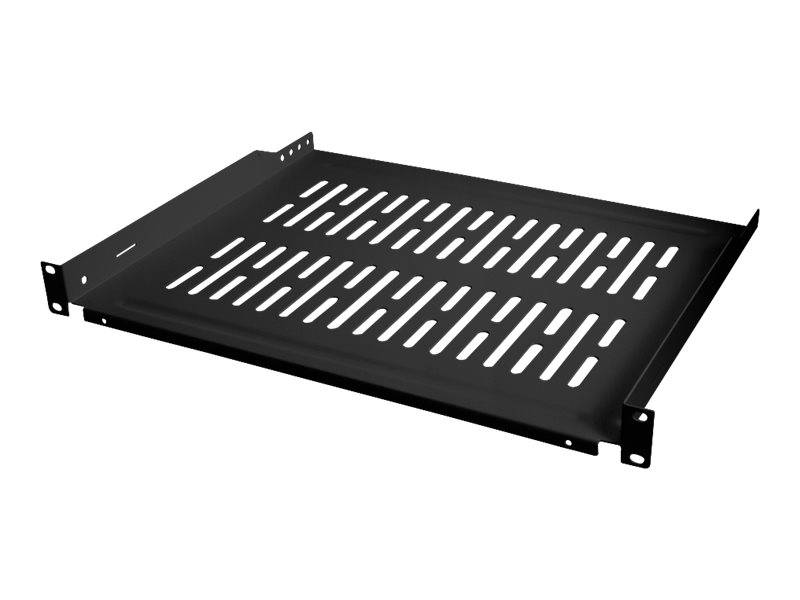

LogiLink SF1C45B 19" 1U Cantilever Rack Shelf, 350 mm Depth, Front Mount, 10 kg Load, Black

The LogiLink SF1C45B is a 1U 19" cantilever shelf that screws to the front rails only and gives you a 440 x 350 mm vented platform for equipment that is not rack-mountable — routers, modems, small NAS units, mini PCs or a DVR. It is sized for wall cabinets and shallow racks where there are no rear rails to support a full-depth shelf.

Because it hangs from the front profile alone, the shelf is rated for 10 kg static load, which covers typical small network devices. Ventilation slots let heat rise off the equipment, and the black RAL 9005 finish matches most modern cabinets.

• 1 x 19" 1U cantilever shelf, black
• M6 mounting kit (screws and cage nuts)

• Puts non-rackable devices (router, modem, NAS, mini PC) inside the cabinet instead of on the floor.
• Only needs the front 19" rails, so it fits wall cabinets without rear profiles.
• 350 mm depth suits typical small-office network gear while leaving room for cables behind.
• Ventilation slots let warm air rise away from the device underneath.

• Not for loads above 10 kg — heavy UPS units or servers need a 4-post fixed shelf or rails.
• Will not fit 10" racks.
• Requires M6 square-hole rails for the supplied kit; threaded rails need matching screws.
• Does not secure the device to the shelf — use cable ties or straps if needed.
