LogiLink SF2C45B 19" 2U Cantilever Rack Shelf, 400 mm Depth, Front Mount, 25 kg Load, Black
Brand:
LogiLink
LogiLink SF2C45B 19" 2U Cantilever Rack Shelf, 400 mm Depth, Front Mount, 25 kg Load, Black
€46.28 inc. VAT
SF2C45B
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LogiLink SF2C45B — 19" 2U Cantilever Shelf, 400 mm, Black
2U400 mm deep25 kg staticFront mount

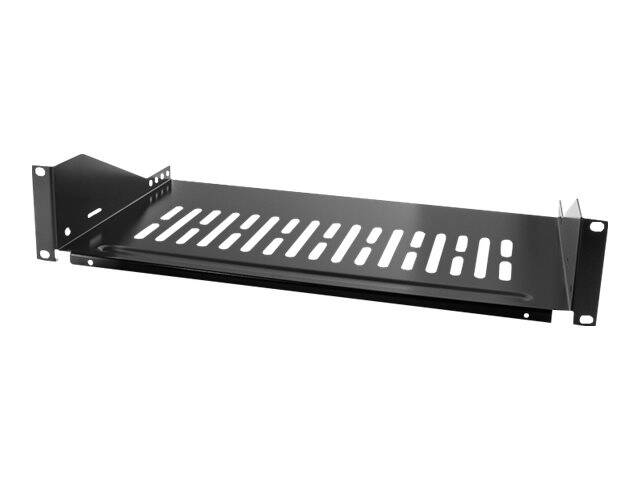

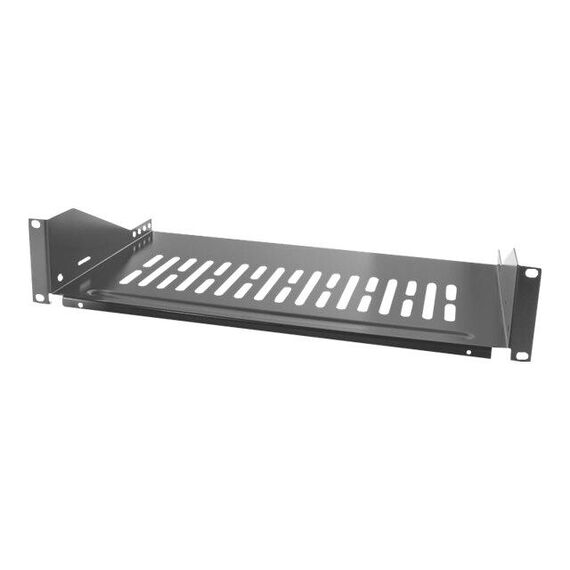

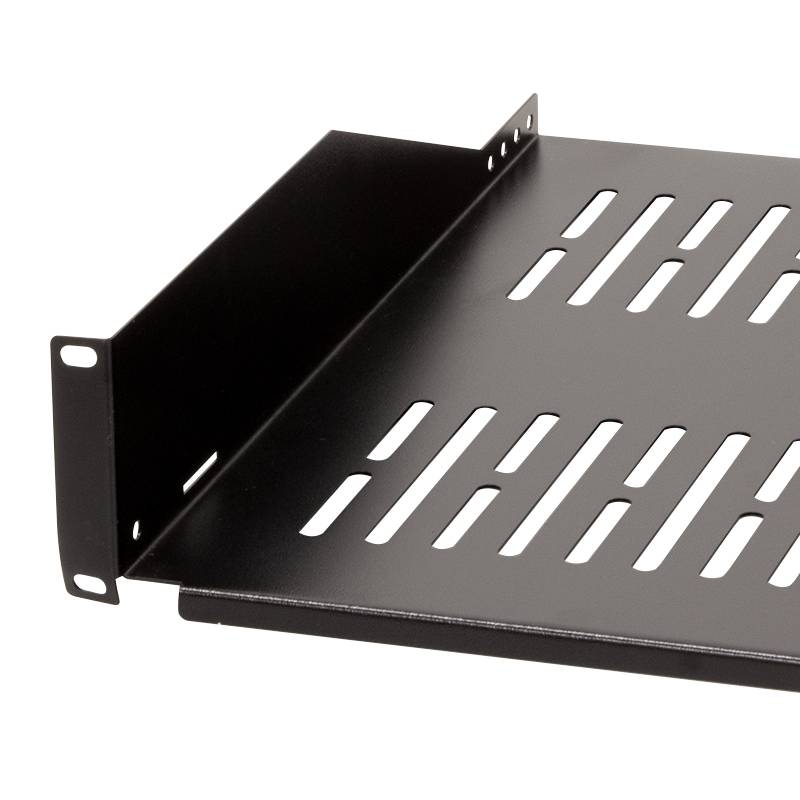

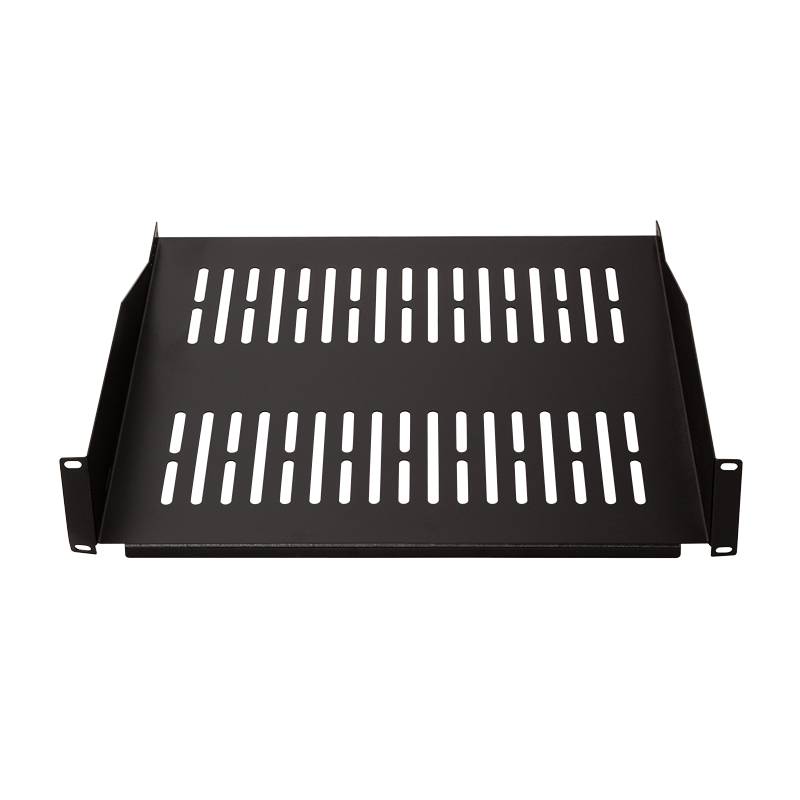

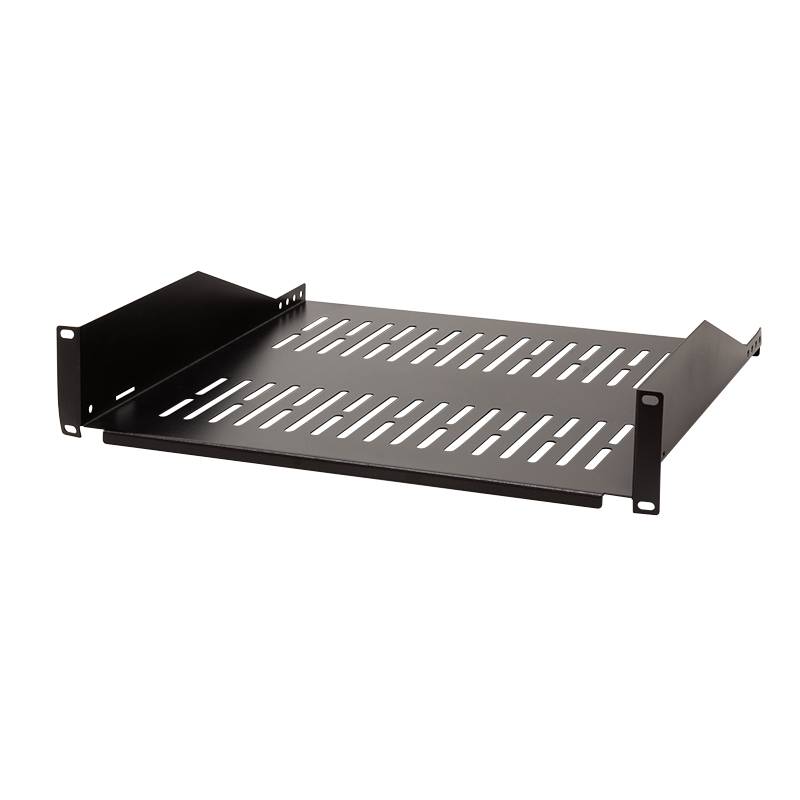

The LogiLink SF2C45B is a 2U 19" cantilever shelf with a 440 x 400 mm vented platform that fixes to the front rails only, giving a strong home for non-rackable equipment such as NAS units, small servers, firewalls or AV gear in wall and floor cabinets. It is made from 1.2 mm powder-coated steel and rated for 25 kg static load.
The 2U folded design is what gives it the higher load rating compared with 1U shelves, and the 400 mm depth accommodates deeper desktop devices while still fitting cabinets that have no rear rails.
Before you order: Mounts on the front rails only. The 25 kg rating is static — keep heavier items low in the rack and do not exceed the rating.
What's in the Box
- 1 x 19" 2U cantilever shelf, black

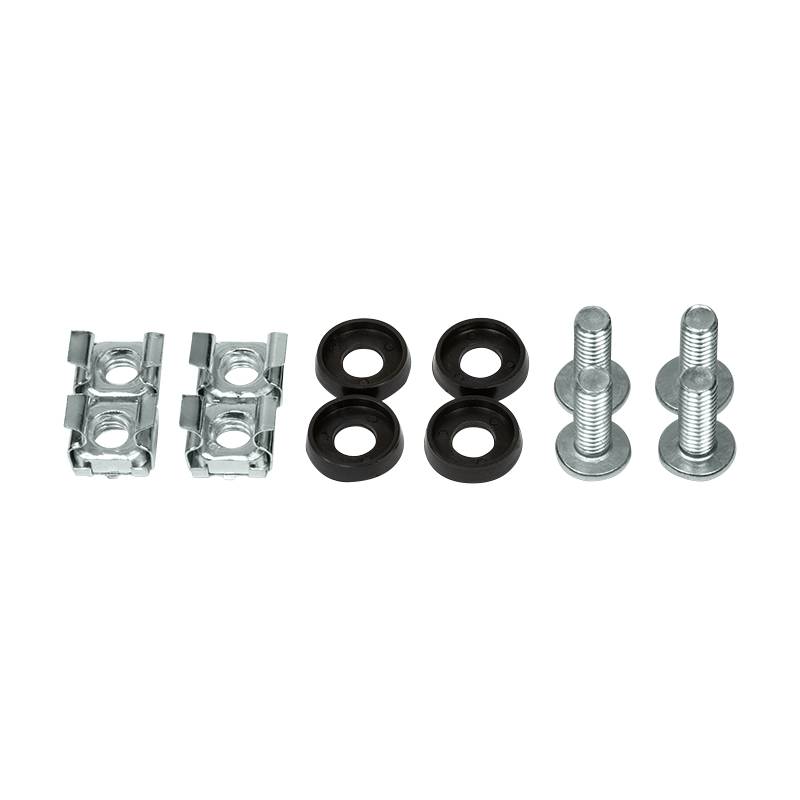

- 1 x fixing set: M6 x 15 cross-head screws, black washers and M6 cage nuts
What It Means in Practice
- Holds heavier desktop equipment (NAS, mini servers, firewalls) up to 25 kg.
- Front-only fixing means it works in wall cabinets without rear profiles.
- 400 mm depth fits deeper devices than typical 1U cantilever shelves.
- Vent slots help heat escape from equipment placed on top.
What Will Not Work
- Not for loads above 25 kg or for dynamic loads such as slide-out servers.
- Will not fit 10" racks.
- The supplied M6 kit suits square-hole rails; threaded rails need matching screws.
- Not a sliding shelf — it does not pull out for service access.
Key Features
25 kg static load
2U folded steel for noticeably higher capacity than 1U shelves.
400 mm depth
440 x 400 mm usable surface for deeper devices.
1.2 mm powder-coated steel
Electrostatic black finish with ventilation slots.
Complete fixing kit
M6 screws, washers and cage nuts included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
If a 1U cantilever shelf feels flimsy for your NAS or firewall, the 2U SF2C45B is the step up: more than double the load rating and extra depth, still with front-only fixing for wall cabinets. For a UPS or anything above 25 kg, move to a 4-post fixed shelf from our rack accessories range.
✓ Buy it if you need a sturdy front-mounted shelf for devices up to 25 kg in a 19" cabinet.
✕ Skip it if you only have 1U free or your device is heavier than 25 kg.
→ Also consider LogiLink SF1C45B 1U 350 mm shelf for light gear, or Intellinet 712248 fixed shelf.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - LogiLink - SF2C45B
Colour
black
More Details
Product Code
04:186664
EAN Code
4052792026542
Manufacturer
LogiLink
