LogiLink PDU4B01 10-Inch Rack PDU 1U, 4 x Schuko 45°, Switch, 16 A 3600 W, 2 m H05VV-F, Aluminium Black
Brand:
LogiLink
LogiLink PDU4B01 10-Inch Rack PDU 1U, 4 x Schuko 45°, Switch, 16 A 3600 W, 2 m H05VV-F, Aluminium Black
€28.48 inc. VAT
PDU4B01
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LogiLink PDU4B01 10-Inch 1U Rack PDU, 4 x Schuko
10-inch 1U4 x Schuko at 45°On/off switch16 A / 3600 W

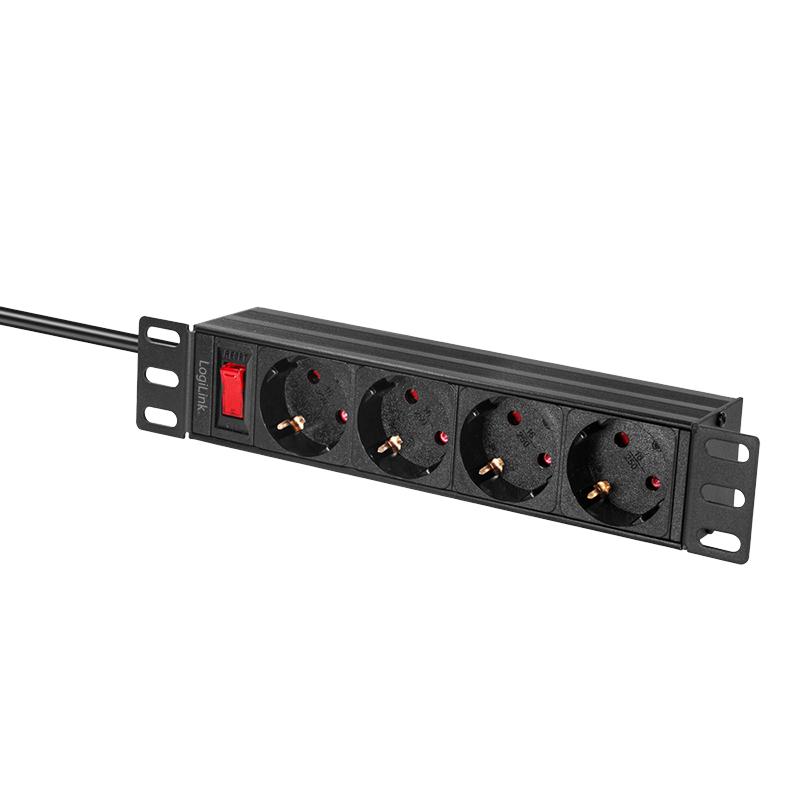

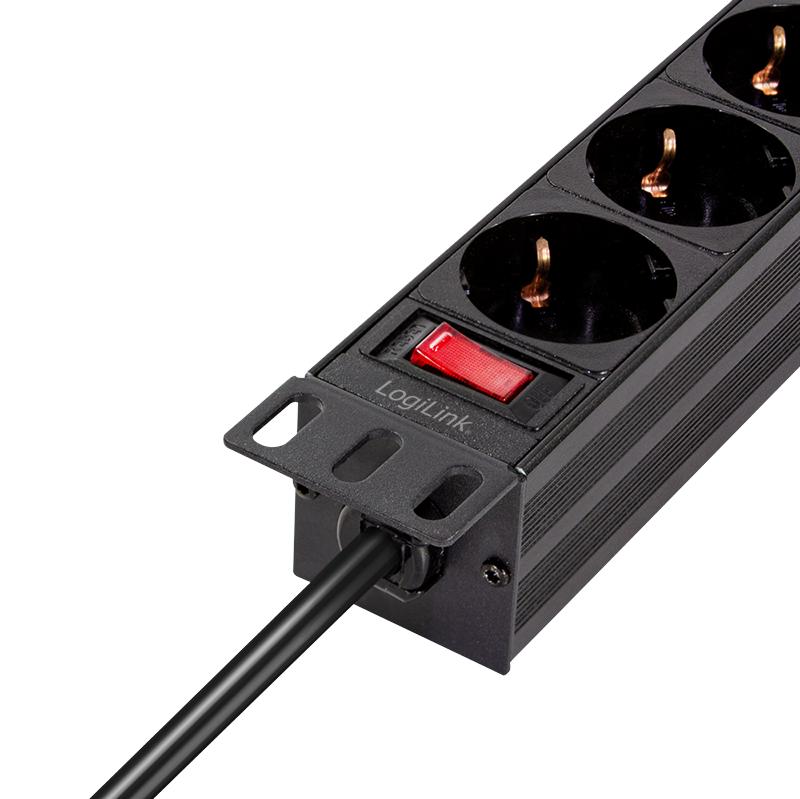

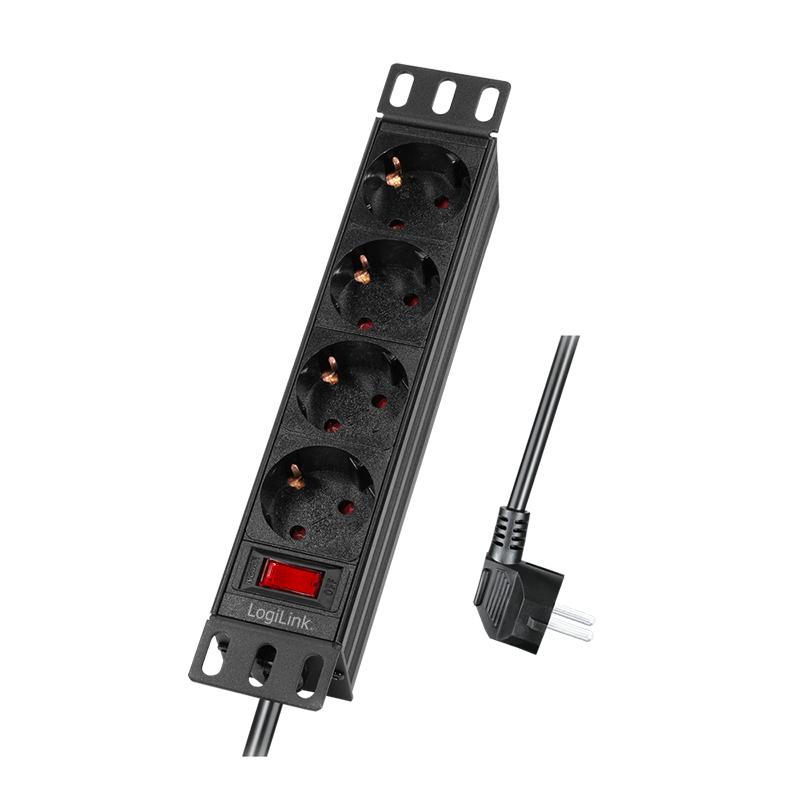

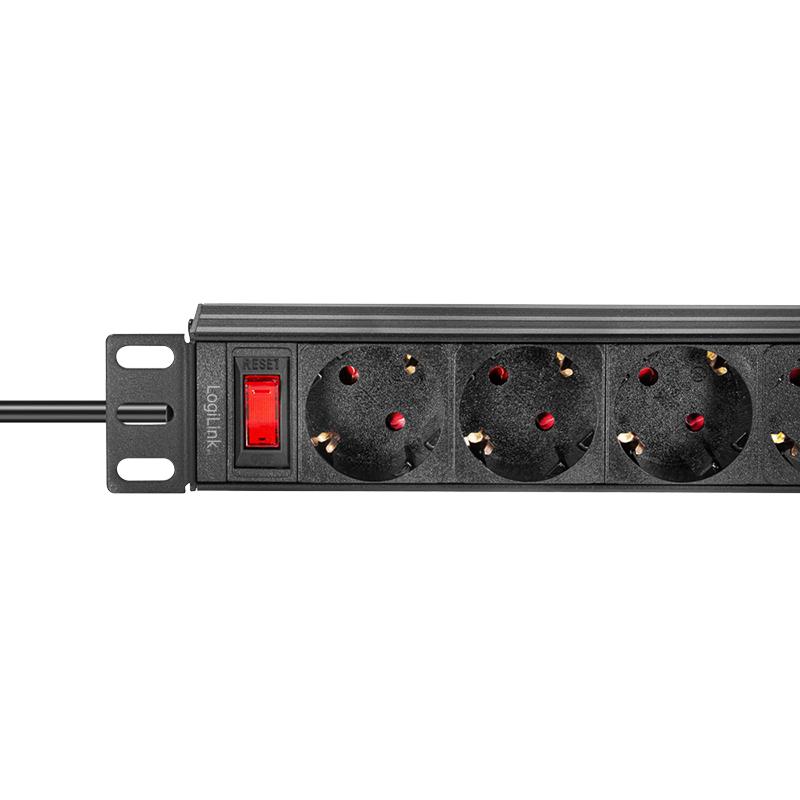

The LogiLink PDU4B01 is a 10-inch, 1U rack power distribution unit with four Schuko sockets at 45°, an on/off switch, an aluminium housing in RAL 9005 black and a 2 m H05VV-F 3x1.5 mm² cable with an angled Schuko plug, rated 230 V, 16 A and up to 3600 W.
It fits 10-inch network cabinets and wall racks used for small office and home networks, where a full 19-inch PDU will not fit. Four sockets cover a switch, router, modem and a small NAS or PoE injector.
Before you order: This PDU fits 10-inch racks only, not 19-inch cabinets. It has a German Schuko plug: in Cyprus, with UK-type (BS 1363) wall sockets, it needs a Schuko-to-UK adapter or a Schuko outlet, and UK three-pin plugs will not fit its sockets.
What's in the Box
- 1 x LogiLink PDU4B01 10-inch rack PDU, 1U, with fixed 2 m cable and angled Schuko plug
What It Means in Practice
- Feed a small 10-inch network cabinet from one wall socket: switch, router, modem and one more device.
- The switch lets you power-cycle the whole cabinet in one move.
- 45° sockets take angled plugs and small power supplies without blocking each other.
- Through a fused UK adapter the usable load drops to 13 A, about 3,000 W, which is still far more than a small network rack draws.
What Will Not Work
- 19-inch racks or cabinets: the 10-inch width will not reach the rails.
- UK three-pin (BS 1363) device plugs or IEC C13 cords without a matching Schuko plug.
- Remote monitoring or per-socket switching: this is a basic switched PDU.
- Surge protection: none is listed.
Key Features
10-inch 1U
Fits 10-inch network cabinets and wall racks.
4 x Schuko at 45°
Enough outlets for a compact network stack.
On/off switch
Power the whole rack up or down at once.
Aluminium housing
Sturdy aluminium profile in RAL 9005 black.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a 10-inch cabinet, a 1U PDU like this keeps power neat and switchable instead of a loose desk strip lying in the bottom of the rack. Check your rack width before ordering. Browse our rack accessories for shelves, patch panels and other parts for small cabinets.
✓ Buy it if you run a 10-inch network cabinet and need four switched Schuko outlets.
✕ Skip it if your cabinet is 19-inch or your devices use IEC cords only.
→ Also consider a 19-inch rack PDU for full-size cabinets.
Not sure it fits? Send us the model of your rack and the devices you want to power, and we will check before you order.
Features - LogiLink - PDU4B01
Colour
black
Length
2m
More Details
Product Code
04:430287
EAN Code
4052792046601
Manufacturer
LogiLink
