Logitech Rally Table Hub | Tabletop Hub for Rally System | USB-C | USB-B | USB-A | Dual HDMI | CAT6A
Logitech Rally Table Hub — Clean Table Connectivity for Logitech Rally Rooms

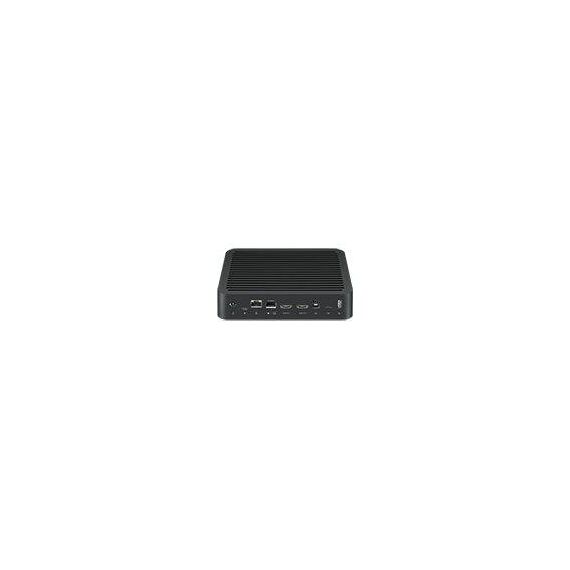

The Logitech Rally Table Hub is the tabletop connectivity hub designed for Logitech Rally and Rally Plus room systems. It helps keep cabling cleaner and meeting-room connections more practical by bringing USB, HDMI and microphone connections closer to the table, while linking back to the Rally Display Hub over a single CAT6A cable.
Built for smarter room cabling
In a Rally room setup, the Table Hub is placed on or under the meeting table so users can connect content-sharing and room peripherals closer to where they sit. This reduces visible cable clutter across the room and supports a cleaner, more professional installation compared with running separate long USB and HDMI cables directly to the display side.
Flexible USB and HDMI connectivity
The Rally Table Hub provides USB Type C, USB Type B for connection to the meeting room computer, and USB Type A reserved for future capability. It also includes 2 HDMI Type A passthrough ports to simplify wired content sharing from the table area back to the room system.
Designed for Rally Mic Pod integration
A dedicated 12-pin connector for Rally Mic Pod allows the Table Hub to integrate directly with Logitech’s microphone system. The Rally platform can analyse audio from up to 7 Mic Pods and 56 beams every 8 milliseconds, helping the overall system support larger and more responsive room audio setups.
Single-cable link to the Display Hub
The Table Hub connects to the Rally Display Hub through a single CAT6A cable. Logitech includes a 5 m cable, and the system supports customer-supplied cabling up to 50 m, giving installers more flexibility when placing equipment in medium and larger meeting rooms.
Technical Specifications
| Main Specifications | |
|---|---|
| Product Type | Rally Table Hub |
| Designed For | Logitech Rally and Rally Plus room systems |
| Placement | Tabletop or under-table installation |
| Part Number | 993-001952 |
| Ports & Connectivity | |
| USB Ports | 1× USB Type C | 1× USB Type B | 1× USB Type A |
| HDMI | 2× HDMI Type A passthrough to Display Hub |
| Mic Pod Connection | 12-pin connector for Rally Mic Pod |
| Display Hub Link | Single CAT6A cable connection |
| Performance & Physical | |
| Audio Analysis Support | Up to 7 Mic Pods and 56 beams every 8 ms |
| Included Hub Cable | 5 m CAT6A cable |
| Maximum Supported Hub Distance | Up to 50 m with customer-supplied CAT6A cable |
| Dimensions | 40 × 176 × 138 mm |
| Color | Black |
Singular Expert Insight
This is not a standalone conference device, but a key infrastructure part of a Logitech Rally room system. It makes the most sense for meeting rooms where cleaner table connectivity, easier laptop content sharing and better cable management are important, especially in more premium boardroom-style installations.
