Logitech Tap Scheduler | 10.1" Touchscreen Scheduling Panel | PoE | Wi-Fi | Bluetooth 5.0 | Off-White

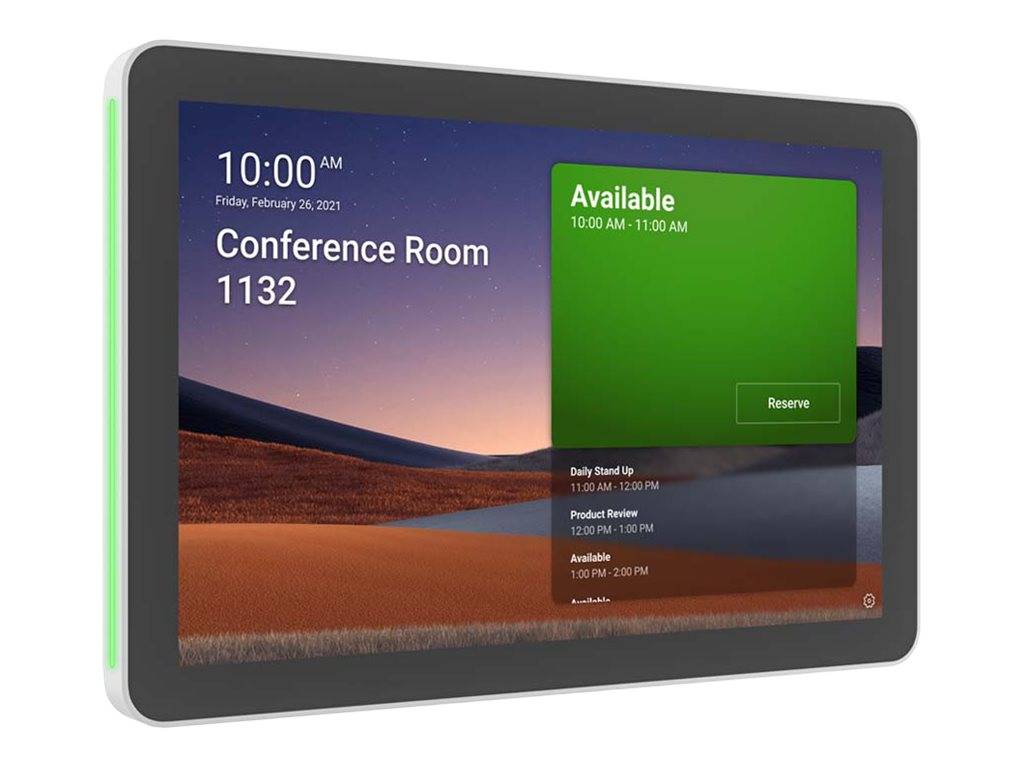

Logitech Tap Scheduler — Dedicated 10.1" Room Scheduling Panel for Meeting Spaces

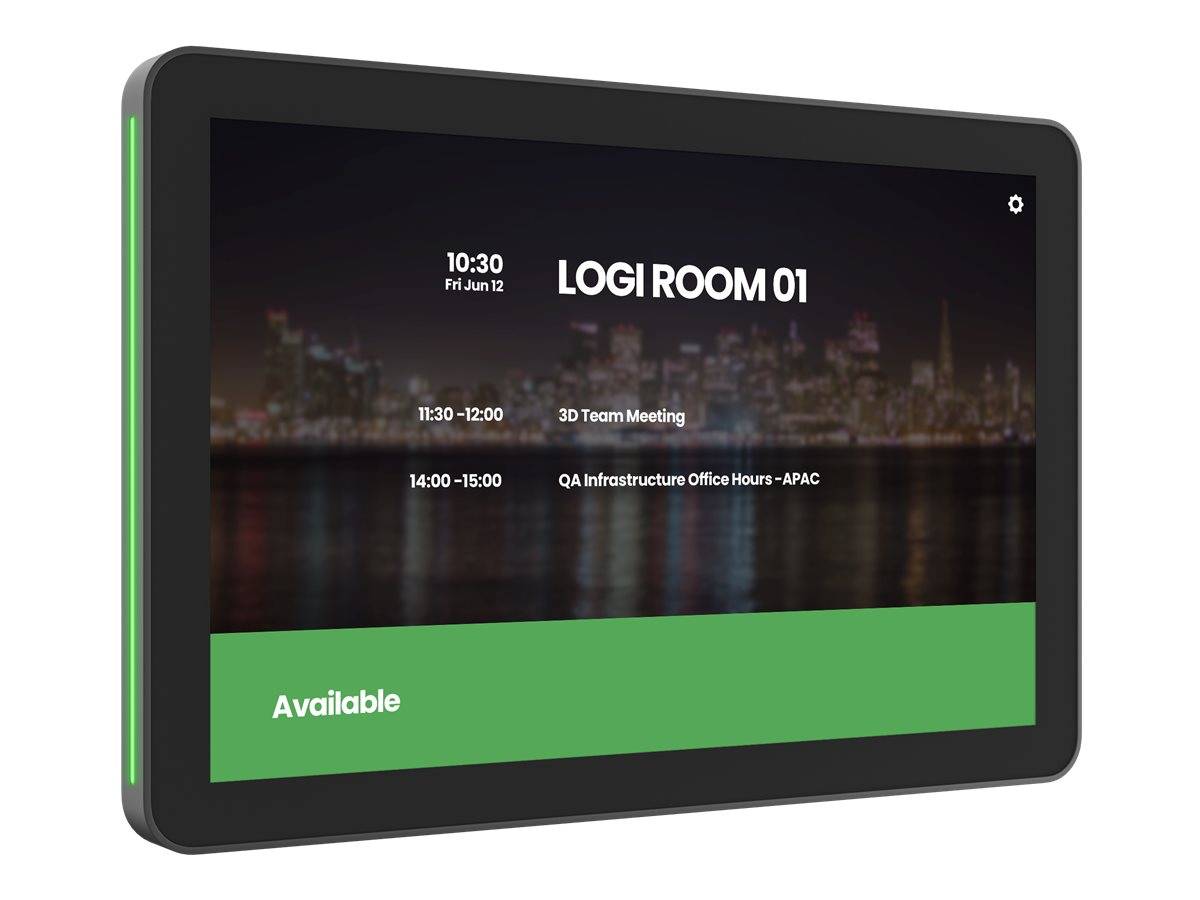

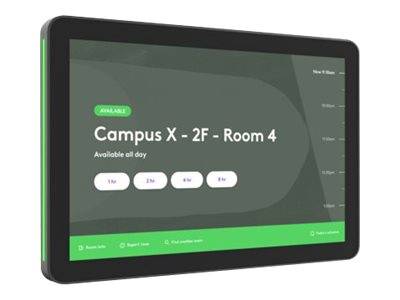

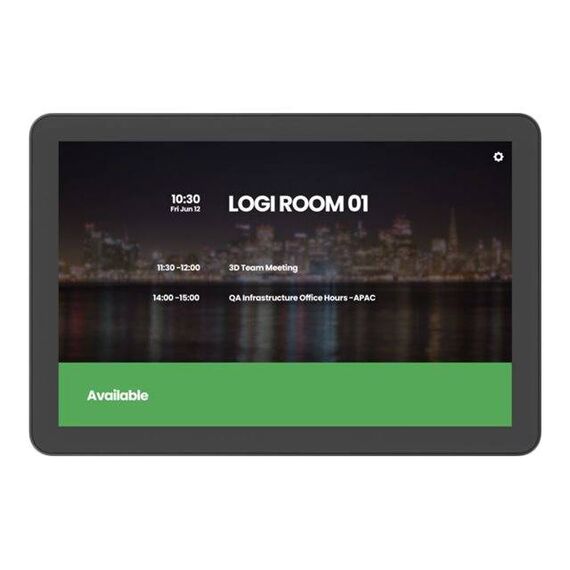

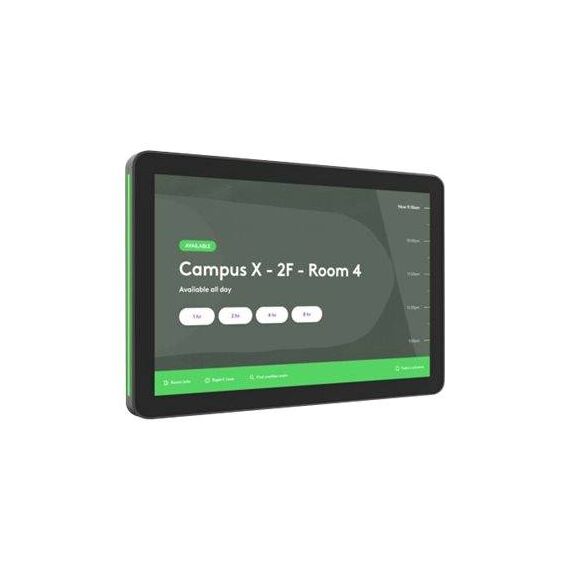

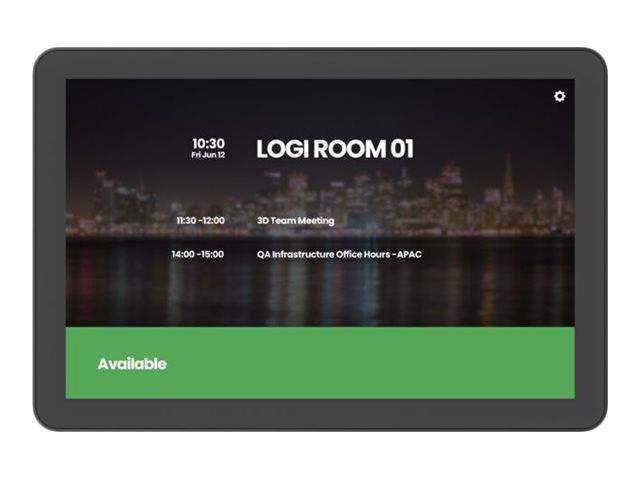

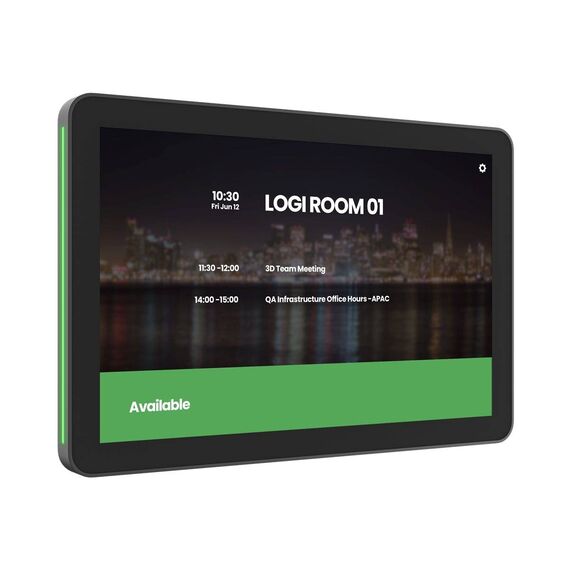

The Logitech Tap Scheduler is a purpose-built scheduling panel for meeting rooms that helps teams quickly see room availability and reserve spaces on the spot. With a 10.1-inch touchscreen, PoE support, Wi-Fi connectivity and integrated red / green availability lighting, it is designed for clean, professional room-booking installations outside meeting rooms and collaboration spaces.
Built specifically for room booking
Unlike a general-purpose tablet, Tap Scheduler is designed from the start as a dedicated meeting room scheduling display. It gives users an easy way to check room details, confirm availability and reserve a room for ad hoc or future meetings, helping businesses make better use of shared spaces.
Clear display with responsive touch control
The front panel uses a 10.1-inch IPS display with 1280 × 800 resolution, 400 nits brightness and 10-point capacitive multi-touch for smooth and responsive interaction. An oleophobic anti-fingerprint coating helps keep the screen cleaner and easier to read in everyday business use.
Clean installation and modern connectivity
Tap Scheduler supports Power over Ethernet for simpler installation with fewer visible cables, while built-in Ethernet and Wi-Fi provide flexible network options. Logitech also includes glass, drywall and mullion mounting options, helping installers place the panel outside different room types with a neat low-profile finish.
Designed for enterprise room platforms
The device integrates with leading scheduling environments including Microsoft Teams Panel, Zoom Rooms Scheduling Display and other supported room-booking platforms. Logitech Sync remote management support also makes it easier for IT teams to monitor and manage deployed units at scale.
Technical Specifications
| Display & Interface | |
|---|---|
| Display Size | 10.1" diagonal |
| Panel Type | IPS LCD with LED backlighting |
| Resolution | 1280 × 800 |
| Touch | Capacitive, 10-point multi-touch |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85° up / down / left / right |
| Screen Coating | Oleophobic anti-fingerprint coating |
| Connectivity & Platform | |
| Power | Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device |
| Ethernet | 10/100 Mbps |
| Wi-Fi | 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.0, inactive and reserved for future use |
| Platform | Logitech CollabOS |
| Remote Management | Logitech Sync |
| Physical & Installation | |
| Color | Off-White |
| Device Dimensions | 165 × 246.2 × 28.5 mm |
| Weight | 0.7 kg |
| Sensors | Integrated accelerometer | Ambient light sensor |
| Mounting Pattern | 100 × 100 mm VESA FDMI |
| Cable Routing | Horizontal | Vertical | Center exits |

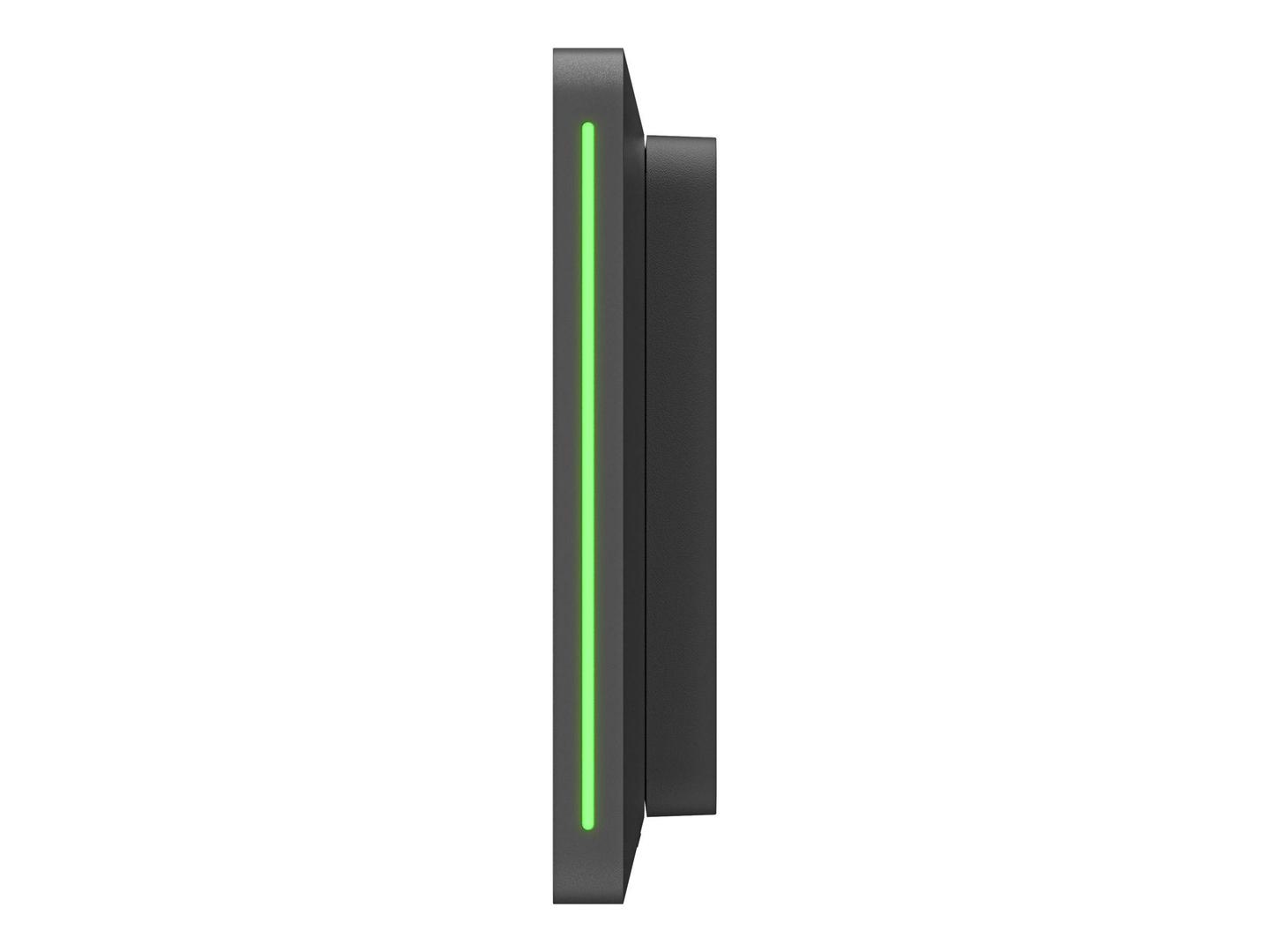

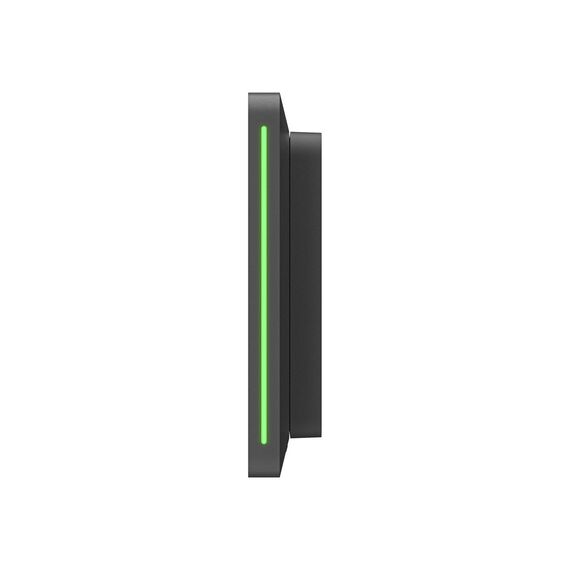

| Status Indication | Integrated red / green LED availability lights |
| Compatibility & In the Box | |
| Supported Scheduling Platforms | Logitech Room Booking | Microsoft Teams Panel | Zoom Rooms Scheduling Display | Robin | Appspace | RICOH Spaces | Envoy Rooms | Korbyt Booking | Comeen |
| Included Mounts | Multi-surface mount for glass and drywall | Mullion mount | Corner mount accessory |
| Package Contents | Logitech Tap Scheduler | Multi-surface mount | Corner mount accessory | Mullion mount | Mounting hardware | Documentation |
| Operating Temperature | 0 to 40°C |
| Warranty | 2-year limited hardware warranty |
| Part Number | 952-000094 |
Singular Expert Insight
Tap Scheduler is a stronger choice than using a repurposed tablet outside meeting rooms because it is purpose-built for room booking, cleaner to install and easier to manage at scale. It suits businesses that want a more polished meeting-room workflow with clear occupancy visibility and fast booking directly at the door.
