Logitech Tap Wall Mount — put the meeting controller on the wall, not on the table
For Tap & Tap IPFlush wall mountMagnetic HDMI clipBlack
The Logitech Tap Wall Mount (939-001817) is a flush wall bracket for the Logitech Tap and Tap IP meeting-room touch controllers, made for huddle rooms with small tables and for stand-up meeting points in hallways and open areas where a controller on the table is in the way.

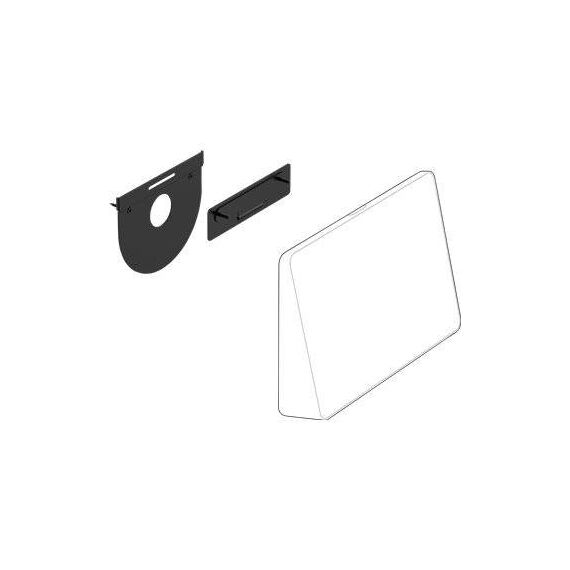

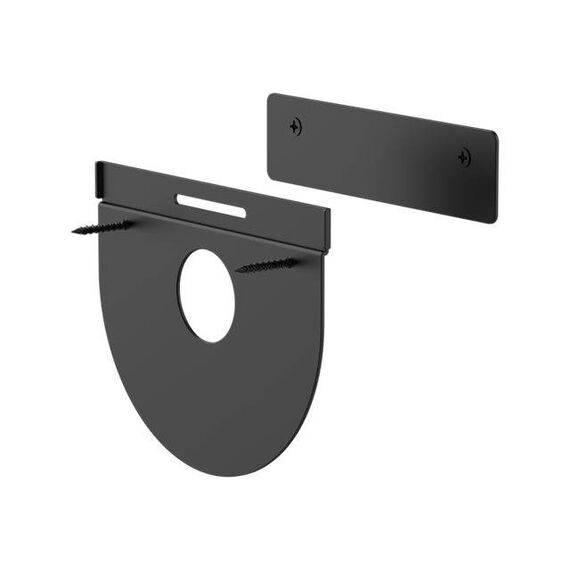

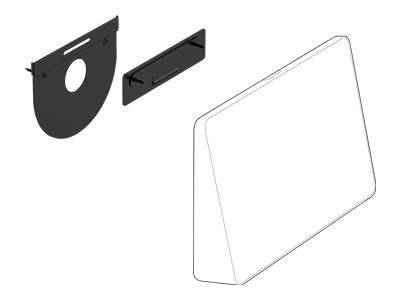

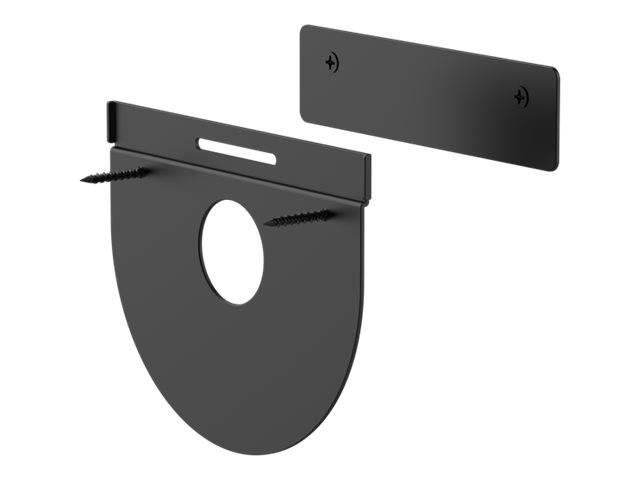

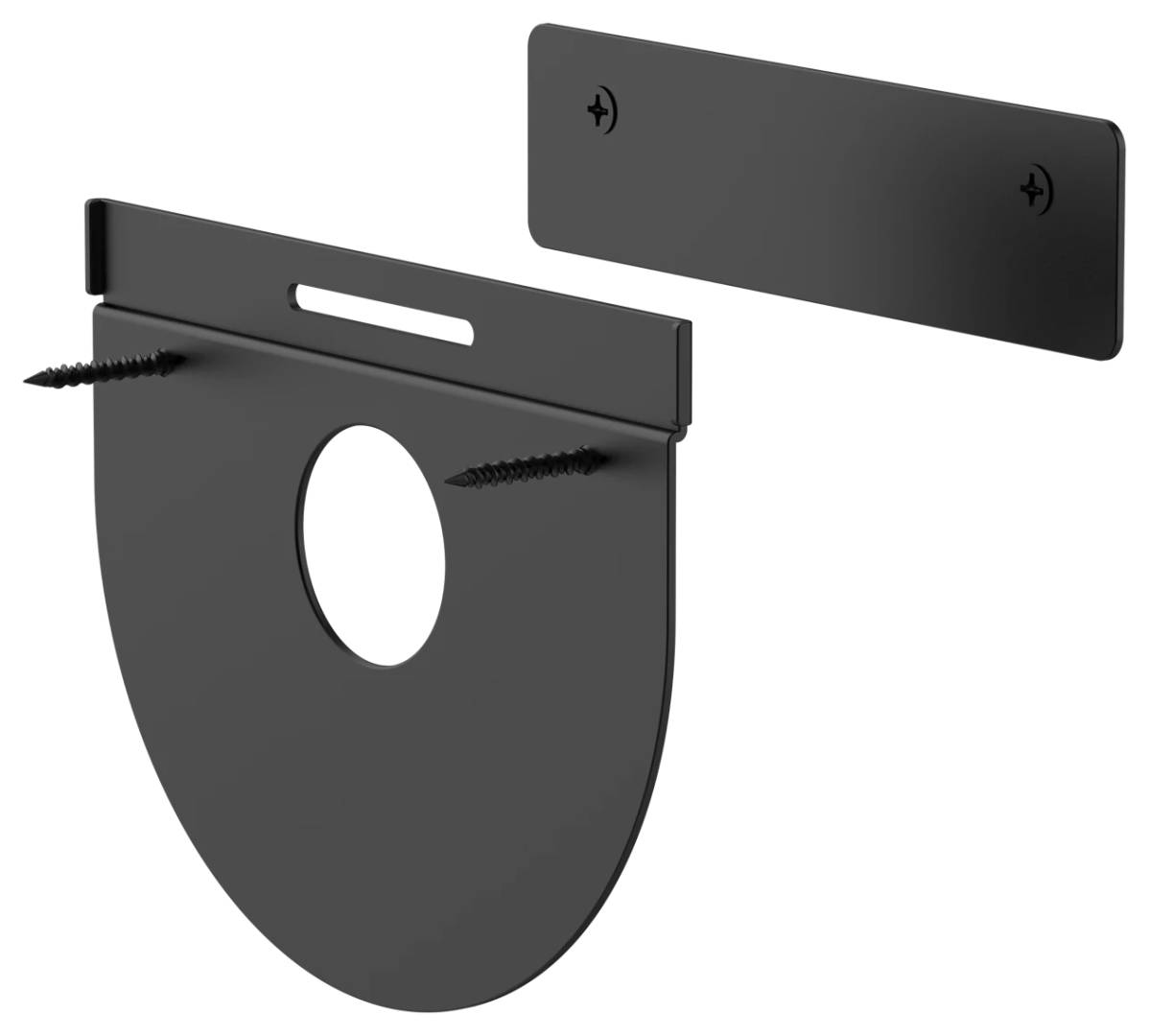

It uses a plate-and-cleat design: the plate is screwed to the wall, Tap hooks onto the cleat and sits close to the wall. Cables leave Tap from the rear or the bottom, so they can disappear into the wall or run neatly down a trunking, and a magnetic clip holds an HDMI cable for wired screen sharing.
Before you order: The mount is for Logitech Tap and Tap IP only — the controller itself is not included. Logitech does not list other controllers for this mount.
What's in the Box
- Wall mount assembly (plate and cleat)

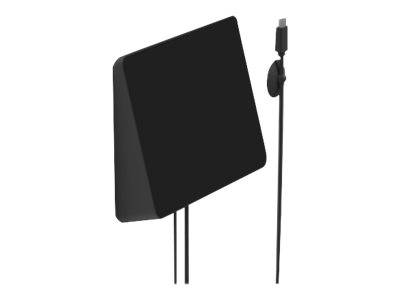

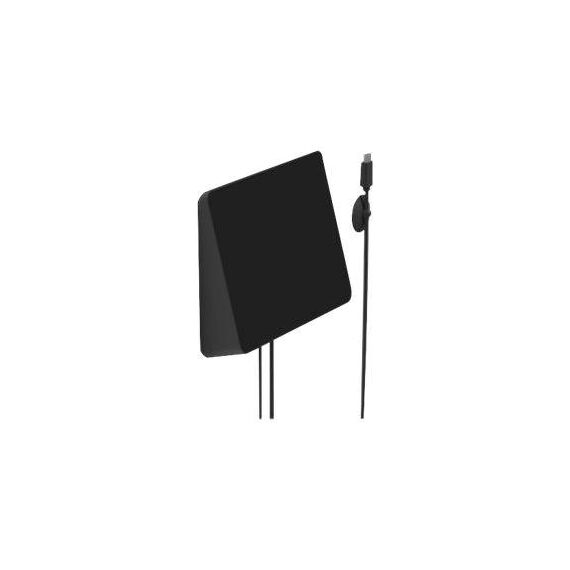

- Magnetic HDMI cable clip and dock
- Mounting hardware
- Documentation
What It Means in Practice
- Frees up the table in small rooms: everyone uses the same controller on the wall at standing height.
- Cables can run inside the wall through Tap rear exit, so nothing is visible on the wall surface.
- The HDMI clip keeps the sharing cable hanging ready next to Tap instead of lying on the floor.
- Tap can be lifted off the cleat for service without removing the plate.
What Will Not Work
- It does not fit other controllers or tablets — only Logitech Tap and Tap IP.
- It does not include the Tap, cables or wall plugs for every wall type; check the wall material before installing.
- It does not change Tap into a table unit — for tables use the Tap Table Mount or Tap Riser Mount.
Key Features
Flush plate-and-cleat
Low-profile mounting close to the wall.
Cable exits
Uses Tap rear and bottom cable exits for in-wall or down-wall routing.
Magnetic HDMI dock
Keeps the HDMI sharing cable within reach.
For Tap and Tap IP
Designed for both versions of the Logitech touch controller.
Technical Specifications
| Identification |
| Part Number |
939-001817 |
| EAN / GTIN |
0097855147349 |
| Brand |
Logitech |
| Model |
Tap Wall Mount |
| Mechanical |
| Type |
Wall mount (plate and cleat) |
| Dimensions with Tap (H x W x D) |
58 x 244 x 179 mm |
| Colour |
Black |
| Cable management |
Magnetic HDMI cable clip and dock · rear/bottom cable exit |
| Compatibility |
| Compatible controllers |
Logitech Tap, Logitech Tap IP |
| Use case |
Huddle rooms, hallways, open areas, stand-up use |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
2-year limited hardware warranty per Logitech — claims handled through Singular |
Frequently Asked Questions
Is the Tap included?
No. This is the mount only; Tap or Tap IP is sold separately.
Can the cables be hidden?
Yes. Tap has rear and bottom cable exits, so cables can run through the wall behind the mount or neatly down the wall.
Does it work with Tap IP?
Yes. Logitech lists both Tap and Tap IP as compatible.
Singular Expert Insight · Buyer's Guide
A wall-mounted Tap is the cleanest option for small rooms and stand-up spaces: no cables across the table and one obvious place to start the meeting. Mount Tap next to the room display — see our
commercial displays — at a comfortable standing height.
✓ Buy it if you have a Logitech Tap or Tap IP and want it on the wall in a huddle room or open area.
✕ Skip it if the controller should sit on the meeting table — choose the Tap Table Mount or Tap Riser Mount instead.
→ Also consider Logitech Tap Table Mount (939-001811) for grommet-hole tables.
Not sure which Tap mount suits your room? Send us a photo of the wall or table and we will recommend the right one before you order.
