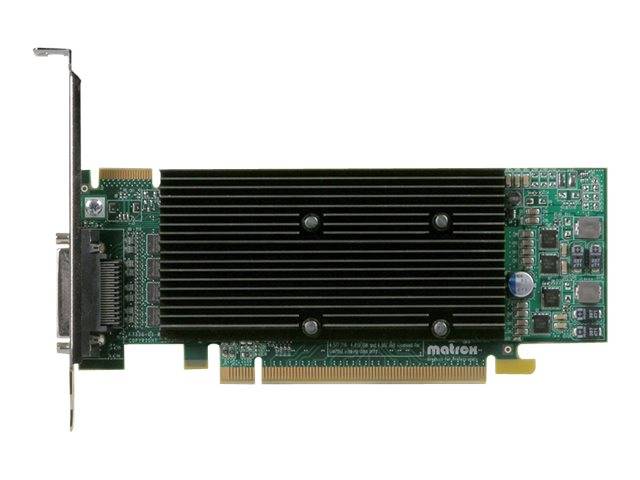

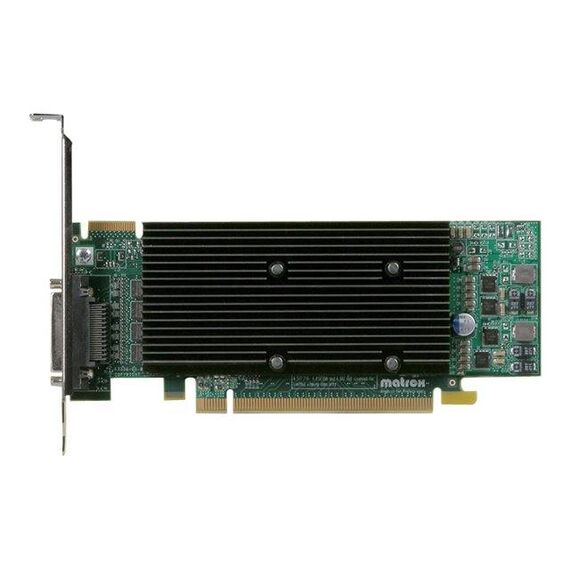

Matrox M9140 Low Profile Quad-Display Graphics Card, 512MB DDR2, PCIe x16

Brand:
Matrox
Matrox-M9140E512LAF-Graphics-cards
Matrox M9140 Low Profile Quad-Display Graphics Card, 512MB DDR2, PCIe x16
€919.14 inc. VAT
Buy
M9140-E512LAF
€772.39
€919.14 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
5470356
EAN Code
0790750235899
Manufacturer
Matrox

Quick Specs

Display outputs per card
Up to 4
Included display cable
KX-20 to 4 x DVI-I quad-monitor adapter
Maximum digital resolution
1920 x 1200 per output
Maximum analog resolution
1920 x 1200 per output
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Matrox M9140 Quad-Display Graphics Card - Low Profile, Fanless Design

The Matrox M9140 is a low-profile, single-slot quad-display graphics card for business, industrial and control-room systems requiring up to four connected displays. Its fanless design, PCIe x16 interface and support for independent or stretched desktop modes provide a practical solution for multi-monitor installations using digital or analogue display connections.
Up to 4 KX-20 to 4 x DVI-I quad-monitor adapter 1920 x 1200 per output 512 MB DDR2

The Matrox M9140 is a low-profile, single-slot quad-display graphics card for business, industrial and control-room systems requiring up to four connected displays. Its fanless design, PCIe x16 interface and support for independent or stretched desktop modes provide a practical solution for multi-monitor installations using digital or analogue display connections.

Best For
✓ This card is suited to organisations

Key Features


Commercial Fit
The main reason to choose the M9140 is its ability to operate up to four displays from one compact, fanless PCIe card, with independent and stretched desktop modes and included cabling for DVI-based installations.

Display Modes
Independent desktop and stretched desktop modes

Display Outputs per Card
Display Outputs per Card: Up to 4

Included Display Cable
KX-20 to 4 x DVI-I quad-monitor adapter cable

Technical Specifications

Product Type Quad-display graphics card
Model Matrox M9140
Graphics Memory 512 MB DDR2
Memory Type DDR2
Bus Interface PCI Express x16
PCI Express Version PCI Express 3.0 x16
Form Factor Low profile | compatible with ATX and low-profile systems
Slot Width Single slot
Cooling Passive heatsink | fanless
Display Outputs per Card Up to 4
Connector KX-20
Video Outputs 4 x DVI-D single-link via included breakout cable
Included Display Cable KX-20 to 4 x DVI-I quad-monitor adapter cable
Supported Digital Output Type Single-link DVI
Supported Analogue Output Type Analogue via DVI-I-to-HD15 adapters
Maximum Digital Resolution 1920 x 1200 per output
Maximum Analogue Resolution 1920 x 1200 per output
Display Modes Independent desktop and stretched desktop modes
OpenGL Support OpenGL 2.0
Power Connector None | powered through the PCI Express slot
Operating System Support Windows XP 32/64-bit, Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows Server 2003/2008 32/64-bit, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows 8.1 and Linux | Microsoft Windows XP 32/64-bit, Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows Server 2003/2008 32/64-bit, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows 8.1, and Linux
Software Matrox PowerDesk desktop management software | unified driver package
Card Dimensions 6.6 x 2.7 x 0.75 in (16.8 x 6.9 x 1.91 cm)
Package Contents Graphics card | low-profile bracket | KX-20 to 4 x DVI-I quad-monitor adapter cable | four DVI-I-to-HD15 adapters | driver and PowerDesk software CD | user documentation | Graphics card, low-profile bracket, KX-20 to 4 x DVI-I quad-monitor adapter cable, four DVI-I-to-HD15 adapters, driver and PowerDesk software CD, user documentation
Certifications EMC Class B
Warranty Limited 3-year manufacturer warranty
Maximum analog resolution 1920 x 1200 per output
Supported analog output type Analog via DVI-I-to-HD15 adapters
Product name Matrox M9140 LP PCIe x16
Manufacturer Matrox
Manufacturer part number M9140-E512LAF
EAN/UPC 0790750235899
Dedicated AI cores No
SKU / EAN M9140-E512LAF | 0790750235899

Frequently Asked Questions

What should I know before buying?
Check that the host system has a compatible PCI Express x16 slot and supports the low-profile card format. The card uses single-link DVI connections and analogue display support requires the included DVI-I-to-HD15 adapters. Its listed operating-system support focuses on legacy Windows versions and Linux, so confirm driver compatibility with the intended system before purchase.
What connectivity does it offer?
PCI Express x16
What is included in the box?
Graphics card | low-profile bracket | KX-20 to 4 x DVI-I quad-monitor adapter cable | four DVI-I-to-HD15 adapters | driver and PowerDesk software CD | user documentation | Graphics card, low-profile bracket, KX-20 to 4 x DVI-I quad-monitor adapter cable, four DVI-I-to-HD15 adapters, driver and PowerDesk software CD, user documentation
Singular Expert Insight
The main reason to choose the M9140 is its ability to operate up to four displays from one compact, fanless PCIe card, with independent and stretched desktop modes and included cabling for DVI-based installations.

Buyer’s Guide

Buy it if
This card is suited to organisations and system builders creating multi-monitor business, industrial or control-room workstations, especially where a low-profile, single-slot and fanless design is useful. It is intended for display expansion rather than modern high-performance graphics workloads.
Skip it if
Check that the host system has a compatible PCI Express x16 slot and supports the low-profile card format. The card uses single-link DVI connections and analogue display support requires the included DVI-I-to-HD15 adapters. Its listed operating-system support focuses on legacy Windows versions and Linux, so confirm driver compatibility with the intended system before purchase.
