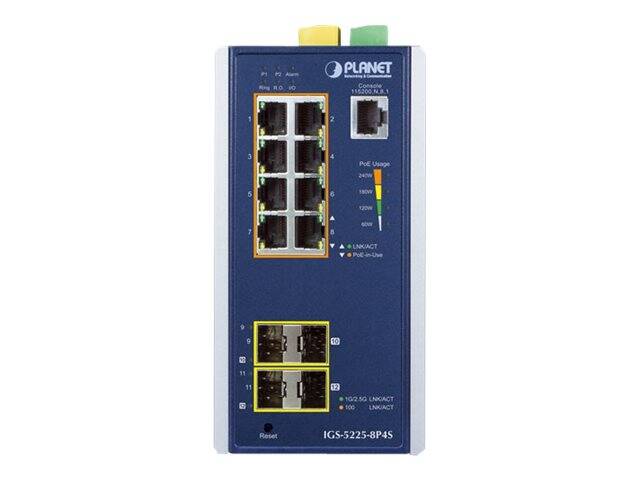

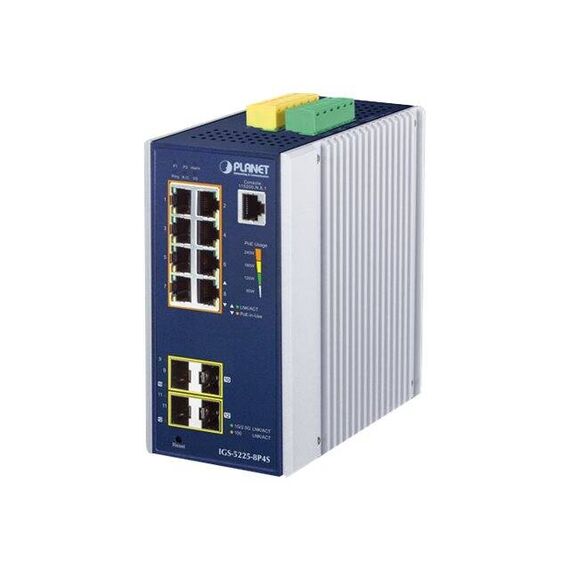

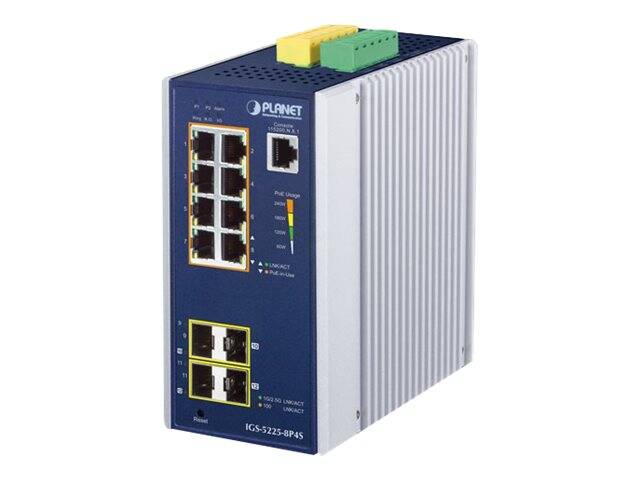

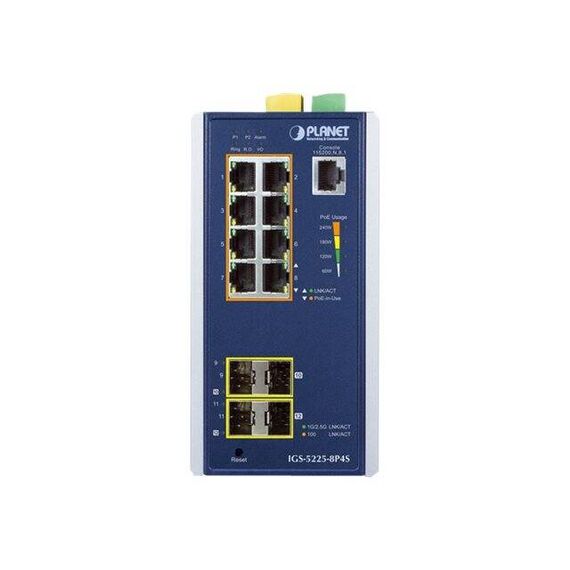

Planet IGS-5225-8P4S Industrial L2+ Managed PoE+ Switch 8-Port 240W, 4x SFP

Brand:
Planet
PLANET IGS-5225-8P4S - Switch - L2+ - Managed - 8 x 10/100/1000 (
Planet IGS-5225-8P4S Industrial L2+ Managed PoE+ Switch 8-Port 240W, 4x SFP
€735.31 inc. VAT
Buy
IGS-5225-8P4S
€617.91 €686.57
€735.31 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:247760
EAN Code
4711605282420
Manufacturer
Planet

Quick Specs

Interfaces
8 x 1000Base-T RJ-45 PoE+ - 36 W 4 x
Power
Internal power supply
Security
SSL
Product Type
Switch - 12 ports - L2+ - Managed
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Planet IGS-5225-8P4S Industrial L2+ Managed PoE+ Switch 8-Port 240W, 4x SFP

The Planet IGS-5225-8P4S is an industrial L2+ managed PoE+ switch built for demanding network installations. It combines 8 Gigabit PoE+ ports, 4 Gigabit SFP fibre uplinks, DIN rail or wall mounting, and a rugged IP30 metal design for flexible deployment.
8 x 1000Base-T RJ-45 PoE+ - 36 W 4 x Internal power supply SSL Switch - 12 ports - L2+ - Managed

The Planet IGS-5225-8P4S is an industrial L2+ managed PoE+ switch built for demanding network installations. It combines 8 Gigabit PoE+ ports, 4 Gigabit SFP fibre uplinks, DIN rail or wall mounting, and a rugged IP30 metal design for flexible deployment.

Best For
✓ Suitable for installers
✓ Sites that need a managed industrial switch with PoE+ access ports, fibre uplinks,
✓ Flexible DIN rail or wall mounting in a rugged enclosure

Key Features


Commercial Fit
The main value here is the mix of 8 PoE+ copper ports, 4 Gigabit SFP uplinks, and industrial-grade management features in one compact switch for structured deployments.

Interfaces
8 x 1000Base-T RJ-45 PoE+ - 36 W | 4 x 1000Base-X SFP | 1 x console RJ-45 | 8 x 1000Base-T RJ-45 PoE+ - 36 W 4 x 1000Base-X SFP 1 x console RJ-45

Power
Power: Internal power supply

Security
Security: SSL

Technical Specifications

Product Type Switch - 12 ports - L2+ - Managed
Interfaces 8 x 1000Base-T RJ-45 PoE+ - 36 W | 4 x 1000Base-X SFP | 1 x console RJ-45 | 8 x 1000Base-T RJ-45 PoE+ - 36 W 4 x 1000Base-X SFP 1 x console RJ-45
PoE Budget 240 W
Mounting DIN rail mountable | wall-mountable
Power Internal power supply

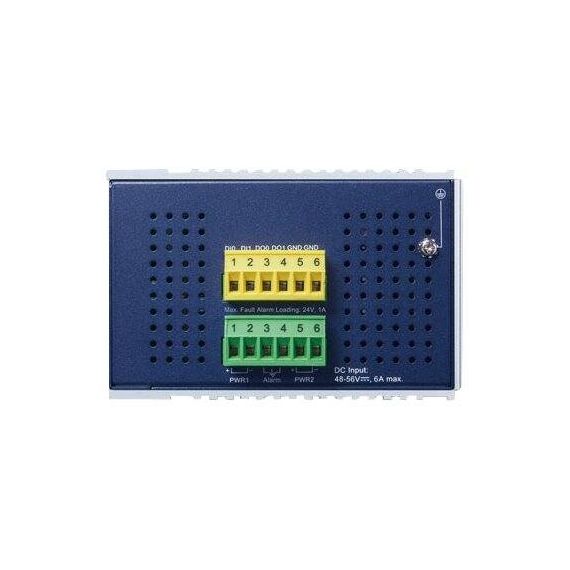

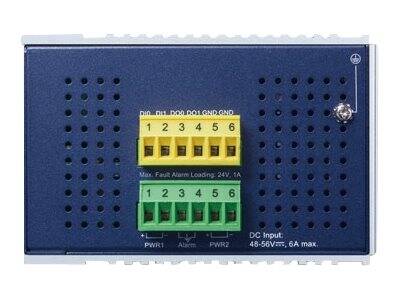

Voltage Required DC 48 - 56 V
Switching Fabric 24 Gbps
Throughput 17.85 Mpps
MAC Address Table 8K entries
Jumbo Frame Support 9KB
Management Protocol SNMP 1 | RMON 1 | RMON 2 | RMON 3 | RMON 9 | Telnet | SNMP 3 | SNMP 2c | HTTP | SSH | CLI | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
Security SSL
Routing Protocol IGMPv2 | IGMP | IGMPv3 | static IPv4 routing | static IPv6 routing | MLDv2 | MLD
Compliant Standards IEEE 802.3 | IEEE 802.3u | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3af | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1x | IEEE 802.1s | IEEE 802.1ab (LLDP) | IEEE 802.3at | ITU-T G.8032
Status Indicators Power | PoE | link/activity | fault | ring
Dimensions 7.68 cm x 10.73 cm x 15.2 cm
Weight 1.093 kg
Operating Temperature -40 °C to 75 °C
Operating Humidity 5 - 95% (non-condensing)
Enclosure IP30
SKU / EAN IGS-5225-8P4S | 4711605282420

Frequently Asked Questions

What should I know before buying?
This is a managed industrial switch, so it is aimed at network installations rather than simple plug-and-play use. It also requires a suitable 48 to 56 V DC power source.
What connectivity does it offer?
8 x 1000Base-T RJ-45 PoE+ - 36 W | 4 x 1000Base-X SFP | 1 x console RJ-45 | 8 x 1000Base-T RJ-45 PoE+ - 36 W 4 x 1000Base-X SFP 1 x console RJ-45
What is it compatible with?
9KB
Singular Expert Insight
The main value here is the mix of 8 PoE+ copper ports, 4 Gigabit SFP uplinks, and industrial-grade management features in one compact switch for structured deployments.

Buyer’s Guide

Buy it if
Suitable for installers and sites that need a managed industrial switch with PoE+ access ports, fibre uplinks, and flexible DIN rail or wall mounting in a rugged enclosure.
Skip it if
This is a managed industrial switch, so it is aimed at network installations rather than simple plug-and-play use. It also requires a suitable 48 to 56 V DC power source.
Also consider
If you do not need fibre uplinks or managed industrial features, a simpler PoE switch may be enough and easier to justify on budget.

Features - Planet - IGS-5225-8P4S

Interface
  • Ethernet
Standard
8-Port
Port Speed
  • 10/100 Mbps,
  • 1 Gbps
More Details
Product Code
04:247760
EAN Code
4711605282420
Manufacturer
Planet
