HPE Aruba Networking CX 8360-48Y6C V2 JL704C 48-Port 25G SFP28 6-Port 100G QSFP28 Layer 3 Managed Switch, Front-to-Back
Brand:
Hewlett Packard
HPE Aruba Networking CX 8360-48Y6C V2 JL704C 48-Port 25G SFP28 6-Port 100G QSFP28 Layer 3 Managed Switch, Front-to-Back
€54056.37 inc. VAT
JL704C
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
HPE Aruba CX 8360-48Y6C v2 JL704C — 48×25G SFP28 + 6×100G QSFP28 L3 Switch
48 × 25G SFP286 × 100G QSFP28AOS-CX · VSX · Layer 33.6 Tbps · Front-to-Back
The HPE Aruba Networking CX 8360-48Y6C v2 (JL704C) is a high-density 1U Layer 3 switch with 48 × 1/10/25GbE SFP28 ports and 6 × 40/100GbE QSFP28 uplinks, delivering 3.6 Tbps of switching for data-center leaf, aggregation and campus-core roles. Running Aruba’s AOS-CX operating system with VSX for dual-chassis redundancy, this part number ships with front-to-back airflow, five hot-swappable fans and two hot-swappable AC power supplies, plus 16 GB RAM and 32 GB flash. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
All ports are SFP28 / QSFP28 — transceivers and direct-attach cables are sold separately. This is the front-to-back (FB) airflow, AC-powered variant; order the back-to-front (BF) SKU if your aisle runs the other way. MACsec is supported on the switch’s secure ports (4 × SFP28 and 2 × QSFP28); confirm rack depth and that both power supplies match the chosen airflow.
Best For
✓ High-density 25G server access with 100G uplinks
✓ Data-center leaf and aggregation
✓ VSX dual-chassis high-availability pairs
✓ EVPN-VXLAN and modern AOS-CX fabrics
✓ Campus core needing 48 × 25G
✓ API-driven, automated operations
Key Features
48×25G SFP28 + 6×100G QSFP28
A high-density port mix auto-negotiates 1/10/25GbE on 48 SFP28 ports and 40/100GbE on 6 QSFP28 uplinks, giving 3.6 Tbps of line-rate switching for leaf and aggregation roles.
Aruba AOS-CX with VSX
The modern AOS-CX NOS adds the Network Analytics Engine, REST API and gNMI telemetry, while VSX provides active-active dual-chassis redundancy for resilient designs.
Front-to-Back Airflow & Redundancy

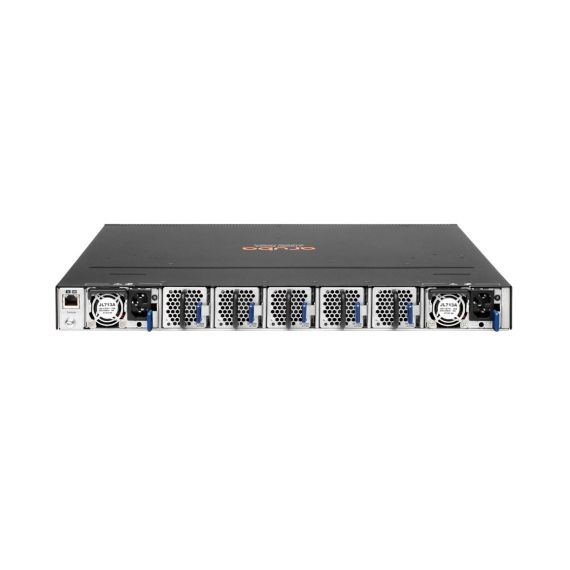

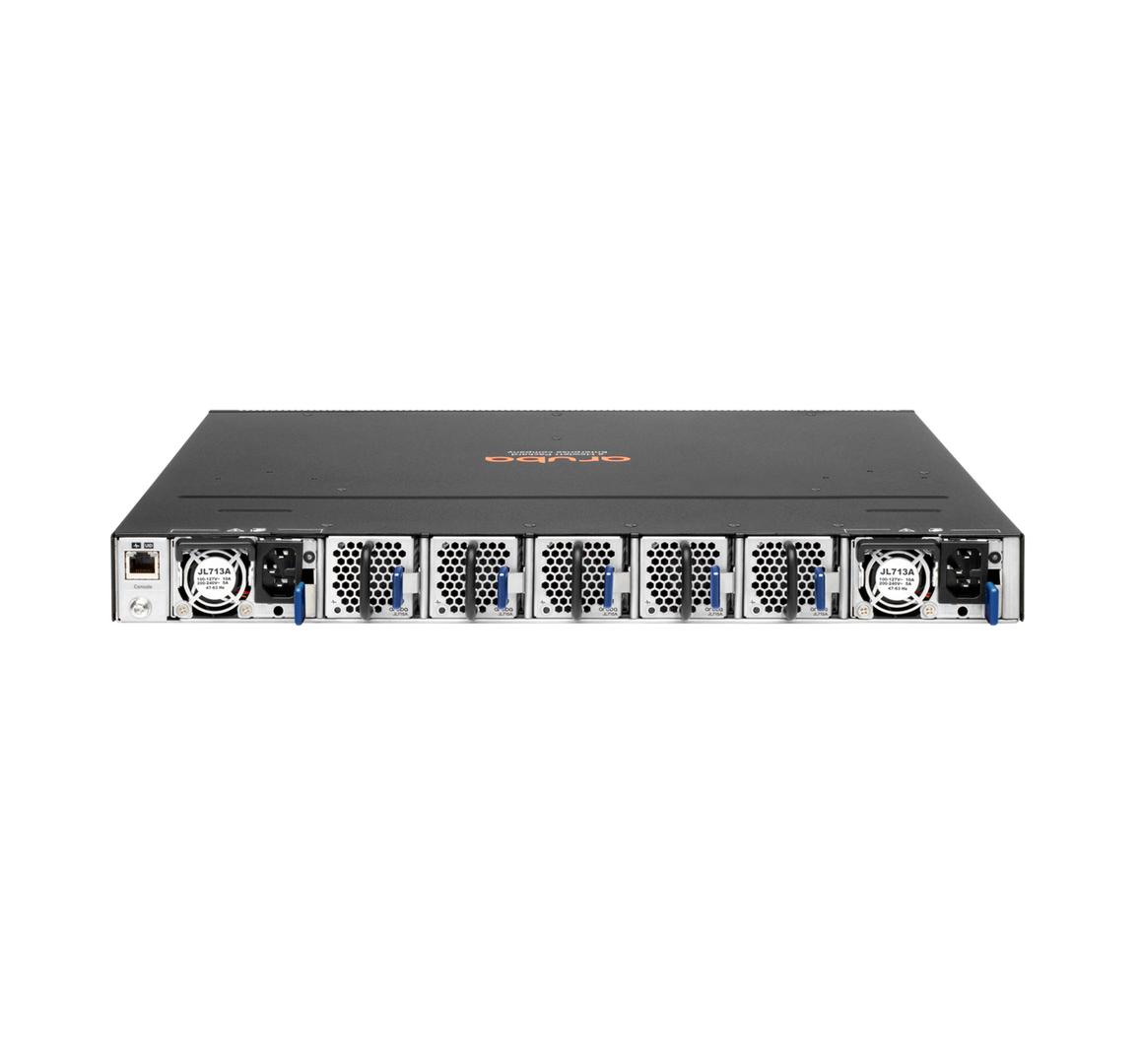

Five hot-swappable fans and two hot-swappable AC power supplies with front-to-back airflow keep the 1U switch serviceable and reliable in production racks.
Enterprise Hardware & Security
16 GB RAM and 32 GB flash support rich services, and MACsec on the secure ports (4 × SFP28, 2 × QSFP28) encrypts sensitive links at line rate.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The 8360-48Y6C v2 is the high-density member of the CX 8360 v2 leaf family — 48 × 25G access with 6 × 100G uplinks and VSX for active-active redundancy in a single rack unit. Order this JL704C for front-to-back airflow; choose the BF variant if your aisle runs the other way. If you need fewer ports, the 32Y4C v2 is the smaller sibling; for higher performance, look at the CX 8325 series. Explore more in our managed switches category and pair it with enterprise routers at the edge.
Buyer’s Guide
Buy it if
You need high-density 25G server access (48 ports) with 100G uplinks in a 1U AOS-CX switch, VSX redundancy and front-to-back airflow for leaf or aggregation.
Skip it if
Your rack needs back-to-front airflow (order the BF variant) or 32 access ports are enough (choose the smaller 8360-32Y4C v2).
Also consider
The HPE Aruba CX 8360-32Y4C v2 for 32 × 25G access, or the CX 8325 series for higher-performance data-center leaf roles.
Features - Hewlett Packard - JL704C
Port Speed
- 10 Gbps,
- 25 Gbps,
- 40 Gbps,
- 100 Gbps
More Details
Product Code
CD98688
EAN Code
0190017567662
Manufacturer
Hewlett Packard
