Manhattan HDMI Active Optical Cable, 70m, 4K 60Hz, Detachable HDMI / Micro HDMI, Black
Brand:
Manhattan
Manhattan HDMI Active Optical Cable, 70m, 4K 60Hz, Detachable HDMI / Micro HDMI, Black
€267.33 inc. VAT
355544
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
4K HDMI over a 70m optical route with a detachable display connector
70m AOC4K 60Hz18GbpsDetachable HDMI

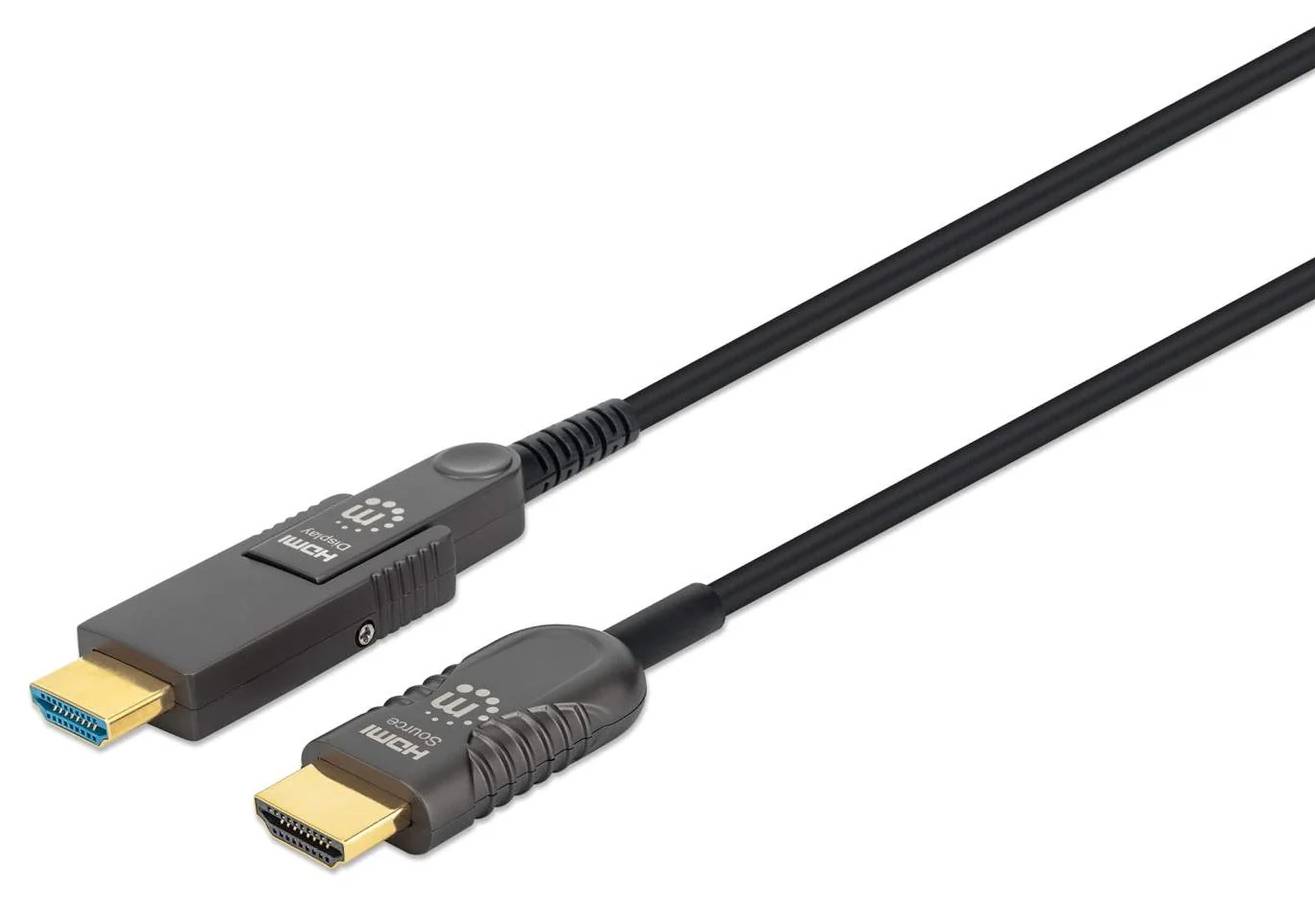

The Manhattan 70m High-Speed HDMI Active Optical Cable combines OM3 fibre and copper with built-in active amplification for long HDMI routes. It supports 4K UHD at 60Hz, 4:4:4 chroma and up to 18Gbps with compatible equipment. The display end uses Micro HDMI Type D with an included detachable HDMI Type A adapter, allowing a narrower connector during installation.
Compatibility — check before buying:

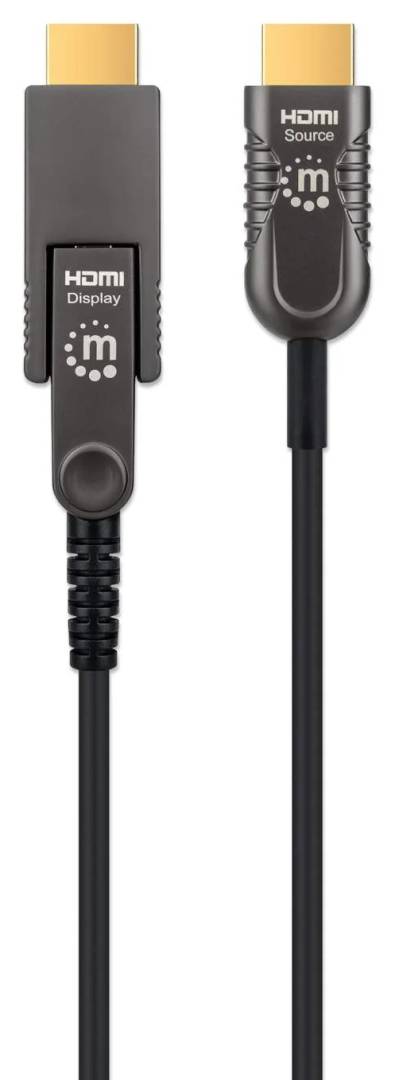

Follow the Source and Display labels: the fixed HDMI end connects to the source output, while the detachable end connects to the display input. Video, HDR, audio formats, ARC, CEC and HEC depend on supporting equipment. Respect the 20mm bend radius and installation requirements for the route.
Best For
✓ Conference and classroom display routes
✓ Long commercial HDMI connections
✓ Narrow installation paths requiring a detachable connector
Key Features
Optical transmission for long routes
The fibre/copper hybrid has an OM3 optical path and integrated amplifier. Manhattan declares immunity to EMI and RFI for optical transmission, making it useful where electrical interference is a concern.
Detachable connector for installation
Remove the included Type A adapter to expose the narrower Micro HDMI Type D display connector. The included pull cap helps installation; protect the optical cable and follow the direction labels.
Video and audio support
Supports 4K 3840 × 2160 at 60Hz, 4:4:4 chroma, HDR, HDCP 2.2, CEC, HEC and ARC. Dolby, Dolby Atmos, DTS and PCM require compatible equipment and content.
Power and mechanical details
Normal Plug and Play operation requires no external power supply. An optional 5V USB Micro-B input and 0.7m power cable are provided. Cable diameter is 4.5mm ± 0.2mm, with a 20mm bend radius.
Technical Specifications
What's in the Box
One 70m HDMI active optical cable
Detachable HDMI Type A adapter
USB Micro-B male to USB-A male power cable, 0.7m
Pull cap
What Will Not Work
Video will not operate with Source and Display ends reversed.
A compatible source and display are required for the advertised video and audio modes.
No CL3 or plenum rating is specified for this exact model; confirm applicable installation requirements.
Frequently Asked Questions
Singular Expert Insight
Plan the direction and route before installation. Check conduit clearance, the 20mm bend radius and compatible display modes before pulling the cable; do not treat the tensile-strength figure as an instruction to pull at that load. Ask Singular about connector and installation compatibility
Buyer’s Guide
Buy it if
You need a 70m HDMI route with 4K 60Hz support and a detachable display connector.
Skip it if
You need a reversible passive cable, verified plenum rating or video modes beyond the stated specification.
Also consider
A suitable shorter HDMI cable or an installation system matched to the route and equipment.
Features - Manhattan - 355544
Colour
black
Length
70m
More Details
Product Code
04:591455
EAN Code
0766623355544
Manufacturer
Manhattan
Technical specifications
Resolution
4K (UHD)
