Connect a USB-C computer to compatible RS232 equipment
USB-C to DB9PL23031mPower / TX / RX LEDs

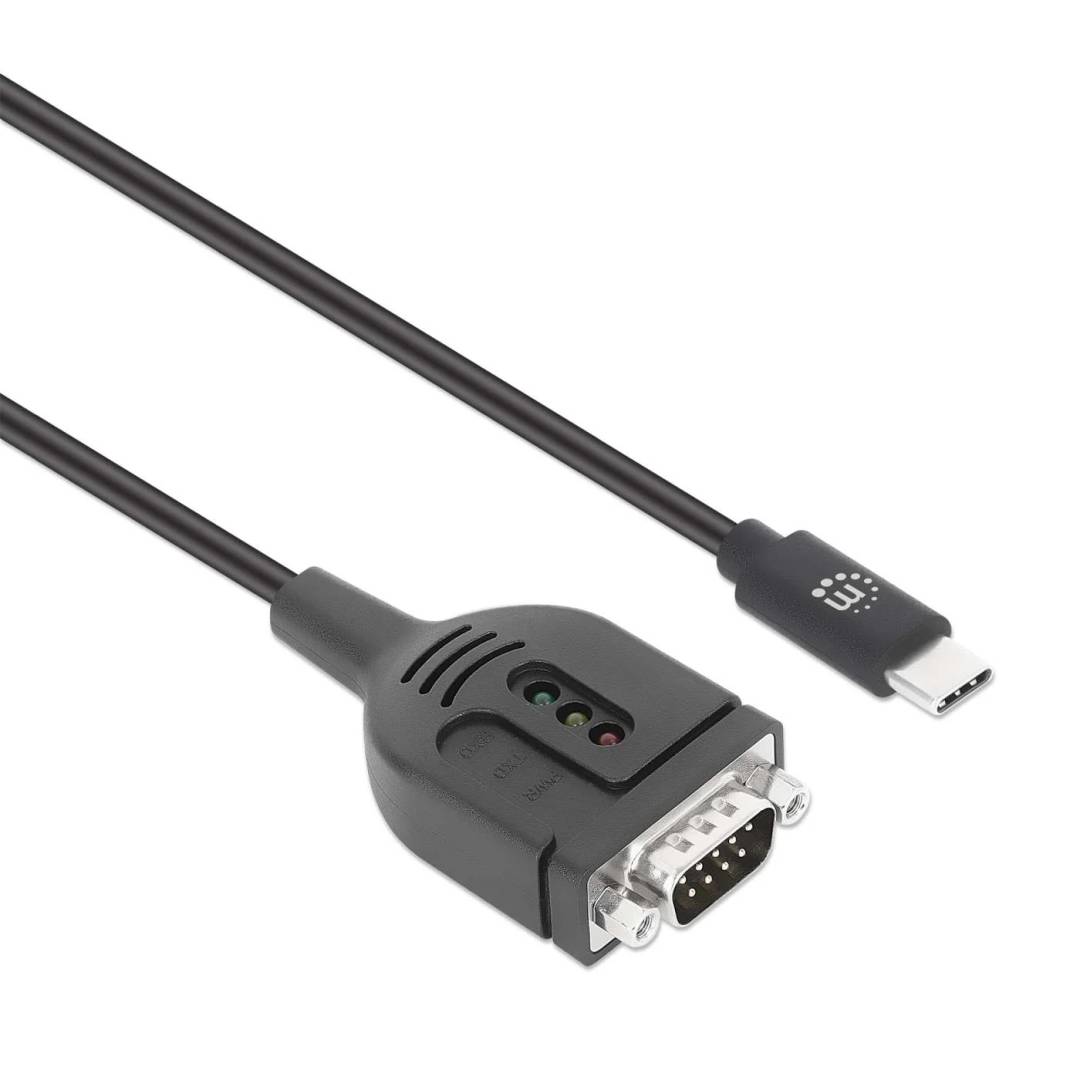

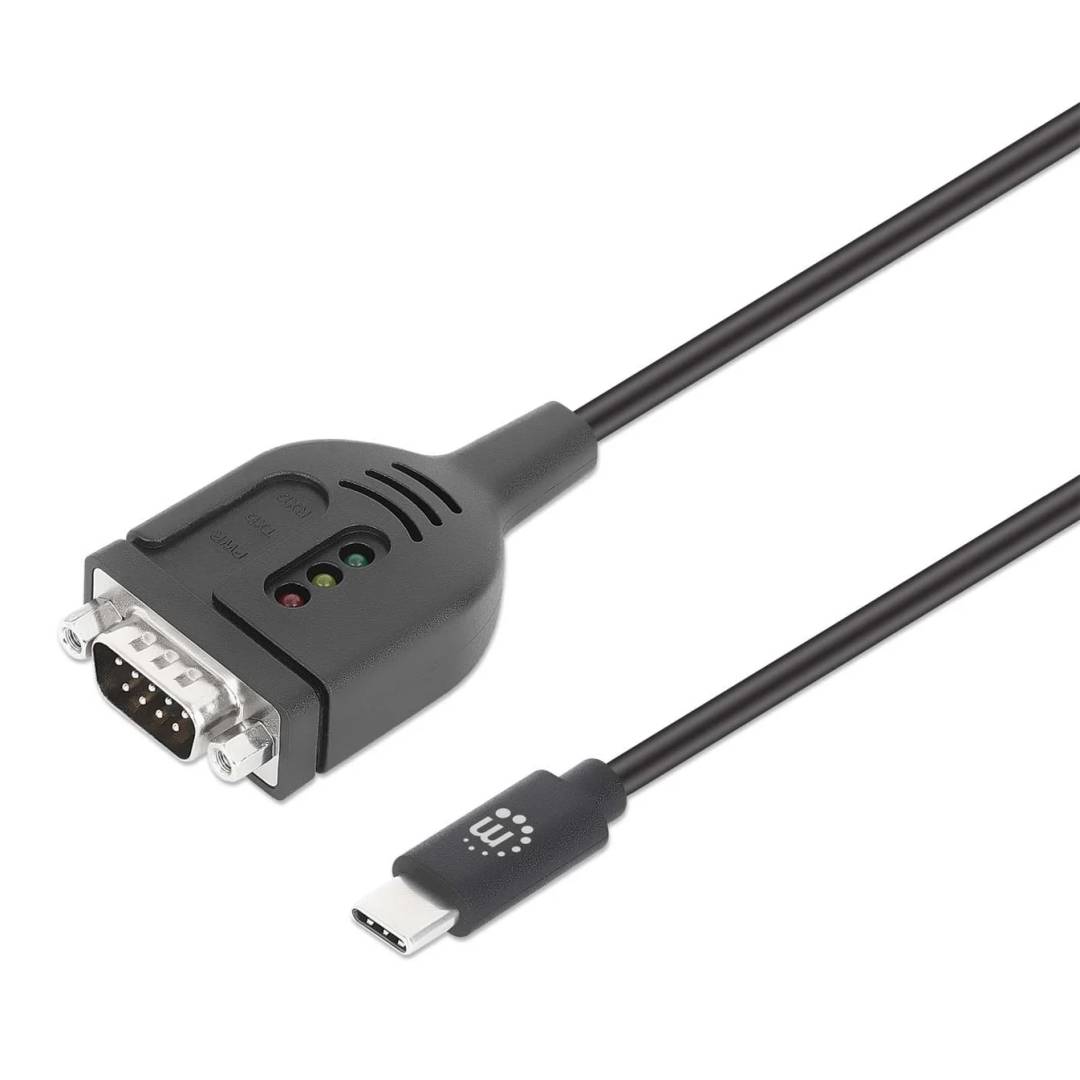

The Manhattan 154499 active adapter converts a compatible computer’s USB-C connection into an RS232 serial connection through a male DB9 connector. The Prolific PL2303 chipset supports serial communication up to 3Mbps, while separate Power, TX and RX LEDs show connection activity. Its 1m pure-copper cable uses foil and braid shielding and a PVC jacket.
Compatibility — check before buying:
Verify the equipment uses RS232 and accepts the connector gender, pin wiring and serial settings. A DB9 shape alone does not establish compatibility. The connected device and application must support the chosen baud rate; this cable is not a TTL-level serial adapter or a display connection.
Best For
✓ Compatible serial label and receipt printers
✓ RS232 scanners and peripherals
✓ Technician and IT serial connections
Key Features
Active serial conversion

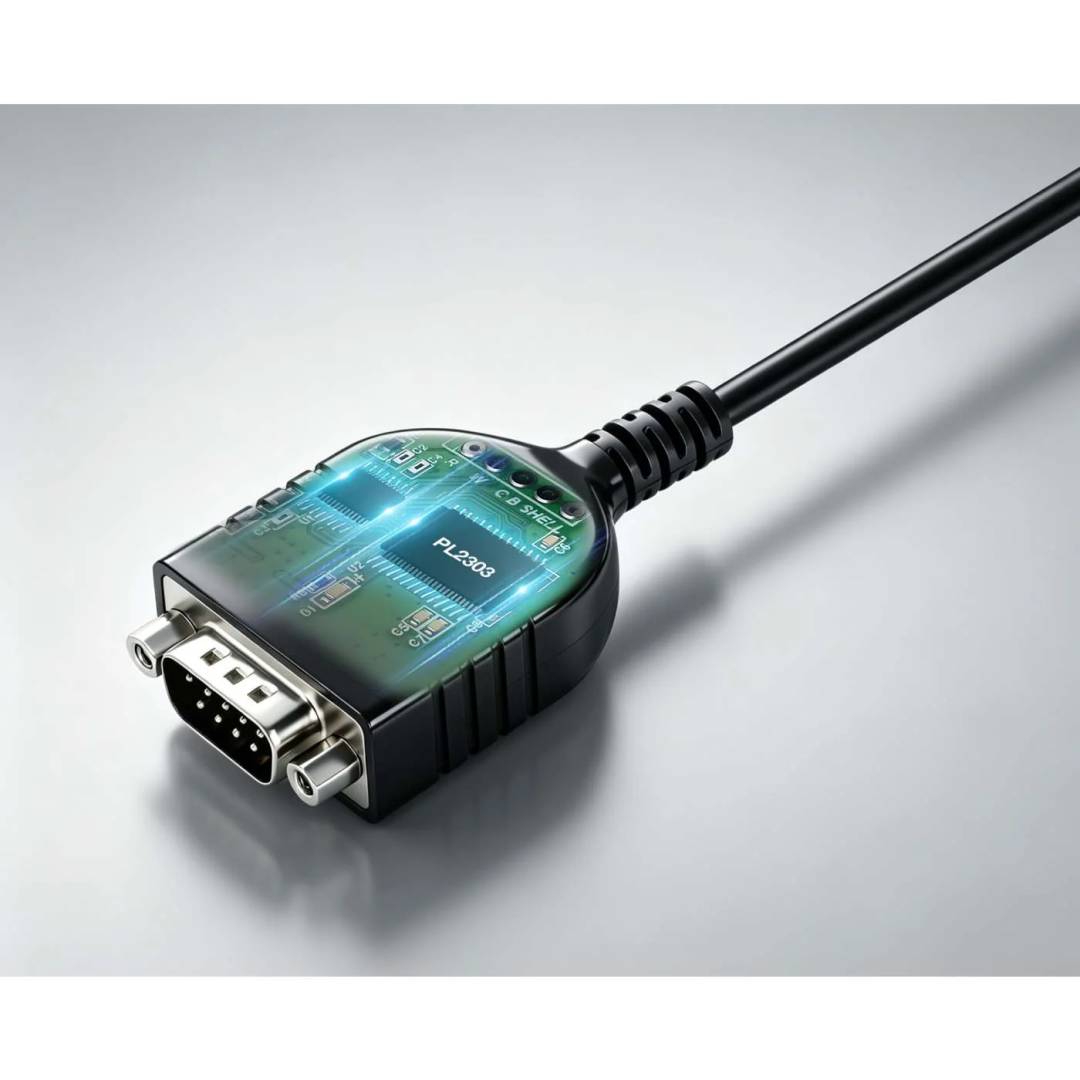

The integrated PL2303 chipset handles USB-to-RS232 conversion for suitable label printers, scanners, CNC equipment and other serial peripherals. Device-specific software and wiring requirements still apply.
Useful communication indicators
Power shows supply status; TX and RX show serial transmission and reception. These indicators help distinguish an active connection from an application or serial-setting problem.
Shielded 1m cable
24/28 AWG pure-copper conductors are protected by braid and aluminium-foil shielding. Nickel-plated contacts and a 4.5mm outer diameter complete the published cable construction.
Multi-platform operation
The manufacturer lists Windows 7/8.1/10/11, Linux and macOS, and describes plug-and-play installation without additional drivers. The adapter is USB bus powered and specified for operation from 0 to 85°C.
Technical Specifications
What's in the Box
One Manhattan USB-C to serial DB9 / RS232 active adapter cable
Instructions
What Will Not Work
It does not convert USB-C into a VGA or other video connection.
It is not a TTL UART, RS422 or RS485 converter.
It does not guarantee compatibility with every DB9 device or serial wiring arrangement.
Frequently Asked Questions
Singular Expert Insight
Check the serial equipment’s manual for RS232 levels, DB9 gender, pin assignment and baud-rate requirements. Confirm whether a straight-through or other serial wiring arrangement is needed before choosing the complete connection. Ask Singular about connector and installation compatibility
Buyer’s Guide
Buy it if
You need a 1m active USB-C to compatible DB9 RS232 connection with activity indicators.
Skip it if
Your device uses a different serial standard, connector gender or unsupported wiring.
Also consider
An adapter with the exact serial electrical standard and wiring your device requires.
Features - Manhattan - 154499
Colour
black
Interface
- USB Type-C,
- USB2.0
Length
1.0m
More Details
Product Code
04:578360
EAN Code
0766623154499
