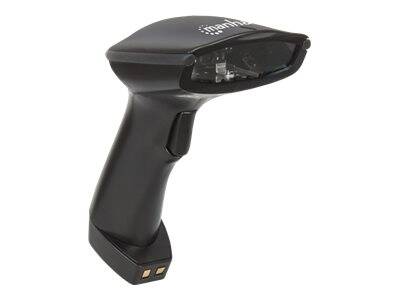

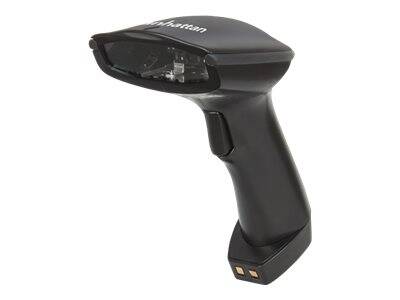

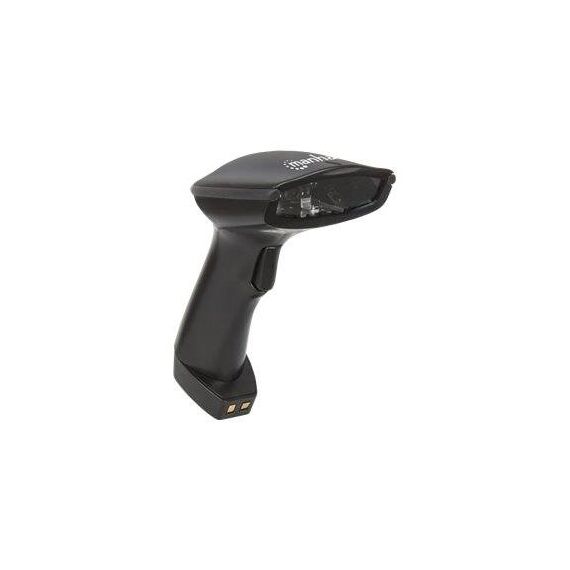

Manhattan 178495 Wireless 1D CCD Barcode Scanner, 500 mm Scan Depth, 80 m Radio Range, USB Base and Power Adapter, Black

Brand:
Manhattan

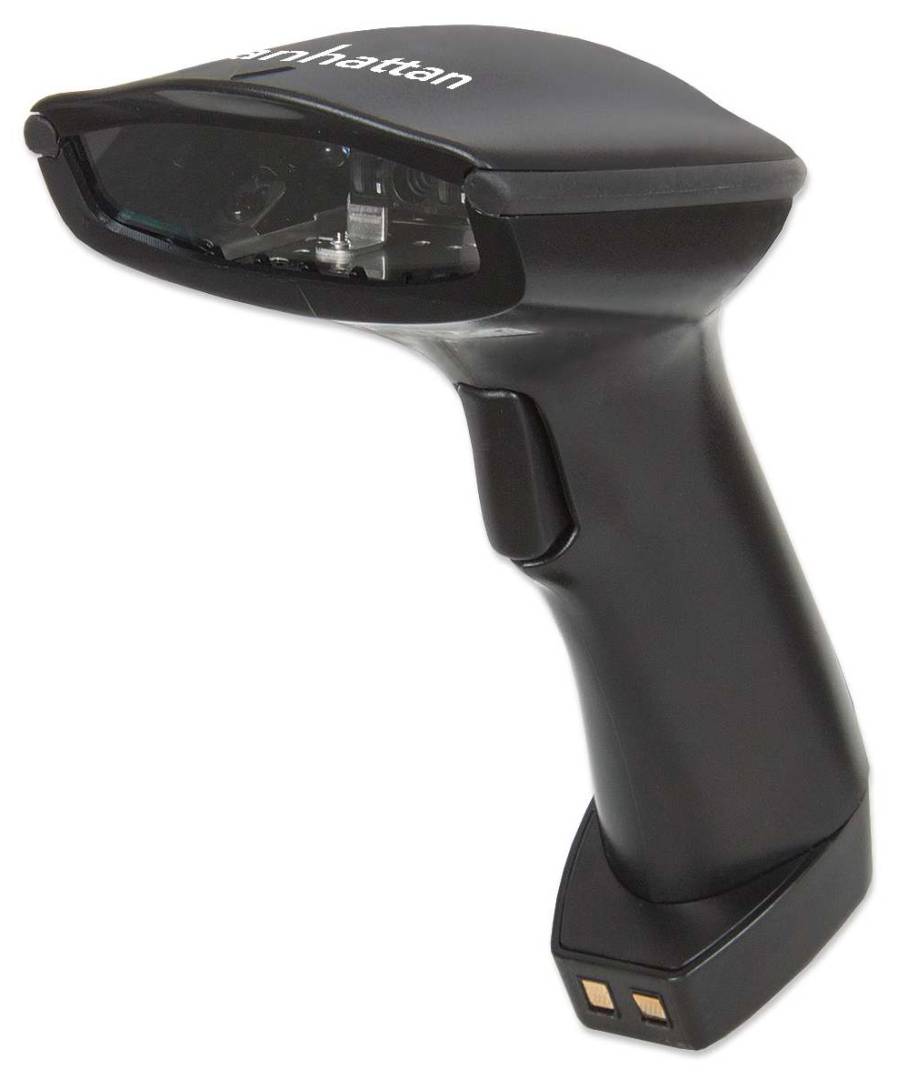

Manhattan 178495 Wireless Linear CCD Barcode Scanner Black
Manhattan 178495 Wireless 1D CCD Barcode Scanner, 500 mm Scan Depth, 80 m Radio Range, USB Base and Power Adapter, Black
€387.93 inc. VAT
Buy
178495
€325.99
€387.93 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:137289
EAN Code
0766623178495
Manufacturer
Manhattan
Features
Wireless

Quick Specs

Capture
1D linear CCD
Scan performance
Up to 500 scans/s · 500 mm
Wireless range
Up to 80 m, line of sight
Package
USB base + power adapter
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Manhattan 178495: wireless 1D entry with a charging base

1D CCDUp to 500 scans/s80 m line of sightUSB base kit

The Manhattan 178495 is a wireless linear CCD scanner for everyday 1D barcode entry at a PC workstation. It sends decoded characters to the active application like keyboard input and includes a receiver/recharge base, power adapter with EU/US/UK/AU plugs, power cable, RJ50-to-USB cable and manual. It needs a host and suitable receiving software to use the codes; it is not a standalone stock terminal. Up to 80 m is the wireless line-of-sight distance, while up to 500 mm is the optical scan depth.

Before you order:
Use this model for supported linear 1D codes, not QR or Data Matrix. The included host connection is USB; alternative KBW/RS-232 connections need suitable cabling and configuration. Confirm the host keyboard layout and application before deployment.

What's in the Box

  • 1 × wireless linear CCD scanner and 1 × receiver/recharge base.
  • 1 × power adapter with EU, US, UK and AU interchangeable plugs.

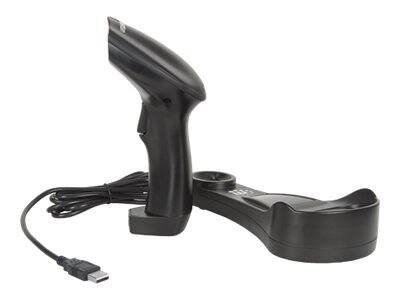

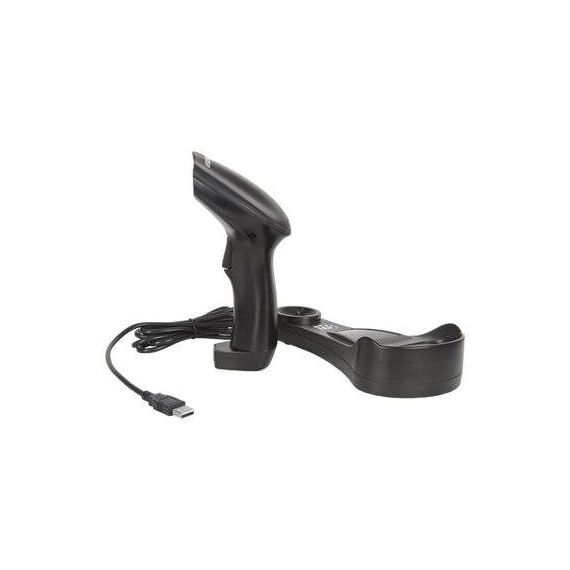

  • Power cable, RJ50-to-USB cable and user manual.

What It Means in Practice

  • Connect the base and power, charge the scanner, pair it following the programming guide and test a label in the intended application field.
  • For receiving cartons, scan each 1D label and let the host application associate the value with its product record. The scanner does not supply prices or stock records.
  • An out-of-range buffer holds up to 3000 scans. Configure and test data transfer and duplicates before relying on offline collection.

What Will Not Work

  • QR and other 2D codes require a 2D imager.
  • The 80 m line-of-sight figure does not guarantee coverage through walls or between aisles.

Key Features


Fast linear capture
Smart Detection offers up to 500 scans per second, with 4 mil resolution at PCS 0.9.

Wireless flexibility
The receiver base supports a line-of-sight radio range up to 80 m, subject to the installation.

Buffered collection
Up to 3000 scans can be retained when outside the paired device range.

A supplied desktop kit
The rechargeable scanner, base, power adapter and USB cable provide the verified hardware components for a host workstation.

Technical Specifications

Identity and package
MPN 178495
EAN 0766623178495
Package 1 × scanner, 1 × receiver/recharge base, 1 × power adapter; EU, US, UK, AU plugs; power and RJ50-to-USB cables; manual
Colour / housing Black · ABS and rubber
Capture
Engine Linear CCD, 1D
Light source 632 nm visible red LED
Scan depth Up to 500 mm, barcode and conditions dependent
Resolution 0.1 mm (4 mil) at PCS 0.9
Scan rate Smart Detection, up to 500 scans/s
Trigger / feedback Trigger switch; tone and LED
Code support UPC/EAN/JAN, EAN128, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacy, Code 128, Codabar / NW7, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/Plessey, Telepen, Code 93, Code 11, China Postage, Code 26, LCD25, GS1 DataBar
Offline buffer Up to 3000 scans
Connectivity
Link Wireless scanner to base; base to PC via KBW, RS-232 or USB (HID / Virtual COM); USB cable included
Wireless profiles HID, SPP
Wireless distance Up to 80 m in line of sight
Data entry Keyboard wedge decoder; data appears in active application as typed input
Power
Scanner battery Li-ion, 3.7 V, 1100 mAh
Reads per charge 8000 continuous reads, manufacturer reference
Recharge time 3.5 hours, manufacturer reference
Scanner current 150 mA
Receiver input 5 V DC ±5%
Receiver current 70 mA
Physical and environment
Scanner dimensions 183 × 90 × 70 mm
Base dimensions 190 × 95 × 40 mm
Scanner / base weight 0.20 kg / 0.10 kg, technical table
Ambient light 100000 lux maximum sunlight
Operating temperature 0°C to +50°C
Storage temperature −20°C to +60°C
Humidity 20–95%, non-condensing
Certifications FCC, CE, RoHS

Frequently Asked Questions

Does it read QR codes?
No. This is a linear 1D CCD reader. Choose a 2D imager for QR or Data Matrix.
Is a power adapter supplied?
Yes. The official package lists a power adapter with interchangeable EU, US, UK and AU plugs, alongside the receiver/recharge base.
Can it replace inventory software?
No. It enters barcode data. A host application must interpret the code and manage inventory, prices or transactions.
Singular Expert Insight
Choose it when your labels are linear 1D and you want wireless movement around a host workstation. Test the real labels and radio route before relying on the maximum distances. Compare other formats here: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need wireless 1D entry with a supplied receiver, charger and USB cable.
✕

Skip it if

 you need QR/2D capture or a standalone data terminal.
→

Also consider

 a 2D wireless kit when mobile QR codes are part of the workflow.
Confirm sample barcodes, host interface and operating distance with Singular.
