Matrox M9148 Low-Profile Quad-Monitor Graphics Card, 1GB DDR2, 4× Mini DisplayPort

Brand:
Matrox
Matrox-M9148E1024LAF-Graphics-cards
Matrox M9148 Low-Profile Quad-Monitor Graphics Card, 1GB DDR2, 4× Mini DisplayPort
€992.4 inc. VAT
Buy
M9148-E1024LAF
€833.95
€992.40 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
5470369
EAN Code
0790750240053
Manufacturer
Matrox

Quick Specs

Maximum DisplayPort resolution
2560 × 1600 per output
Maximum DVI resolution
1920 × 1200
Display modes
Independent desktop, stretched desktop
Video memory
1 GB DDR2
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

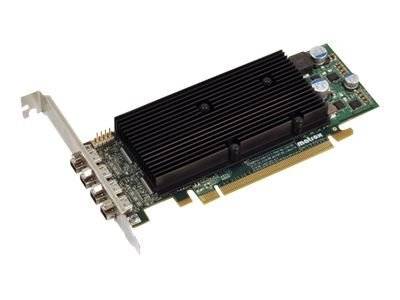

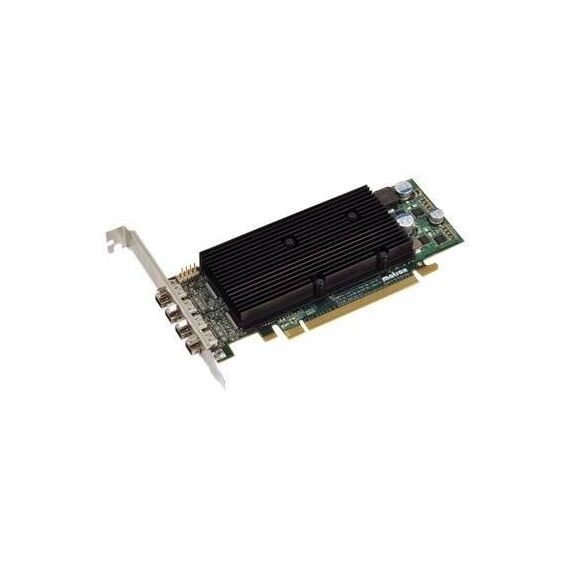

Matrox M9148 Quad-Monitor Graphics Card - Low-Profile PCIe x16

The Matrox M9148 is a low-profile, half-length PCIe x16 graphics card designed to drive up to four DisplayPort monitors from one card. It supports resolutions up to 2560 × 1600 per DisplayPort output, flexible multi-display modes through Matrox PowerDesk, and includes adapters for DisplayPort and DVI connections.
2560 × 1600 per output 1920 × 1200 Independent desktop, stretched desktop 1 GB DDR2

The Matrox M9148 is a low-profile, half-length PCIe x16 graphics card designed to drive up to four DisplayPort monitors from one card. It supports resolutions up to 2560 × 1600 per DisplayPort output, flexible multi-display modes through Matrox PowerDesk, and includes adapters for DisplayPort and DVI connections.

Best For
✓ A practical choice for offices, control rooms, trading desks, digital signage

Key Features


Commercial Fit
The main reason to choose the M9148 is its combination of four-display support, compact half-length low-profile design and flexible desktop modes, with adapters included for DisplayPort and DVI monitors.

Display Modes
Independent desktop | stretched desktop | clone | pivot | joined adapter modes | Independent desktop, stretched desktop, clone, pivot, and joined adapter modes

Maximum DisplayPort Resolution
Maximum DisplayPort Resolution: 2560 × 1600 per output

Memory Bus
Memory Bus: 128-bit

Technical Specifications

Product Type Quad-monitor graphics card
Model Matrox M9148
Video Memory 1 GB DDR2
Memory Bus 128-bit
Bus Interface PCIe x16
Form Factor Low-profile, half-length card
Bracket Support ATX bracket factory-installed | low-profile bracket included
Connectors 4× Mini DisplayPort
Video Outputs 4 channels | DisplayPort and SL-DVI via additional adapters
Maximum Monitors Supported 4 per card
Maximum Cards per System 2
Maximum DisplayPort Resolution 2560 × 1600 per output
Maximum DVI Resolution 1920 × 1200
Display Modes Independent desktop | stretched desktop | clone | pivot | joined adapter modes | Independent desktop, stretched desktop, clone, pivot, and joined adapter modes
Bezel Management Supported under Windows only
Included Adapters 4× Mini DisplayPort-to-DisplayPort adapters | 4× DisplayPort-to-DVI adapters | 4× Mini DisplayPort-to-DisplayPort adapters and 4× DisplayPort-to-DVI adapters
Included Software Matrox PowerDesk desktop management software | display driver software
Graphics API OpenGL 2.0
Supported Operating Systems Windows XP, Vista, 7, 8.x and 10, Windows Embedded Standard 7, Windows Server 2003, 2008, 2012, 2016 and 2019, plus supported Linux distributions according to the Matrox driver README | Windows XP 32/64-bit | Windows Vista 32/64-bit | Windows 7 32/64-bit | Windows 8.x 32/64-bit | Windows 10 32/64-bit, non-WHQL | Windows Embedded Standard 7 32/64-bit | Windows Server 2003 32/64-bit | Windows Server 2008 R1 32/64-bit | Windows Server 2008 R2 | Windows Server 2012 32/64-bit | Windows Server 2016 | Windows Server 2016 R2 | Windows Server 2019 | Linux distributions supported according to the Matrox driver README
HDCP Support Not supported
Card Dimensions 6.60 × 2.712 × 0.750" (L × H × W) | 16.80 × 6.90 × 1.91 cm
EMC/EMI Device Class Class B
Technical-page dimensions 6.60" length × 4.376" height
Operating temperature 5 to 55 °C (41 to 131 °F), near board ambient
Non-operating temperature −40 to 70 °C (−40 to 158 °F)
Operating humidity 20% to 80%, non-condensing
Non-operating humidity 10% to 95%, non-condensing
Product name M9148 LP PCIe x16
Manufacturer Matrox
Manufacturer part number M9148-E1024LAF
EAN 0790750240053
GPU family Matrox
GPU model M9148
Operating atmospheric pressure 650 to 1013 hPa | 0 to 3580 m altitude
Non-operating atmospheric pressure 192 to 1020 hPa | −50 to 12,000 m altitude
SKU / EAN M9148-E1024LAF | 0790750240053

Frequently Asked Questions

What should I know before buying?
This card uses four Mini DisplayPort connectors and relies on the included adapters for DisplayPort or DVI connections. HDCP is not supported, bezel management is supported under Windows only, and driver compatibility should be checked against the listed operating systems before installation.
What connectivity does it offer?
PCIe x16
What is it compatible with?
ATX bracket factory-installed | low-profile bracket included
Singular Expert Insight
The main reason to choose the M9148 is its combination of four-display support, compact half-length low-profile design and flexible desktop modes, with adapters included for DisplayPort and DVI monitors.

Buyer’s Guide

Buy it if
A practical choice for offices, control rooms, trading desks, digital signage and other systems that need up to four independent displays from a compact low-profile graphics card.
Skip it if
This card uses four Mini DisplayPort connectors and relies on the included adapters for DisplayPort or DVI connections. HDCP is not supported, bezel management is supported under Windows only, and driver compatibility should be checked against the listed operating systems before installation.
