Mercusys MS105G 5-Port Gigabit Desktop Switch
Brand:
MERCUSYS
MS105G(EU)
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Mercusys MS105G 5-Port Gigabit Desktop Switch
5 × Gigabit RJ45Unmanaged, desktopUp to 10 Gbps aggregate5 V / 0.6 A adapter included
The Mercusys MS105G(EU) is a compact, unmanaged desktop switch for adding wired Ethernet connections at home or in a small office. It has five auto-negotiating Gigabit RJ45 ports and requires no configuration; the power adapter is included.
Best For: A practical choice when you need to add wired Gigabit ports without managing network settings. It suits a home or small-office setup where one connection can serve as the uplink and up to four others as endpoint connections.
Before you order: The uplink uses one of the five ports, leaving four for endpoints. This is an unmanaged switch with no dedicated WAN, SFP, PoE, Wi-Fi, router/NAT or managed VLAN interface. The 10 Gbps figure is aggregate switching bandwidth, not the speed of each port. Ethernet cables, router and internet service are separate; IP camera compatibility does not mean the switch supplies PoE.
What's in the Box
- Mercusys MS105G five-port switch
- Power adapter
- Quick Installation Guide
What It Means in Practice
- Connect one of the five RJ45 ports to the existing Ethernet network; that uplink leaves four ports for endpoints.
- Each port negotiates at 10, 100 or 1000 Mbps according to the connected link; the 10 Gbps switching figure is shared aggregate capacity, not a per-port rate.
- Plug-and-play operation requires no configuration, app or subscription.
- The switch is compact at 105 × 70 × 24.9 mm and uses an external 5 V / 0.6 A power supply.
What Will Not Work
- No PoE output; PoE injectors are separate if needed by a device.
- No Wi-Fi, router/NAT, dedicated WAN, SFP or managed VLAN interface.
- Ethernet patch cables, router and internet service are not included.
- One port is used for the uplink when expanding an existing network, leaving four endpoint ports.
Key Features

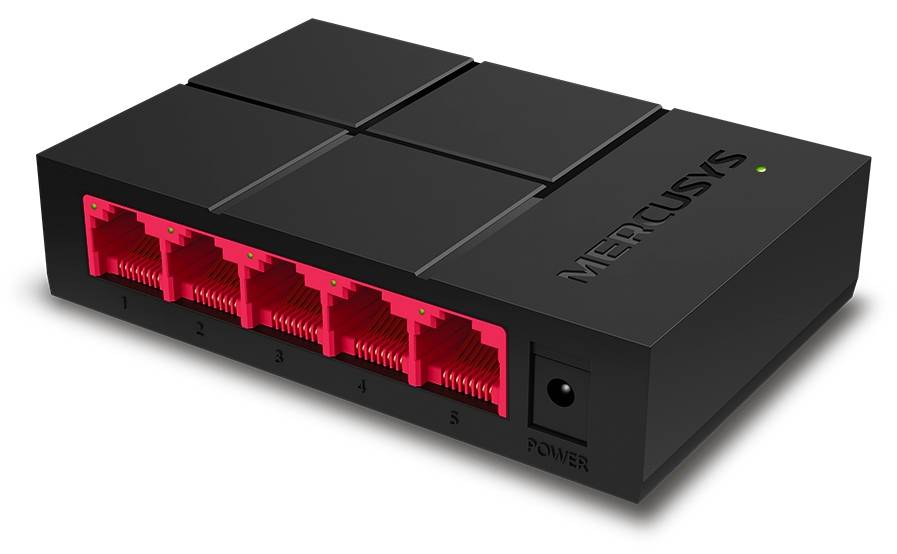

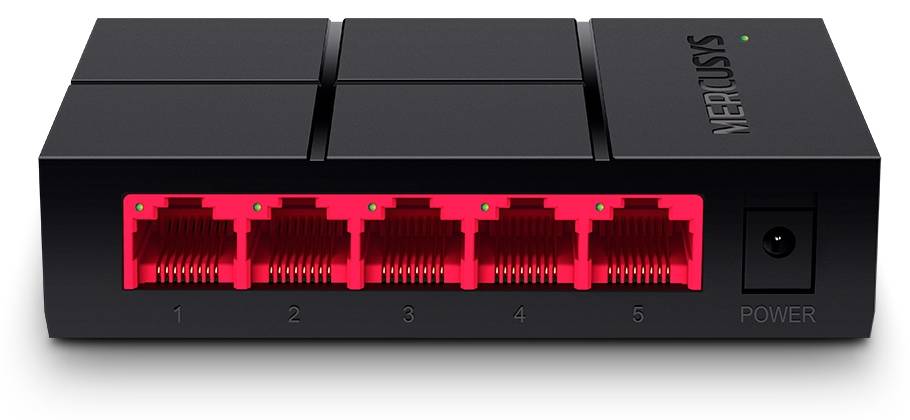

Five Gigabit ports
Auto-negotiating 10/100/1000 Mbps RJ45 connections support wired network expansion.
Plug-and-play
No configuration, app or subscription is required for setup.

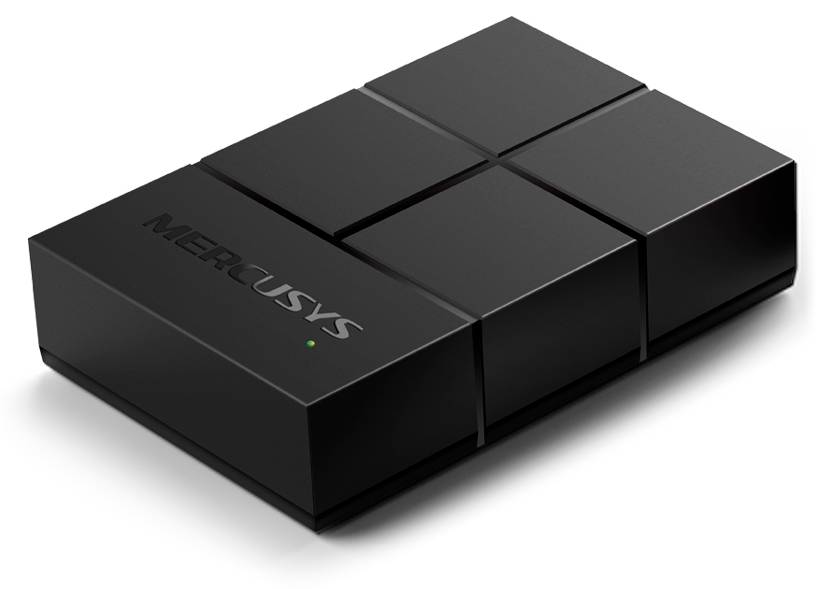

Compact desktop design
The black plastic switch measures 105 × 70 × 24.9 mm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Five auto-negotiating Gigabit ports and plug-and-play operation provide a straightforward way to expand a wired network, with the power adapter included.
Buyer’s Guide
✓ Buy it if A practical choice when you need to add wired Gigabit ports without managing network settings. It suits a home or small-office setup where one connection can serve as the uplink and up to four others as endpoint connections.
✕ Skip it if The uplink uses one of the five ports, leaving four for endpoints. This is an unmanaged switch with no dedicated WAN, SFP, PoE, Wi-Fi, router/NAT or managed VLAN interface. The 10 Gbps figure is aggregate switching bandwidth, not the speed of each port. Ethernet cables, router and internet service are separate; IP camera compatibility does not mean the switch supplies PoE.
Features - MERCUSYS - MS105G(EU)
Colour
black
Interface
- Ethernet
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:495630
EAN Code
6935364099619
Manufacturer
MERCUSYS
