ASRock B860M Pro-A Micro-ATX Motherboard LGA1851 B860 DDR5 PCIe 5.0 3x M.2 2.5GbE Black 90-MXBRR0-A0UAYZ
Brand:
ASRock
ASRock B860M Pro-A Micro-ATX Motherboard LGA1851 B860 DDR5 PCIe 5.0 3x M.2 2.5GbE Black 90-MXBRR0-A0UAYZ
€162.76 inc. VAT
90-MXBRR0-A0UAYZ
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

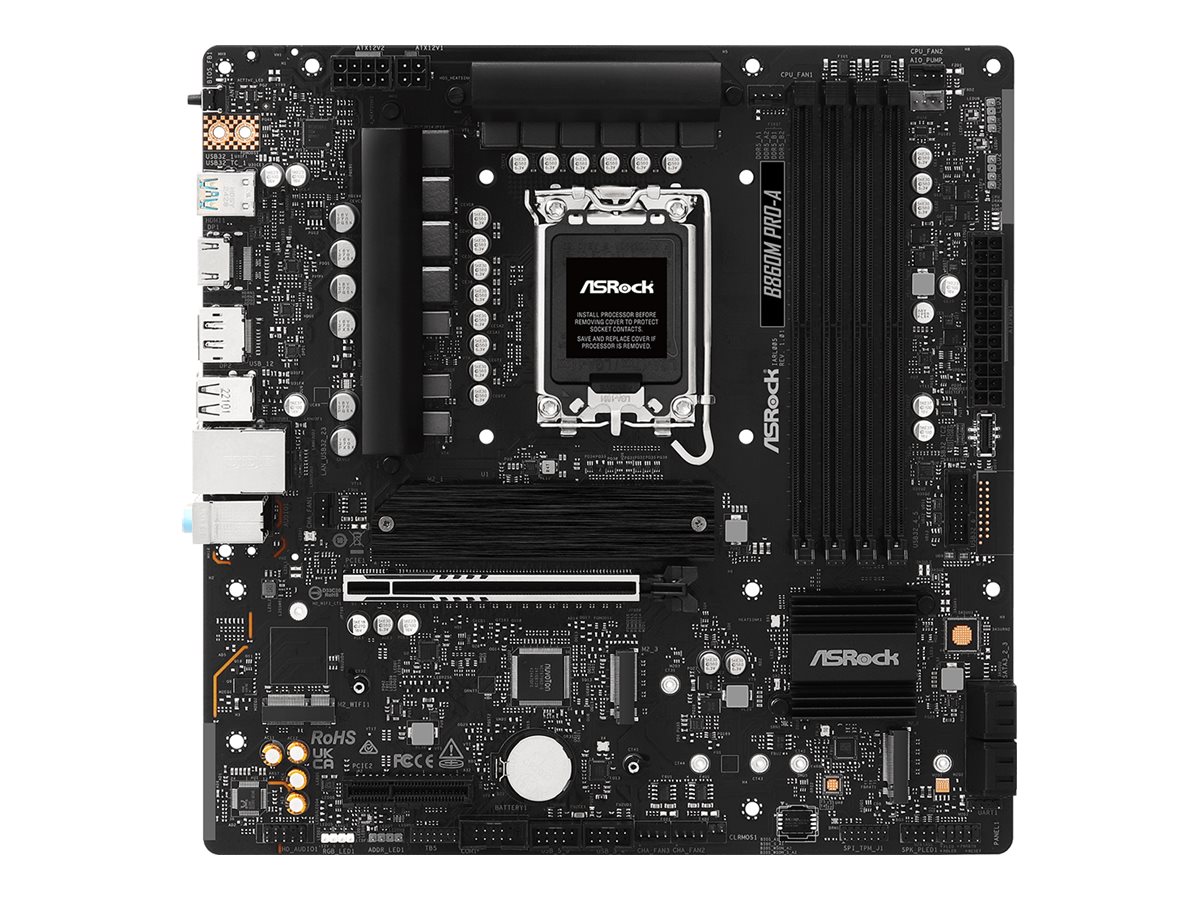

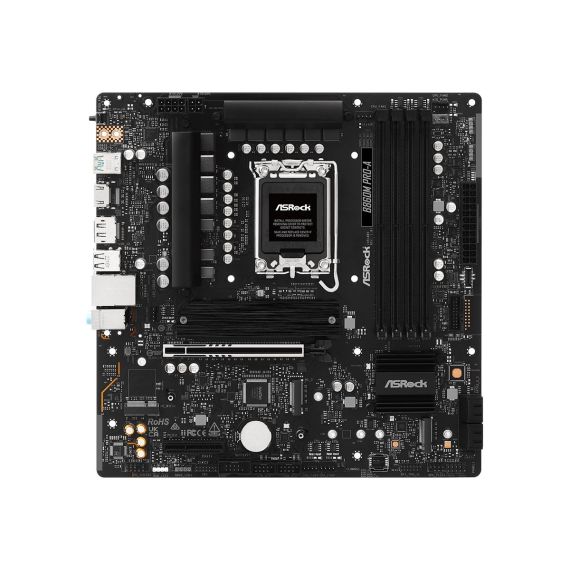

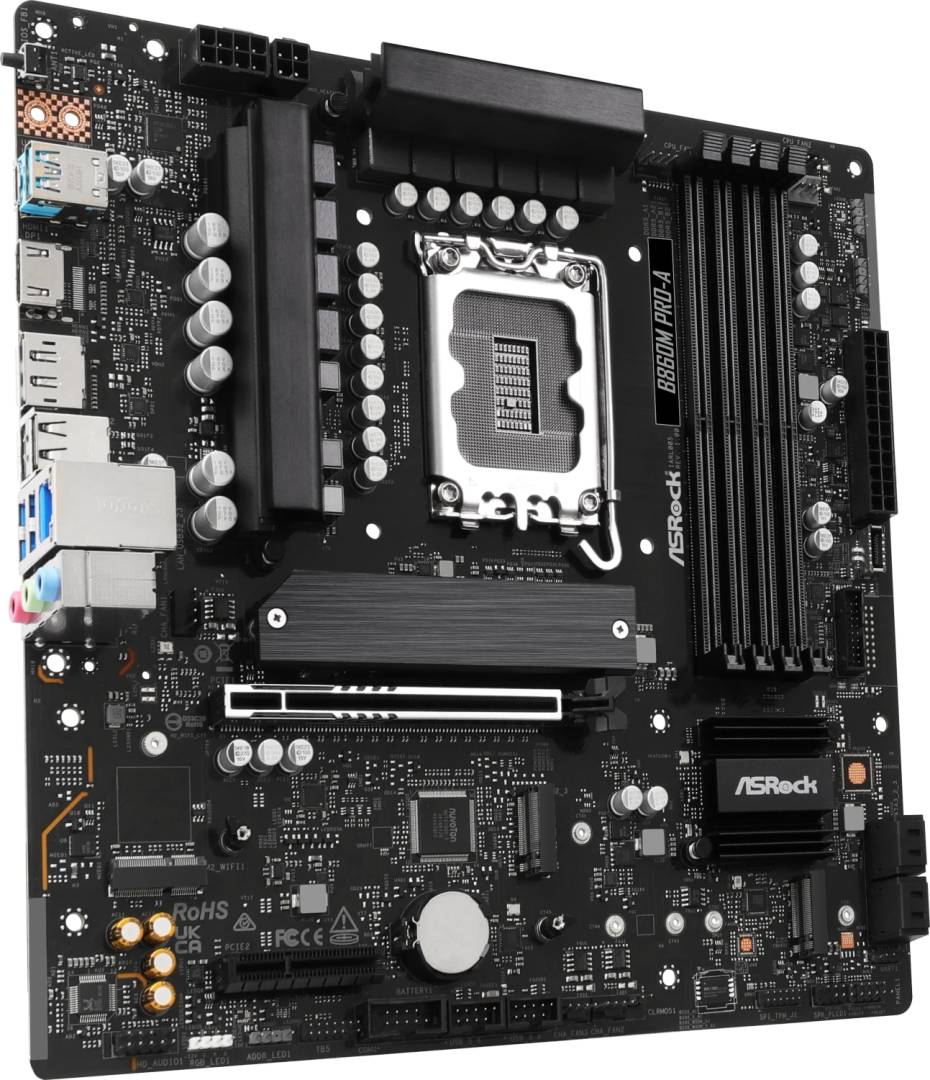

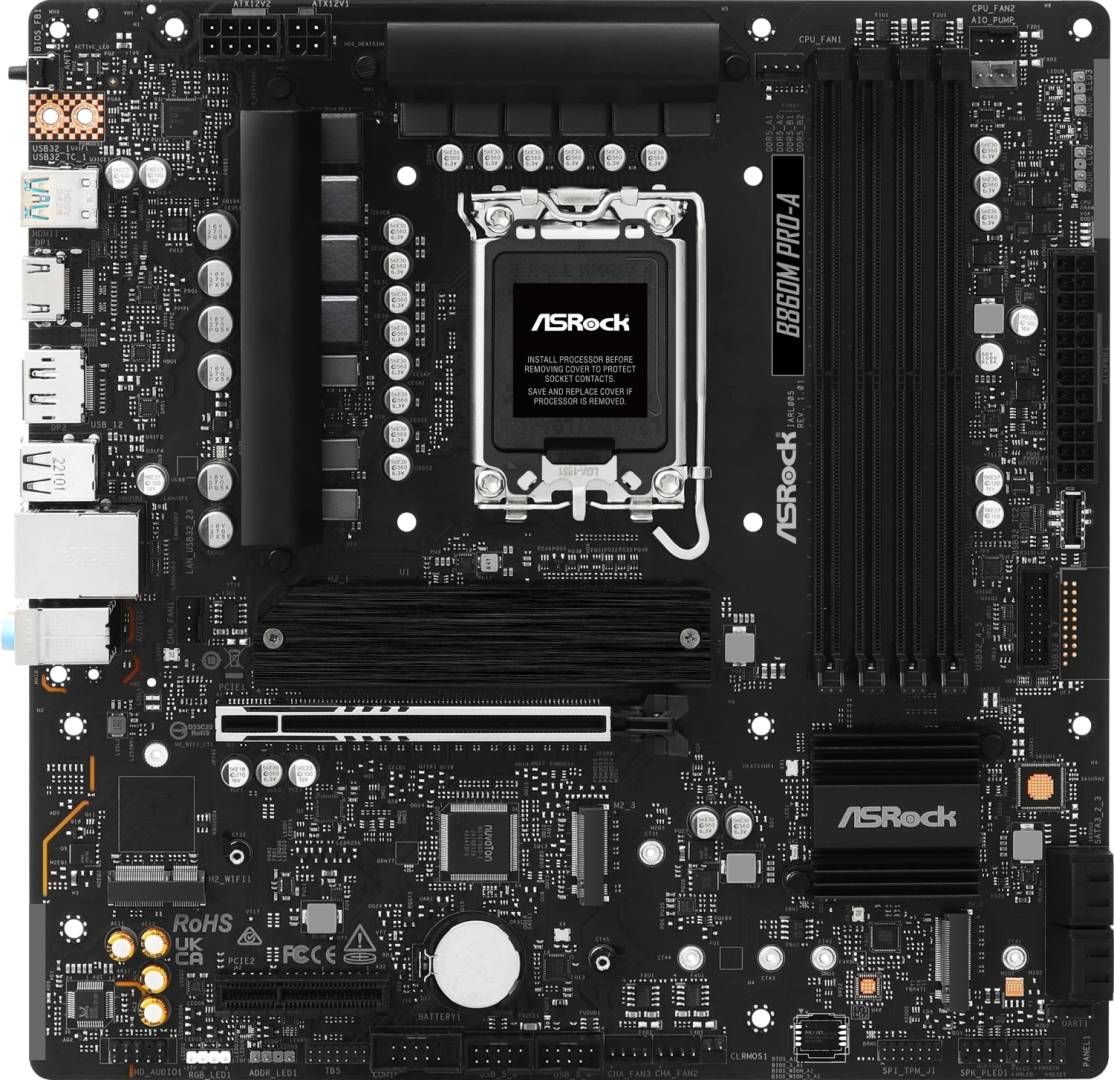

ASRock B860M Pro-A — Value Micro-ATX LGA1851 Motherboard
A compact, budget-friendly B860 Micro-ATX board for Intel Core Ultra Series 2, keeping PCIe 5.0, DDR5, three M.2 slots and 2.5GbE networking in a smaller footprint.
Intel B860 · LGA1851DDR5 up to 8666+ MHz OCPCIe 5.0 · 3× M.22.5GbE LAN
The ASRock B860M Pro-A (part number 90-MXBRR0-A0UAYZ, EAN 4711581490291) is a Micro-ATX motherboard for Intel® Core™ Ultra Series 2 processors on the LGA1851 socket, built on the B860 chipset and tuned by the Pro-A line for reliable everyday performance at the lowest cost. Despite its compact size it keeps a reinforced-steel PCIe 5.0 x16 slot, a Gen5 M.2 socket, three M.2 slots in total, DDR5 memory and a Dragon 2.5GbE LAN. Typically in stock with fast delivery across Cyprus.
Compatibility: Supports only Intel Core Ultra Series 2 (Arrow Lake) CPUs on the LGA1851 socket — not compatible with LGA1700 (12th–14th Gen) chips. Uses DDR5 memory only (no DDR4), with Intel XMP 3.0x profiles. Micro-ATX form factor (24.4 × 24.4 cm) fits Micro-ATX and larger ATX cases. Note: this model has no onboard Wi-Fi (an M.2 E-key slot is provided for an optional Wi-Fi module), no Thunderbolt, and B860 supports memory overclocking but not CPU core overclocking.
Best For
✓Compact, budget Core Ultra Series 2 builds
✓Micro-ATX cases and smaller desktop systems
✓Gamers wanting PCIe 5.0 graphics without a big spend
✓Fast, roomy storage with three M.2 slots plus four SATA
✓Wired setups using the Dragon 2.5GbE LAN
✓RGB builds using Polychrome SYNC and SignalRGB
Key Features
PCIe 5.0 & Three M.2
A reinforced steel PCIe 5.0 x16 slot plus one Gen5x4 and two Gen4x4 M.2 sockets give strong graphics and generous fast storage in a compact board.
DDR5 Memory OC
Four DDR5 DIMM slots up to 256GB and 8666+ MHz OC with Intel XMP 3.0x and CUDIMM support for fast, stable memory tuning.
Dragon 2.5GbE & USB-C

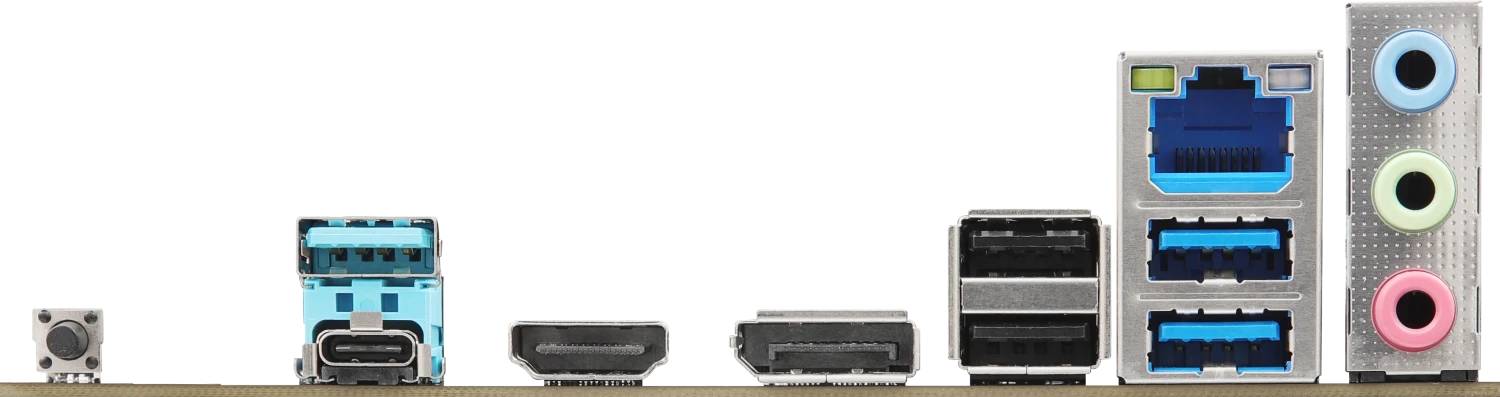

A Dragon 2.5 Gigabit LAN with traffic prioritisation and a rear USB 3.2 Gen2x2 Type-C at 20 Gb/s for fast networking and external storage.
Reliable, DIY-Friendly Design
A 10+1+1+1+1 Dr.MOS VRM plus BIOS Flashback, Auto Driver Installer and Post Status Checker make building and updating quick and simple.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B860M Pro-A is the entry point into the Core Ultra Series 2 platform: a compact Micro-ATX board that still keeps a reinforced-steel PCIe 5.0 slot, a Gen5 M.2 and three M.2 slots in total, which is generous for the price. It drops onboard Wi-Fi and Thunderbolt to stay affordable — easily solved with a cheap Wi-Fi card or USB adapter if needed. For a small, dependable Core Ultra build on a budget it is a smart choice. Pair it with an XMP-rated DDR5 memory kit for the best performance.
Buyer's Guide
Buy it if
You want the most affordable, compact Micro-ATX Core Ultra board that still keeps PCIe 5.0, Gen5 M.2, three M.2 slots and 2.5GbE.
Skip it if
You need onboard Wi-Fi, Thunderbolt, premium audio, a full-size ATX board, or CPU core overclocking for a K-series chip.
Also consider
The ASRock B860 Pro-A WiFi (ATX) for onboard Wi-Fi, the B860 Lightning WiFi for Thunderbolt 4, or a Z890 board for CPU overclocking.
Features - ASRock - 90-MXBRR0-A0UAYZ
CPU Socket
- Socket 1851
Colour
black
More Details
Product Code
04:519492
EAN Code
4711581490291
Manufacturer
ASRock
