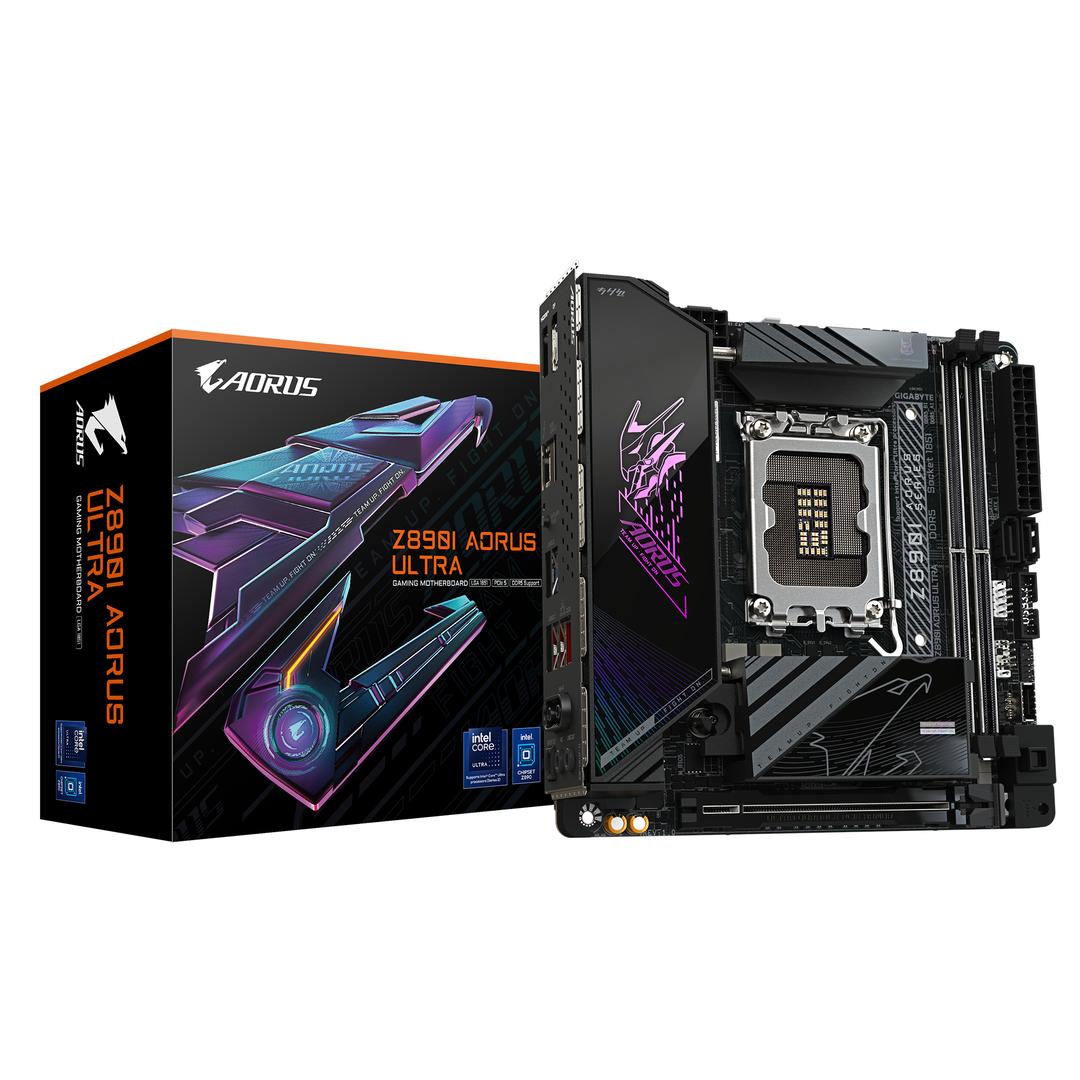

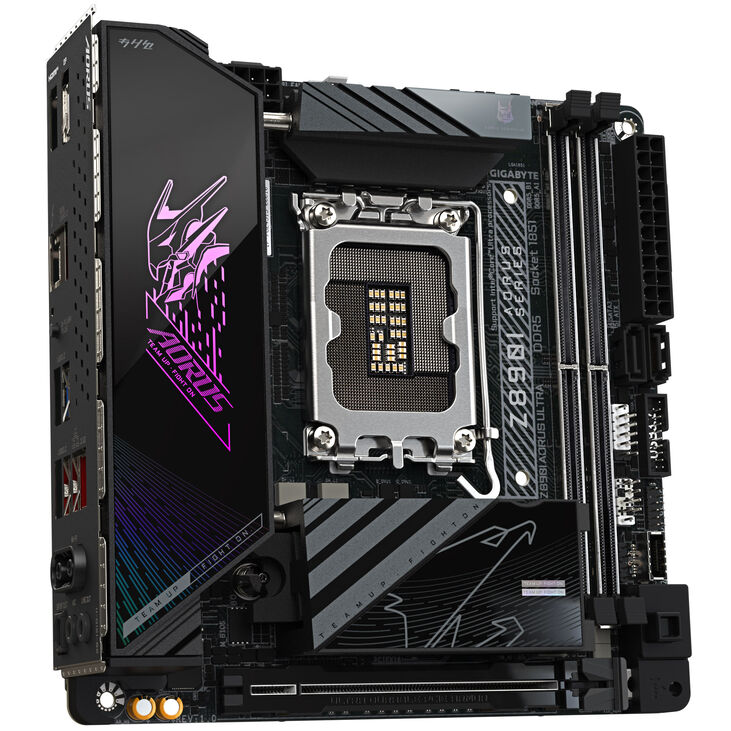

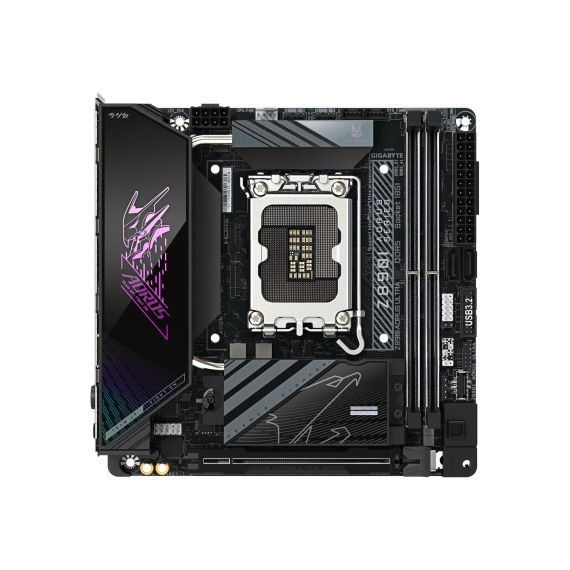

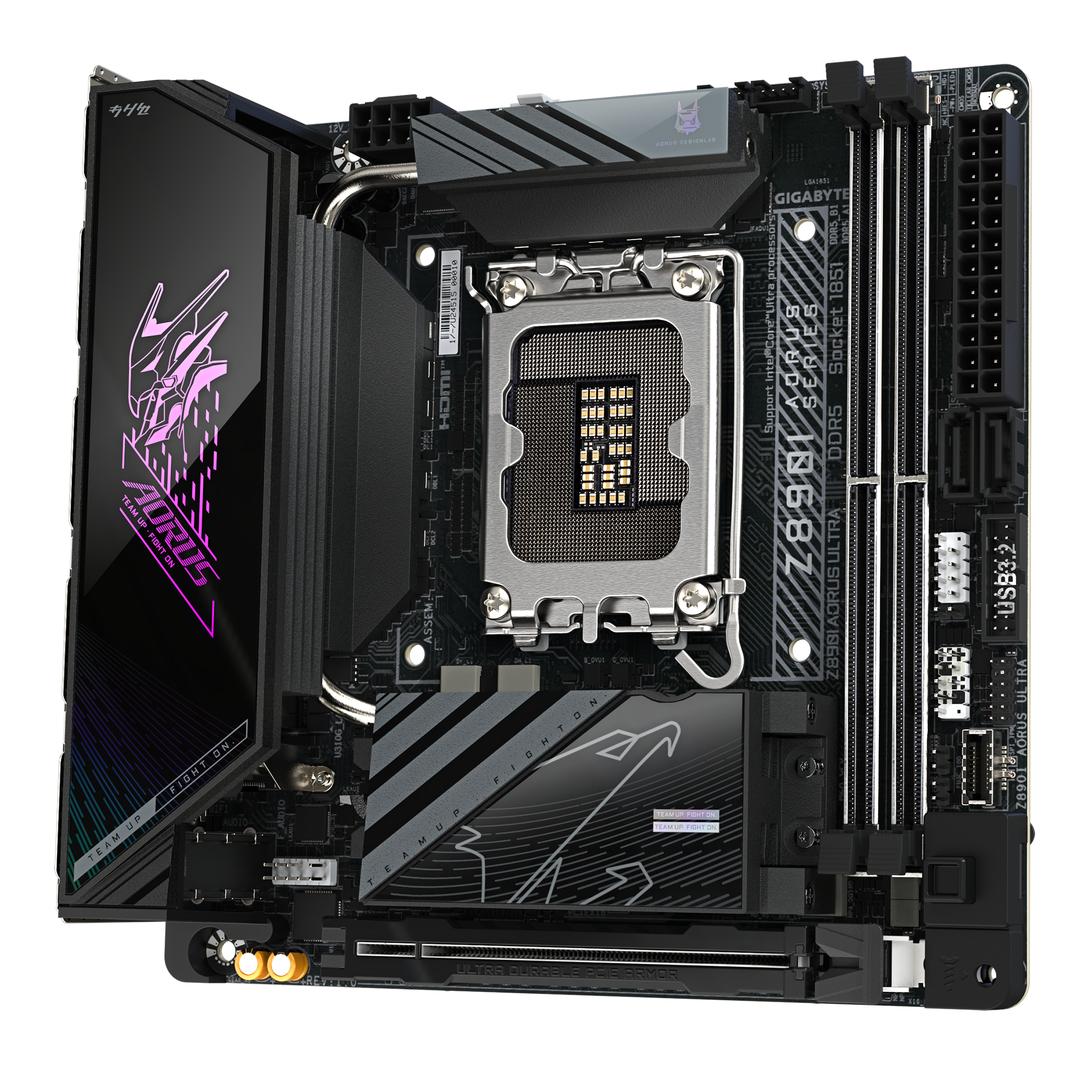

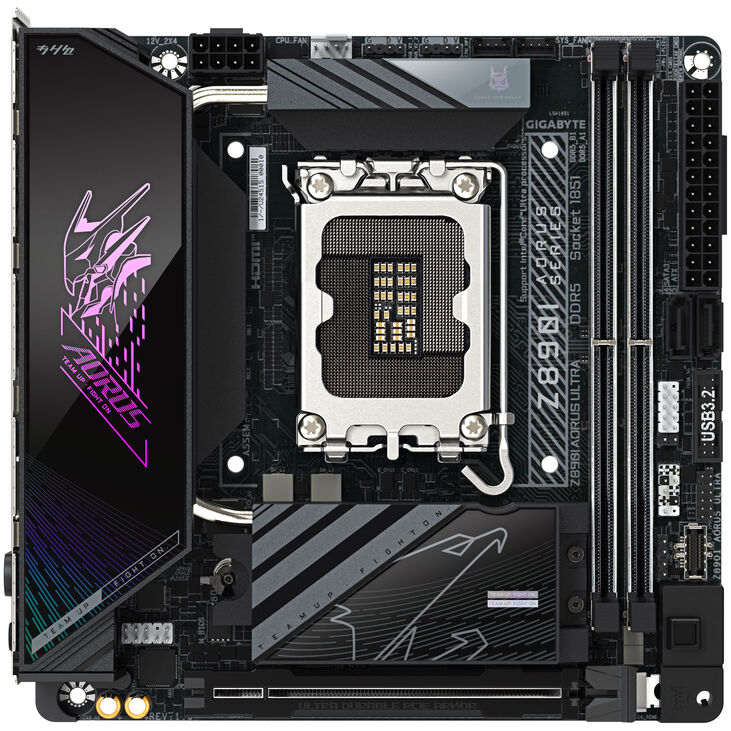

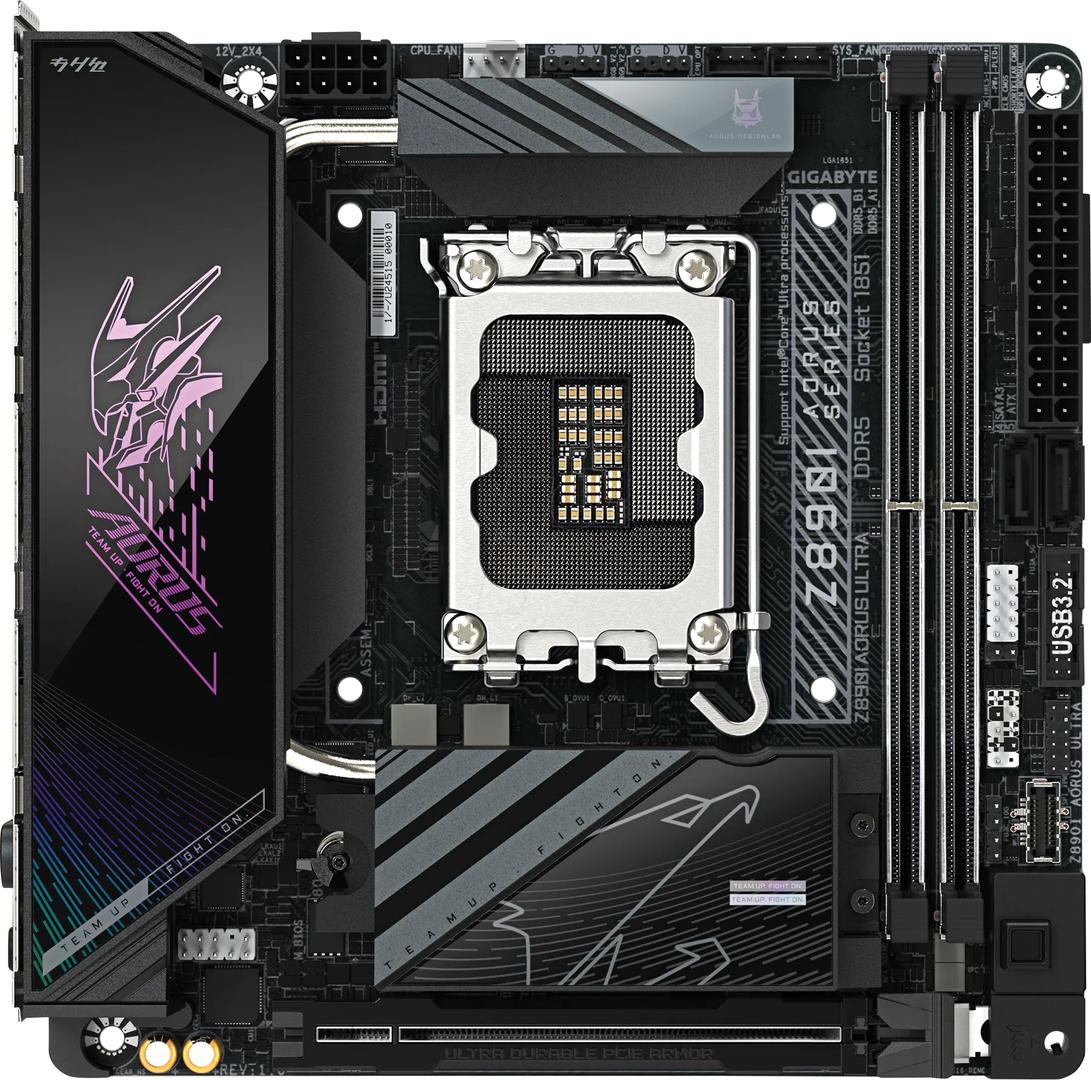

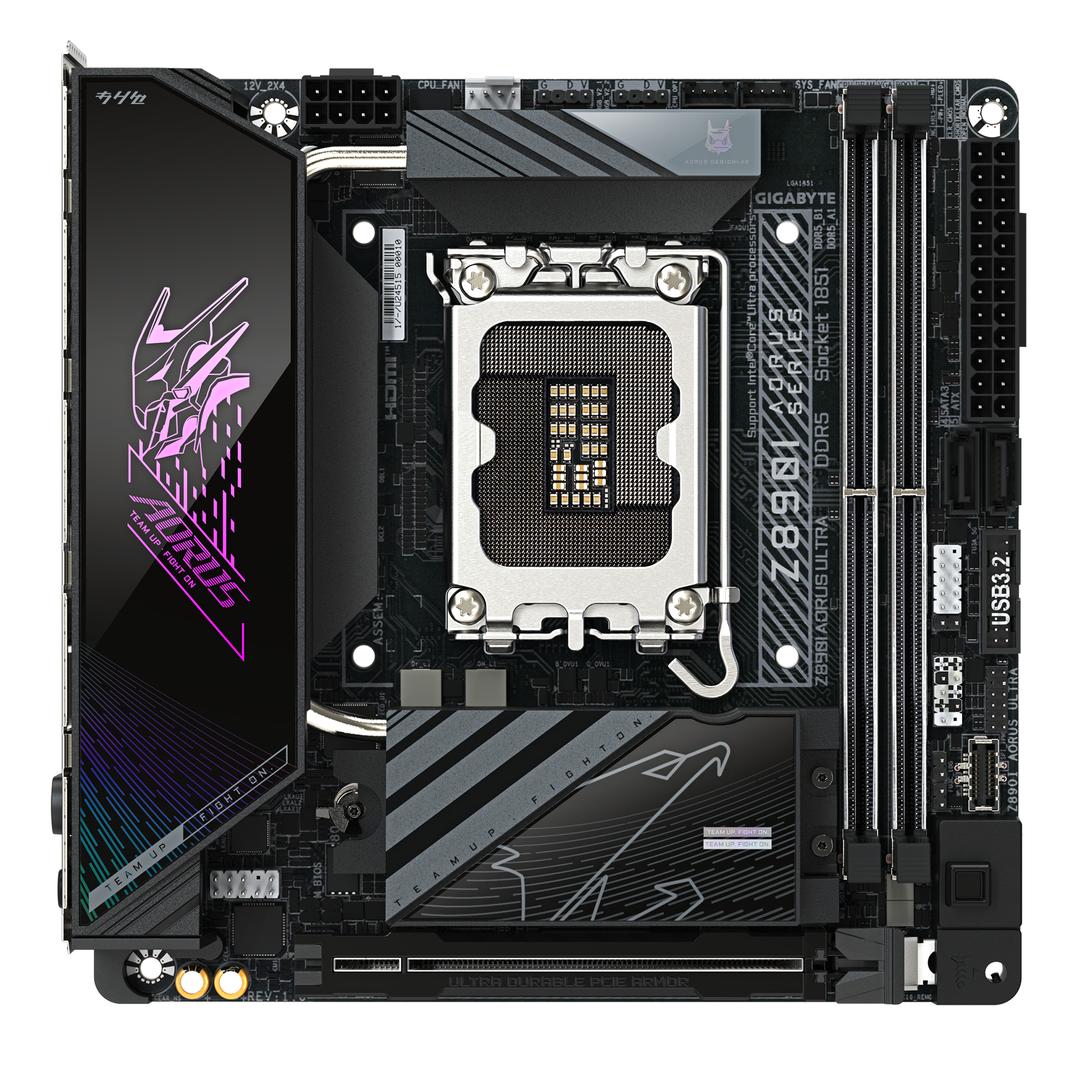

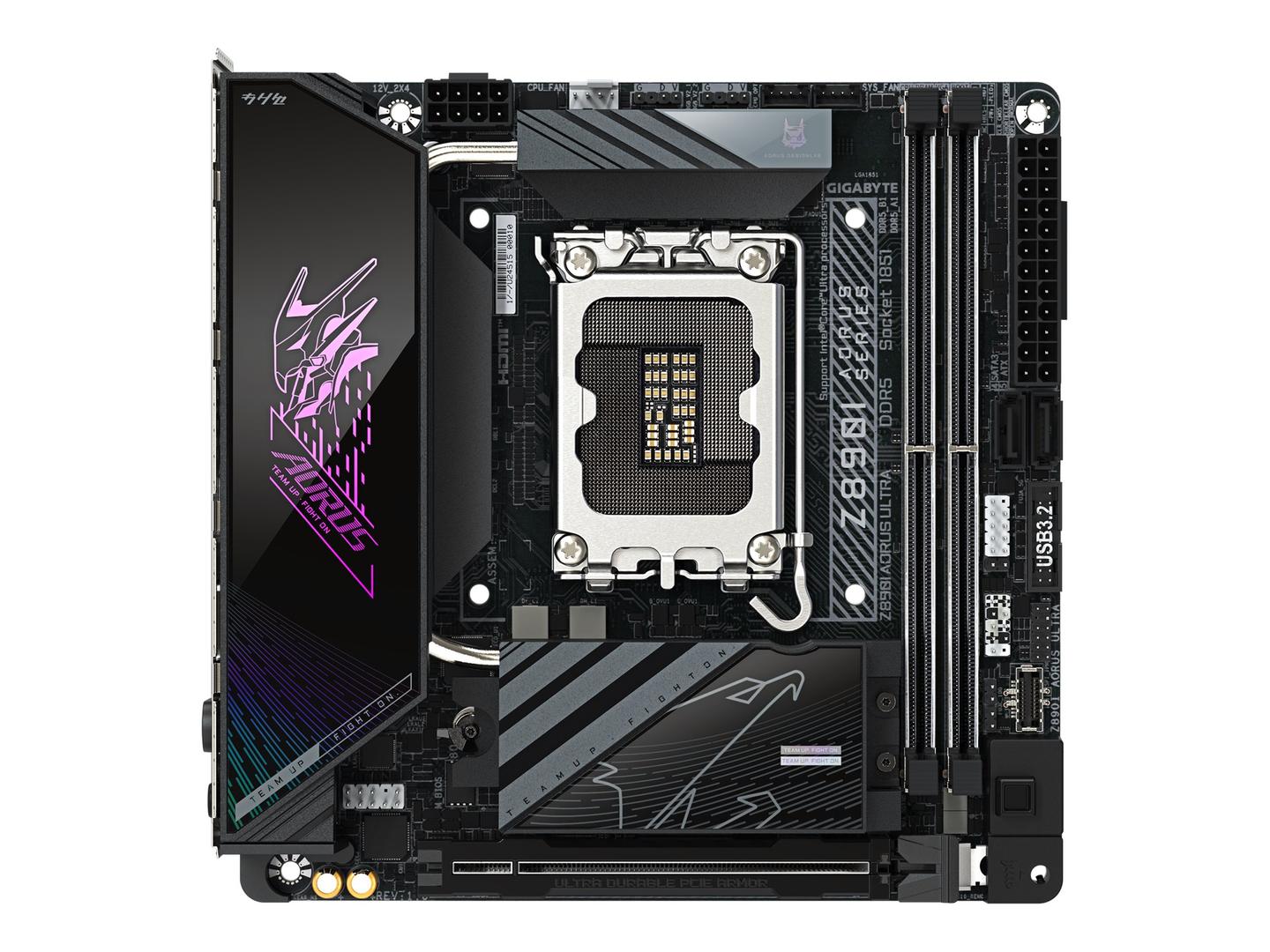

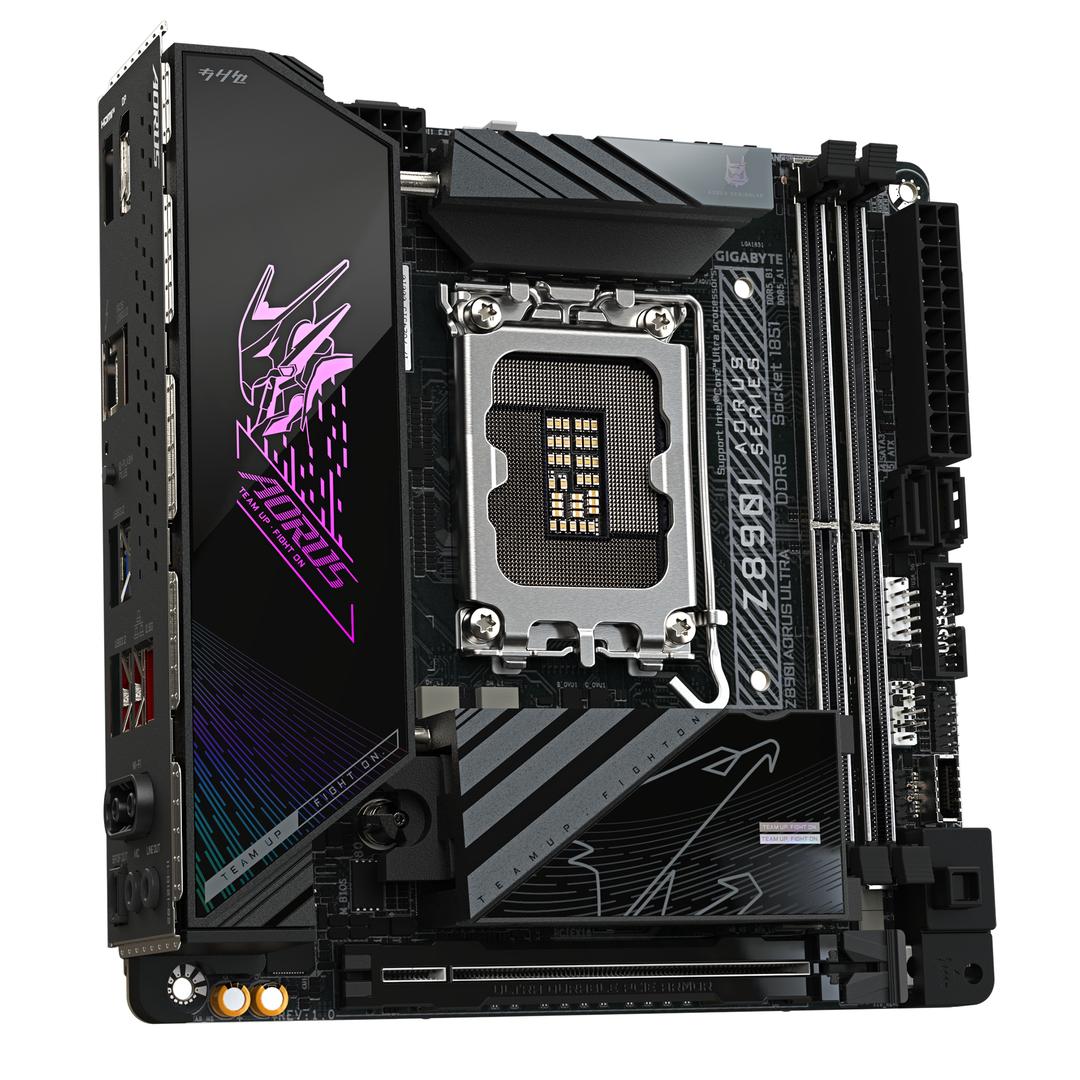

AORUS Z890I ULTRA / Motherboard / micro ATX / LGA1851 Socket / Z890 Chipset / USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | Z890I AORUS ULTRA
AORUS Z890I ULTRA / Motherboard / micro ATX / LGA1851 Socket / Z890 Chipset / USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | Z890I AORUS ULTRA
€455.5 inc. VAT
Z890I AORUS ULTRA
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust memory architecture
The motherboard supports dual-channel memory architecture with support for DDR5 SDRAM, allowing speeds between 2800 MHz and 4600 MHz, facilitating efficient multitasking and high-performance applications. - Extensive connectivity options
Featuring multiple USB ports including USB 4.0 and USB-C 3.2 Gen 2, as well as HDMI and DisplayPort outputs, the motherboard ensures versatile connectivity for various devices and accessories. - Advanced thermal management
Equipped with M.2 Thermal Guard Ext. and VRM Thermal Armor Advanced, this motherboard prioritizes effective heat dissipation to maintain performance under demanding conditions. - Comprehensive hardware monitoring
Includes features for monitoring system voltage, water cooling flow rate, fan speeds, and temperature, enabling users to maintain optimal performance and stability. - User-friendly design
Incorporating a pre-mounted I/O shield, EZ Debug LED, and DIY-friendly features, the motherboard promotes a seamless build experience for both beginners and experienced users.
Special Features
- Supports Intel Core Ultra processors with LGA1851 Socket
- Offers DDR5 SDRAM compatibility with speeds up to 4600 MHz
- Includes extensive connectivity options with multiple USB and video outputs
- Features advanced thermal management with M.2 Thermal Guard Ext.
- Comprehensive hardware monitoring capabilities for system stability
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Z890 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 2800 MHz, 2900 MHz, 3000 MHz, 3100 MHz, 3200 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 3950 MHz (O.C.), 3975 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C), 4133 MHz (O.C.), 4200 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel Wi-Fi 7 BE202 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

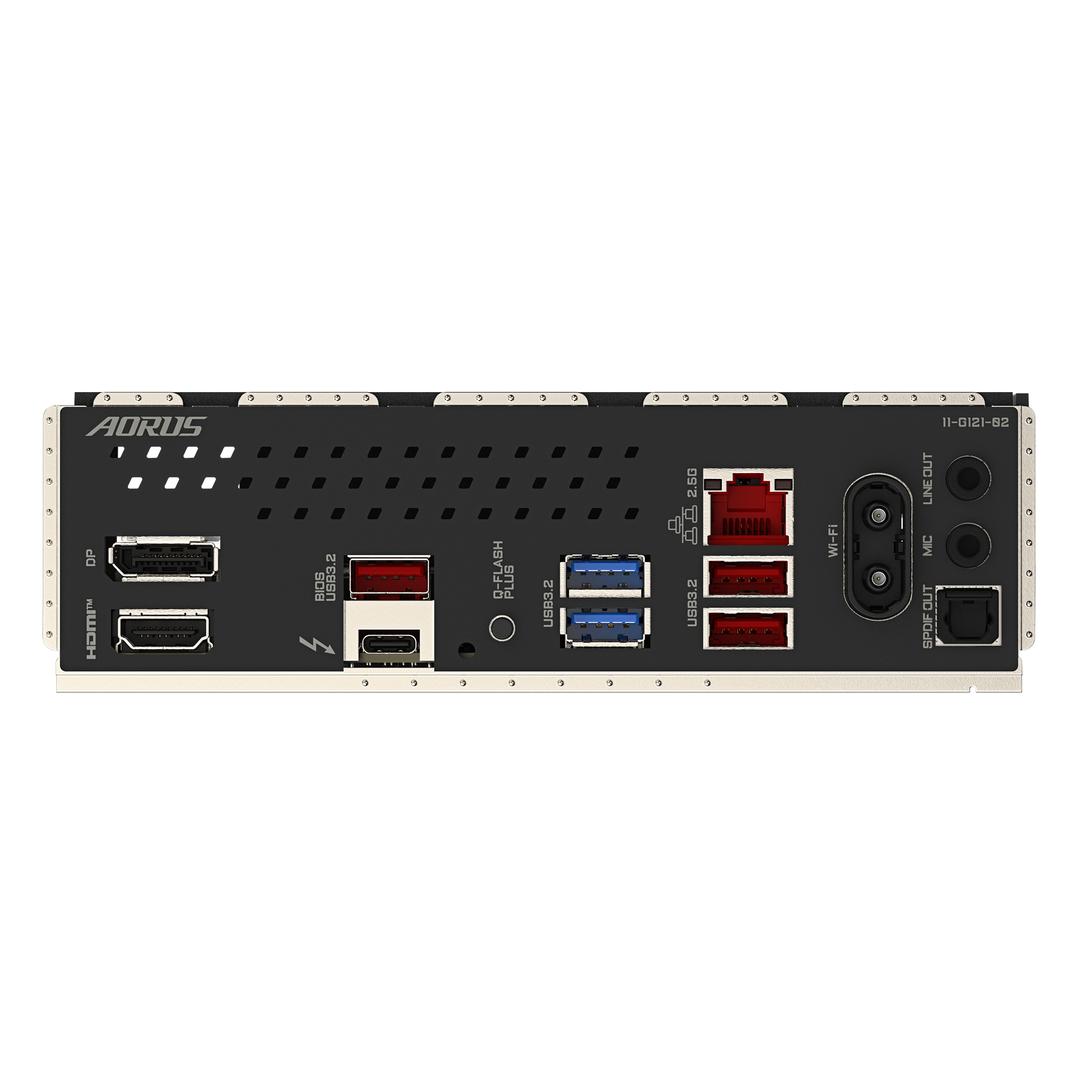

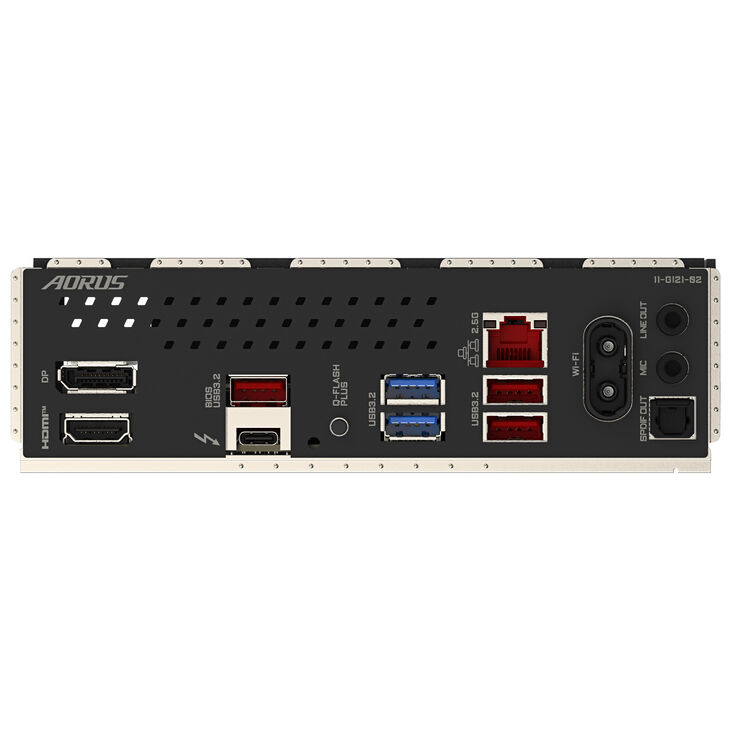

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x HDMI 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out 1 x USB4 3 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 2 x aerial |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash, 8+1+2 Phase Power Design, 105A Power Stage, 10 Layer PCB, 2x Copper PCB, Premium Power Choke, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard Ext., High-end Audio Capacitors, RGB FUSION 2.0, EZ Plug, EZ Debug LED, DIY Friendly Design, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, Ultra Durable, AI Overclocking, GIGABYTE Smart Fan 6, Audio Noise Guard |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1 |
| Width | 17 cm |
| Depth | 17 cm |
| Package Details | Box |
Features - GigaByte - Z890I AORUS ULTRA
CPU Socket
- Socket 1851
More Details
Product Code
04:504699
EAN Code
4719331864804
Manufacturer
GigaByte
