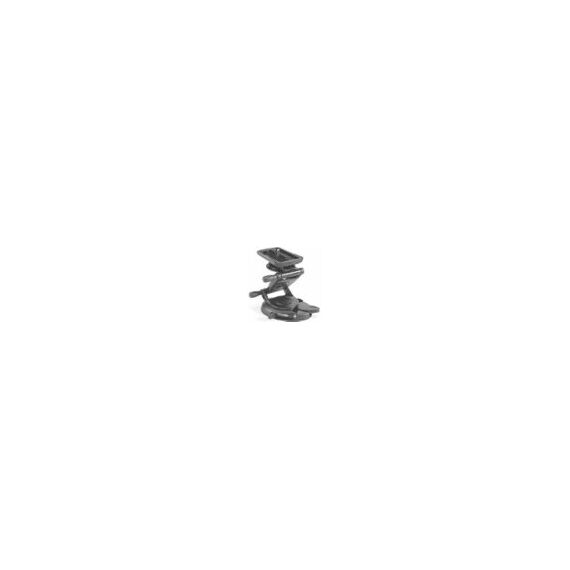

Zebra Adjustable Mounting Bracket for MiniScan Fixed-Mount Scanners and DS457, Tabletop or Wall Mounting
Brand:
Motorola
Zebra Adjustable Mounting Bracket for MiniScan Fixed-Mount Scanners and DS457, Tabletop or Wall Mounting
€64.57 inc. VAT
KT-65578-01R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Zebra Adjustable Mounting Bracket — fixed-mount scanner positioning for counters, kiosks and lines
Zebra (ex-Motorola)Tabletop or wallAdjustable angleMiniScan / DS457
The Zebra KT-65578-01R is the adjustable mounting bracket originally made by Motorola for its MiniScan fixed-mount barcode scanners, and still listed by Zebra for the DS457 fixed-mount imager. It holds the scanner horizontally on a tabletop or vertically on a wall, and lets you tilt it to the angle that suits the barcode path.
It is aimed at kiosks, self-service points, conveyor and production lines, and any counter where the scanner must stay in one place while items or documents are presented to it.
Before you order: For the Zebra DS457, this bracket is not enough on its own: Zebra lists the adapter plate kit KT-152342-01 as required, because it adapts the DS457 to the MiniScan mounting holes. Order both if you are mounting a DS457.
What's in the Box
- 1 × Zebra KT-65578-01R adjustable mounting bracket
- No scanner, cable or adapter plate included
- Wall or table fixing screws are not listed by Zebra — plan your own fixings for the surface
What It Means in Practice
- Once mounted, the scanner is held firmly and cannot be lifted out by passers-by — useful in public kiosks.
- You set the angle once during installation so the scan window points at the presentation area or conveyor.
- The same bracket works in horizontal (tabletop) and vertical (wall) orientation.
- With the KT-152342-01 adapter plate it takes the DS457, so older MiniScan installs can be upgraded without changing the mounting concept.
What Will Not Work
- It does not fit handheld scanners such as DS2208, DS4608 or LI2208 — those use stands and holders.
- The DS457 does not fit without the KT-152342-01 adapter plate.
- It is not a stand with a base: it must be screwed to a table, wall or panel.
- It does not provide power or data connections — the scanner cable is separate.
Key Features
Two orientations
Horizontal tabletop or vertical wall installation.
Adjustable angle
Aim the scan window at the exact presentation area.
Secure hold
Scanner locks in and is not easily removed.
Upgrade path
Fits DS457 via adapter plate KT-152342-01.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This bracket matters most in replacements: if a MiniScan has failed in a kiosk or line, the DS457 plus the KT-152342-01 adapter plate lets you reuse the same mounting concept. For new projects, check the scanner model first and tell us which barcode scanners you use.
✓ Buy it if you install a MiniScan or a DS457 in a fixed position on a counter, kiosk or line.
✕ Skip it if your scanner is a handheld model, or you need a free-standing stand.
→ Also consider the KT-152342-01 adapter plate for the DS457.
Not sure it fits your setup? Send us your scanner model and where you want to mount it and we will check compatibility before you order.
