MSI PRO H810M-B Micro-ATX Motherboard LGA 1851 Intel H810 DDR5 PCIe 5.0 x16 M.2 2.5GbE HDMI DisplayPort Black

Brand:
MSI
MSI PRO H810MB Mainboard mATX Motherboard Intel 7E64001R
MSI PRO H810M-B Micro-ATX Motherboard LGA 1851 Intel H810 DDR5 PCIe 5.0 x16 M.2 2.5GbE HDMI DisplayPort Black
€133.36 inc. VAT
Buy
7E64-001R
€112.07 €124.52
€133.36 inc. VAT
Ships from EU stock: 22 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280378
EAN Code
4711377337977
Manufacturer
MSI
Quick Specs
Socket
Intel LGA 1851
Chipset
Intel H810
Memory
2× DDR5, up to 128GB
Form Factor
Micro-ATX
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

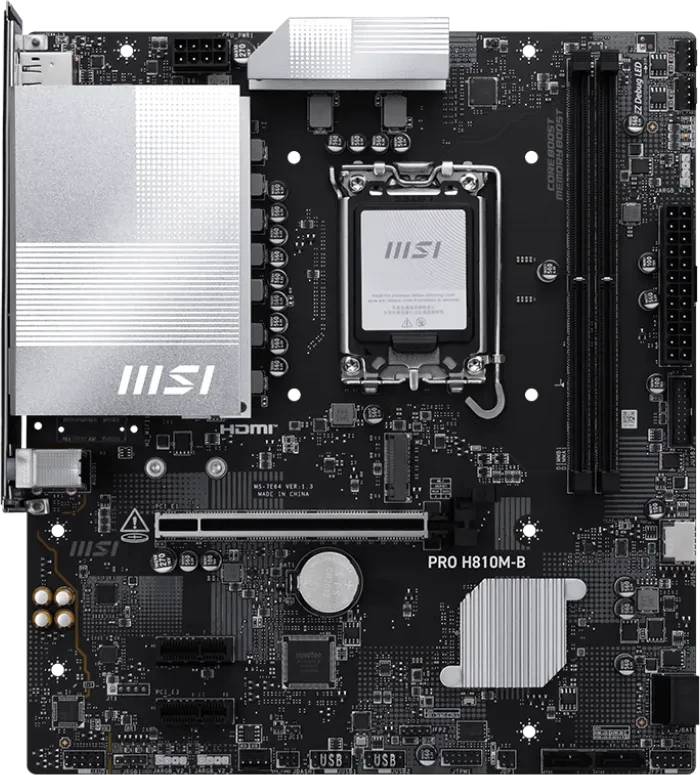

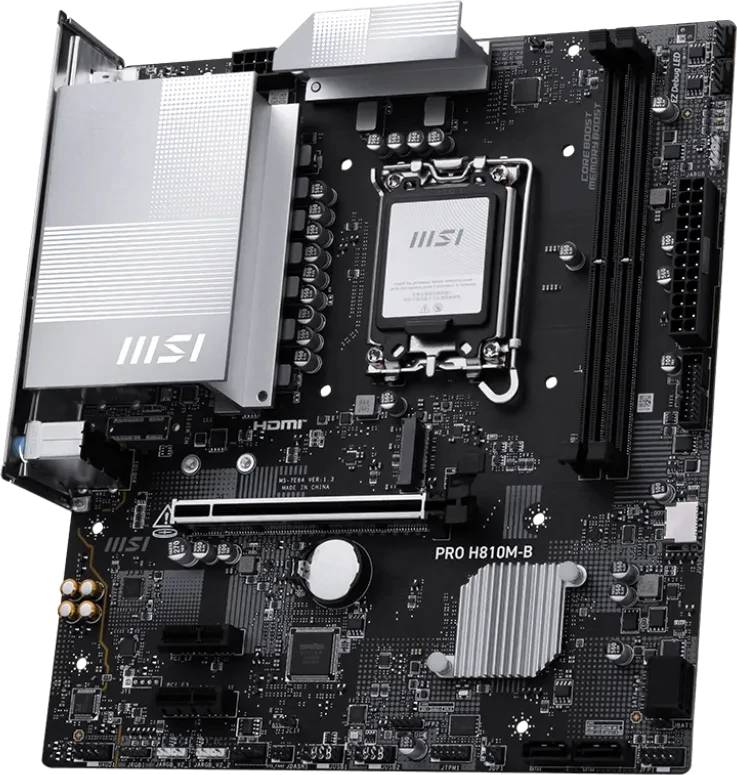

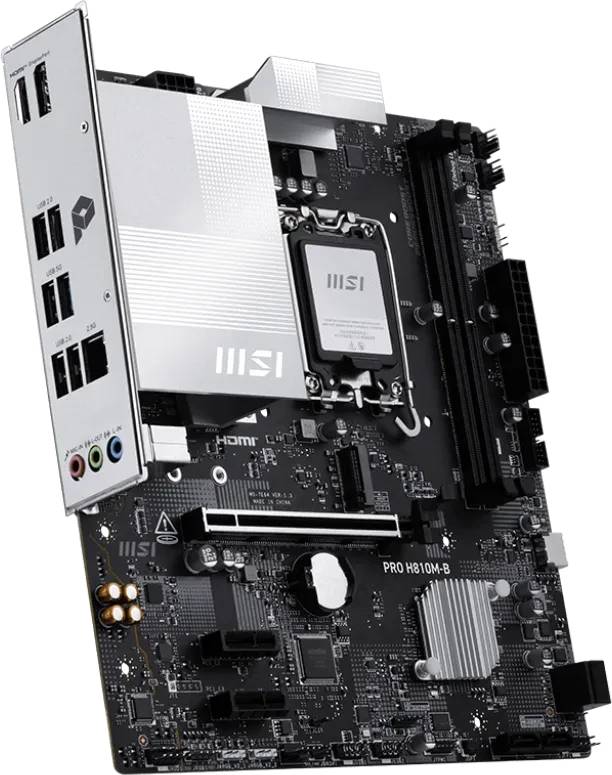

MSI PRO H810M-B — Essential Micro-ATX for Intel Core Ultra

LGA 1851 · Intel H8102× DDR5 up to 128GBPCIe 5.0 x16 + M.2 Gen42.5GbE · HDMI · DisplayPort

The MSI PRO H810M-B is an entry-level micro-ATX motherboard built on the Intel H810 chipset and the LGA 1851 socket, supporting Intel Core Ultra Series 2 (Arrow Lake) desktop processors. Sold under MSI part number 7E64-001R (EAN 4711377337977), it offers DDR5 memory, a PCIe 5.0 x16 graphics slot, a PCIe Gen4 M.2 slot and 2.5GbE networking — a dependable, value-focused base for home, office and everyday productivity systems. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an LGA 1851 board supporting only Intel Core Ultra Series 2 (Arrow Lake) desktop CPUs — not LGA 1700 (12th/13th/14th Gen). It uses DDR5 memory only (no DDR4), with two DIMM slots (max 128GB). Fits Micro-ATX or larger cases.

Best For

✓Home and office Intel Core Ultra builds
✓Budget-conscious everyday computing
✓Compact Micro-ATX systems
✓Builds using integrated graphics (HDMI/DP)
✓Single NVMe + SATA storage
✓Fast 2.5GbE wired networking on a budget

Key Features


Intel Core Ultra ready
The LGA 1851 socket and Intel H810 chipset support Intel Core Ultra Series 2 (Arrow Lake) processors for modern, efficient performance at an accessible price.

PCIe 5.0 x16 graphics slot
Unusual for an entry chipset, the primary x16 slot supports PCIe 5.0, giving a budget build a path to next-generation graphics bandwidth.

DDR5 + Gen4 M.2
Two DDR5 DIMM slots support up to 128GB at up to 6400 MT/s, with a PCIe Gen4 x4 M.2 slot for a fast NVMe boot drive plus SATA storage.

2.5GbE networking
Integrated Realtek 2.5GbE LAN provides fast, reliable wired networking, with HDMI and DisplayPort (4K@60Hz) outputs for integrated graphics.

Technical Specifications

Identification
Part Number 7E64-001R
EAN / GTIN 4711377337977
Model MSI PRO H810M-B
Brand MSI
Platform
Chipset Intel H810
Socket LGA 1851
CPU Support Intel Core Ultra Processors (Series 2) — Arrow Lake desktop
Form Factor Micro-ATX
Memory
Slots 2× DDR5 DIMM (Dual-Channel)
Max Capacity 128GB
Speed Up to 6400 MT/s (OC)
Expansion & Storage
PCIe Slot 1× PCIe 5.0 x16 + additional PCIe slots
M.2 1× M.2 PCIe Gen4 x4
SATA SATA 6Gb/s ports

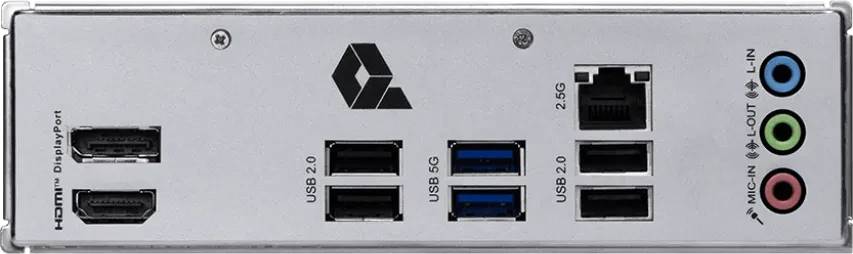

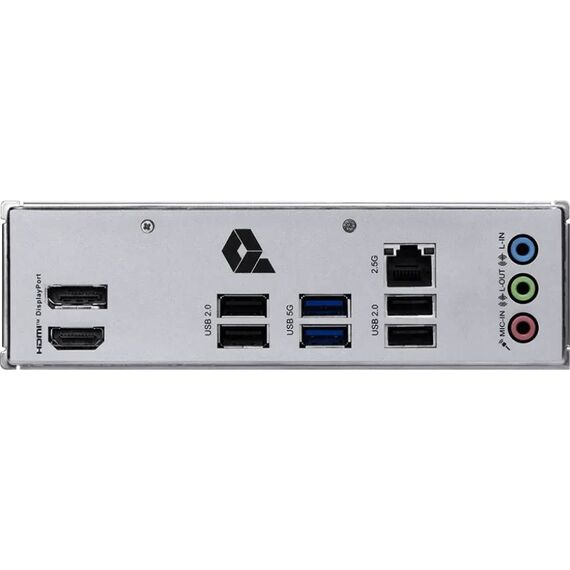

Connectivity & I/O
LAN Realtek 2.5GbE LAN (RJ-45)
Display Out 1× HDMI + 1× DisplayPort (up to 4K@60Hz)
USB USB 5Gbps Type-A (rear) + front USB 10Gbps Type-C
Audio 7.1-channel HD Audio
Other
Colour Black
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the MSI PRO H810M-B?
It supports Intel Core Ultra Series 2 (Arrow Lake) desktop processors on the LGA 1851 socket. Older LGA 1700 chips (12th/13th/14th Gen Core) are not compatible.
Does it really have a PCIe 5.0 slot?
Yes. Unusually for the entry H810 chipset, the primary x16 graphics slot supports PCIe 5.0, while the M.2 slot runs at PCIe Gen4 x4.
How much memory can I install?
Two DDR5 DIMM slots support up to 128GB at speeds up to 6400 MT/s (OC). DDR4 is not supported.
Is this board suitable for gaming?
It works for entry-level gaming with a dedicated graphics card in the PCIe 5.0 slot, but for higher-end builds a B860 board offers more power delivery, memory speed and storage.
Singular Expert Insight
The PRO H810M-B is MSI’s value entry into the Core Ultra platform — it keeps things lean (two DIMM slots, one Gen4 M.2, 2.5GbE) but still includes a PCIe 5.0 x16 slot, making it a smart budget base that can host a modern GPU. If you want faster memory, a second M.2 or Wi-Fi, the MSI PRO B860M or Gigabyte B860M D3HP are the step up. Add a reliable internal NVMe SSD for a responsive everyday system.

Buyer's Guide

Buy it if
You want the most affordable way onto the Intel Core Ultra (LGA 1851) platform for home or office use, with 2.5GbE and a PCIe 5.0 GPU slot.
Skip it if
You want faster memory, dual M.2, built-in Wi-Fi or stronger power delivery — choose a B860 board instead.
Also consider
The Gigabyte B860M D3HP or ASUS Prime B860M-K for more features and Gen5 storage.
