MSI PRO B850M-P WIFI AM5 Micro-ATX Motherboard, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 7, 5G LAN, HDMI and DP, Black
Brand:
MSI
MSI PRO B850M-P WIFI AM5 Micro-ATX Motherboard, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 7, 5G LAN, HDMI and DP, Black
€219.84 inc. VAT
7E71-001R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
MSI PRO B850M-P WIFI — compact AM5 board with PCIe 5.0, Wi-Fi 7 and 5G LAN
AMD B850 · AM5Micro-ATX 24.4 x 24.4 cmPCIe 5.0 x16 + PCIe 5.0 M.2Wi-Fi 7 · 5G LAN

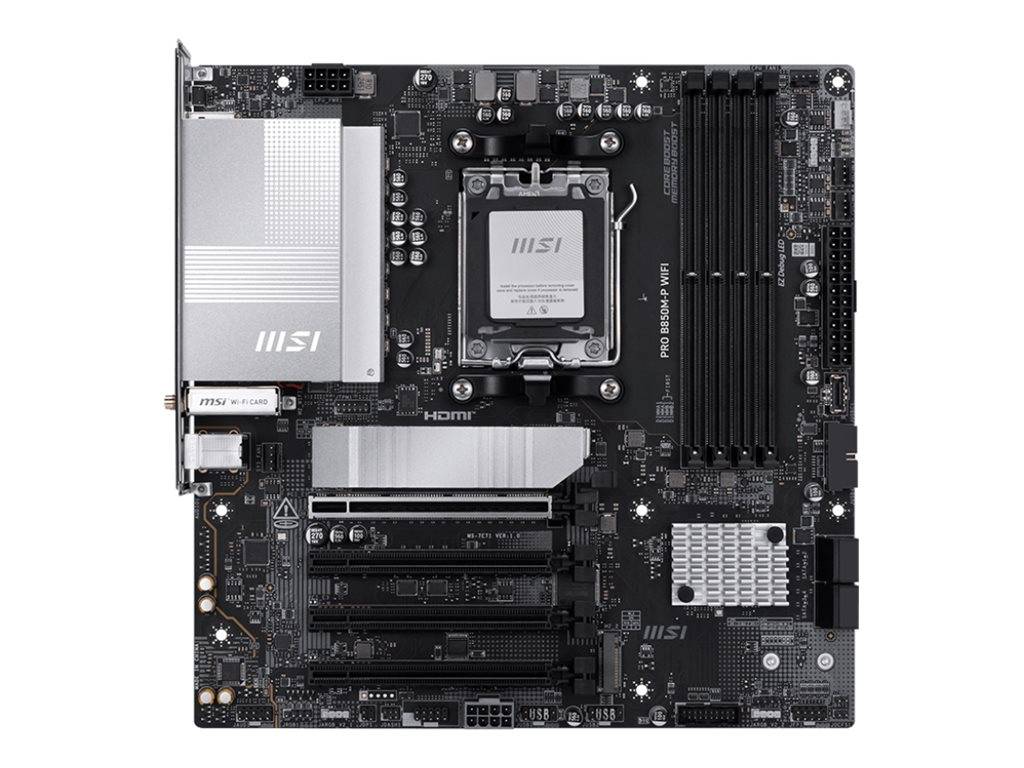

The MSI PRO B850M-P WIFI is a Micro-ATX motherboard for AMD Socket AM5 with the B850 chipset, made for Ryzen 9000, 8000 and 7000 processors in office, home and compact gaming PCs.
It provides four DDR5 slots (up to 256GB), a PCIe 5.0 x16 slot, three M.2 sockets (one PCIe 5.0 x4 from the CPU), Realtek 5G LAN, a pre-installed Wi-Fi 7 module with Bluetooth 5.4, plus HDMI 2.1 and DisplayPort 1.4 for processors with integrated graphics.
Before you order: The three extra x16-size slots are electrically PCIe 3.0 x1 only. Ryzen 8500/8300 processors run the main slot at PCIe 4.0 x4 and M2_2 at x2. Bluetooth 5.4 requires Windows 11 24H2.
What's in the Box
- MSI PRO B850M-P WIFI motherboard (Micro-ATX, 243.84 x 243.84 mm) with pre-installed Wi-Fi 7 module
- Wi-Fi antenna and accessories as packed by MSI — the exact accessory list is not published on the specification page
- No CPU, memory, cooler or SSD is included
What It Means in Practice
- Fits Micro-ATX and larger ATX cases, so it suits compact office and small gaming towers.
- HDMI 2.1 and DisplayPort 1.4 (4K 60Hz) let a Ryzen with integrated graphics drive two monitors without a graphics card.
- M2_1 runs a PCIe 5.0 SSD at full speed with Ryzen 9000/7000; M2_2 and M2_3 take PCIe 4.0 drives.
- 5G LAN and Wi-Fi 7 give fast networking out of the box.
What Will Not Work
- Intel processors and AM4 Ryzen — AM5 only.
- DDR4 memory — DDR5 non-ECC unbuffered only.
- Video output with a Ryzen that has no integrated graphics.
- Full-speed add-in cards in the lower slots — they are PCIe 3.0 x1.
Key Features
PCIe 5.0 ready
PCI_E1 PCIe 5.0 x16 and M2_1 PCIe 5.0 x4 from the CPU with Ryzen 9000/7000.
Wi-Fi 7 + 5G LAN
Wi-Fi 7 up to 2.9 Gbps with MLO on 2.4/5/6 GHz, Bluetooth 5.4 and Realtek 8126VB 5G LAN.
Dual display
HDMI 2.1 and DisplayPort 1.4, both up to 4K 60Hz with CPU graphics.
Easy diagnostics
EZ Debug LEDs, EZ Memory Detection LED, rear Clear CMOS and Flash BIOS buttons.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A tidy, sensible AM5 Micro-ATX board: PCIe 5.0 where it matters, Wi-Fi 7 and 5G LAN, and dual video outputs for APU builds. Add a pair of DDR5 memory modules (two DIMMs give the best stability at higher speeds).
✓ Buy it if you are building a compact Ryzen office, home or entry gaming PC.
✕ Skip it if you need several fast PCIe add-in cards or more than three M.2 drives.
→ Also consider MSI MAG B850 TOMAHAWK MAX WIFI II for a full-ATX board with two Gen5 M.2.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - MSI - 7E71-001R
Colour
black
More Details
Product Code
04:547306
EAN Code
4711377350181
Manufacturer
MSI
