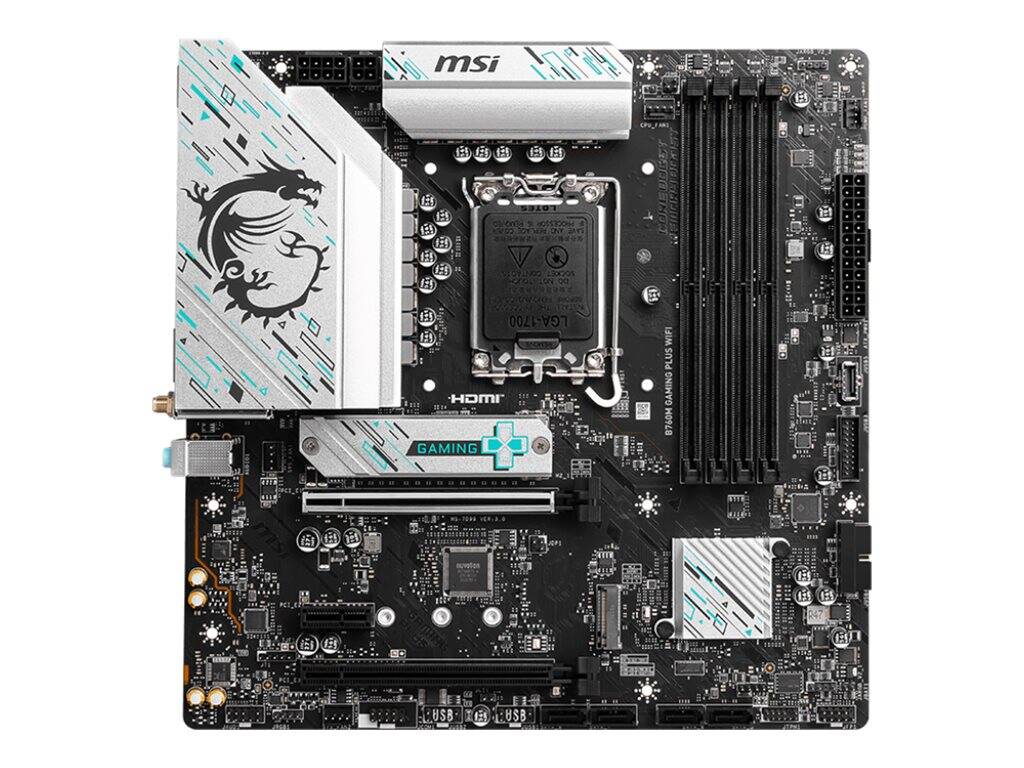

MSI B760M GAMING PLUS WIFI - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) | 7D99-017R
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, overcurrent protection, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost |
| Miscellaneous | |
| Included Accessories | IO shield, Wi-Fi aerial, m.2 screw / standoff sets |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center, Norton 360 Deluxe (60 days trial) |
| Width | 24.384 cm |
| Depth | 24.384 cm |
| Package Details | Box |
Features - MSI - 7D99-017R
CPU Socket
- Socket 1700
More Details
Product Code
04:459197
EAN Code
4711377154017
Manufacturer
MSI
