MSI MAG A1200PLS PCIE5 1200W ATX 3.1 Power Supply, 80 PLUS Platinum, Fully Modular, 1x 12V-2x6, Black

Brand:
MSI
MSI MAG A1200PLS PCIE5 1200W 80+ Platinum ATX 3.1 PSU
MSI MAG A1200PLS PCIE5 1200W ATX 3.1 Power Supply, 80 PLUS Platinum, Fully Modular, 1x 12V-2x6, Black
€362.12 inc. VAT
Buy
306-7ZPNX11-CE0
€304.30 €338.11
€362.12 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:596980
EAN Code
4711377397919
Manufacturer
MSI
Quick Specs
Wattage
1200W
Efficiency
80 PLUS Platinum
Modular
Fully modular
Form
ATX 3.1 · 150x150x86 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

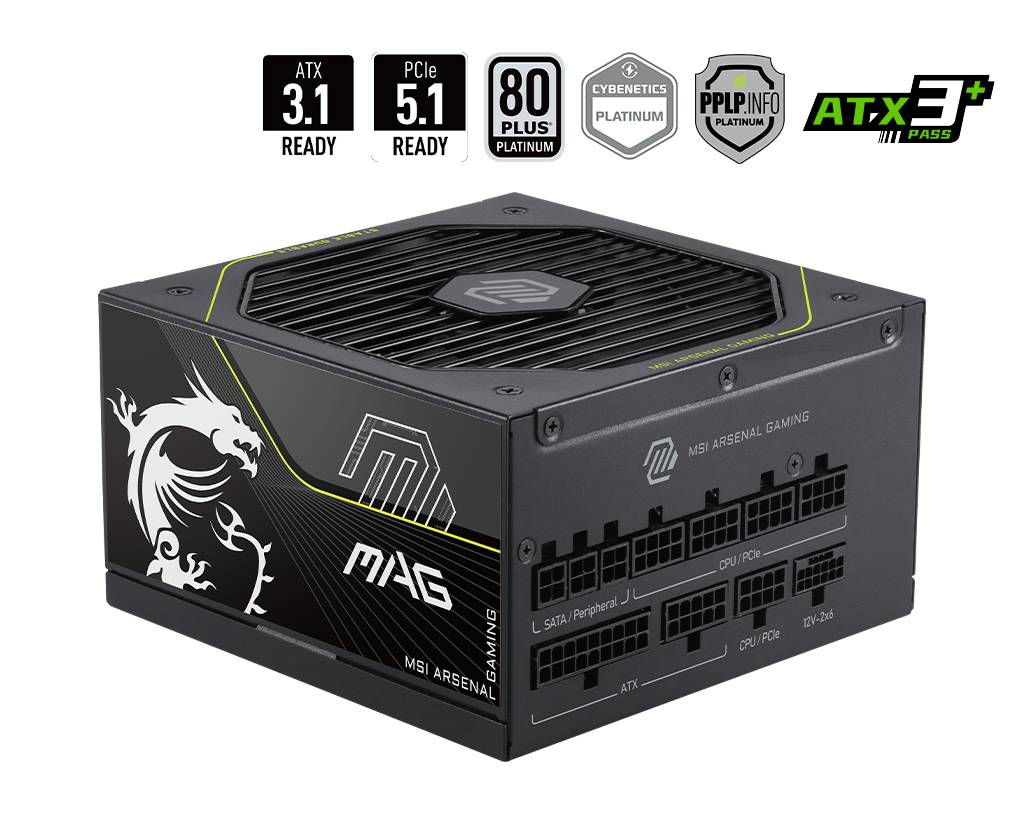

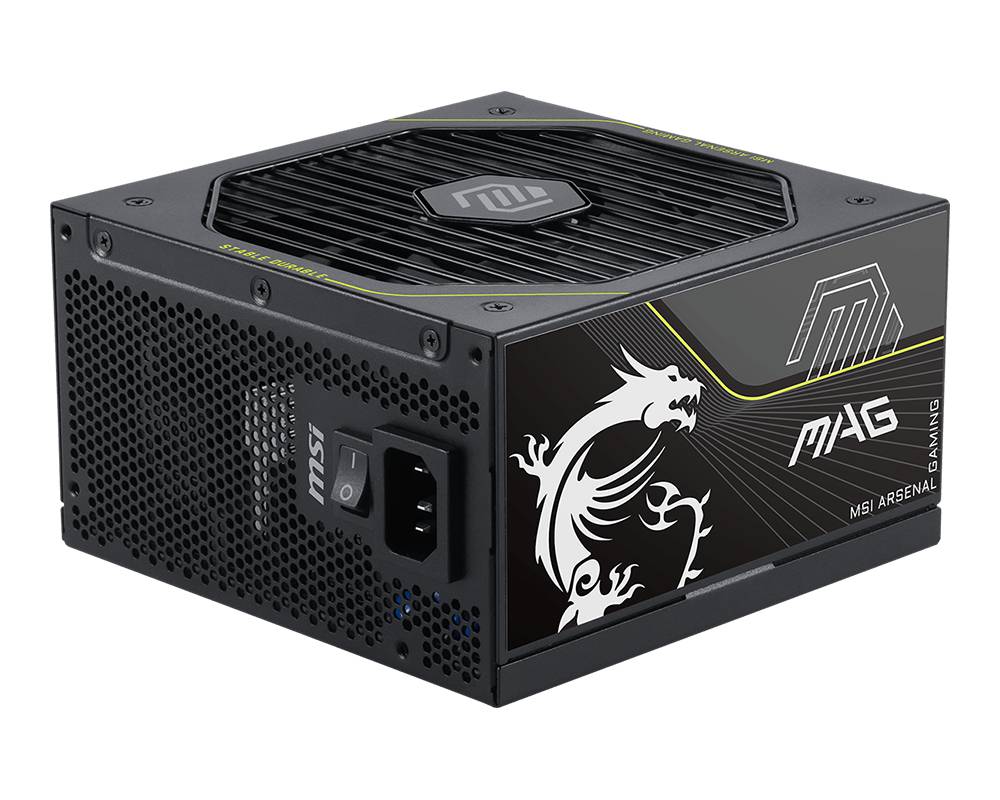

MSI MAG A1200PLS PCIE5 — 1200W 80 PLUS Platinum ATX 3.1 Fully Modular Power Supply

1200W · 80 PLUS PlatinumATX 3.1 · PCIe 51x native 12V-2x6Fully modular · 135 mm FDB

The MSI MAG A1200PLS PCIE5 (part number 306-7ZPNX11-CE0) is a 1200W, 80 PLUS Platinum, fully modular ATX 3.1 power supply with a native 12V-2x6 connector, designed for gaming PCs built around current NVIDIA GeForce RTX 50 and AMD Radeon graphics cards.

Platinum efficiency and a 135 mm fluid-dynamic-bearing fan keep heat and noise down, and at 150 mm deep it fits most ATX cases. GPU Safeguard monitors the current on the 12V-2x6 connector and warns of abnormal load, while ATX 3.1 compliance allows up to 235% total power excursion.

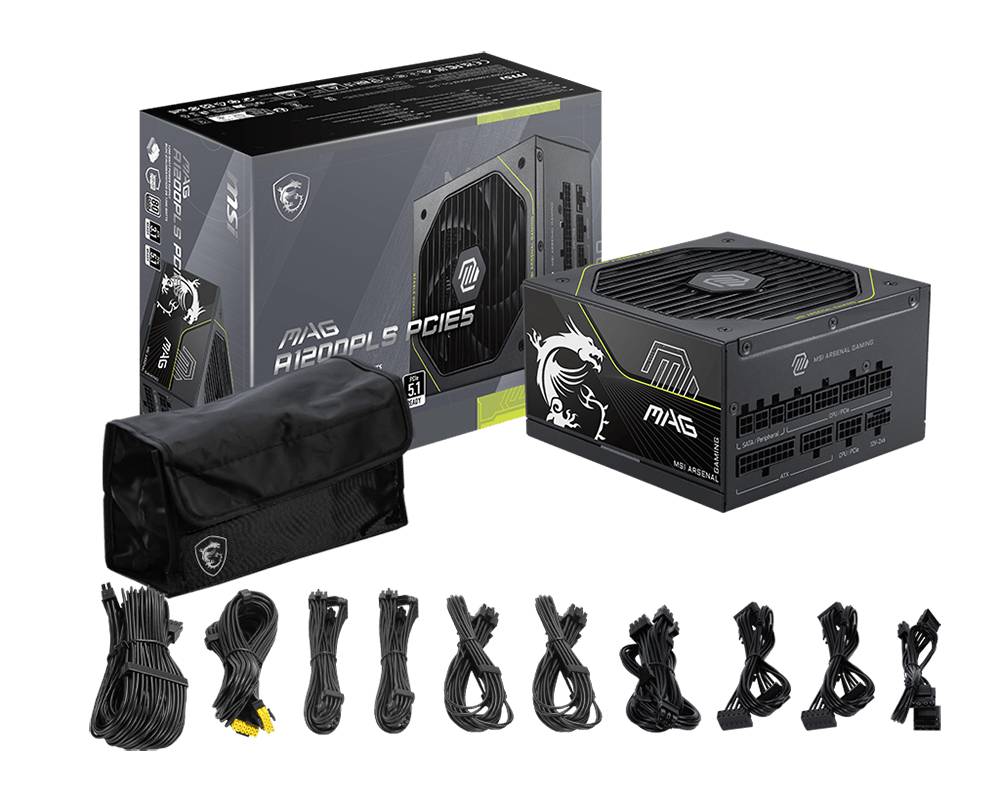

Cabling includes one 12V-2x6 (600W), four PCIe 6+2-pin, six SATA and three Molex connectors, plus 24-pin and dual CPU power leads.

Compatibility note: Check your case's PSU length limit: this unit is 150 mm deep (150 mm wide, 86 mm tall) before cables. Use only the modular cables supplied with this PSU — modular cables from other power supplies are not interchangeable and can damage components.

Key Features


80 PLUS Platinum
High efficiency across the load range reduces heat and running cost for gaming systems that run for many hours.

Native 12V-2x6 with GPU Safeguard
A single 600W 12V-2x6 cable powers RTX 50-series cards directly, with current monitoring and a dual-colour plug to confirm full insertion.

Compact 150 mm body
A standard 150 x 150 x 86 mm ATX size with fully modular cables for clean builds in mid-tower cases.

Technical Specifications

Identification
Part Number 306-7ZPNX11-CE0
Brand MSI
Model MAG A1200PLS PCIE5
Colour Black
Power
Rated Output 1200W
Efficiency 80 PLUS Platinum
Standard Intel ATX 3.1 · PCIe 5 ready
Power Excursion Up to 235% total power excursion
PFC Active PFC
Input 100–240 VAC, 50–60 Hz
Design
Modularity Fully modular
Form Factor ATX
Dimensions 150 x 150 x 86 mm (W x D x H)

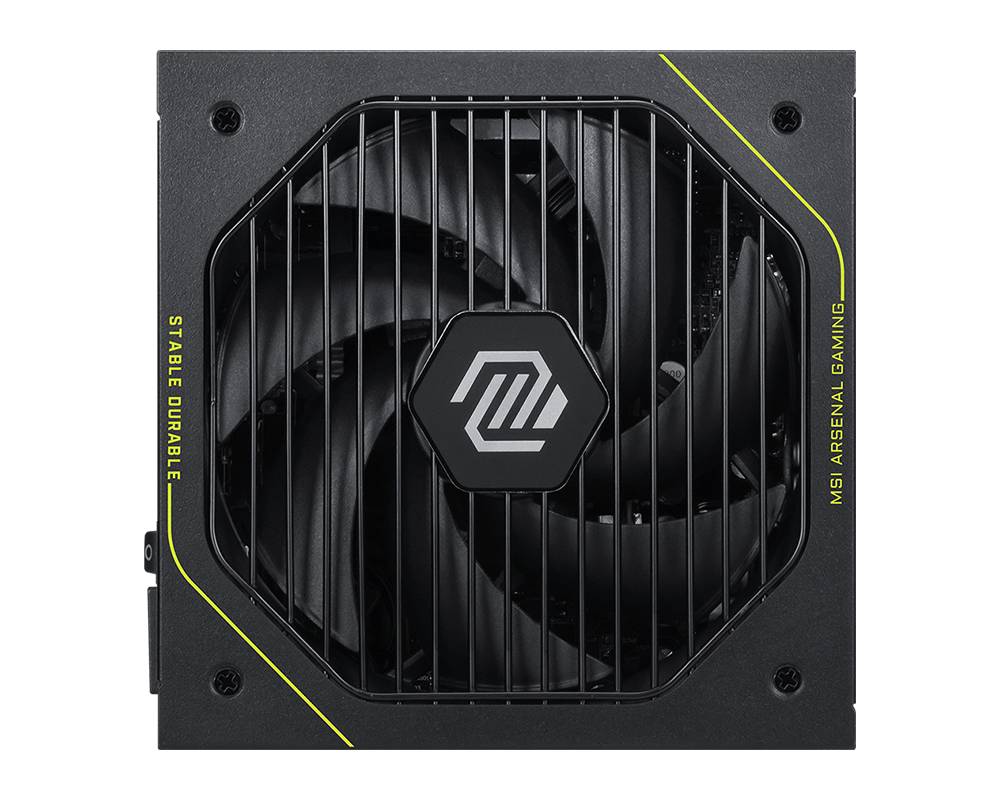

Fan 135 mm, fluid dynamic bearing (FDB)
Protections OVP · OCP · OTP · OPP · SCP · UVP · SIP · NLO
Special Features GPU Safeguard current monitoring on the 12V-2x6 connector · dual-colour 12V-2x6 cable

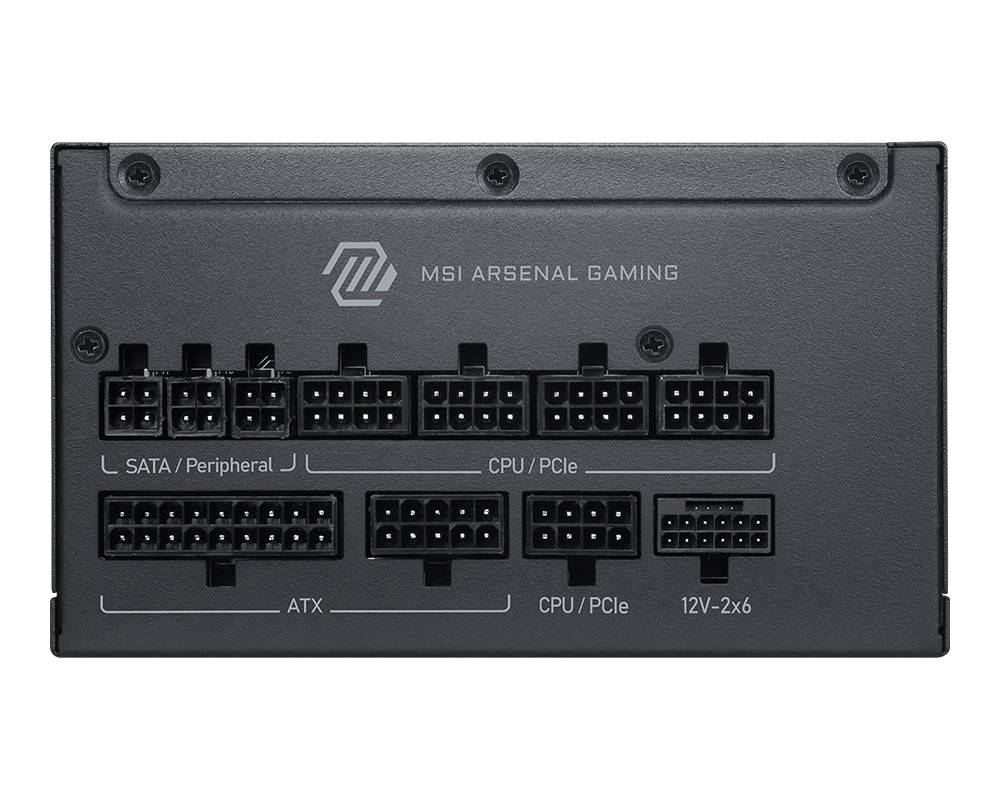

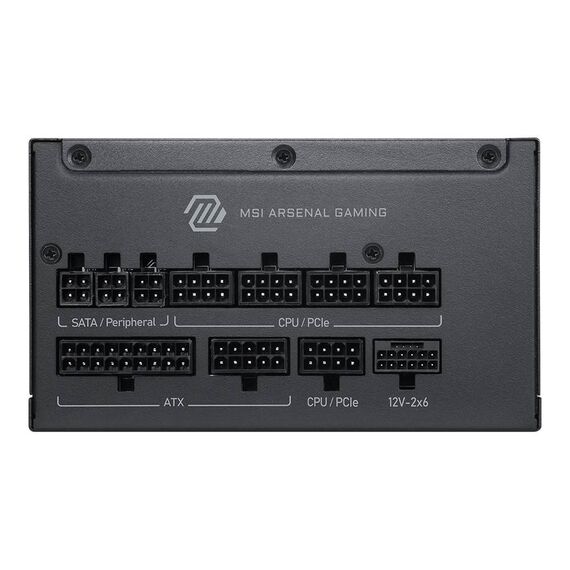

Connectors
Motherboard 1x 24-pin
CPU 1x 4+4-pin · 1x 8-pin
PCIe 5 (12V-2x6) 1x 12+4-pin, 600W each
PCIe 6+2-pin 4x
SATA 6x
Peripheral (Molex) 3x 4-pin

Frequently Asked Questions

Can the MAG A1200PLS PCIE5 power an RTX 5080 or RTX 5090?
It includes a native 600W 12V-2x6 connector and is rated at 1200W. Always check the graphics card maker's recommended PSU wattage for your exact card and CPU combination.
What is the difference between the MAG A1000PLS and A1200PLS PCIE5?
Both are 80 PLUS Platinum, fully modular ATX 3.1 units with the same 150 mm size and connector set; the A1200PLS provides 200W more capacity for higher-end GPUs and CPUs.
Does it support older graphics cards with 8-pin connectors?
Yes. Four PCIe 6+2-pin connectors are included alongside the 12V-2x6 cable.

Singular Expert Insight

The MAG A1200PLS PCIE5 hits the sweet spot for a single high-end graphics card: Platinum efficiency, a native 12V-2x6 cable with monitoring and a compact 150 mm body. If you plan two GPUs or want Titanium efficiency, the MPG Ai1300TS PCIE5 adds a second 12V-2x6 connector.
✓ Buy it if you are building a single-GPU gaming PC and want Platinum efficiency with a native 12V-2x6 cable.
✕ Skip it if you need two 12V-2x6 connectors for dual GPUs.
→ Also consider the MSI MAG A1000PLS PCIE5 if 1000W is enough, or the MPG Ai1300TS PCIE5 for Titanium efficiency and two 12V-2x6 outputs.
