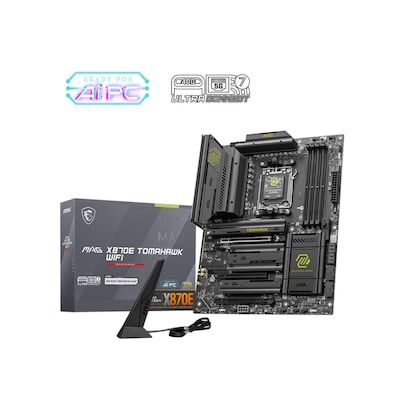

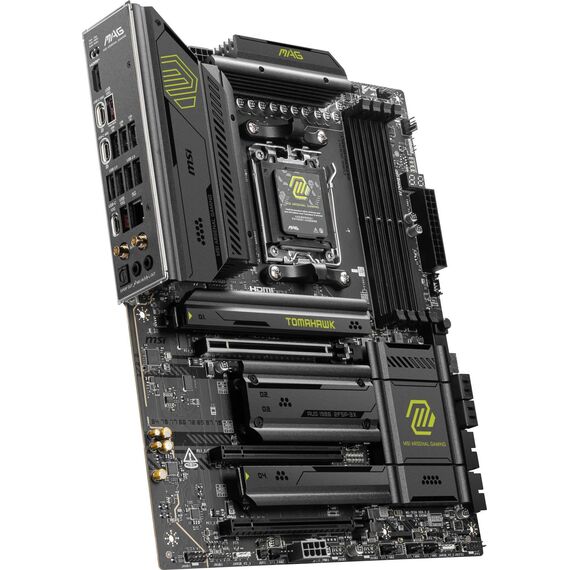

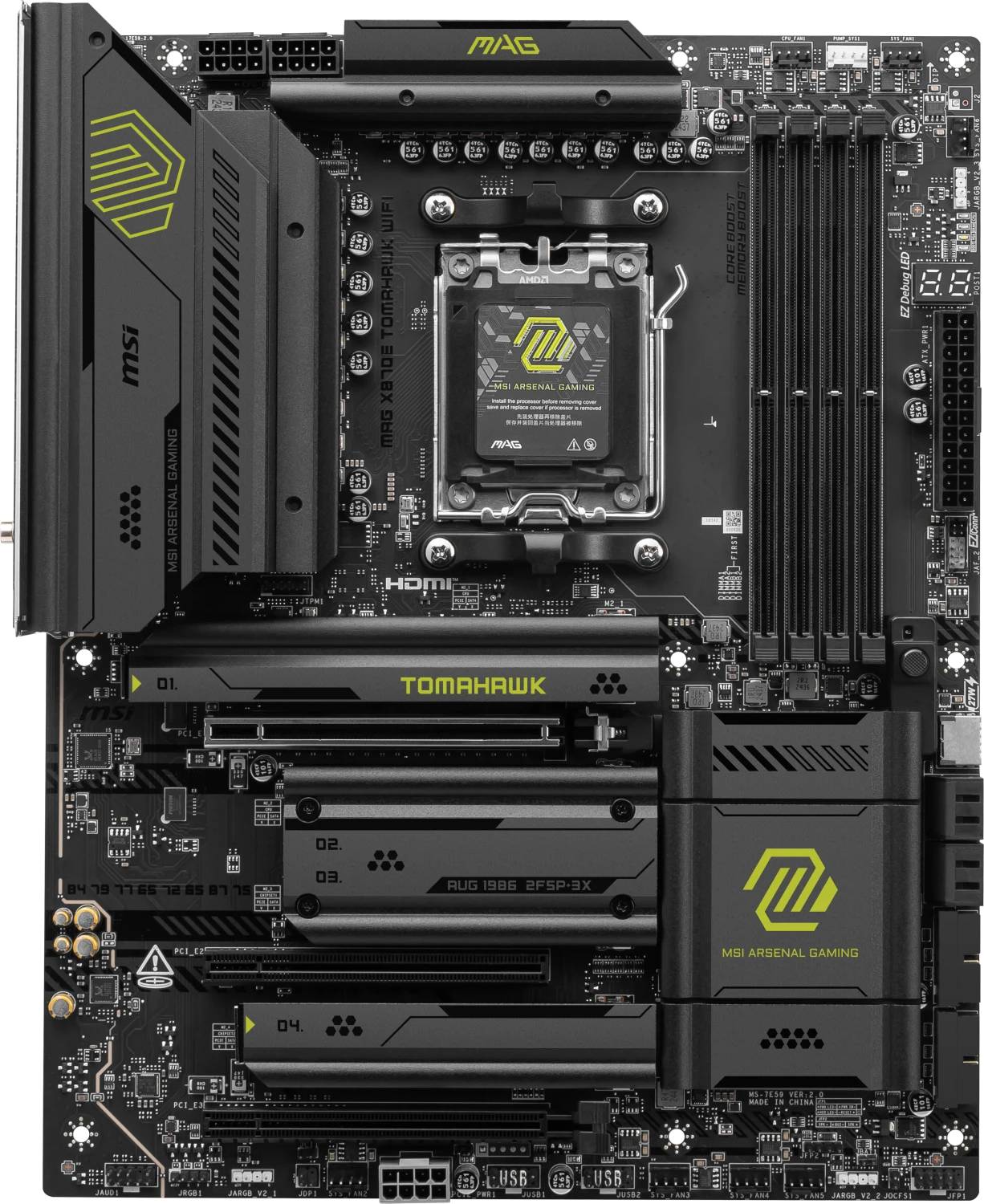

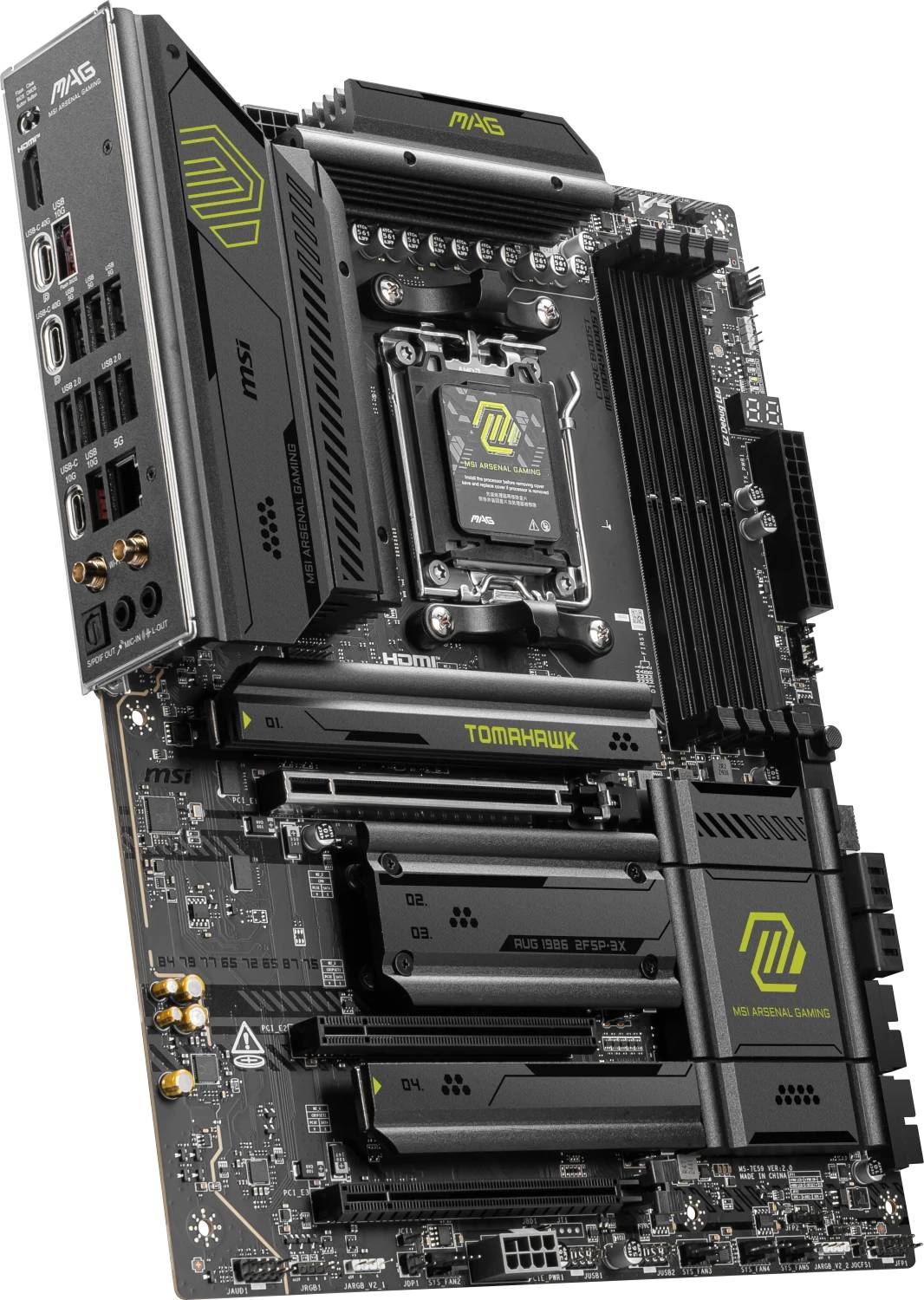

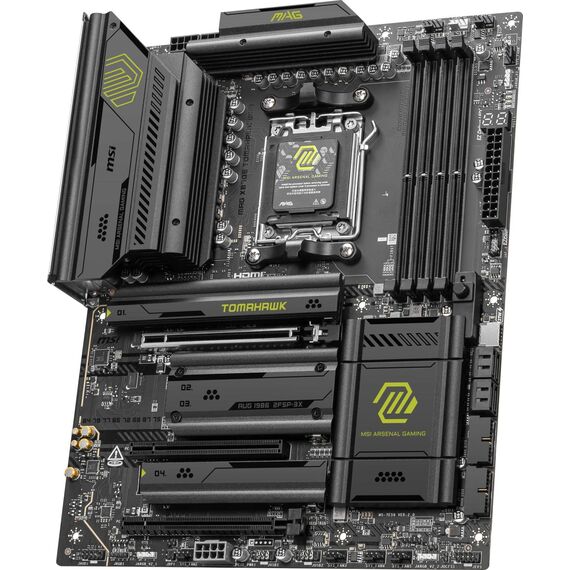

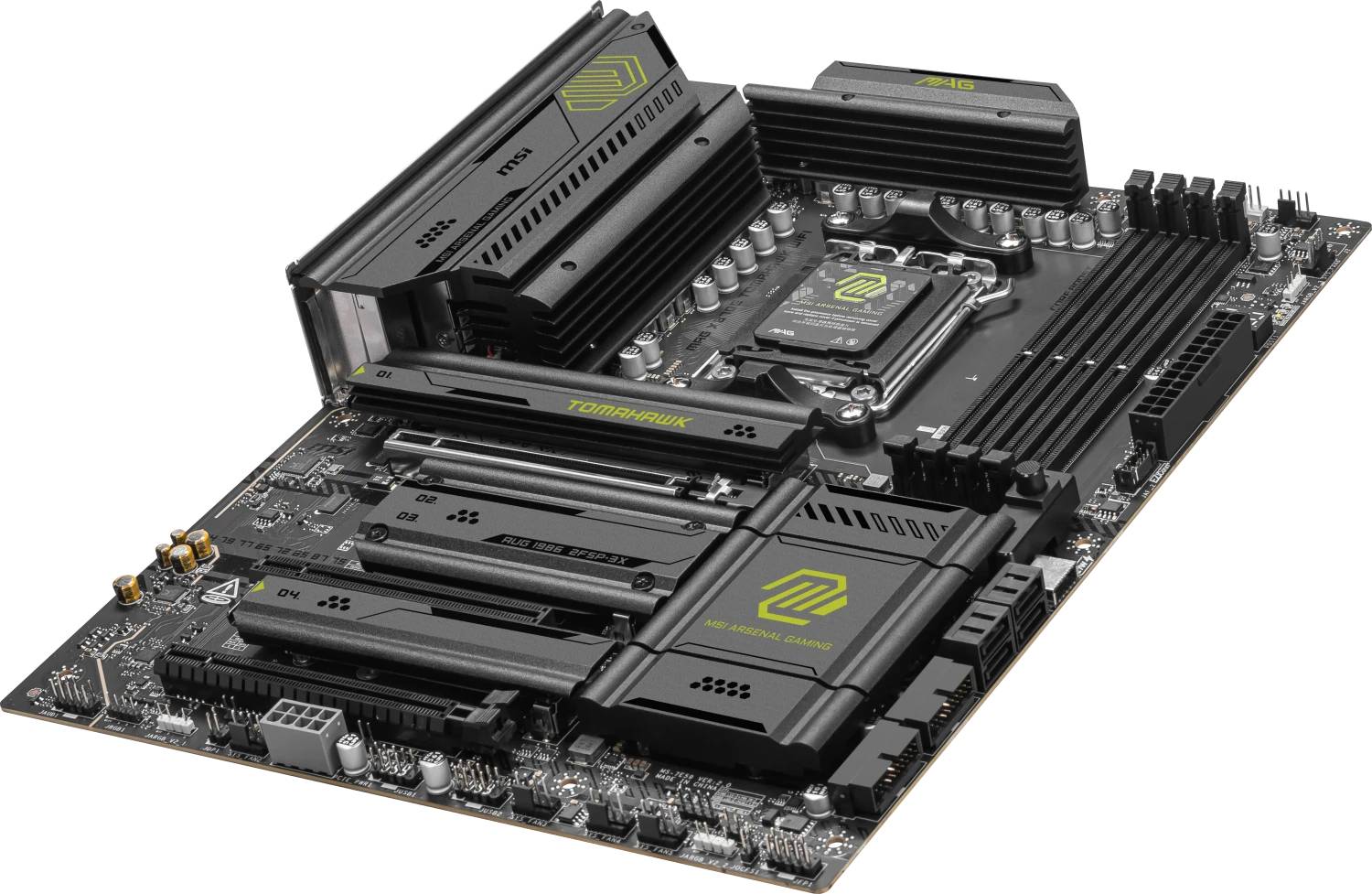

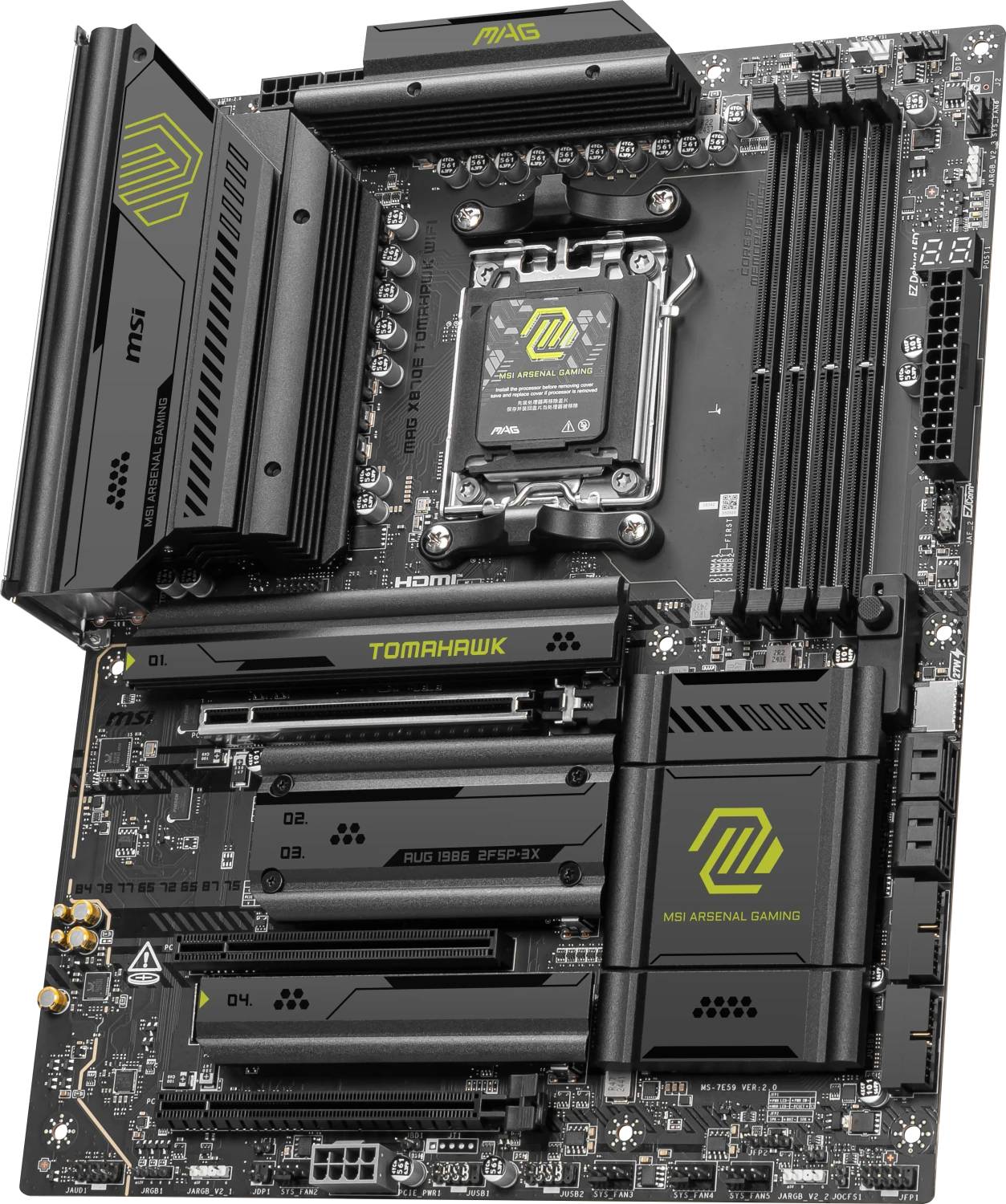

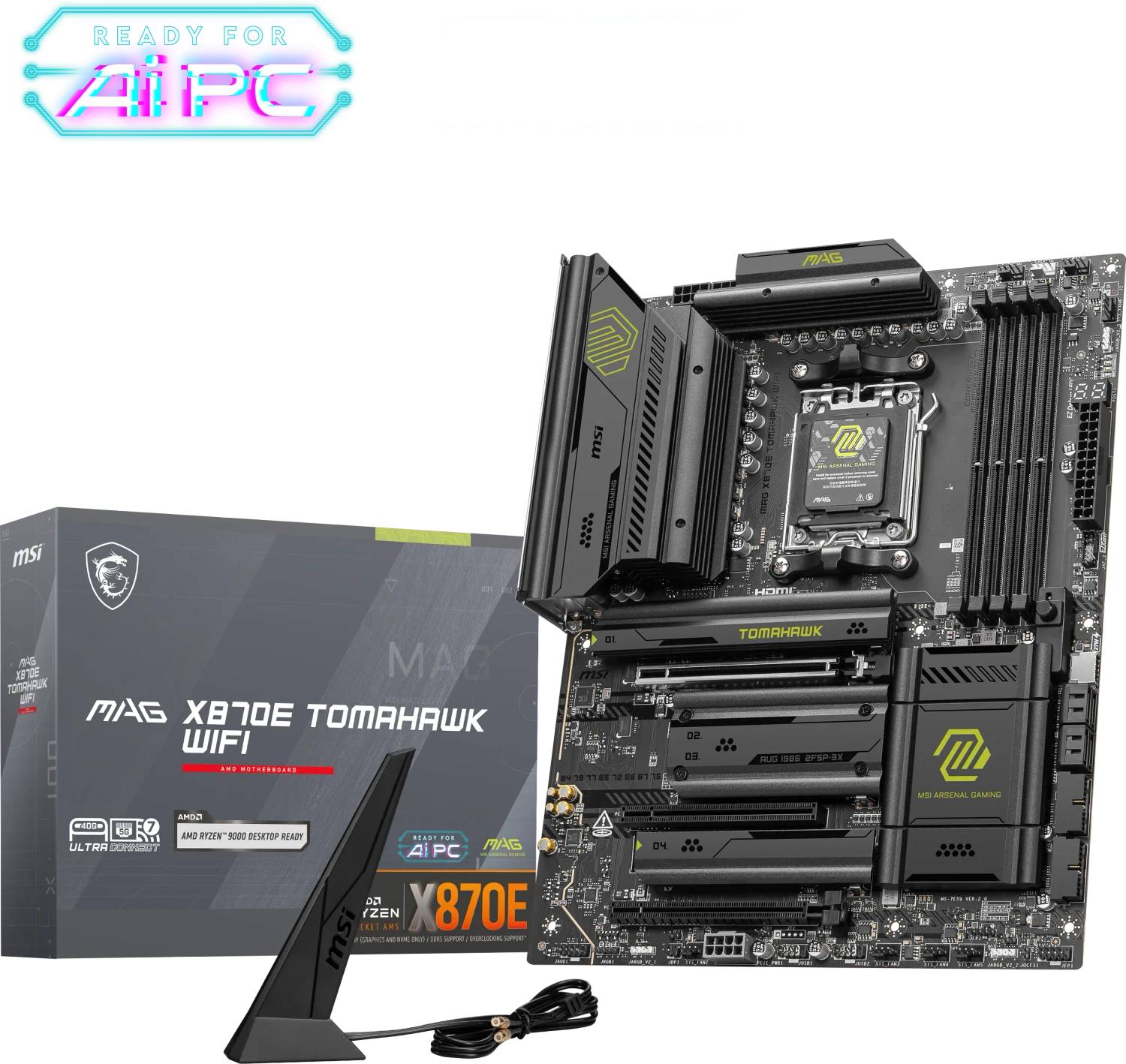

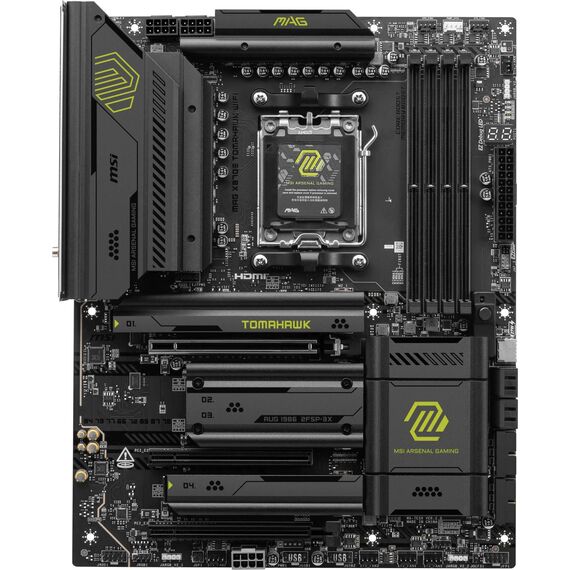

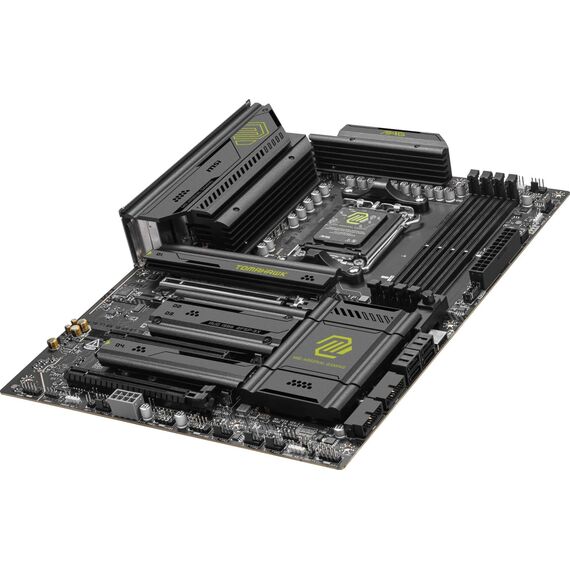

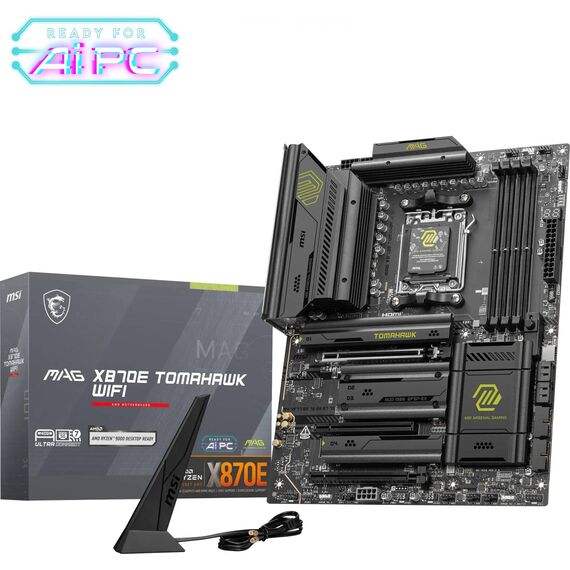

MSI MAG X870E Tomahawk WiFi AM5 ATX Motherboard
A strong AM5 ATX motherboard for Ryzen gaming and performance builds, combining AMD X870E, DDR5, PCIe 5.0, Wi-Fi 7, 5G LAN, USB 40Gbps and four M.2 slots.
AMD X870EWi-Fi 7PCIe 5.0USB 40Gbps
The MSI MAG X870E Tomahawk WiFi is built for users who want a reliable AMD AM5 platform with modern gaming features and strong connectivity. It supports AMD Ryzen 9000, 8000 and 7000 series desktop processors, DDR5 memory, PCIe 5.0 graphics, four M.2 slots, Wi-Fi 7 and 5G LAN, making it a strong foundation for gaming PCs, upgrade builds and performance desktop systems.
Compatibility Note: Please confirm CPU, BIOS, DDR5 memory, case, cooling and storage compatibility before purchase. PCIe 5.0, M.2 bandwidth, USB 40Gbps and Wi-Fi 7 functionality may depend on the installed Ryzen processor, operating system, BIOS version and regional wireless regulations.
Best For
✓ Durable AMD AM5 gaming PCs
✓ Ryzen 9000 / 8000 / 7000 builds
✓ PCIe 5.0 GPU and Gen 5 SSD setups
✓ Wi-Fi 7 and 5G LAN users
Key Features
AM5 X870E Platform
Supports AMD Ryzen 9000, 8000 and 7000 series desktop processors on the AM5 socket, giving builders a current high-end Ryzen platform for gaming and performance upgrades.
DDR5 and PCIe 5.0 Ready
DDR5 support up to 256GB and PCIe 5.0 graphics support make this motherboard suitable for fast memory kits, modern GPUs and high-bandwidth desktop hardware.
Four M.2 Storage Slots
Four M.2 slots include two PCIe 5.0 capable M.2 slots and two PCIe 4.0 M.2 slots, giving builders strong NVMe storage flexibility.
Modern Connectivity
Wi-Fi 7, Bluetooth 5.4, 5G LAN, rear USB 40Gbps Type-C and front USB 20Gbps Type-C support make it ready for modern peripherals and fast networking.
Technical Specifications
| Model |
MSI MAG X870E Tomahawk WiFi |
| SKU / EAN |
7E59-004R / 4711377291927 |
| Socket / Chipset |
AMD AM5 / AMD X870E |
| CPU Support |
AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| Power Design |
14+2+1 Duet Rail Power System with 80A SPS |
| Memory |
4× DDR5 UDIMM, up to 256GB, dual-channel, DDR5 8400+ MT/s OC support |
| Expansion Slots |
3× PCIe x16 slots; primary slot supports PCIe 5.0 x16 with Ryzen 9000 / 7000 processors |
| Storage |
4× M.2 slots, including 2× PCIe 5.0 x4 CPU-connected M.2 slots with compatible processors + 4× SATA 6G ports |
| Ethernet |
5G LAN |
| Wireless |
Wi-Fi 7, 2.4GHz / 5GHz / 6GHz support, Bluetooth 5.4 |
| USB Connectivity |

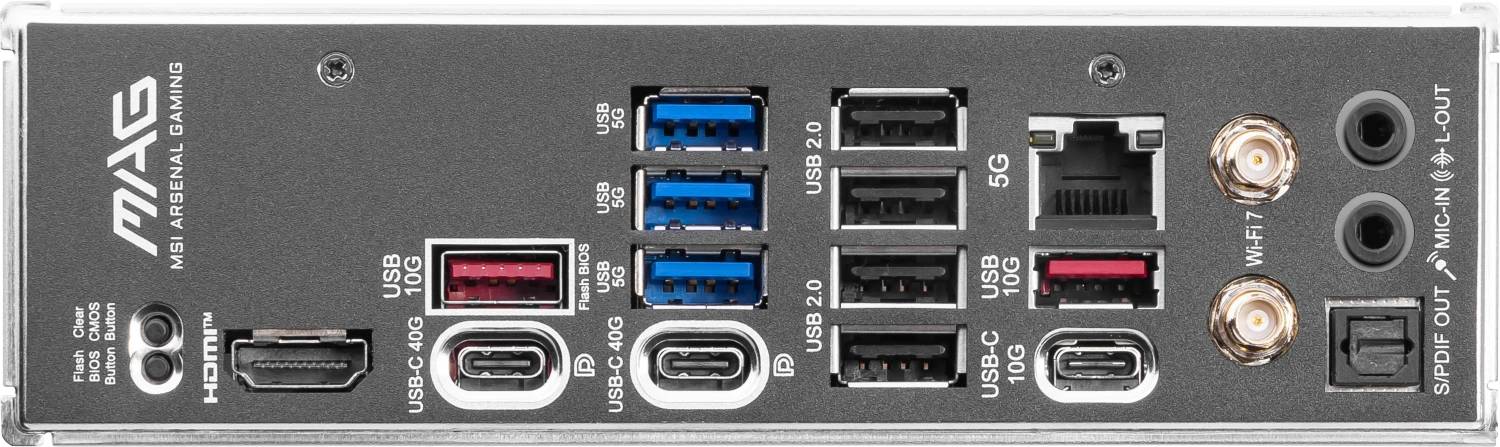

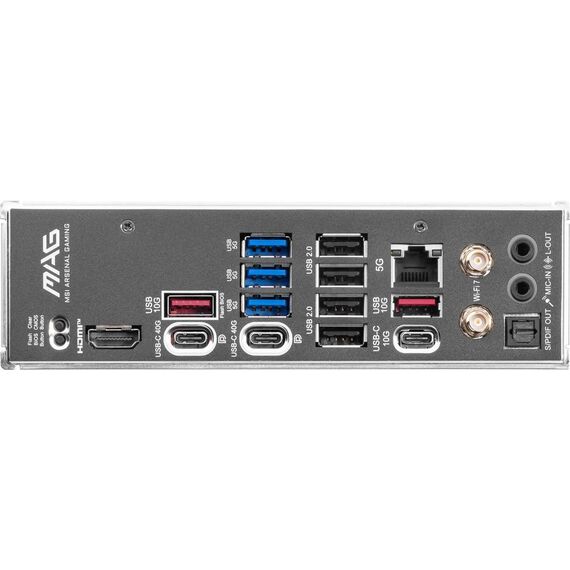

2× rear USB 40Gbps Type-C, rear USB 10Gbps Type-C, rear USB 10Gbps Type-A, rear USB 5Gbps Type-A, rear USB 2.0 and front USB 20Gbps Type-C support |
| Graphics Output |
HDMI output, CPU integrated graphics required |
| Audio |
Audio Boost 5, 7.1-channel HD audio, S/PDIF output |
| Operating System |
Windows 11 64-bit |
| Form Factor |
ATX |
Frequently Asked Questions
Is this the X870E or X870 version?
This SKU is the MSI MAG X870E Tomahawk WiFi, using the AMD X870E chipset.
How many M.2 SSDs can it support?
It supports four M.2 slots, including two CPU-connected PCIe 5.0 x4 M.2 slots with compatible Ryzen 9000 or 7000 processors.
Is Wi-Fi 7 included?
Yes, Wi-Fi 7 and Bluetooth 5.4 are included. Wi-Fi 7 and Bluetooth 5.4 readiness may depend on Windows 11 version 24H2 and regional regulations.
Singular Expert Insight
Choose this model if you want a durable X870E AM5 motherboard with PCIe 5.0, Wi-Fi 7, 5G LAN, USB 40Gbps and four M.2 slots without paying for a more premium white/silver MPG or Carbon model. If you want a lighter color theme, consider the MPG X870E Edge TI WiFi instead.
Buyer’s Guide
Buy it if
You are building a strong AM5 gaming or performance PC and want X870E, DDR5, PCIe 5.0, Wi-Fi 7, 5G LAN, USB 40Gbps and four M.2 slots.
Skip it if
You need a white/silver motherboard, dual LAN, more premium audio or enthusiast styling, because MSI has higher MPG and MEG options for those needs.
Also consider
Consider the MSI MPG X870E Edge TI WiFi for a lighter premium design, or an MSI MPG X870E Carbon WiFi if dual LAN and a higher MPG tier are preferred.
