MSI MAG X870E Tomahawk Max WiFi PZ ATX AM5 Motherboard

Brand:
MSI
MSI MAG X870E TOMAHAWK MAX WIFI PZ Mainboard ATX 7E84002R
MSI MAG X870E Tomahawk Max WiFi PZ ATX AM5 Motherboard
€467.82 inc. VAT
Buy
7E84-002R
€393.13 €436.81
€467.82 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:569232
EAN Code
4711377391283
Manufacturer
MSI

Quick Specs

Socket
AMD AM5
Chipset
AMD X870E
Form Factor
Back-connect ATX
Memory
4× DDR5 up to 256GB
Storage
4× M.2 + 4× SATA 6G
Networking
Wi-Fi 7 + 5G LAN
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

MSI MAG X870E Tomahawk Max WiFi PZ ATX AM5 Motherboard

A premium AMD AM5 motherboard for clean high-performance Ryzen builds, combining X870E connectivity, DDR5, PCIe 5.0, Wi-Fi 7 and a back-connect layout.
AMD X870ESocket AM5Wi-Fi 7USB4 40Gbps

The MSI MAG X870E Tomahawk Max WiFi PZ is a back-connect ATX motherboard for AMD Ryzen 9000, 8000 and 7000 Series desktop processors. It is a strong choice for users building a clean AM5 gaming, creator or workstation-style PC with modern storage, fast networking and next-generation expansion support.

Compatibility Note: This is a back-connect ATX motherboard. Please confirm case compatibility with rear-positioned motherboard connectors before purchase.
Best For
✓ Clean cable-managed AM5 builds
✓ Ryzen 9000, 8000 and 7000 systems
✓ Fast PCIe 5.0 GPU and SSD setups
✓ Wi-Fi 7 and 5G LAN networking

Key Features


Modern AM5 Platform
Built for AMD Ryzen 9000, 8000 and 7000 Series desktop processors with AMD X870E chipset support and DDR5 memory.

Back-connect ATX Design
Rear-positioned connectors help create a cleaner internal layout when paired with a compatible back-connect PC case.

PCIe 5.0 and Fast Storage
Supports PCIe 5.0 graphics connectivity and four M.2 slots, including PCIe 5.0 x4 M.2 support for high-speed NVMe storage.

Premium Connectivity
Wi-Fi 7, Bluetooth 5.4, 5G LAN and rear USB 40Gbps Type-C ports make it suitable for demanding modern desktop setups.

Technical Specifications

Model MSI MAG X870E Tomahawk Max WiFi PZ
Socket AMD AM5
Chipset AMD X870E
CPU Support AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
Memory 4× DDR5 UDIMM, up to 256GB, dual-channel, up to 8400+ MT/s OC
Expansion Slots 3× PCIe x16 slots, primary slot up to PCIe 5.0 x16 with compatible CPUs
Storage 4× M.2 slots, 4× SATA 6G ports
Networking Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4

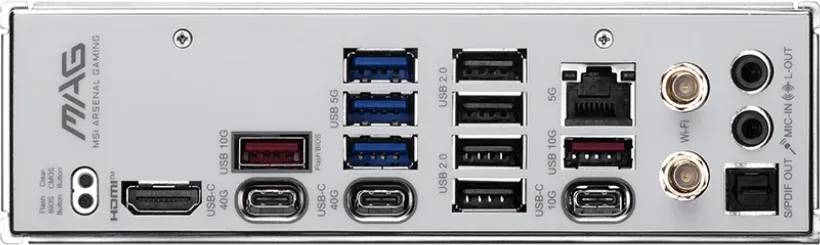

Rear Display Outputs 1× HDMI 2.1, 2× USB4 Type-C DisplayPort output support with compatible CPU integrated graphics
Form Factor Back-connect ATX, 243.84×304.8mm
Operating System Support Windows 11 64-bit

Frequently Asked Questions

Does this motherboard support Ryzen 9000 processors?
Yes. MSI lists support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors on the AM5 socket.
Do I need a special case for the PZ back-connect layout?
A compatible back-connect case is strongly recommended because the motherboard moves many connectors to the rear side for cleaner cable management.
Does it include Wi-Fi and Bluetooth?
Yes. It includes a pre-installed wireless module with Wi-Fi 7 and Bluetooth 5.4 support, subject to operating system and regional wireless availability.
Singular Expert Insight
Choose this model if you want a premium AM5 motherboard for a clean back-connect build with strong networking and PCIe 5.0 storage support. If your case does not support back-connect layouts, a standard X870E motherboard may be the safer option.

Buyer’s Guide

Buy it if
You are building a high-end Ryzen AM5 PC and want X870E, Wi-Fi 7, USB4, PCIe 5.0 and cleaner rear-side cable routing.
Skip it if
Your case does not support back-connect motherboards or you only need a basic AM5 build without USB4 and Wi-Fi 7.
Also consider
Consider a standard MAG X870E Tomahawk WiFi-style board if you prefer conventional front-side motherboard connectors.
