MSI PRO B760M-P DDR5 Micro-ATX Motherboard LGA 1700 Intel B760 PCIe 4.0 Dual M.2 Gen4 USB-C HDMI DP VGA GbE Black
Brand:
MSI
MSI PRO B760M-P DDR5 Micro-ATX Motherboard LGA 1700 Intel B760 PCIe 4.0 Dual M.2 Gen4 USB-C HDMI DP VGA GbE Black
€149.32 inc. VAT
7E02-009R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
MSI PRO B760M-P DDR5 — Four-DIMM LGA 1700 Micro-ATX
LGA 1700 · Intel B7604× DDR5 up to 256GBPCIe 4.0 + Dual M.2 Gen4USB-C · Triple Display

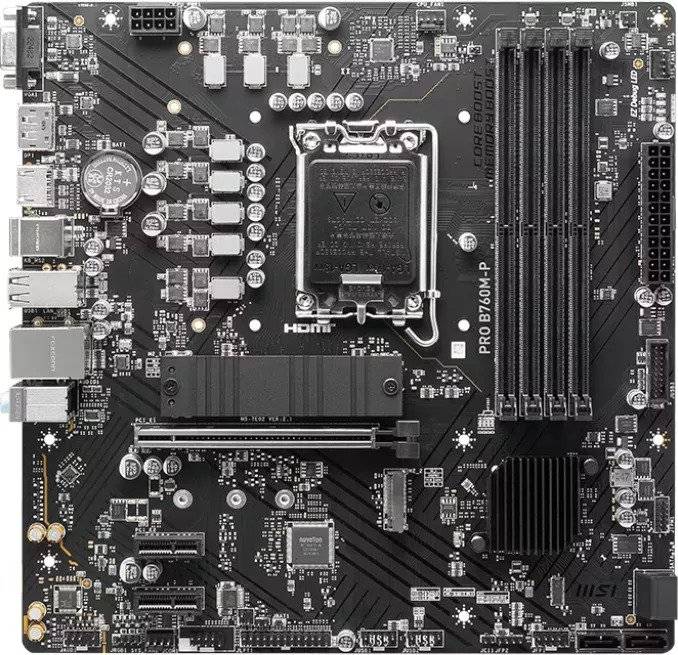

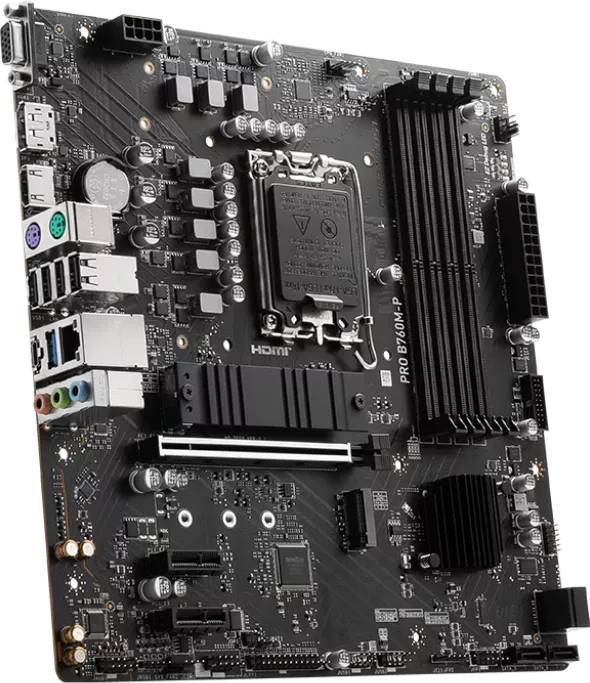

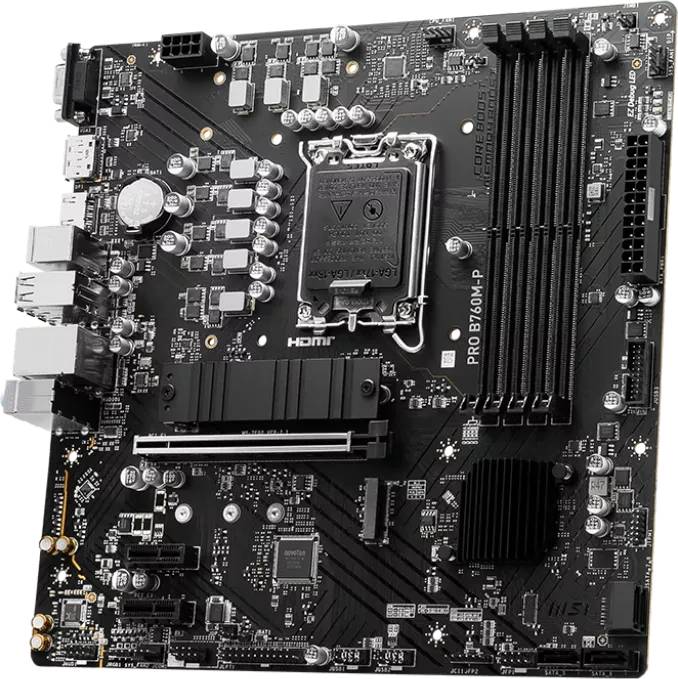

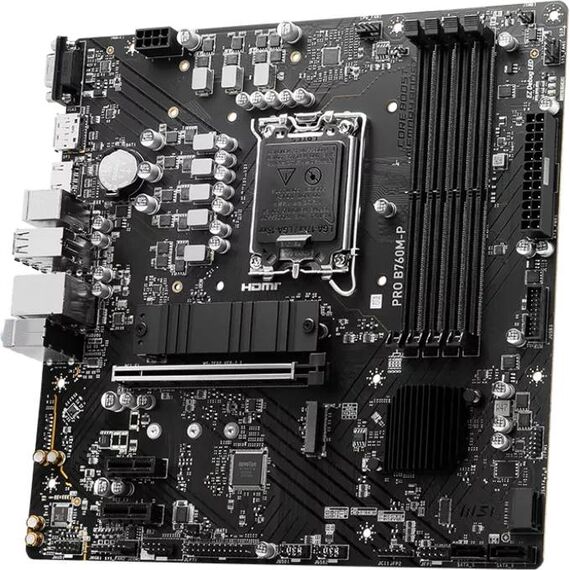

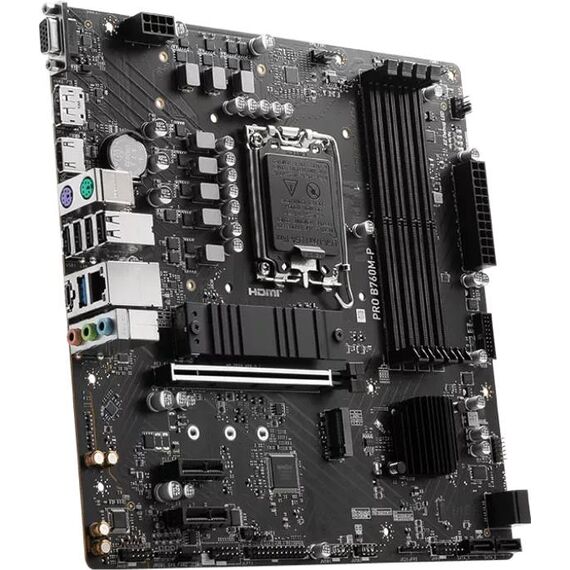

The MSI PRO B760M-P (DDR5) is a micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under MSI part number 7E02-009R (EAN 4711377086578), it offers four DDR5 slots (up to 256GB), a PCIe 4.0 graphics slot with Steel Armor, dual PCIe 4.0 Gen4 M.2 slots, four SATA ports, a USB-C port and triple display output — a roomy, well-rounded base for productivity and mainstream gaming builds. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 1700 board supporting 12th/13th/14th Gen Intel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR5 version (no DDR4), with four DIMM slots (max 256GB). Graphics/storage run at PCIe 4.0.
Best For
✓Productivity and mainstream LGA 1700 builds
✓High-capacity DDR5 (up to 256GB) workloads
✓Triple-monitor productivity setups
✓Dual Gen4 NVMe + four SATA storage
✓USB-C peripheral connectivity
✓Pairing with 12th–14th Gen Core i5/i7 CPUs
Key Features
Four-DIMM DDR5
Four DDR5 DIMM slots support up to 256GB and overclocked speeds of 6800+ MHz with MSI Memory Boost — strong capacity and performance.
Dual Gen4 M.2 + 4× SATA
Two PCIe 4.0 Gen4 M.2 slots (primary with M.2 Shield Frozr cooling) and four SATA 6Gb/s ports give flexible, fast storage.
Triple display + USB-C

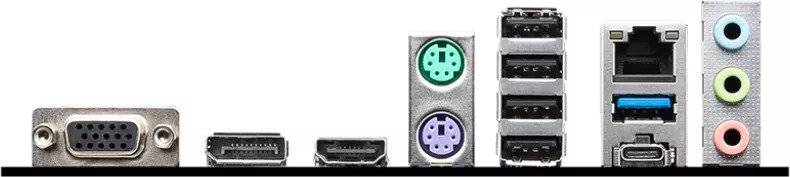

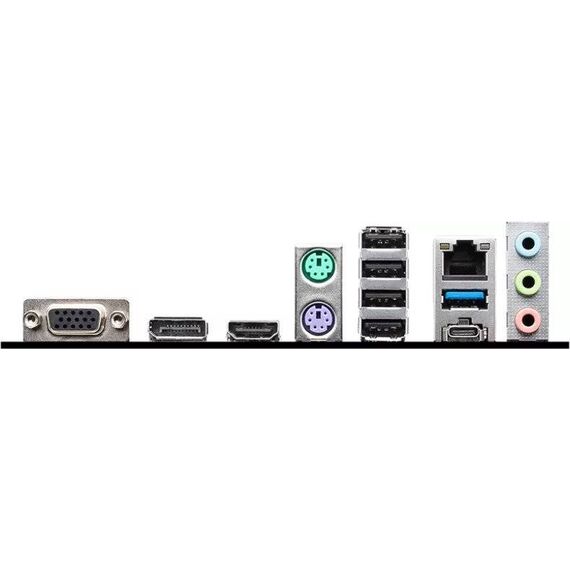

HDMI, DisplayPort and VGA outputs drive up to three monitors from integrated graphics, with a rear USB 3.2 Gen 2 Type-C (10Gbps) port.
MSI PRO durability
A Steel Armor reinforced PCIe x16 slot, Audio Boost 7.1 audio and PRO-series build quality deliver a dependable everyday platform.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The PRO B760M-P DDR5 is a solid value board — four DDR5 slots, dual Gen4 M.2, triple display output and USB-C make it well-suited to productivity and mainstream gaming, with MSI PRO durability. If you want a PCIe 5.0 graphics slot or Wi-Fi, a higher-tier B760 board steps up; for the latest Core Ultra platform, an LGA 1851 board is the move. Add a fast PCIe Gen4 internal SSD in the Shield Frozr M.2 slot for best results.
Buyer's Guide
Buy it if
You want a roomy four-DIMM LGA 1700 board with up to 256GB DDR5, dual Gen4 M.2, triple display and USB-C for productivity or mainstream gaming.
Skip it if
You want PCIe 5.0, built-in Wi-Fi, 2.5GbE or the latest Core Ultra platform — choose a higher-tier B760 or LGA 1851 board.
Also consider
A higher-tier B760 board with Wi-Fi/PCIe 5.0, or an LGA 1851 B860 board for the newer platform.
Features - MSI - 7E02-009R
CPU Socket
- Socket 1700
Colour
black
Interface
- USB Type-C,
- USB3.0,
- M.2,
- Ethernet
More Details
Product Code
04:430858
EAN Code
4711377086578
Manufacturer
MSI
