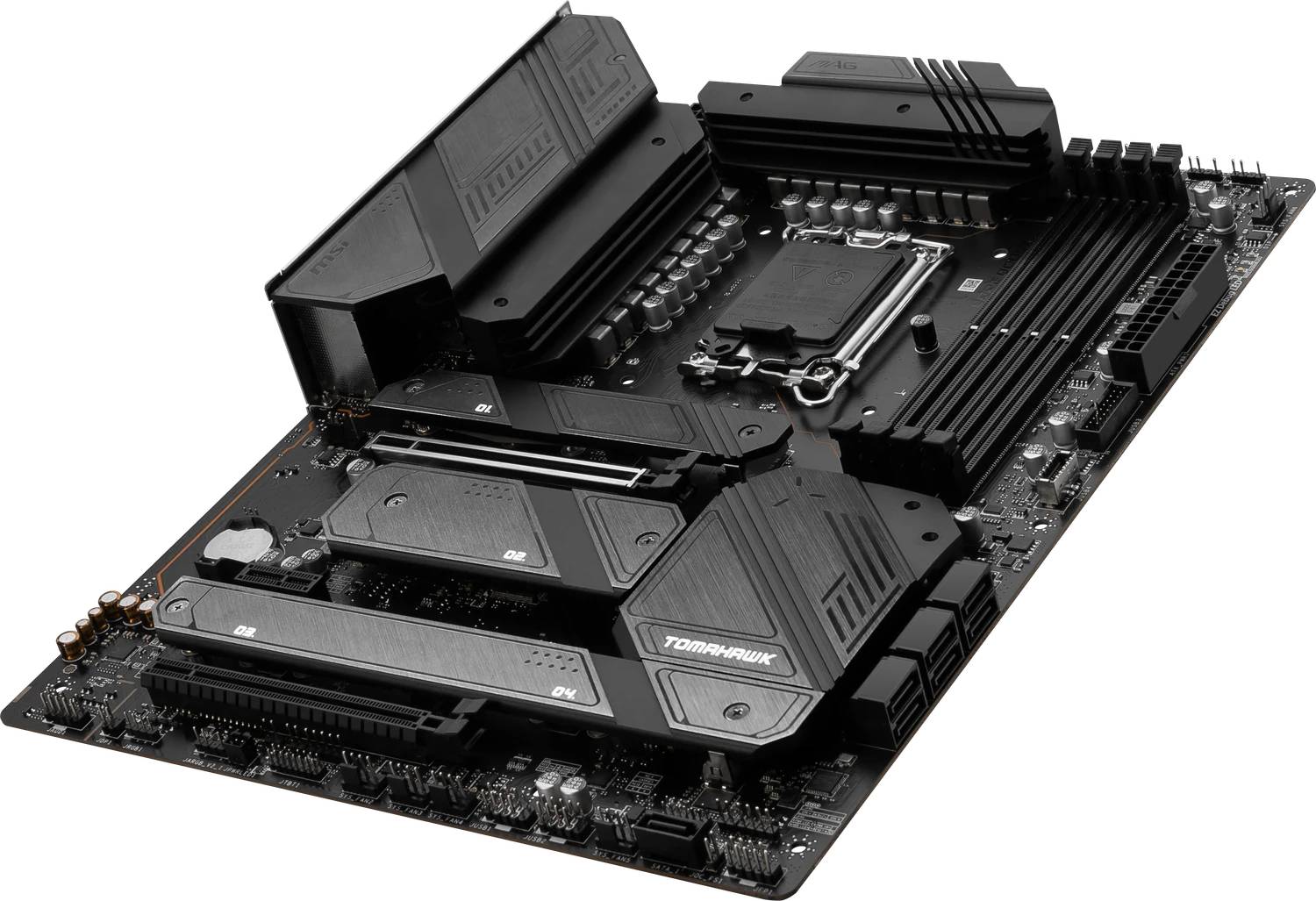

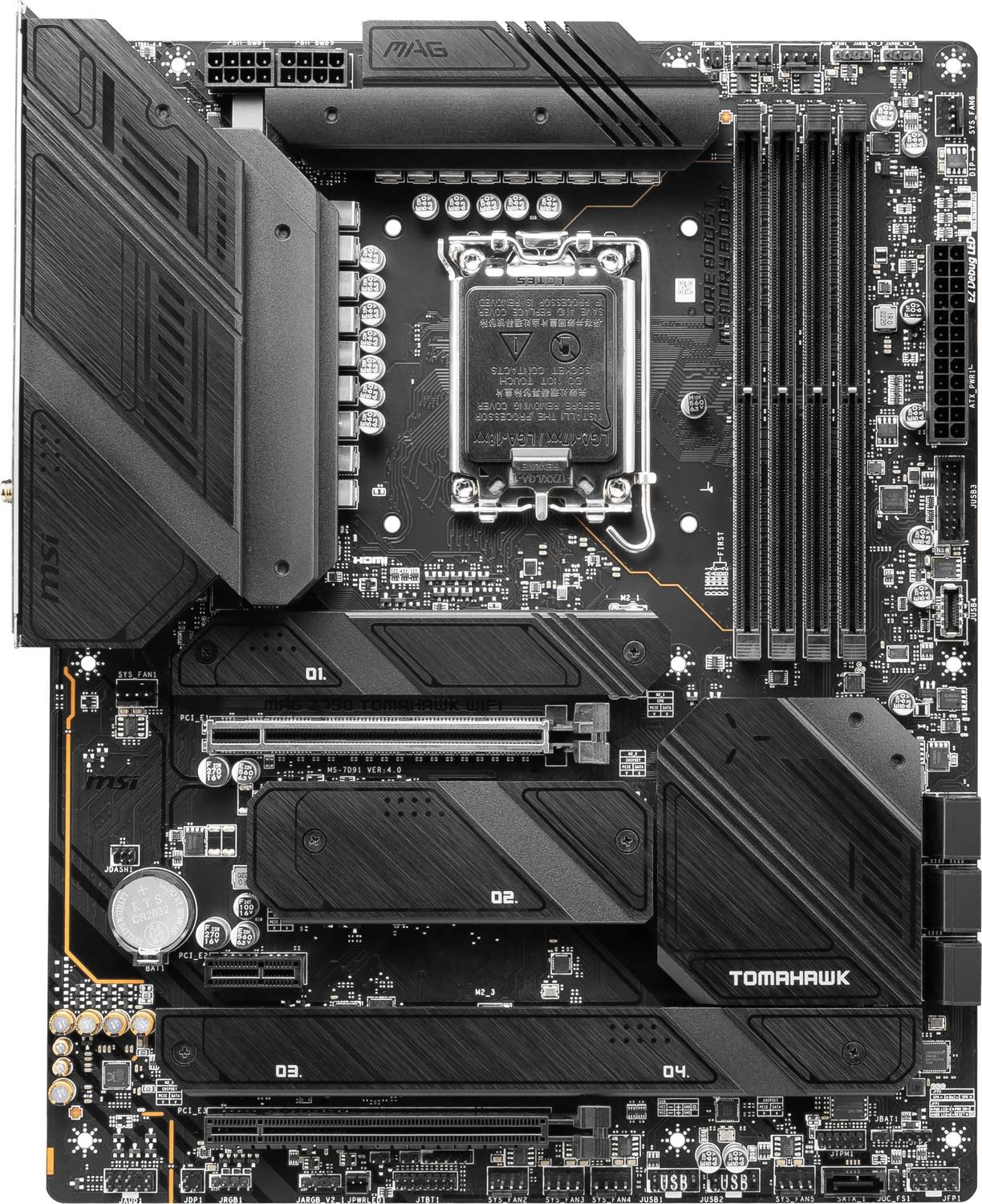

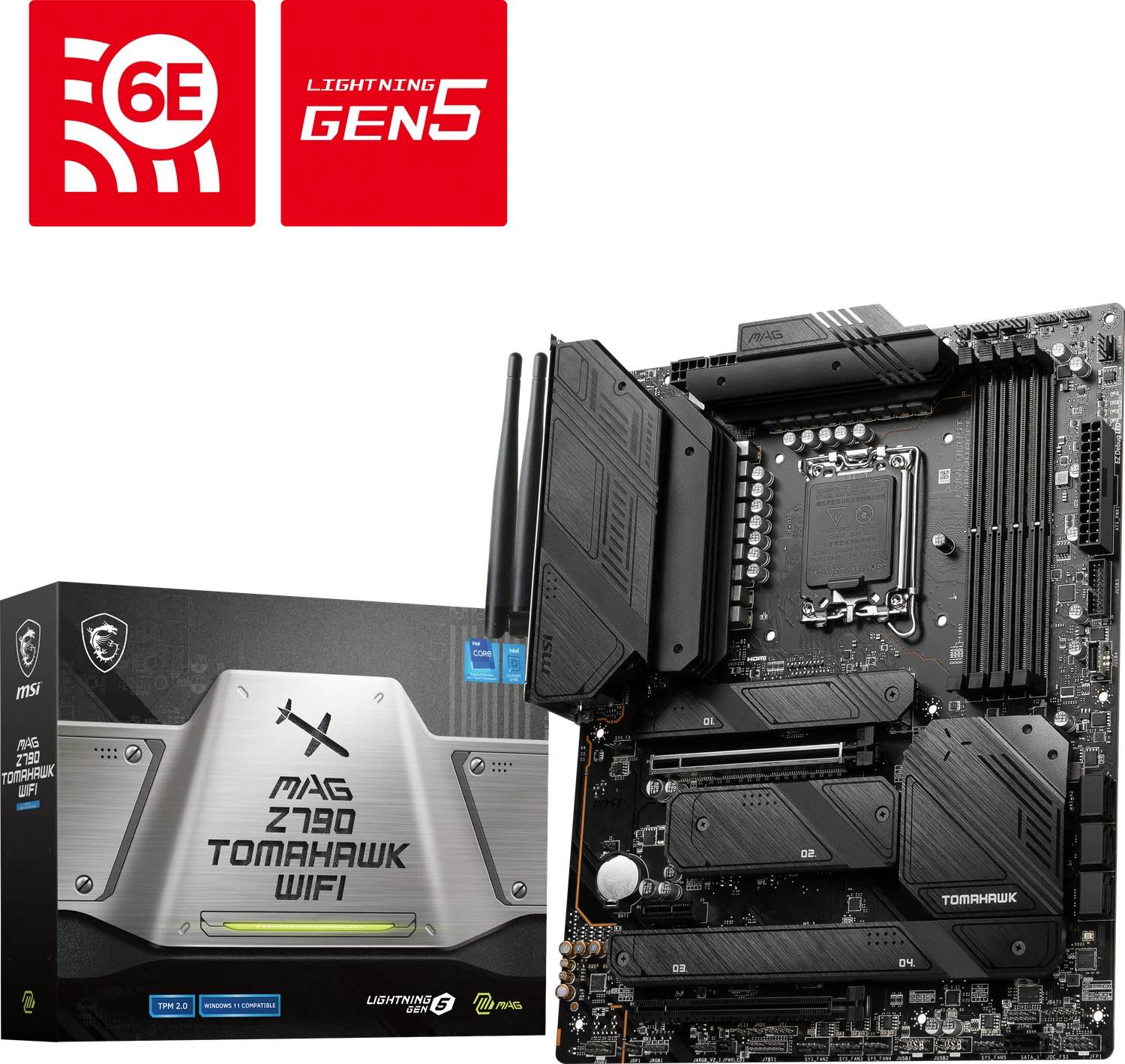

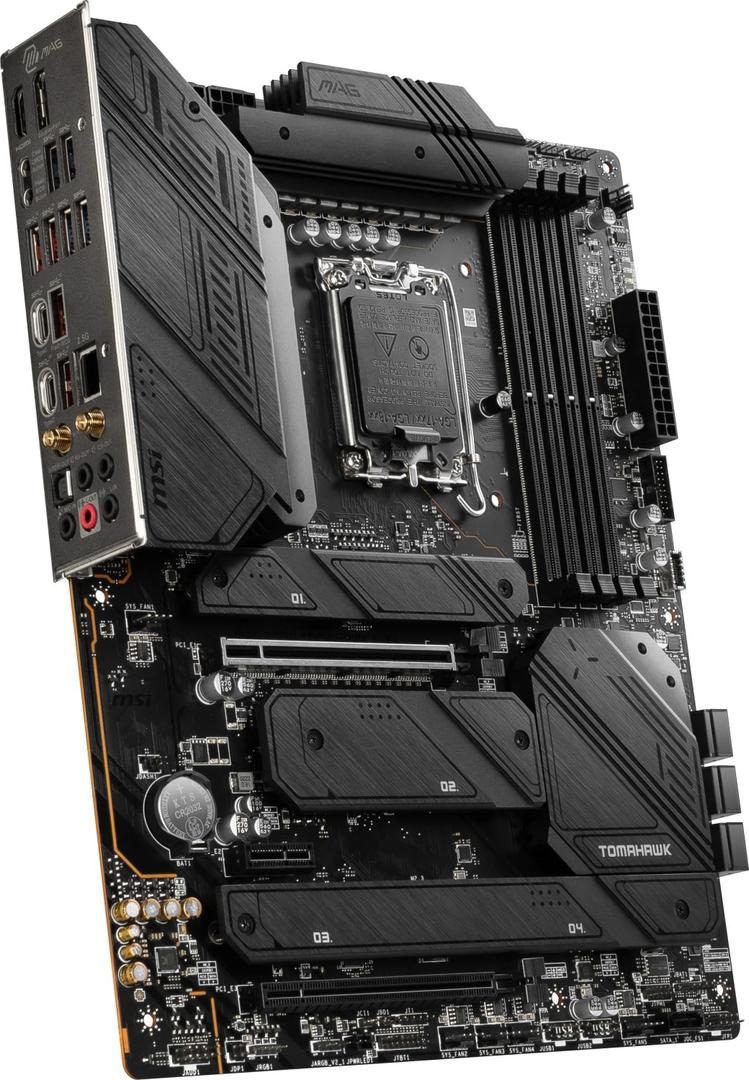

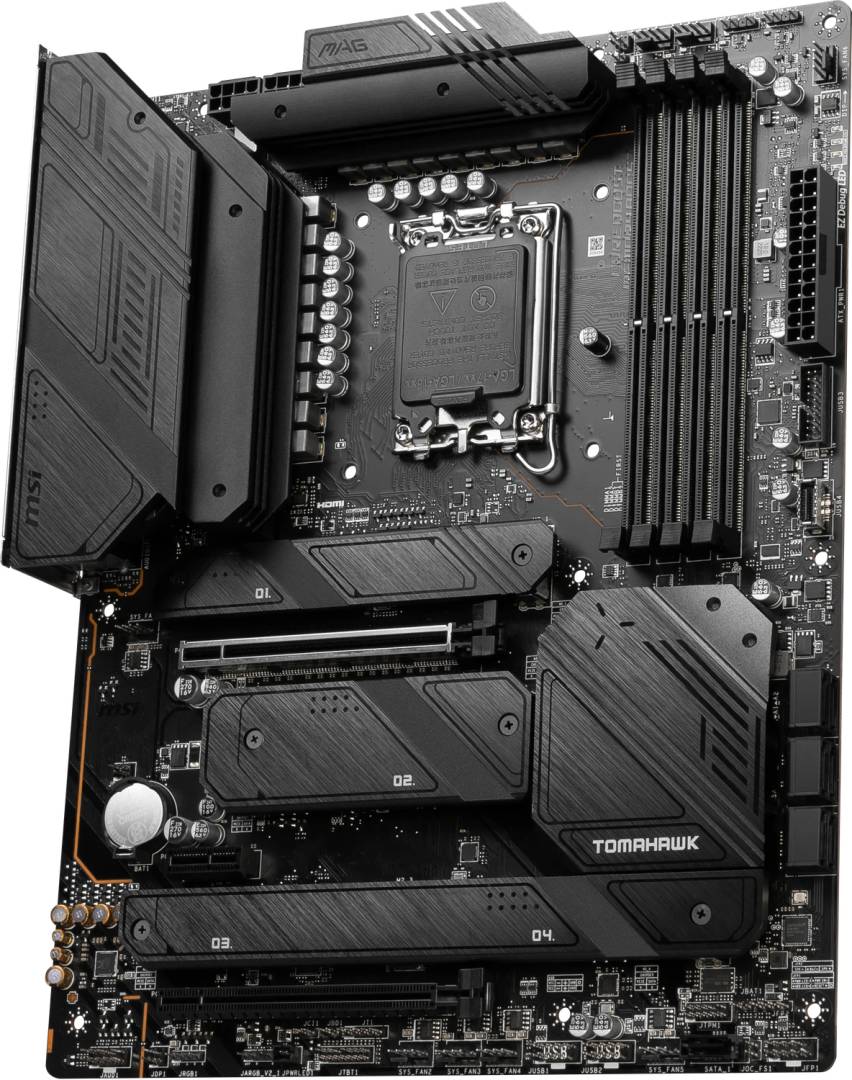

MSI MAG Z790 Tomahawk WIFI / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7D91-009R
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ M.2 socket ¦ 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 7 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

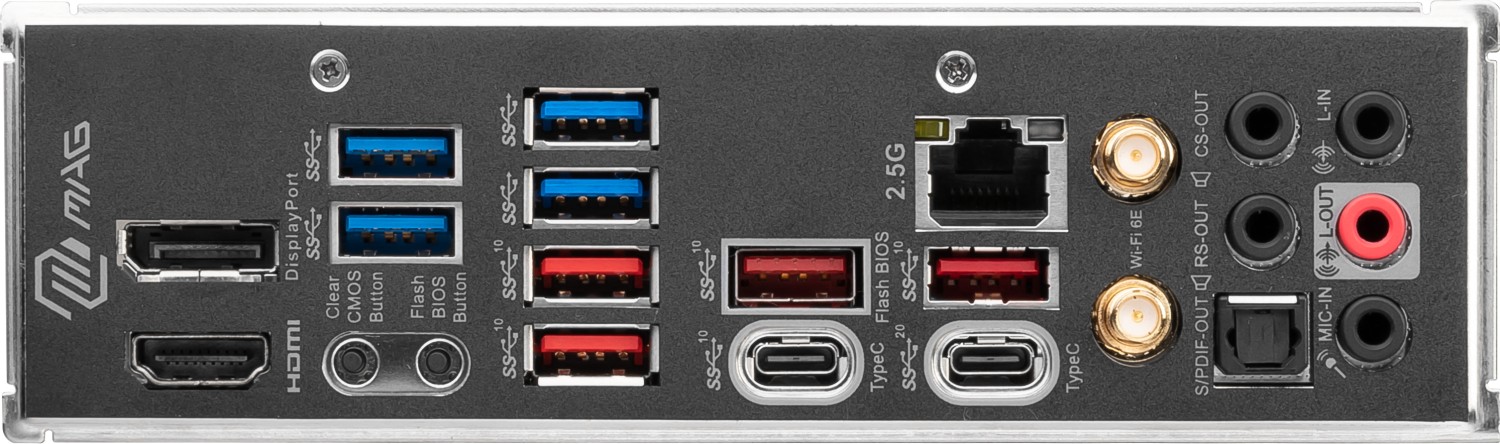

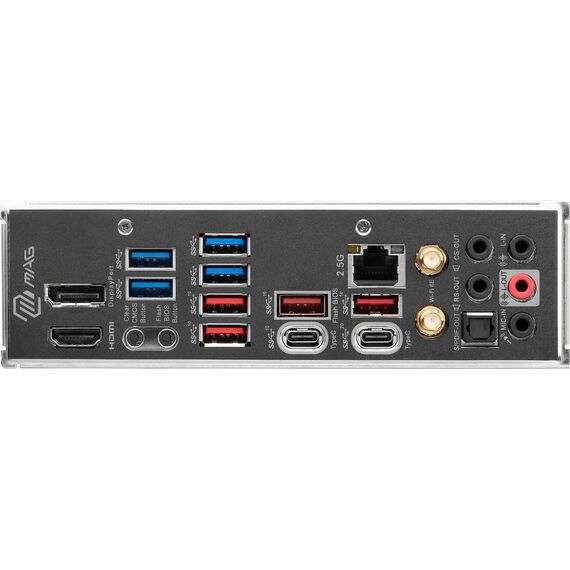

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Clear CMOS Button, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, 90A Smart Power Stage, 16+1+1 Phase Power Design, MSI Audio Boost 5, Surface Mount Technology (SMT), MSI Memory Boost, flash BIOS button |
| Miscellaneous | Miscellaneous |
| Included Accessories | USB drive, Wi-Fi aerial, cable stickers, EZ M.2 clips |
| Cables Included | 2 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center |
| Compliant Standards | WEEE, FIPS, FISMA, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4 |
| Width | 30.48 cm |
| Depth | 24.384 cm |
Features - MSI - 7D91-009R
CPU Socket
- Socket 1700
More Details
Product Code
04:415177
EAN Code
4711377025492
Manufacturer
MSI
