MSI MEG X870E ACE MAX AM5 ATX Motherboard, DDR5, PCIe 5.0, 5x M.2, 10GbE + 5GbE, Wi-Fi 7, USB4

Brand:
MSI
MSI MEG X870E ACE MAX AM5 ATX DDR5 Wi-Fi 7 Motherboard
MSI MEG X870E ACE MAX AM5 ATX Motherboard, DDR5, PCIe 5.0, 5x M.2, 10GbE + 5GbE, Wi-Fi 7, USB4
€1017.37 inc. VAT
Buy
7E85-001R
€854.93 €949.92
€1,017.37 inc. VAT
Ships from EU stock: 18 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:580257
EAN Code
4711377414968
Manufacturer
MSI
Quick Specs
Socket & chipset
AMD AM5 · X870E
Memory
4x DDR5, up to 256GB, 9000+ MT/s (OC)
Expansion
2x PCIe 5.0 x16 (x16 or x8/x8) · 1x PCIe 5.0 x4
Storage & network
5x M.2 (2 Gen5) · 10GbE + 5GbE · Wi-Fi 7
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

MSI MEG X870E ACE MAX — Flagship AM5 ATX Motherboard with 10GbE and Wi-Fi 7

AMD X870E · AM518+2+1 110A SPS5x M.2 · 2x PCIe 5.010GbE + 5GbE · Wi-Fi 7

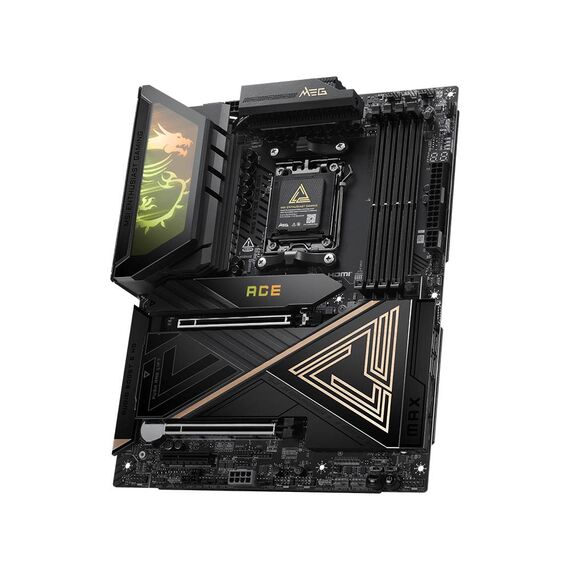

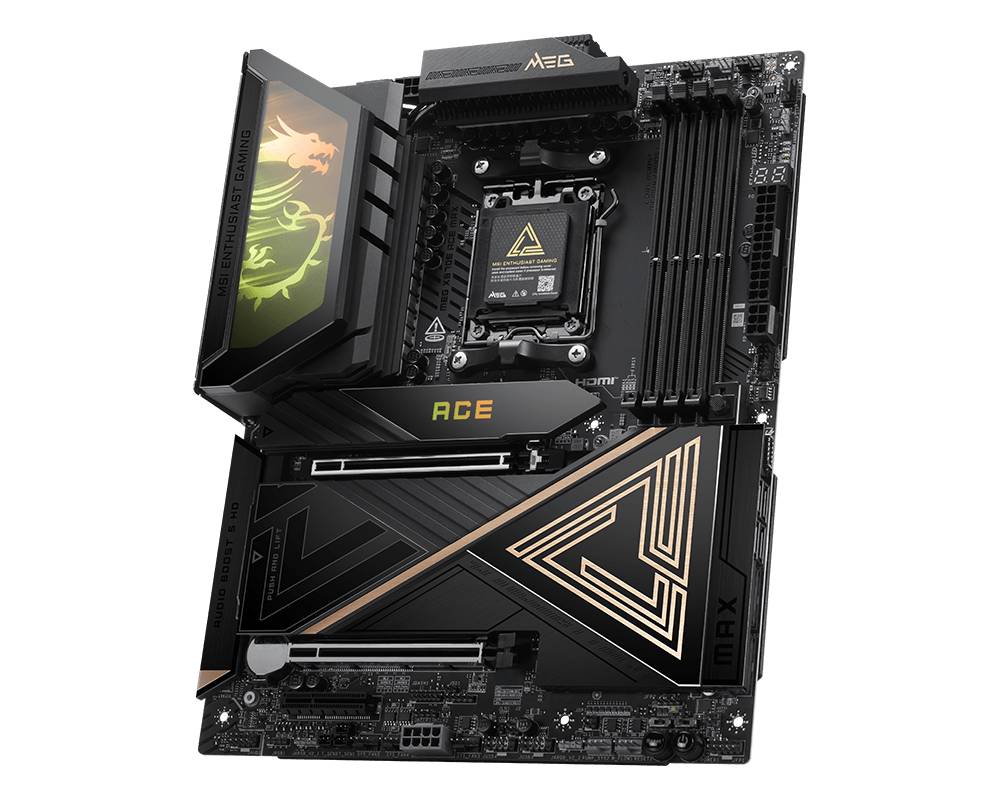

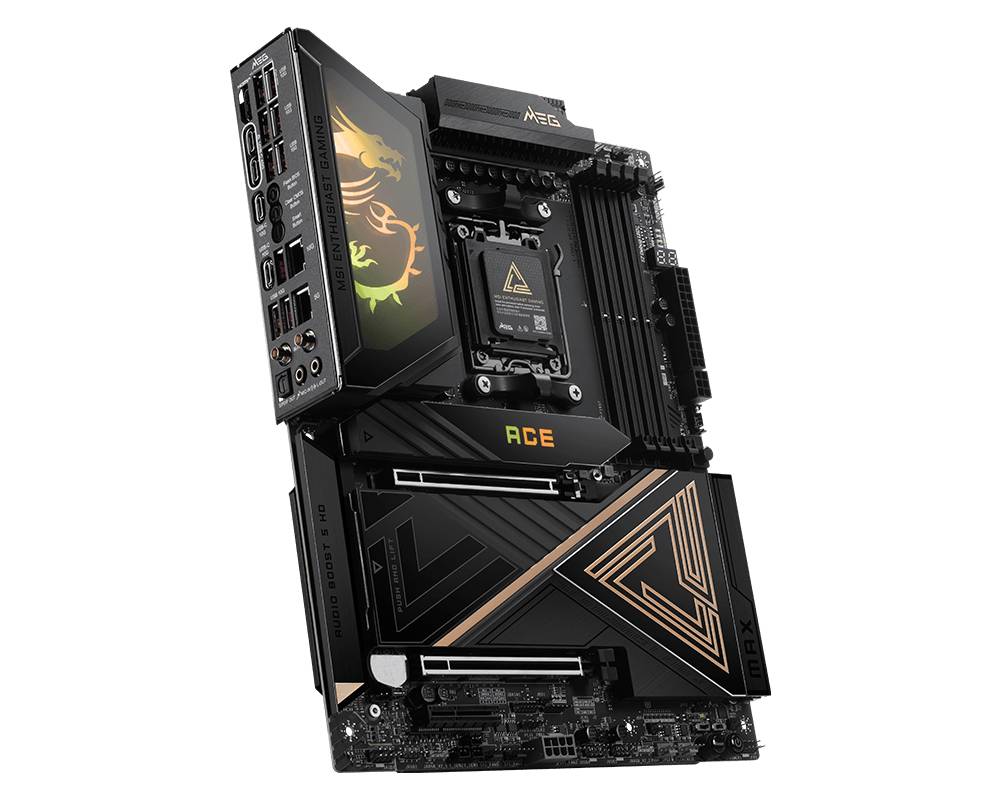

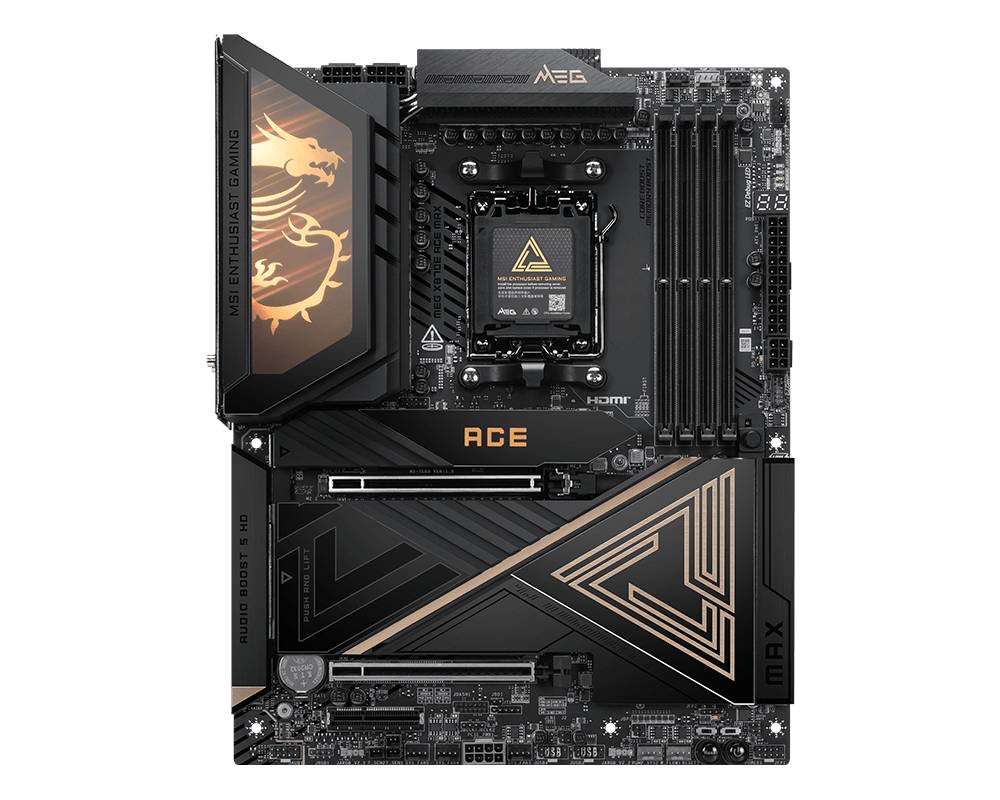

The MSI MEG X870E ACE MAX (part number 7E85-001R) is a flagship ATX motherboard for AMD socket AM5, supporting Ryzen 9000, 8000 and 7000 desktop processors, and built for enthusiasts and creators who want maximum power delivery, storage and networking on one board.

An 18+2+1 Duet Rail power system with 110A smart power stages feeds the CPU through dual 8-pin connectors on an 8-layer server-grade PCB with 2 oz copper. Four DDR5 slots take up to 256GB, with overclocked speeds above 9000 MT/s and support for AMD EXPO and CUDIMM in clock-driver bypass mode.

Storage and I/O are extensive: five M.2 slots (two PCIe 5.0 x4 from the CPU), four SATA 6Gb/s ports, dual USB4 40Gbps Type-C, a front USB 20Gbps header, Marvell AQC113 10GbE plus Realtek 5GbE, and Wi-Fi 7 with Bluetooth 5.4. Audio comes from a Realtek ALC4082 codec with an ESS9219Q DAC/amp.

Compatibility note: Using a device in PCI_E3 halves M.2_1 to x2 (or disables M.2_1 when PCI_E3 is set to x4 in BIOS), and M.2_2 shares bandwidth with the rear USB4 ports. Ryzen 8500/8300 processors disable M.2_2 and reduce slot speeds. Onboard video outputs need a CPU with integrated graphics.

Best For

✓ High-end Ryzen 9 9950X / X3D gaming builds
✓ Content creation and video workstations
✓ Multi-SSD NVMe storage rigs
✓ 10GbE home labs and NAS-connected editing
✓ Enthusiast overclocking
✓ Dual-GPU or AI accelerator builds (x8/x8)

Key Features


Flagship power delivery
18+2+1 Duet Rail power with 110A SPS, dual 8-pin CPU power and a supplemental 8-pin PCIe connector for stable high-core-count and overclocked operation.

Five M.2 slots
Two PCIe 5.0 x4 M.2 slots from the CPU and three PCIe 4.0 x4 from the chipset, plus four SATA ports and NVMe RAID 0/1/5/10.

10GbE, 5GbE and Wi-Fi 7
Marvell AQC113CS 10GbE and Realtek 5GbE with Wi-Fi 7 (320 MHz, up to 5.8 Gbps) and Bluetooth 5.4 cover every networking need.

USB4 and premium audio
Two rear USB4 40Gbps Type-C ports with DisplayPort, a front 20Gbps Type-C header and Realtek ALC4082 + ESS9219Q audio.

Technical Specifications

Identification
Part Number 7E85-001R
Brand MSI
Model MEG X870E ACE MAX
Form Factor ATX, 243.84 x 304.8 mm
Colour Black
Processor & Chipset
Socket AMD AM5
Supported CPUs AMD Ryzen 9000 / 8000 / 7000 Series desktop
Chipset AMD X870E
Power Design 18+2+1 Duet Rail, 110A SPS, dual 8-pin CPU power
Memory
Slots 4x DDR5 UDIMM, dual channel
Maximum Capacity 256GB
Speed DDR5 5600–4800 (JEDEC), up to 9000+ MT/s (OC)
Support AMD EXPO · non-ECC unbuffered · CUDIMM (clock-driver bypass mode)
Expansion & Storage
PCIe x16 PCI_E1 PCIe 5.0 x16 + PCI_E2 PCIe 5.0 x8 (x16/x0 or x8/x8, CPU)
PCIe x4 PCI_E3 PCIe 5.0 x4 (CPU, shared with M.2_1)
M.2 5x M.2 — M.2_1/M.2_2 PCIe 5.0 x4 (CPU) · M.2_3/4/5 PCIe 4.0 x4 (chipset)
SATA 4x SATA 6Gb/s
RAID SATA RAID 0/1/10 · NVMe RAID 0/1/5/10
Connectivity
LAN Marvell AQC113CS 10Gbps + Realtek 8126 5Gbps
Wireless Wi-Fi 7 (2.4/5/6 GHz, 320 MHz, up to 5.8 Gbps) + Bluetooth 5.4

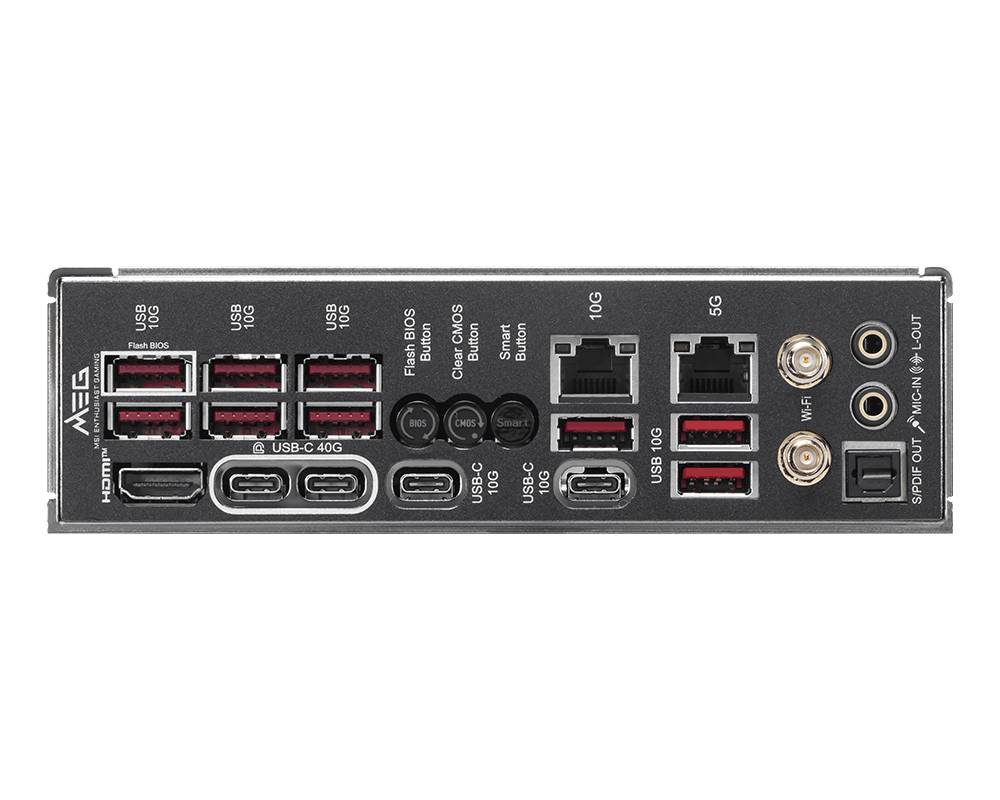

Rear USB 2x USB4 40Gbps Type-C · 2x USB 10Gbps Type-C · 9x USB 10Gbps Type-A
Front USB Headers 1x USB 20Gbps Type-C · 4x USB 5Gbps · 4x USB 2.0
Video Out 1x HDMI 2.1 (8K60) · DisplayPort 1.4 via USB4 Type-C
Audio Realtek ALC4082 + ESS9219Q DAC/HPA, 7.1-channel, optical S/PDIF
Features
BIOS & Debug Flash BIOS button · Clear CMOS button · EZ Digi-Debug LED · EZ Debug LEDs
Fan & RGB 1x CPU fan · 2x pump/system · 5x system fan · 3x ARGB Gen2 · 1x RGB
Other Headers TPM 2.0 · water-flow · 2x thermal sensor · front Type-C PD power
Operating System Windows 11 64-bit

Frequently Asked Questions

Which processors does the MSI MEG X870E ACE MAX support?
AMD Ryzen 9000, 8000 and 7000 Series desktop CPUs for socket AM5. Ryzen 9000 and 7000 unlock PCIe 5.0 on the graphics slots and both Gen5 M.2 slots; Ryzen 8000 APUs run at PCIe 4.0 with fewer lanes.
Can I run two graphics cards or accelerators?
Yes. PCI_E1 and PCI_E2 split the CPU lanes as PCIe 5.0 x8/x8 when both are populated with a Ryzen 9000 or 7000 processor.
Is the MEG X870E ACE MAX a good choice for 10GbE networking?
Yes. It includes an onboard Marvell AQC113CS 10GbE controller plus a Realtek 5GbE port, so you can connect to a 10GbE NAS or switch without an add-in card.
What is the difference between the MEG X870E ACE MAX and the MPG X870E CARBON MAX WIFI?
Both share 18+2+1 power, four DDR5 slots and dual USB4. The ACE MAX adds 110A power stages, a fifth M.2 slot, 10GbE instead of 2.5GbE, ESS DAC audio and a digital debug display.

Singular Expert Insight

The MEG X870E ACE MAX is for builders who want everything onboard: 10GbE, five M.2 slots and flagship power for a Ryzen 9 or X3D chip without add-in cards. For most high-end gaming builds, the MPG X870E CARBON MAX WIFI delivers the same CPU and memory support for less, while this board earns its place in creator and home-lab systems. Browse more options in our DDR5 memory range to complete the build.
✓ Buy it if you are building a flagship Ryzen workstation or gaming PC that needs 10GbE, five M.2 slots and top-tier power delivery.
✕ Skip it if you only need a single SSD and 2.5GbE — a B850 or X870 board will cost far less.
→ Also consider the MSI MPG X870E CARBON MAX WIFI for a lower-cost X870E board with 5GbE and four M.2 slots.
