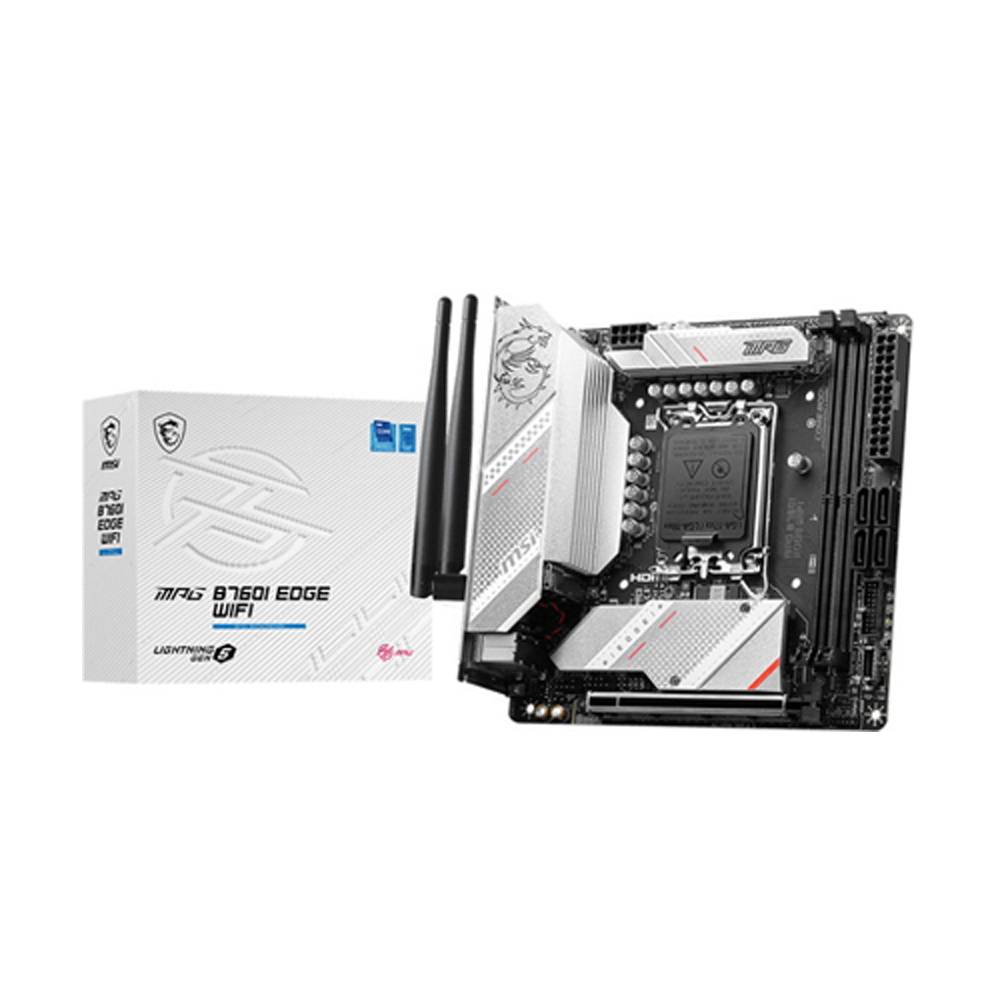

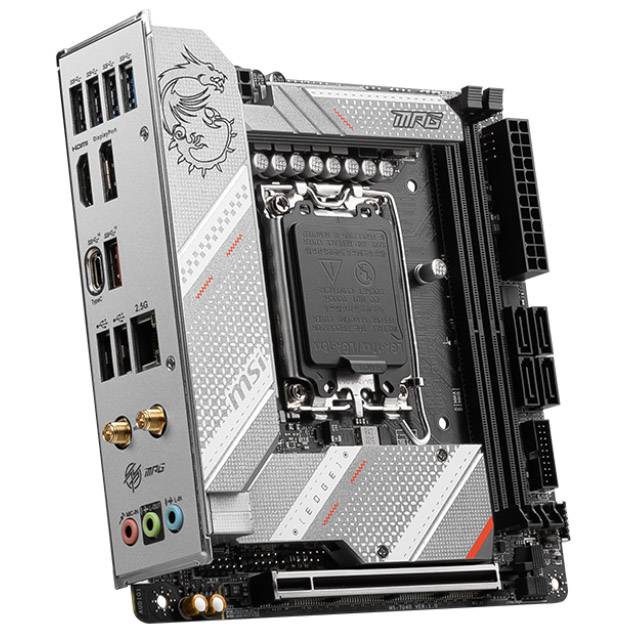

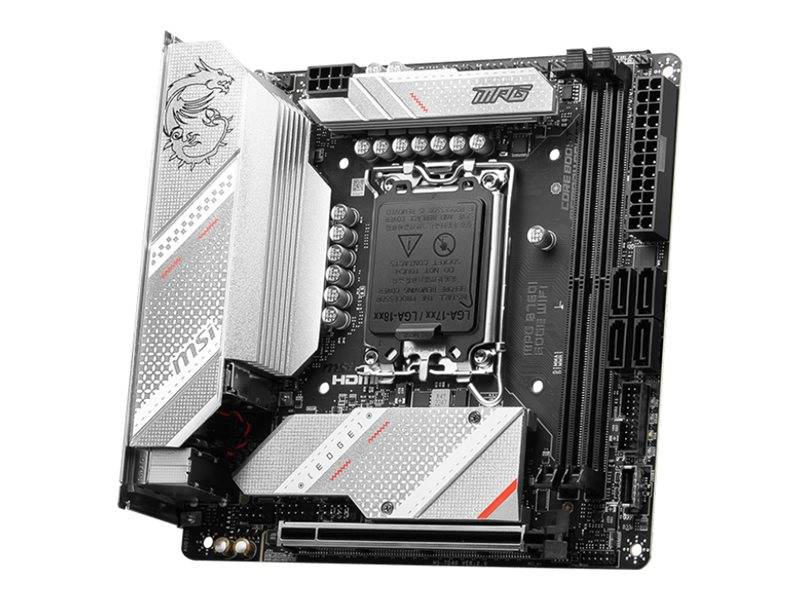

MSI MPG B760I EDGE WIFI / Motherboard / mini ITX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7D40-005R
Please sign in so that we can notify you about a reply
Product Features
- Duo M.2 connectors
Onboard Duo M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr. - Direct 8+1+1 phases with 90 A SPS
Extreme direct power solution with 8+1+1 phases and 90 A Smart Power Stage unleash the maximum CPU performance. - DDR5 memory
A huge step of DDR performance enhancement with the DDR5 memory and MSI memory boost technology. - Core boost
Premium layout and optimized power design ensure better performance. - Memory boost
Advanced technology to deliver pure data signals for the better performance, stability and compatibility. - Lightning gen 5
The PCIe 5.0 solution with 128 GB/s bandwidth for maximum transfer speed. - Wi-Fi 6E
The higher wireless solution supports 6 GHz spectrum, MU-MIMO and BSS color technology, delivering speeds 2400 Mbps. - 2.5G network solution
Featuring premium 2.5G LAN to deliver better network experience. - Audio boost
Reward your ears with studio grade sound quality for the more immersive audio experience.
Special Features
- Supports DDR5 Memory
- Lightning fast game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced power design: Direct 8+1+1 phases power, core boost, memory boost
- Premium thermal solution: Enlarged heatsink, MOSFET thermal pads rated for 7 W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E solution: Upgraded network solution for professional and multimedia use, delivering a secure, stable and fast network connection
- Audio boost: Reward your ears with studio grade sound quality for the more immersive gaming experience
- High quality PCB: 8-layer PCB made by server grade level material
- Pre-installed I/O shield: Better EMI protection and more convenience for installation
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B760 / Nuvoton NCT6687D-M |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |

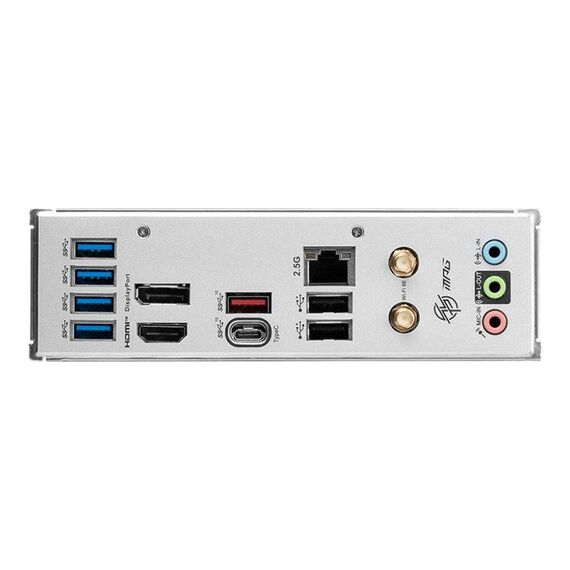

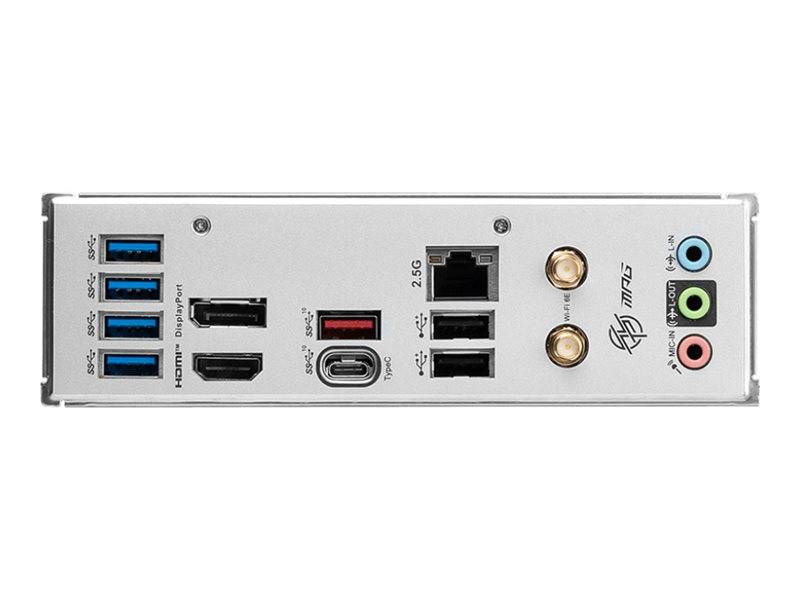

| Interfaces | 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x headphones output - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x DisplayPort |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support |
| Hardware Features | MSI Audio Boost, 8 Layer PCB, Debug LED, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Firmware Trusted Platform Module (TPM) 2.0, Windows 11 compatible, 8+1+1 Phase Power Design, MSI Memory Boost, 90A Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rainbow RGB LED extension cable, Wi-Fi aerial, cable stickers, 2 x M.2 screw package |
| Cables Included | 1 x Serial ATA cable |
| Compliant Standards | BSMI, WEEE, FIPS, FISMA, FCC Part 15 Class B, DisplayPort 1.4 |
| Width | 17 cm |
| Depth | 17 cm |
Features - MSI - 7D40-005R
CPU Socket
- Socket 1700
More Details
Product Code
03:217000
EAN Code
4711377069632
Manufacturer
MSI
