MSI MPG B850 EDGE TI WIFI AMD B850 ATX Motherboard AM5 DDR5 Dual PCIe 5.0 M.2 Wi-Fi 7 5GbE White
Brand:
MSI
MSI MPG B850 EDGE TI WIFI AMD B850 ATX Motherboard AM5 DDR5 Dual PCIe 5.0 M.2 Wi-Fi 7 5GbE White
€378.42 inc. VAT
7E62-001R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
MSI MPG B850 EDGE TI WIFI — White AMD B850 ATX with Four M.2 Slots and Two of Them PCIe 5.0
AMD B850 / Socket AM54 x M.2, two at PCIe 5.0White MPG designWi-Fi 7 + Realtek 5Gb LAN

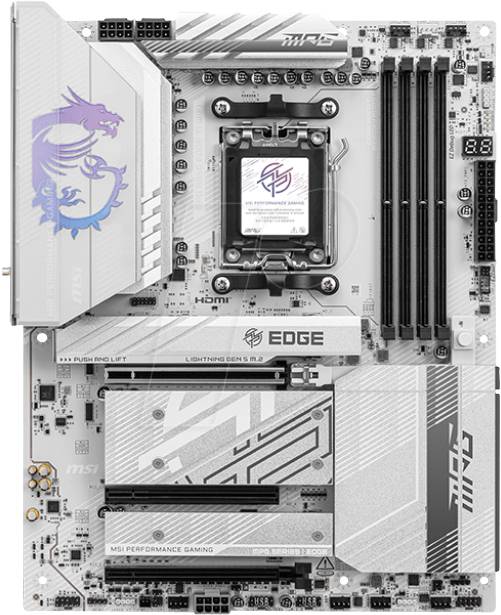

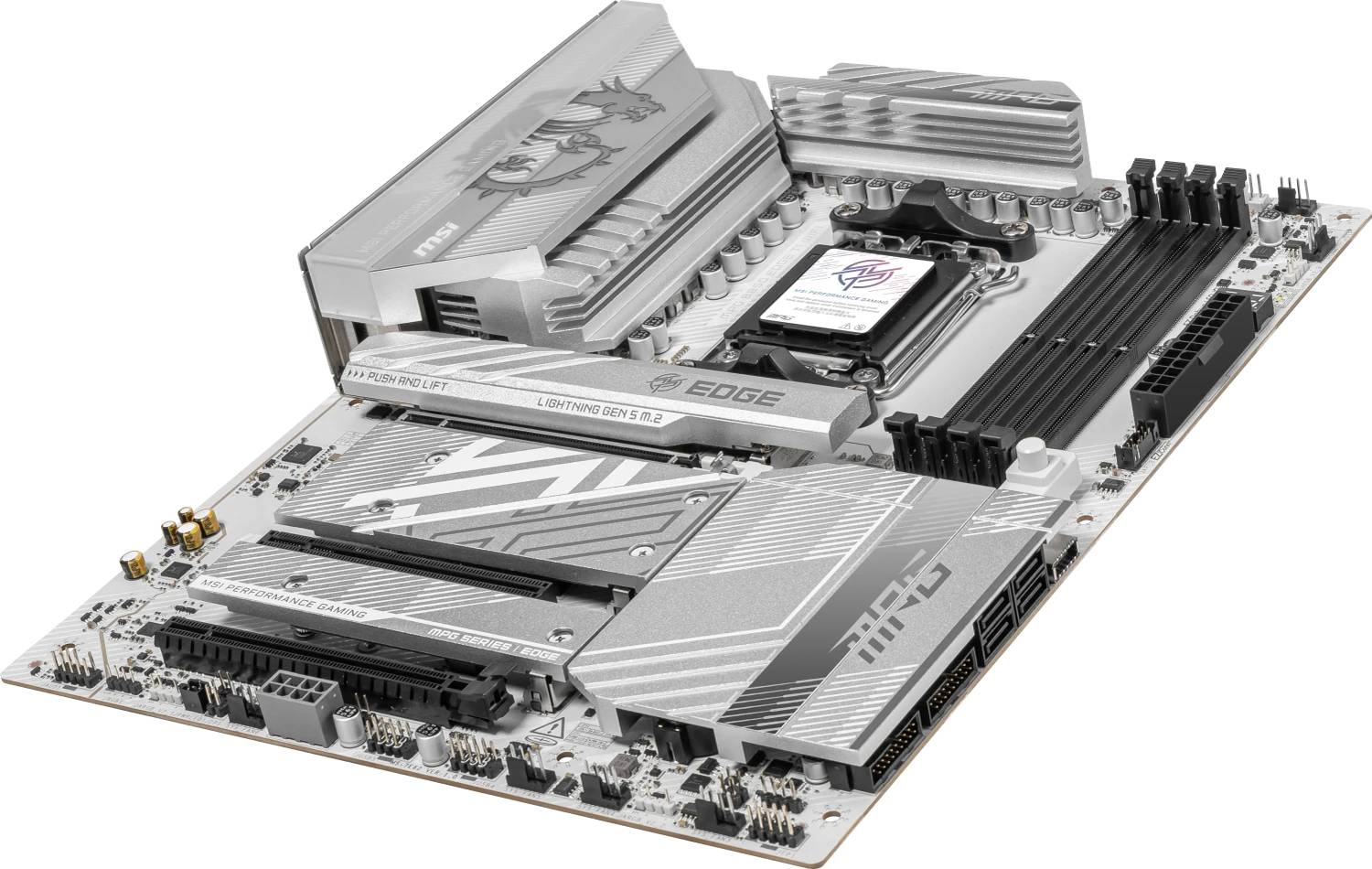

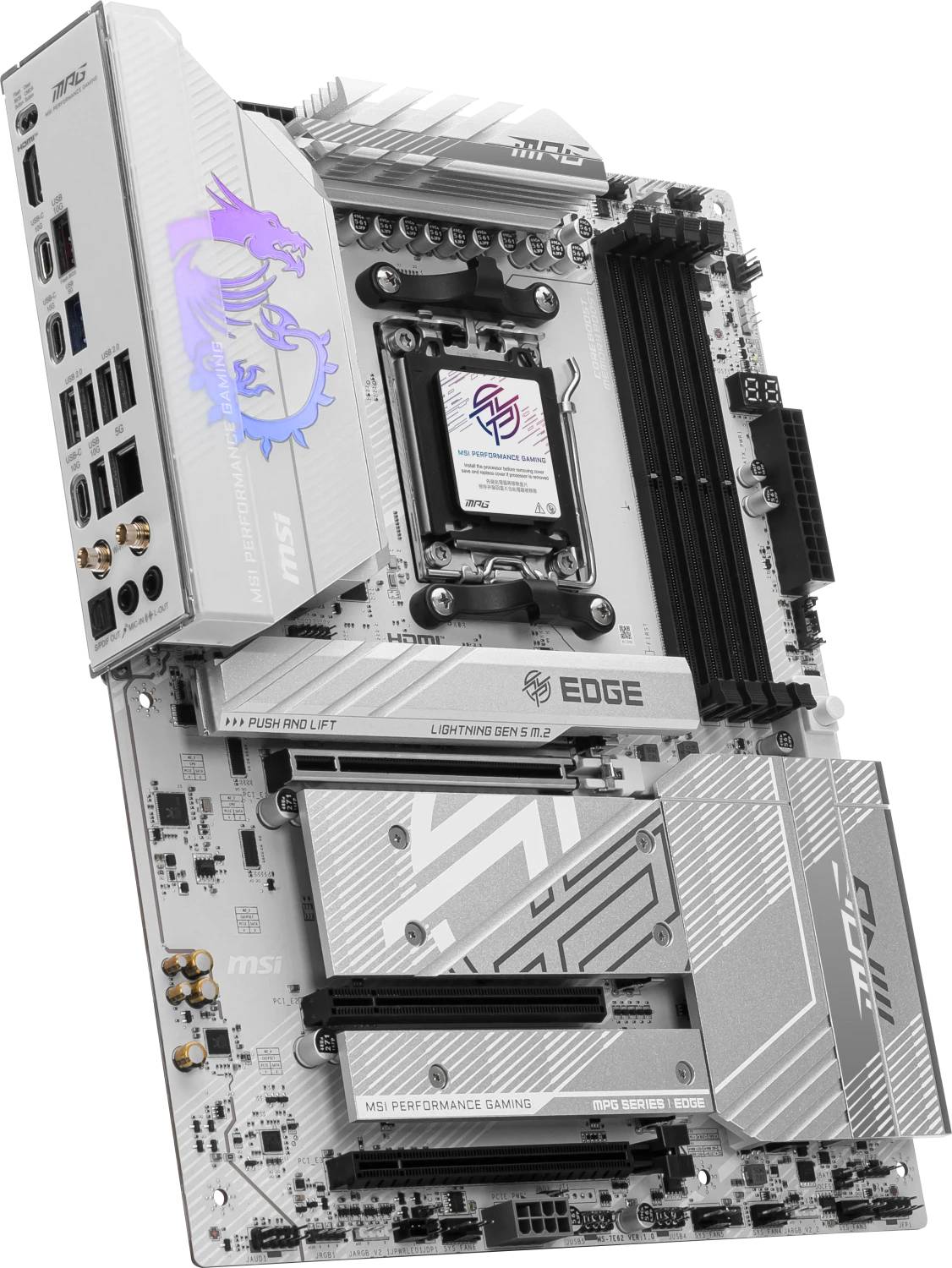

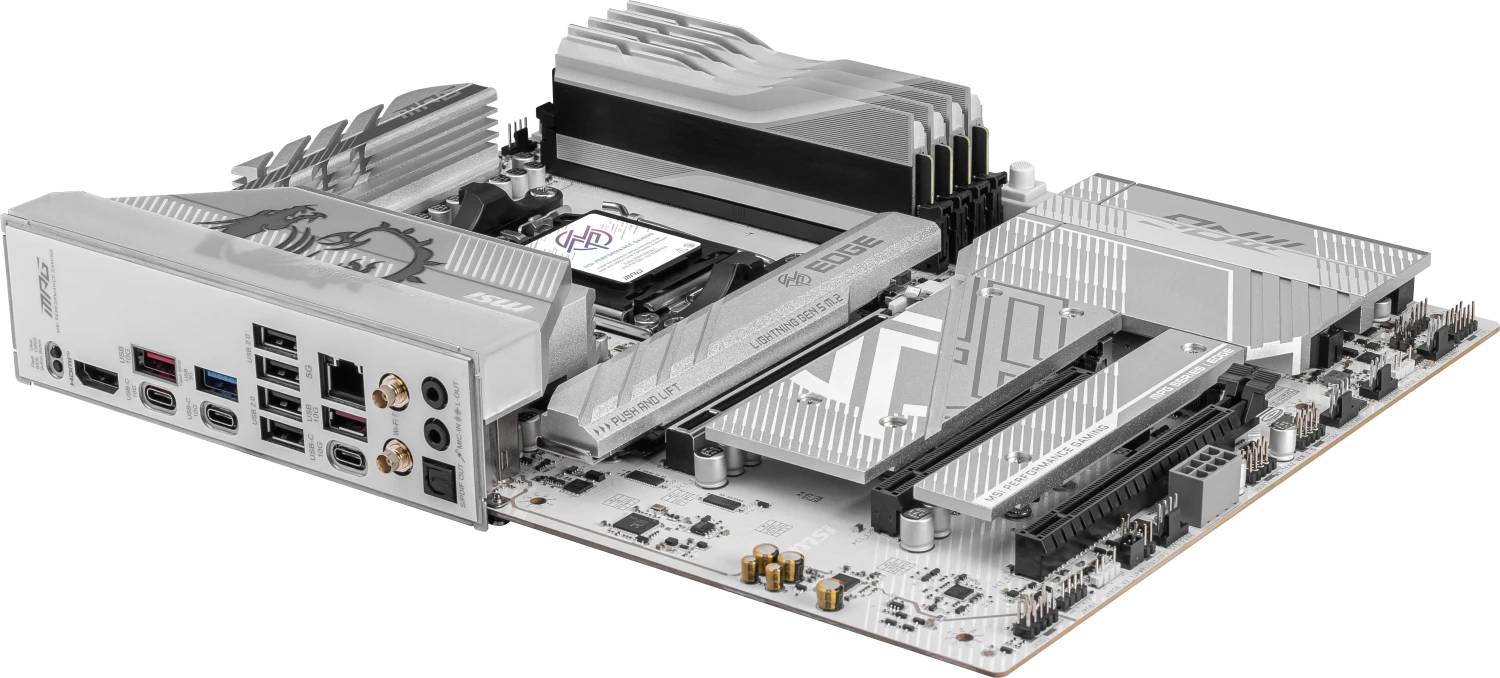

The MSI MPG B850 EDGE TI WIFI is a white full-size ATX motherboard on the AMD B850 chipset for Socket AM5, and it is the rare mainstream board that gives you two PCIe 5.0 M.2 slots rather than one. It carries the part number 7E62-001R (EAN 4711377290616) and supports AMD Ryzen 9000, 8000 and 7000 Series processors, with four DDR5 UDIMM slots taking up to 256 GB and rated to an unusually high DDR5-8400 when overclocked with AMD EXPO. Four M.2 slots and four SATA 6 Gb/s ports cover storage, a Realtek ALC4080 codec handles audio, and networking is a Realtek 8126 5Gb Ethernet controller alongside Wi-Fi 7 at up to 5.8 Gbps with Bluetooth 5.4. Three rear USB 10Gbps Type-C ports round out the connectivity. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
The four M.2 slots are not identical: M.2_1 (PCIe 5.0 x4, 22110 / 2280) and M.2_2 (PCIe 5.0 x4, 2280 / 2260) come from the CPU, M.2_3 is only PCIe 4.0 x2 and M.2_4 is PCIe 4.0 x4, both from the chipset. Put your two fastest drives in M.2_1 and M.2_2. Expansion beyond the graphics slot is one PCIe 4.0 x4 and one PCIe 3.0 x1. Display output is a single HDMI 2.1 port rated to 8K 60 Hz — there is no DisplayPort connector — and it requires a CPU with integrated graphics. Socket AM5 means DDR5 only; DDR4 and AM4 processors do not fit. This is a white board, so plan the rest of the build accordingly. Full ATX at 304.8 x 243.84 mm. The 5Gb LAN port only exceeds gigabit against a 5GBASE-T switch or NAS.
Best For
✓ White-themed full ATX Ryzen 9000 builds
✓ Systems running two PCIe 5.0 NVMe drives at once
✓ Content creators with four drives and a 5Gb NAS
✓ Builds where onboard headphone audio matters
✓ Homes with a Wi-Fi 7 router on the 6 GHz band
✓ Desks needing several rear USB Type-C ports
Key Features
Two PCIe 5.0 M.2 slots, four in total
M.2_1 and M.2_2 both run PCIe 5.0 x4 straight from the CPU, with M.2_1 accepting longer 22110 drives. M.2_4 adds a PCIe 4.0 x4 slot and M.2_3 a PCIe 4.0 x2 slot from the chipset. Two Gen 5 slots on a B850 board is genuinely unusual and matters if you run a fast working drive alongside a fast boot drive.
Realtek ALC4080 audio
MSI fits the USB-attached ALC4080 codec rather than the ALC897 found on cheaper boards, with a 7.1-channel high-performance configuration. If you plug headphones straight into the rear panel, this is the specification that changes what you hear.
Wi-Fi 7 to 5.8 Gbps and 5Gb wired LAN
The Wi-Fi 7 module reaches up to 5.8 Gbps across 2.4, 5 and 6 GHz with Bluetooth 5.4, and wired networking is a Realtek 8126 5Gb Ethernet controller. Both are well above the 2.5GbE and Wi-Fi 6E that most B850 boards settle for.
White finish with generous USB

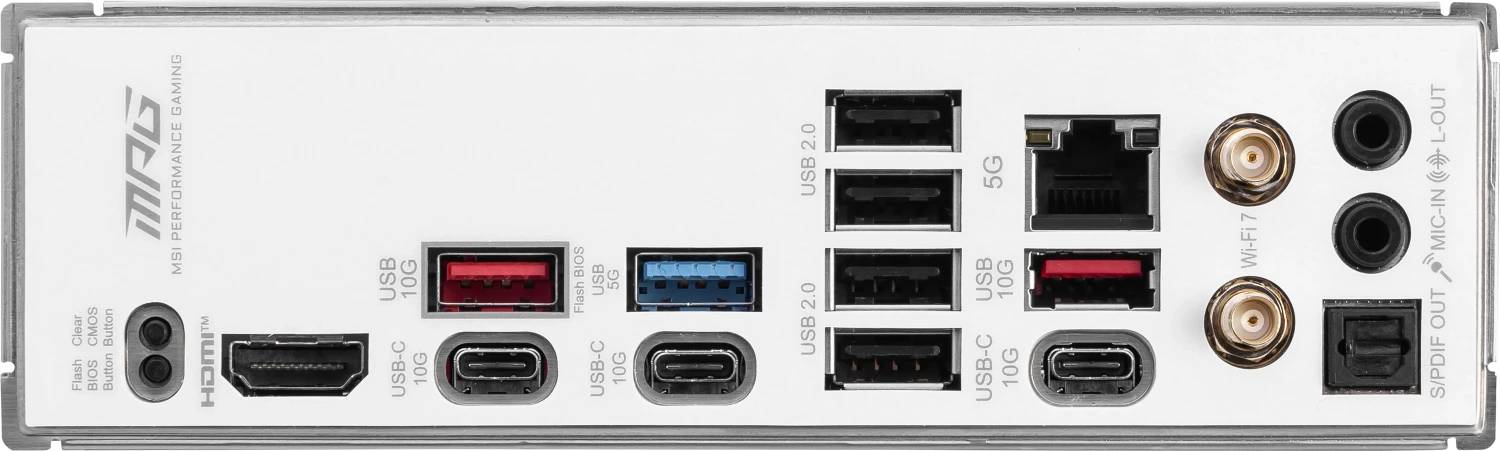

The MPG EDGE TI design is white throughout, and the rear panel carries three USB 10Gbps Type-C ports, two 10 Gbps Type-A, one 5 Gbps Type-A and four USB 2.0, with a front 20 Gbps Type-C header plus four 5 Gbps Type-A and four USB 2.0 headers.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Two PCIe 5.0 M.2 slots is the specification that makes this board worth a second look. On B850 you normally get one, and the second Gen 5 slot here comes off the CPU rather than the chipset, so it is a real second full-speed slot rather than a shared one. Add the ALC4080 codec, Wi-Fi 7 at up to 5.8 Gbps and a 5Gb wired port and the EDGE TI is close to X870E-level connectivity without USB4. The cost, besides money, is the missing DisplayPort and the half-speed third M.2. If you are building white, this and the ASUS TUF B850M-PLUS WIFI7 W are the two obvious candidates, and this one is the larger, better-connected of the pair. Pair it with a matched two-module DDR5 memory kit to reach the DDR5-8400 rating, and two Gen 5 drives from our internal SSDs range in M.2_1 and M.2_2.
Buyer's Guide
Buy it if
You are building a white full ATX Ryzen system and want two PCIe 5.0 M.2 slots, four M.2 slots in total, ALC4080 audio, Wi-Fi 7 and 5Gb wired networking.
Skip it if
You need USB4 or Thunderbolt, a DisplayPort output on the rear panel, or a black board to match the rest of your build.
Also consider
The MSI MAG B850 TOMAHAWK WIFI for the same audio and networking in black at lower cost, or the MSI PRO X870E-S EVO WIFI if USB4 is a requirement.
Features - MSI - 7E62-001R
CPU Socket
- Socket AM5
Colour
white
More Details
Product Code
04:518441
EAN Code
4711377290616
Manufacturer
MSI
