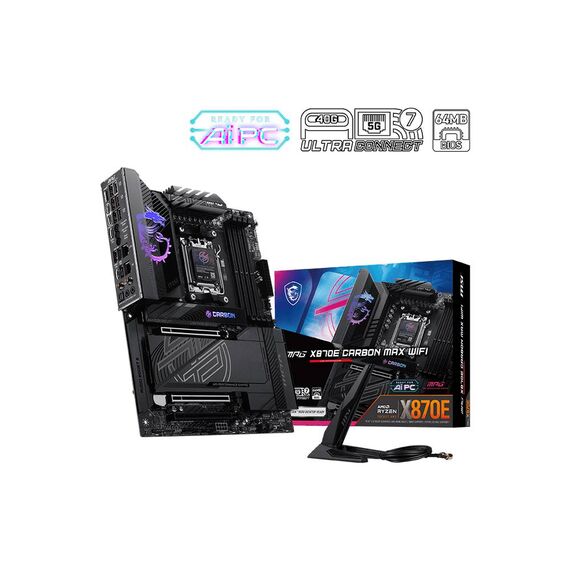

MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, PCIe 5.0, 4x M.2, 5GbE, Wi-Fi 7, USB4

Brand:
MSI
MSI MPG X870E CARBON MAX WIFI AM5 ATX DDR5 Motherboard
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, PCIe 5.0, 4x M.2, 5GbE, Wi-Fi 7, USB4
€794.68 inc. VAT
Buy
7E49-022R
€667.80 €742.00
€794.68 inc. VAT
Ships from EU stock: 49 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:603285
EAN Code
4711377415156
Manufacturer
MSI
Quick Specs
Socket & chipset
AMD AM5 · X870E
Memory
4x DDR5, up to 256GB, 9000+ MT/s (OC)
Expansion
2x PCIe 5.0 x16 (x16 or x8/x8) · 1x PCIe 4.0 x4
Storage & network
4x M.2 (2 Gen5) · 5GbE + 2.5GbE · Wi-Fi 7
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

MSI MPG X870E CARBON MAX WIFI — High-End AM5 ATX Motherboard with Wi-Fi 7 and USB4

AMD X870E · AM518+2+1 Duet Rail4x M.2 · 2x PCIe 5.05GbE + 2.5GbE · Wi-Fi 7

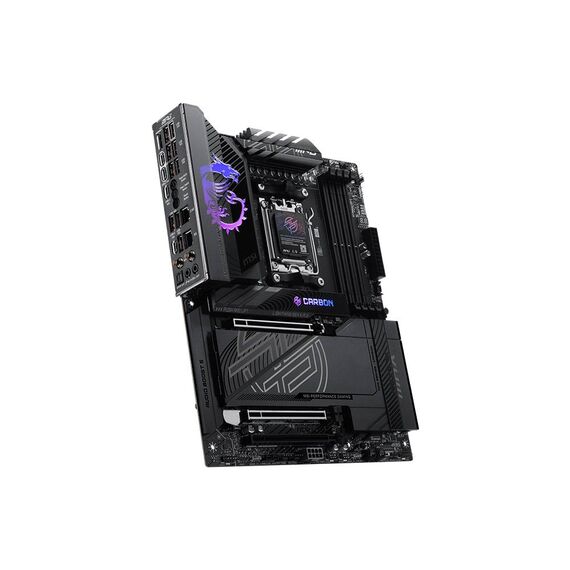

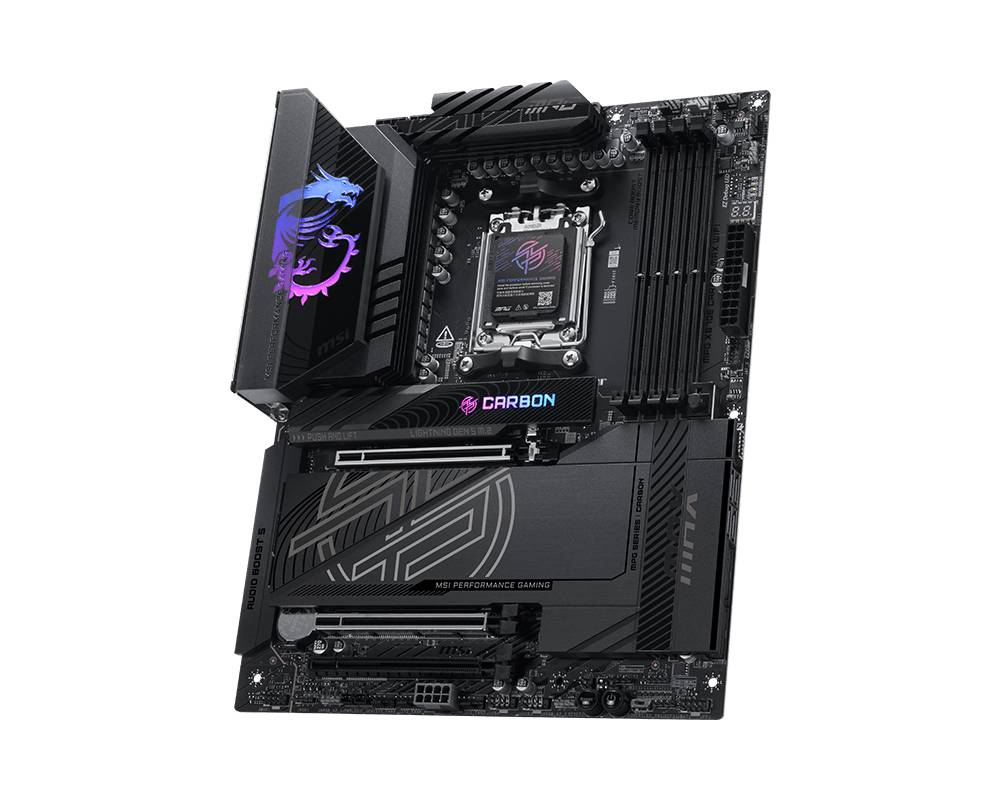

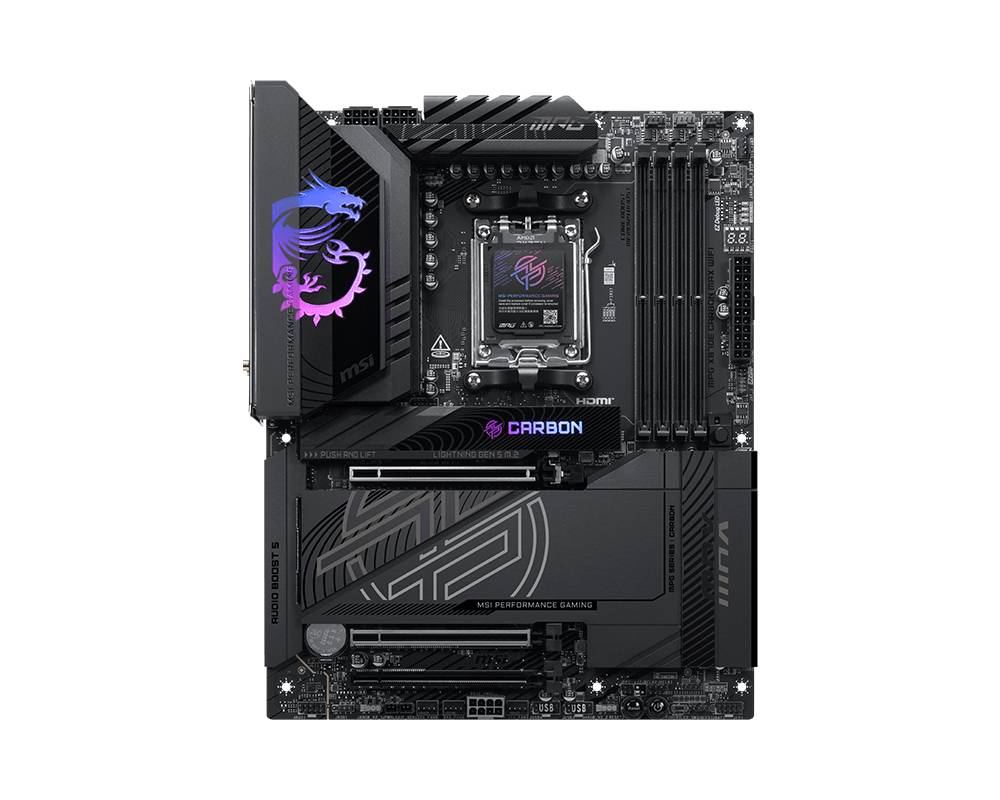

The MSI MPG X870E CARBON MAX WIFI (part number 7E49-022R) is a high-end ATX motherboard for AMD socket AM5, supporting Ryzen 9000, 8000 and 7000 desktop processors, aimed at gamers and creators who want X870E features without stepping up to a flagship board.

Its 18+2+1 Duet Rail power system, dual 8-pin CPU connectors and a server-grade PCB with 2 oz copper support high-core-count and X3D processors. Four DDR5 slots take up to 256GB with overclocked speeds above 9000 MT/s, AMD EXPO and CUDIMM support in clock-driver bypass mode.

For storage there are four M.2 slots, two of them PCIe 5.0 x4 from the CPU, plus four SATA ports. Networking combines Realtek 5GbE and 2.5GbE with Wi-Fi 7 and Bluetooth 5.4, and the rear panel carries two USB4 40Gbps Type-C ports, HDMI and a Realtek ALC4080 audio codec with optical S/PDIF.

Compatibility note: The M.2_2 slot shares bandwidth with the rear USB4 ports and is unavailable with Ryzen 8000 Series processors. PCIe 5.0 on the graphics and M.2 slots requires a Ryzen 9000 or 7000 CPU. Onboard video outputs need a processor with integrated graphics.

Best For

✓ High-end Ryzen gaming PCs
✓ Ryzen 7 / 9 X3D builds
✓ Streaming and content creation
✓ Multi-SSD PCIe 5.0 storage
✓ Wi-Fi 7 home networks
✓ Two-GPU or accelerator setups (x8/x8)

Key Features


18+2+1 Duet Rail power
A flagship-class VRM with dual 8-pin CPU power, enlarged heatsinks and 7W/mK thermal pads keeps Ryzen 9 processors stable under load.

PCIe 5.0 graphics and storage
PCIe 5.0 x16 (or x8/x8) for graphics plus two PCIe 5.0 x4 M.2 slots for the fastest NVMe SSDs.

Dual LAN and Wi-Fi 7
Realtek 5GbE and 2.5GbE wired ports with Wi-Fi 7 (320 MHz, up to 5.8 Gbps) and Bluetooth 5.4.

USB4 and front 20Gbps
Two rear USB4 40Gbps Type-C ports with DisplayPort, a front USB 20Gbps Type-C header and nine rear USB 10Gbps Type-A ports.

Technical Specifications

Identification
Part Number 7E49-022R
Brand MSI
Model MPG X870E CARBON MAX WIFI
Form Factor ATX, 243.84 x 304.8 mm
Colour Black
Processor & Chipset
Socket AMD AM5
Supported CPUs AMD Ryzen 9000 / 8000 / 7000 Series desktop
Chipset AMD X870E
Power Design 18+2+1 Duet Rail, dual 8-pin CPU power
Memory
Slots 4x DDR5 UDIMM, dual channel
Maximum Capacity 256GB
Speed DDR5 5600–4800 (JEDEC), up to 9000+ MT/s (OC)
Support AMD EXPO · non-ECC unbuffered · CUDIMM (clock-driver bypass mode)
Expansion & Storage
PCIe x16 PCI_E1 PCIe 5.0 x16 + PCI_E2 PCIe 5.0 x8 (x16/x0 or x8/x8, CPU)
PCIe x4 PCI_E3 PCIe 4.0 x4
M.2 4x M.2 — M.2_1/M.2_2 PCIe 5.0 x4 (CPU) · M.2_3/M.2_4 PCIe 4.0 x4 (chipset)
SATA 4x SATA 6Gb/s
RAID SATA RAID 0/1/10 · NVMe RAID 0/1/5/10
Connectivity
LAN Realtek 8126 5Gbps + Realtek 8125 2.5Gbps
Wireless Wi-Fi 7 (2.4/5/6 GHz, 320 MHz, up to 5.8 Gbps) + Bluetooth 5.4

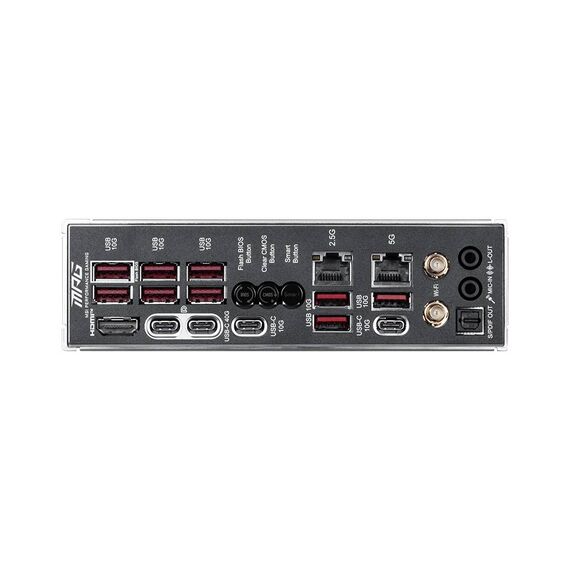

Rear USB 2x USB4 40Gbps Type-C · 2x USB 10Gbps Type-C · 9x USB 10Gbps Type-A
Front USB Headers 1x USB 20Gbps Type-C · 4x USB 5Gbps · 4x USB 2.0
Video Out 1x HDMI 2.1 (8K60) · DisplayPort 1.4 via USB4 Type-C
Audio Realtek ALC4080, 7.1-channel, optical S/PDIF
Features
BIOS & Debug Flash BIOS button · Clear CMOS button · EZ Digit Debug LED · EZ Debug LEDs
Fan & RGB 1x CPU fan · 1x pump/system · 5x system fan · 3x ARGB Gen2 · 1x RGB
Other Headers TPM 2.0 · thermal sensor · chassis intrusion
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the MSI MPG X870E CARBON MAX WIFI?
AMD Ryzen 9000, 8000 and 7000 Series desktop processors for socket AM5. Use a Ryzen 9000 or 7000 CPU to enable PCIe 5.0 on the graphics slot and both Gen5 M.2 slots.
What is the difference between the CARBON MAX WIFI and the MEG X870E ACE MAX?
They share the 18+2+1 power layout, four DDR5 slots and USB4. The MEG ACE MAX adds 110A power stages, a fifth M.2 slot, 10GbE networking and ESS DAC audio; the CARBON MAX uses 5GbE + 2.5GbE and four M.2 slots.
Can I use two graphics cards?
PCI_E1 and PCI_E2 run at PCIe 5.0 x8/x8 when both are used with a Ryzen 9000 or 7000 processor, which suits a GPU plus an accelerator or capture card.
Does the board include Wi-Fi?
Yes. A Wi-Fi 7 module with Bluetooth 5.4 is pre-installed in the M.2 Key-E slot, with antenna connectors on the rear panel.

Singular Expert Insight

For most premium Ryzen builds, the MPG X870E CARBON MAX WIFI is the sweet spot: the same CPU, memory and PCIe 5.0 support as the flagship MEG ACE MAX, with networking and storage that cover almost every gamer and creator. Only choose the ACE MAX if you need 10GbE or a fifth M.2 slot. Pair it with fast DDR5 from our memory range.
✓ Buy it if you want a high-end AM5 board with PCIe 5.0, USB4, 5GbE and Wi-Fi 7 for a Ryzen 7 or 9 build.
✕ Skip it if you need onboard 10GbE, or you are building a budget Ryzen 5 system where B850 is enough.
→ Also consider the MSI MEG X870E ACE MAX for 10GbE and five M.2 slots.
