MSI MPG Z890 CARBON WIFI Black ATX DDR5 Motherboard
Brand:
MSI
7E17-001R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

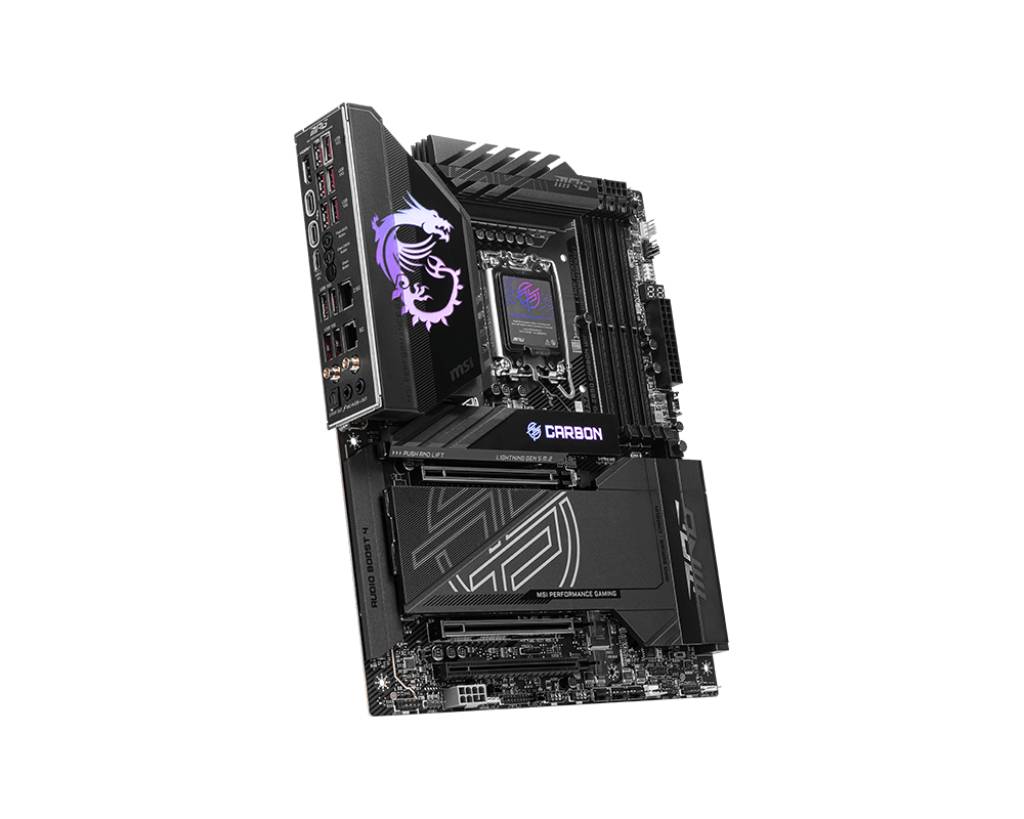

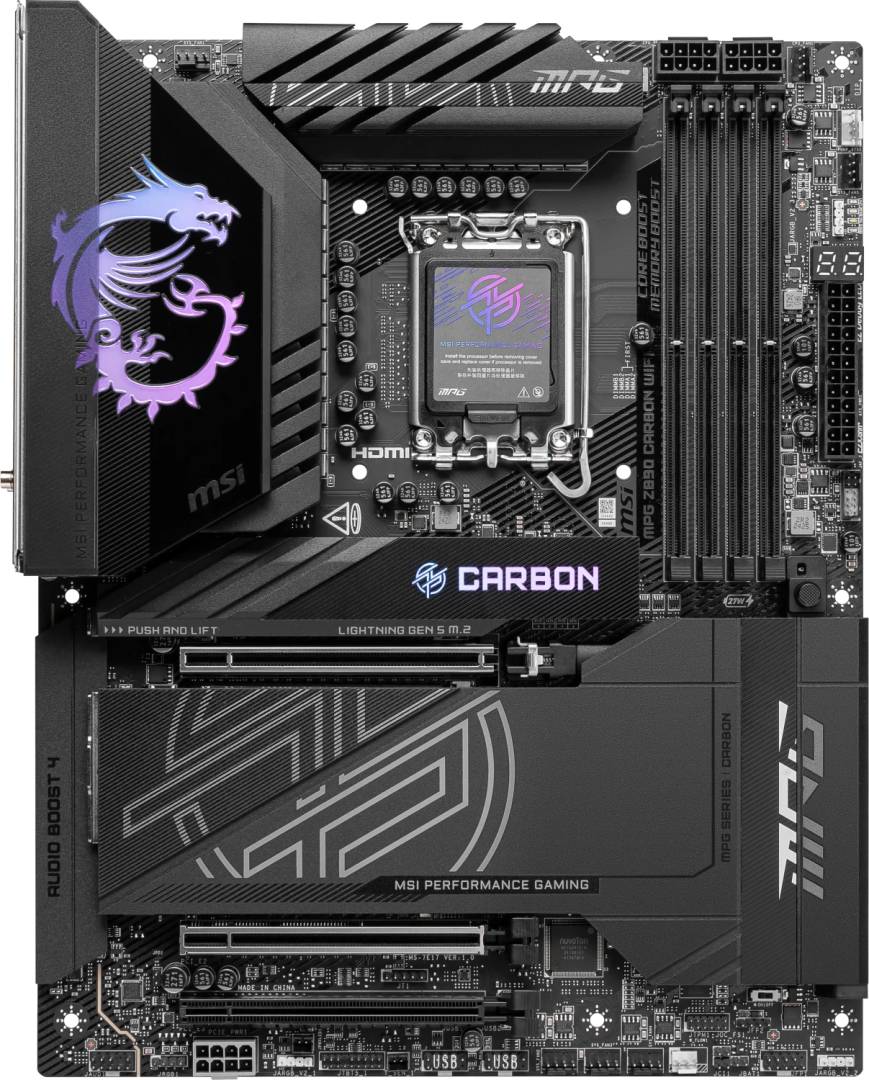

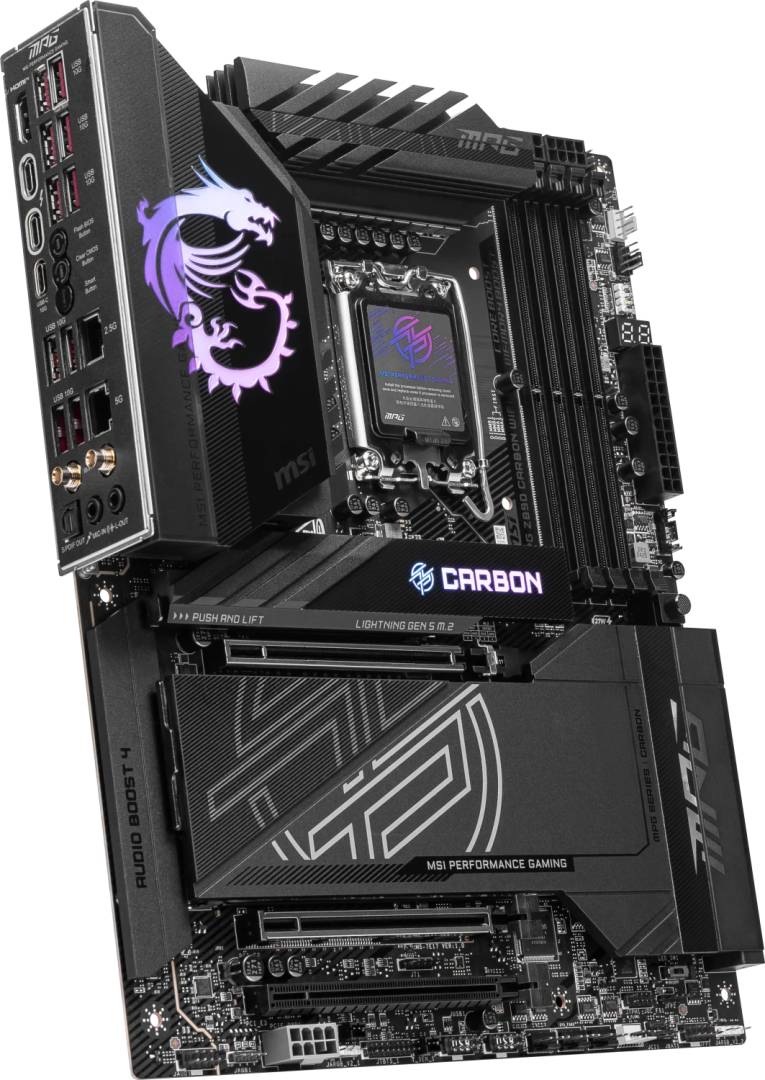

MSI MPG Z890 CARBON WIFI
Black ATXCore Ultra Series 2DDR5Dual Thunderbolt 4
An ATX platform for Intel Core Ultra desktops with extensive storage and external connectivity. Dual Ethernet, five M.2 slots and two Thunderbolt ports provide room for a demanding build.
Compatibility — check before buying:
Requires an LGA1851 Core Ultra Series 2 processor, DDR5 memory and an ATX-compatible case. Display outputs require processor graphics. MSI specifies Windows 11 64-bit, with version 24H2 for Wi-Fi 7 and Bluetooth 5.4. Check CPU and memory support before purchase.
Best For
✓ Desktop builds with several drives
✓ Systems needing two Ethernet connections
✓ Thunderbolt peripherals
Key Features
Five onboard M.2 slots
One PCIe 5.0 x4 slot and four PCIe 4.0 x4 slots accommodate SSDs. Four SATA connectors support additional drives.
Dual wired networking
Intel Killer E5000B 5GbE and Intel I226V 2.5GbE provide separate Ethernet ports. Killer BE1750x Wi-Fi 7 and Bluetooth 5.4 add wireless connectivity.

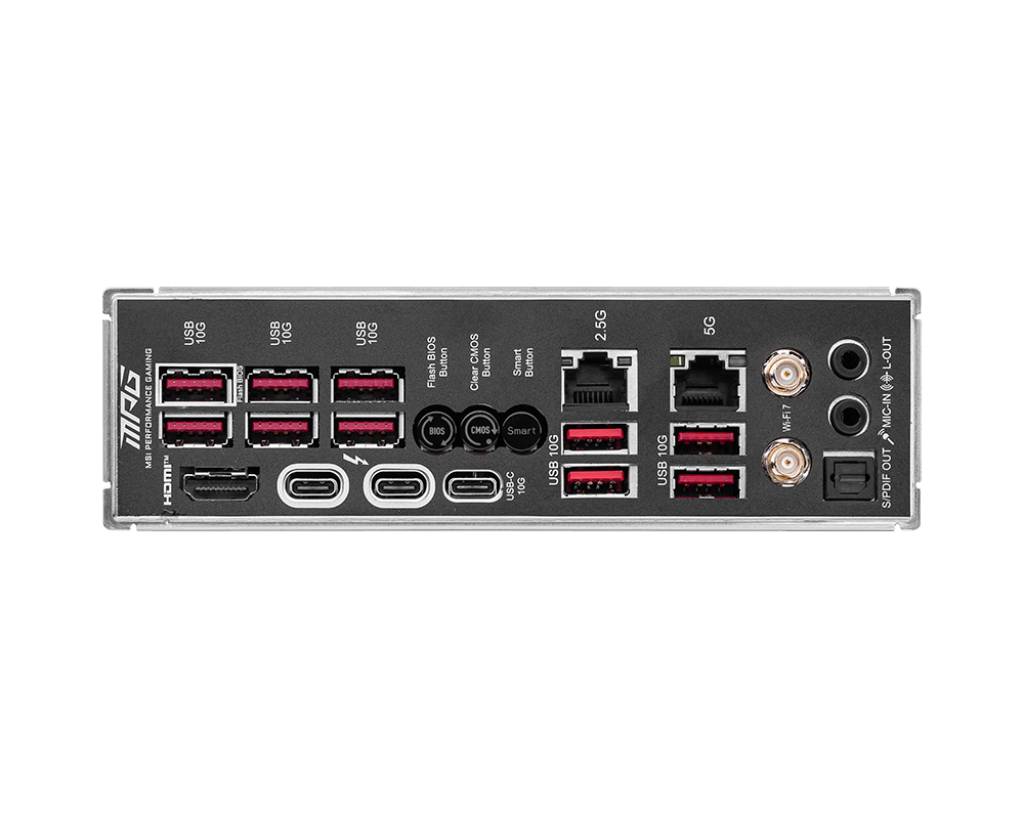

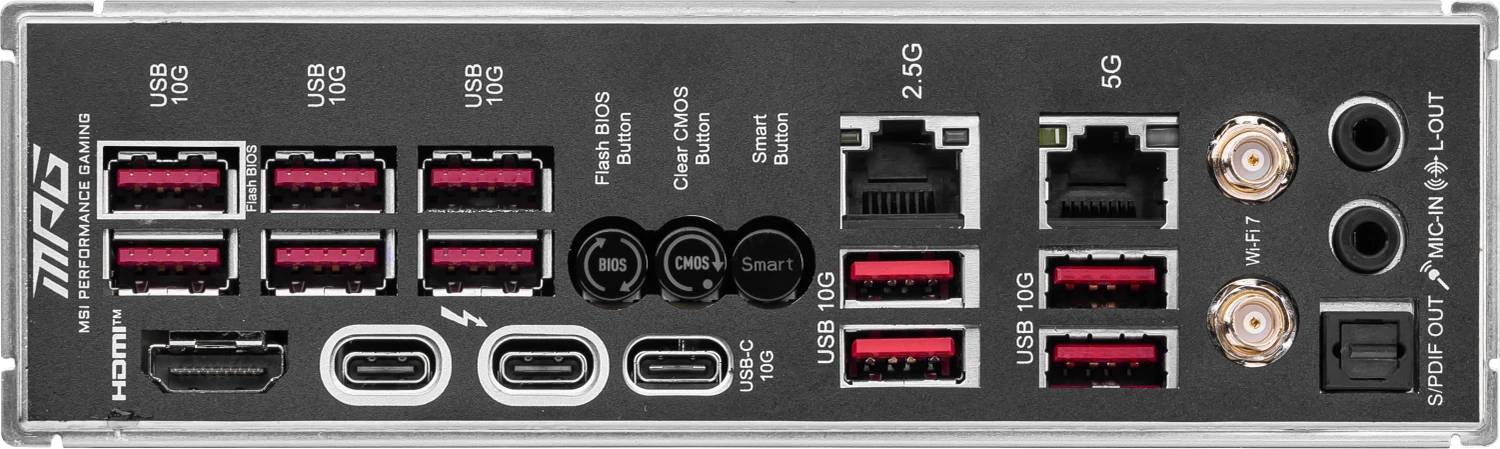

Rear Thunderbolt and USB
Two Thunderbolt 4 ports support up to 40Gbps with Thunderbolt devices, up to 20Gbps with USB4 devices and up to 15W charging. Ten rear USB Type-A ports support 10Gbps.
Practical installation
EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II and EZ M.2 Clip II simplify component access. Flash BIOS and Clear CMOS buttons assist setup.
Technical Specifications

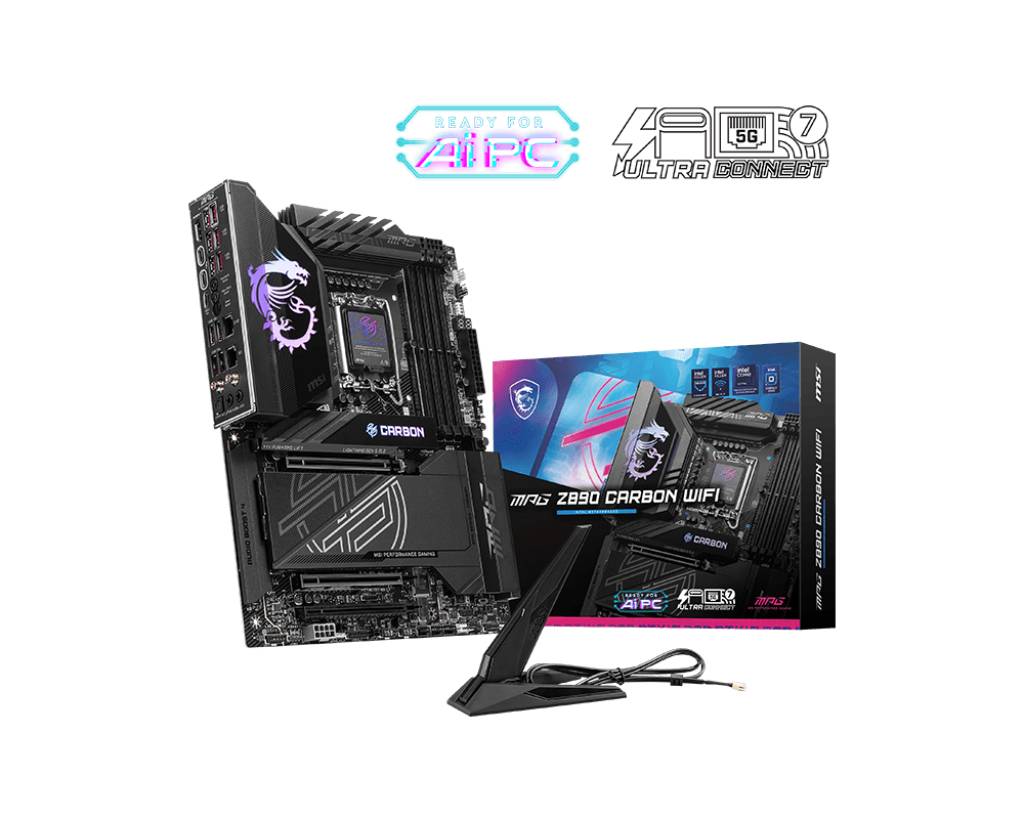

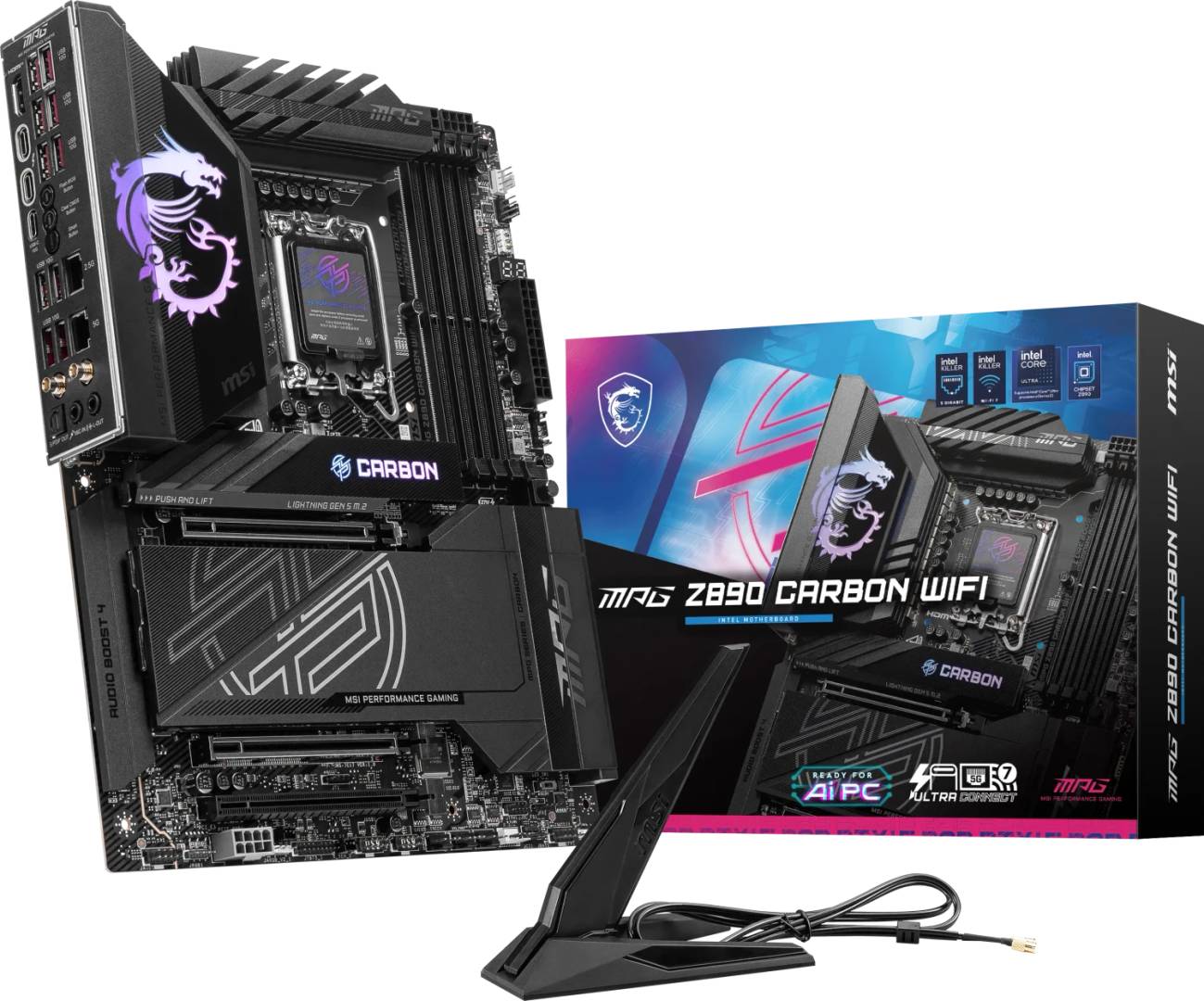

What's in the Box
Motherboard, quick installation guide and EU regulatory notice
EZ Wi-Fi antenna and two SATA cables
One EZ M.2 Clip II and clip remover
1-to-3 EZ Conn-Cable (V2) and EZ front panel cable
ARGB extension cable, 1-to-2 RGB extension cable and cable stickers
What Will Not Work
LGA1700 processors and DDR4 memory are incompatible.
M.2 SATA drives are supported only in M.2_5.
The three expansion slots do not all provide x16 bandwidth.
Frequently Asked Questions
Singular Expert Insight
Choose this configuration when two Ethernet ports, five M.2 slots and extensive rear USB connectivity matter. Check SSD heatsink clearance and PCIe configuration against the exact drives and add-in cards you plan to use. Ask Singular to check your CPU, memory, SSD and case compatibility Tell us your equipment model and we can check the compatibility requirements.
Buyer’s Guide
Buy it if
You need a Core Ultra ATX build with dual LAN and extensive peripheral connectivity.
Skip it if
Your case requires a smaller board or your build does not need these connections.
Also consider
Compare boards with fewer networking and storage connections for a simpler configuration.
Features - MSI - 7E17-001R
CPU Socket
- Socket 1851
Colour
black
Interface
- USB3.2,
- USB Type-C,
- USB2.0,
- M.2,
- SATA,
- Ethernet,
- Thunderbolt,
- Bluetooth,
- WIFI
Port Speed
- 2.5 Gbps,
- 5 Gbps
More Details
Product Code
04:496628
EAN Code
4711377260794
Manufacturer
MSI
Technical specifications
Compatible Platforms
- PC
CPU Type
- Intel Ultra 5,
- Intel Ultra 7,
- Intel Ultra 9
