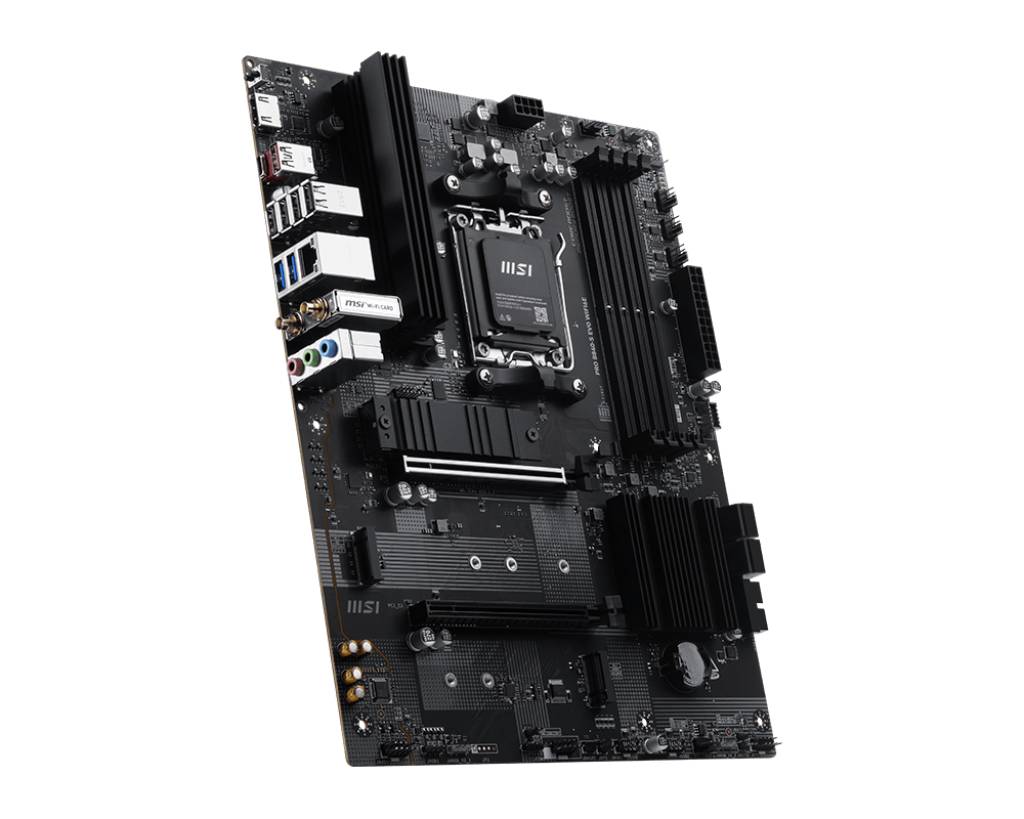

MSI PRO B840-S EVO WIFI6E AM5 ATX Motherboard, DDR5, PCIe 4.0, 3x M.2, Wi-Fi 6E, 2.5G LAN, HDMI, Black

Brand:
MSI
MSI Pro B840S Evo Wifi6E Mainboard ATX Motherboard 7E93001R
MSI PRO B840-S EVO WIFI6E AM5 ATX Motherboard, DDR5, PCIe 4.0, 3x M.2, Wi-Fi 6E, 2.5G LAN, HDMI, Black
€205.37 inc. VAT
Buy
7E93-001R
€172.58 €191.76
€205.37 inc. VAT
Ships from EU stock: 200 item(s)
+ −
Add to wish list Ask a question
Product Code
04:576230
EAN Code
4711377404167
Manufacturer
MSI

Quick Specs

Type
ATX motherboard, AMD B840
Connectors/Interface
2.5G LAN, Wi-Fi 6E, HDMI 2.1
Key spec
PCIe 4.0 x16 · 3x M.2
Compatibility
AM5 · Ryzen 9000/8000/7000 · DDR5
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

MSI PRO B840-S EVO WIFI6E — budget AM5 ATX board with Wi-Fi 6E and 2.5G LAN

AMD B840 · AM5ATX 30.5 x 24.4 cmPCIe 4.0 x16 · 3x M.2Wi-Fi 6E · 2.5G LAN

The MSI PRO B840-S EVO WIFI6E is an ATX motherboard for AMD Socket AM5 with the entry-level B840 chipset, made for Ryzen 9000, 8000 and 7000 processors in office, home and value gaming PCs.

It provides four DDR5 slots (up to 256GB), a PCIe 4.0 x16 slot from the CPU, three M.2 sockets, Realtek 2.5G LAN, a pre-installed Wi-Fi 6E module with Bluetooth 5.3 and an HDMI 2.1 output for processors with integrated graphics.

Before you order: B840 has no PCIe 5.0: the graphics slot and all M.2 sockets run at PCIe 4.0 or 3.0 — a Gen5 SSD will work but at Gen4 speed. Ryzen 8000 processors also reduce M.2_2 to PCIe 3.0 (x2 with Ryzen 8500/8300).

What's in the Box

  • MSI PRO B840-S EVO WIFI6E motherboard (ATX, 304.8 x 243.84 mm) with pre-installed Wi-Fi 6E module
  • Wi-Fi antenna and accessories as packed by MSI — the exact accessory list is not published on the specification page
  • No CPU, memory, cooler or SSD is included

What It Means in Practice

  • A full ATX board at an entry price: good for office towers and value gaming PCs with a mid-range graphics card.
  • Up to three NVMe SSDs; M.2_1 and M.2_2 run PCIe 4.0 x4 from the CPU with Ryzen 9000/7000.
  • HDMI 2.1 (4K 60Hz) lets a Ryzen with integrated graphics run without a graphics card.
  • Wi-Fi 6E (6 GHz band) and 2.5G LAN are built in.

What Will Not Work

  • Intel processors and AM4 Ryzen — AM5 only.
  • DDR4 memory — DDR5 non-ECC unbuffered only.
  • PCIe 5.0 speeds for graphics card or SSD.
  • Video output with a Ryzen that has no integrated graphics; there is no DisplayPort.

Key Features


Three M.2
M.2_1 and M.2_2 PCIe 4.0 x4 (CPU), M.2_3 PCIe 3.0 x4 (chipset); M.2_2 accepts up to 22110.

Wi-Fi 6E + 2.5G
Wi-Fi 6E up to 2.4 Gbps on 2.4/5/6 GHz with Bluetooth 5.3 and Realtek RTL8125D 2.5G LAN.

Plenty of fans
1x CPU fan, 1x pump/system and 4x system fan headers.

Easy diagnostics
EZ Debug LEDs, EZ Memory Detection LED, rear Clear CMOS and Flash BIOS buttons.

Technical Specifications

Identification
Part Number 7E93-001R
EAN / GTIN 4711377404167
Model PRO B840-S EVO WIFI6E
Brand MSI
Platform
Socket AMD AM5
Chipset AMD B840
Supported CPUs AMD Ryzen 9000 / 8000 / 7000 Series
Form factor ATX, 304.8 x 243.84 mm
Memory
Slots 4x DDR5 UDIMM, dual channel
Maximum 256GB
Speeds 4800-5600 MT/s JEDEC, 5600-8000 MT/s OC, AMD EXPO
Type Non-ECC unbuffered
Expansion and storage
PCI_E1 PCIe 4.0 x16 (CPU, Ryzen 9000/7000)
PCI_E2 PCIe 3.0 x4 (chipset)
M.2 M.2_1 and M.2_2 PCIe 4.0 x4 (CPU), M.2_3 PCIe 3.0 x4 (chipset)
SATA 4x SATA 6Gb/s
RAID SATA RAID 0/1/10, NVMe RAID 0/1
Connectivity
Rear USB 1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0
Front/internal USB 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 (via headers)
Video 1x HDMI 2.1, up to 4K 60Hz
LAN Realtek RTL8125D 2.5G
Wireless Wi-Fi 6E (160 MHz, up to 2.4 Gbps), Bluetooth 5.3
Audio Realtek ALC897, 7.1 channel
Power and cooling
Power connectors 1x 24-pin ATX, 1x CPU power
Fan headers 1x CPU fan, 1x pump/system fan, 4x system fan
Other TPM 2.0 header, COM header, 3x ARGB V2, 1x RGB
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term MSI regional motherboard warranty (term depends on country) — claims handled through Singular

Frequently Asked Questions

Can I install a PCIe 5.0 SSD?
Yes, it works, but at PCIe 4.0 speed because B840 has no Gen5 lanes.
Does it support Ryzen 9000?
Yes, Ryzen 9000, 8000 and 7000 desktop processors on AM5.
Is Wi-Fi built in?
Yes, Wi-Fi 6E with Bluetooth 5.3 is pre-installed.
Singular Expert Insight · Buyer's Guide
The B840-S EVO is about getting onto AM5 at the lowest cost while keeping ATX size, Wi-Fi 6E and 2.5G LAN. If you plan a top graphics card or Gen5 SSDs, step up to B850. Add a pair of DDR5 memory modules.
✓ Buy it if you want an affordable full-size AM5 board for an office or value gaming PC.
✕ Skip it if you want PCIe 5.0, USB4 or 5G LAN.
→ Also consider MSI MAG B850 TOMAHAWK MAX WIFI II for PCIe 5.0 and 5G LAN.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
