MSI PRO DP180 A14-1275AT — Core i5-14400, 16GB, 512GB SSD
Intel Core i5-1440016GB DDR5512GB NVMe SSDWindows 11 Pro
The MSI PRO DP180 A14-1275AT (part number 00B0A761-1275) is an 18-litre business desktop PC with an Intel Core i5-14400 processor, 16GB DDR5 U-DIMM memory and a 512GB NVMe SSD, built for offices, accounting and reception workstations and SMB teams that want a serviceable tower with legacy ports.
It pairs the 65 W Core i5-14400 on the Intel H610 platform with VGA, HDMI and DisplayPort outputs, Wi-Fi 5 and legacy PS/2, inside an 18 L tower with room for extra 2.5-inch and 3.5-inch drives. It ships with Windows 11 Pro, which adds BitLocker, Group Policy and domain/Entra ID join for business deployments.
Compatibility note: Wireless is Wi-Fi 5 and the single RJ45 port is Gigabit — fine for office work, but not a Wi-Fi 6/6E or 2.5G system.
Best For
Office fleets — proven 14th Gen Core i5 platform
Legacy displays — VGA, HDMI and DisplayPort outputs
Legacy peripherals — PS/2 port and 3.5 mm line-in/out/mic
Accounting & ERP — 16 threads for spreadsheets and databases
Storage expansion — free 2.5" bay and a 3.5" bay
Secure desks — Kensington lock and padlock loop
Key Features
Core i5-14400, 16 threads
10 cores (6P + 4E) and 16 threads up to 4.7 GHz with UHD 730 graphics.
Three video outputs
VGA, HDMI 2.1 and DisplayPort 1.4 support old and new monitors.
Front USB-C 10G
USB 3.2 Gen 2 Type-C and two USB 5G ports up front, four USB 2.0 at the rear.
80 PLUS Bronze PSU
300 W TFX supply, 18 L chassis with extra 2.5" and 3.5" bays.
Technical Specifications
| Identification |
| Part Number |
00B0A761-1275 |
| EAN / GTIN |
4711377424721 |
| MPN |
9S6-B0A761-1275 |
| Brand |
MSI |
| System |
| Operating system |
Windows 11 Pro |
| Chipset |
Intel H610 |
| CPU socket |
LGA1700 |
| Processor & Graphics |
| Processor |
Intel Core i5-14400 |
| Cores / threads |
10 cores (6P + 4E) / 16 threads |
| Clock speed |
2.5 GHz base · up to 4.7 GHz |
| Processor TDP |
65 W |
| Graphics |
Intel UHD Graphics 730 (integrated) |
| Memory & Storage |
| Installed memory |
16GB (2x 8GB) DDR5 U-DIMM — both slots used |
| Memory slots |
2x DDR5 U-DIMM, max 64GB — both slots occupied (2x 8GB) |
| Installed storage |
512GB SSD — M.2 2280 NVMe PCIe Gen4 x4 |
| Storage expansion |
1x M.2 2280 NVMe PCIe Gen4 x4 (occupied) + 1x 2.5" bay (free) + 3.5" bay |
| Connectivity |
| Front / side I/O |
1x mic-in, 1x headphone-out, 1x USB 3.2 Gen 2 (10G) Type-C, 2x USB 3.2 Gen 1 (5G) Type-A |
| Rear I/O |

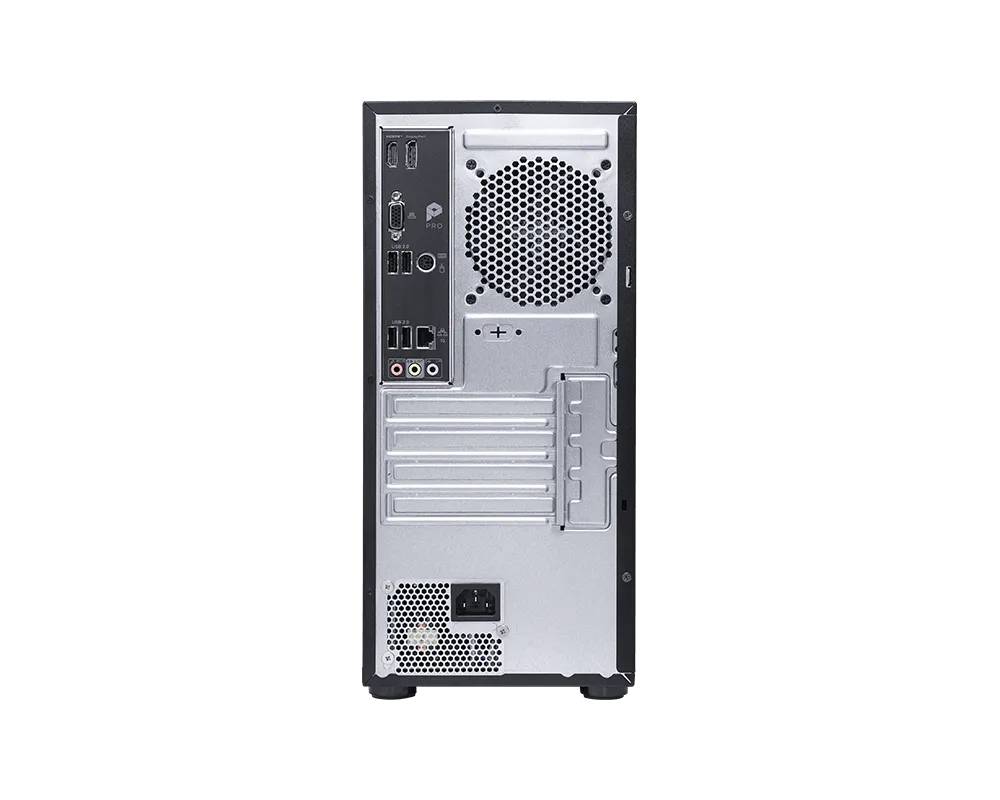

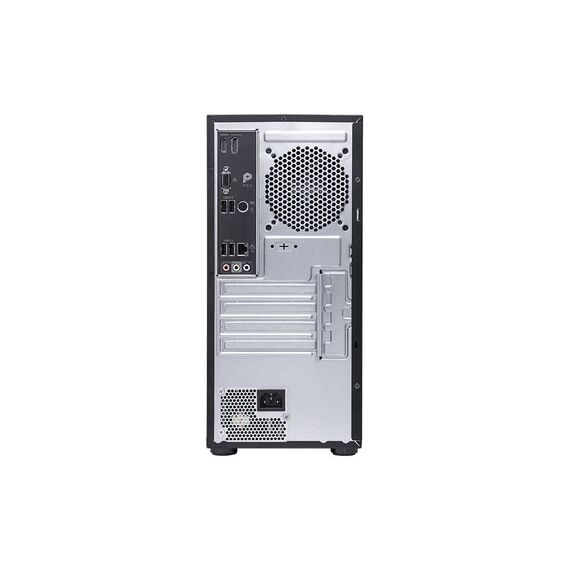

4x USB 2.0 Type-A, 1x VGA out, 1x HDMI 2.1 out, 1x DisplayPort 1.4 out, 1x RJ45 Gigabit, 1x PS/2, 3x audio jacks (line-in / line-out / mic-in), Kensington + padlock loop |
| Display support |
Up to 3 displays from the integrated graphics (VGA + HDMI + DP) |
| Ethernet |
1x Gigabit Ethernet (Intel I219-V) |
| Wireless |
Wi-Fi 5 (AzureWave AW-CB515NF) · Bluetooth 5 |
| Audio |
Realtek ALC897 7.1-channel HD audio |
| Power & Physical |
| Power supply |
300 W TFX, 80 PLUS Bronze |
| Dimensions (W x D x H) |
168 x 335.05 x 369.4 mm |
| Net weight |
4.93 kg |
| Security |
fTPM, Kensington lock, padlock loop |
Frequently Asked Questions
Does the MSI PRO DP180 A14-1275AT work with older VGA monitors?
Yes. Alongside HDMI 2.1 and DisplayPort 1.4 it has a native VGA output, so existing VGA monitors and projectors connect without adapters.
Is the Core i5-14400 enough for office work?
Yes. Its 10 cores and 16 threads handle Office, ERP clients, browsers and video calls comfortably, and it is a solid choice for accounting and administrative desks.
How is it different from the PRO DP180 AI 8HG?
The DP180 AI 8HG uses a newer Core Ultra 5 225 with an NPU, dual 2.5G Ethernet and Wi-Fi 6E; the A14 uses the Core i5-14400 with Gigabit Ethernet, Wi-Fi 5 and a VGA output.
What is the difference between the A14-1275AT and A14-1274XAT?
Same hardware (Core i5-14400, 16GB DDR5, 512GB SSD). The 1275AT ships with Windows 11 Pro; the 1274XAT (X = no OS) comes without an operating system.
Singular Expert Insight
The PRO DP180 A14 is a no-nonsense office tower: the Core i5-14400 has 16 threads, both DIMM slots are filled for dual-channel memory, and the VGA output helps offices keeping older monitors. Its networking is basic (Gigabit, Wi-Fi 5), so pick the DP180 AI 8HG if you need 2.5G or Wi-Fi 6E. More
business desktop PCs are in our range.
✓ Buy it if you want a reliable 14th Gen Core i5 office tower with VGA, HDMI and DisplayPort.
✕ Skip it if you need Wi-Fi 6E, 2.5G Ethernet or an NPU for AI apps.
→ Also consider PRO DP180 AI 8HG for Core Ultra, dual 2.5G LAN and Wi-Fi 6E.
