MSI PRO DP80 A14A-294AT — 8-Litre Business Desktop with Core i7-14700
Core i7-1470016GB DDR5 · 1TB SSD8-litre towerWi-Fi 6E · 2.5GbE
The MSI PRO DP80 A14A-294AT is an 8-litre compact desktop tower with an Intel Core i7-14700 (20 cores / 28 threads, up to 5.4 GHz), 16GB DDR5 memory and a 1TB NVMe SSD, supplied with Windows 11 Home — for offices and home users who want desktop-class CPU power with room to expand memory and storage in a small footprint.
It has a free DDR5 slot (up to 64GB), free 2.5" and 3.5" drive bays, Wi-Fi 6E with Bluetooth 5.3 and two LAN ports (2.5GbE + 1GbE). Video comes from the integrated Intel UHD Graphics 770 over HDMI 2.1, DisplayPort 1.4 and VGA, and an internal 300W 80 PLUS Bronze power supply keeps the desk free of an external brick.
Before you order: This A14A configuration has no discrete graphics card — it uses Intel UHD Graphics 770. It ships with Windows 11 Home, not Pro. Keyboard and mouse are not included.
What's in the Box
- MSI PRO DP80 A14A-294AT desktop PC
- Power cord
- Quick guides
- Windows 11 Home pre-installed (no keyboard or mouse)
What It Means in Practice
- 20 cores handle large spreadsheets, compiling, photo editing and many browser tabs at once.
- Add a second 16GB DDR5 module for dual-channel performance and 32GB total.
- Use the free 3.5" bay for a large HDD for backups or archives.
- VGA output keeps older projectors and monitors usable alongside modern HDMI/DP screens.
What Will Not Work
- It is not a gaming PC — there is no discrete GPU in this SKU.
- Windows 11 Home lacks domain join and BitLocker management; upgrade to Pro if your company requires them.
- MSI does not publish VESA mounting for this tower.
- It has no USB4/Thunderbolt ports.
Key Features
Core i7-14700
20 cores (8P+12E), 28 threads, up to 5.4 GHz.
Expandable
Free DDR5 slot plus 2.5" and 3.5" bays.
Dual LAN
Intel 2.5GbE + 1GbE.
Internal PSU
300W 80 PLUS Bronze TFX.
Technical Specifications
| Identification |
| Model |
MSI PRO DP80 A14A-294AT |
| Part Number |
9S6-B20821-294 |
| Brand |
MSI |
| Colour |
Black |
| Processor & Graphics |
| Processor |
Intel Core i7-14700 |
| Cores / threads |
20 (8P + 12E) / 28, up to 5.4 GHz, 65W base |
| Graphics |
Intel UHD Graphics 770 (integrated) |
| Memory & Storage |
| Memory |
16GB (1x16GB) DDR5 U-DIMM, 2 slots (1 free), max 64GB |
| Storage |
1TB M.2 2280 NVMe PCIe Gen4 x4 |
| Drive bays |
1x 2.5" + 1x 3.5" (free) |
| Ports |
| Front |
1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, headphone out, mic in |
| Rear |

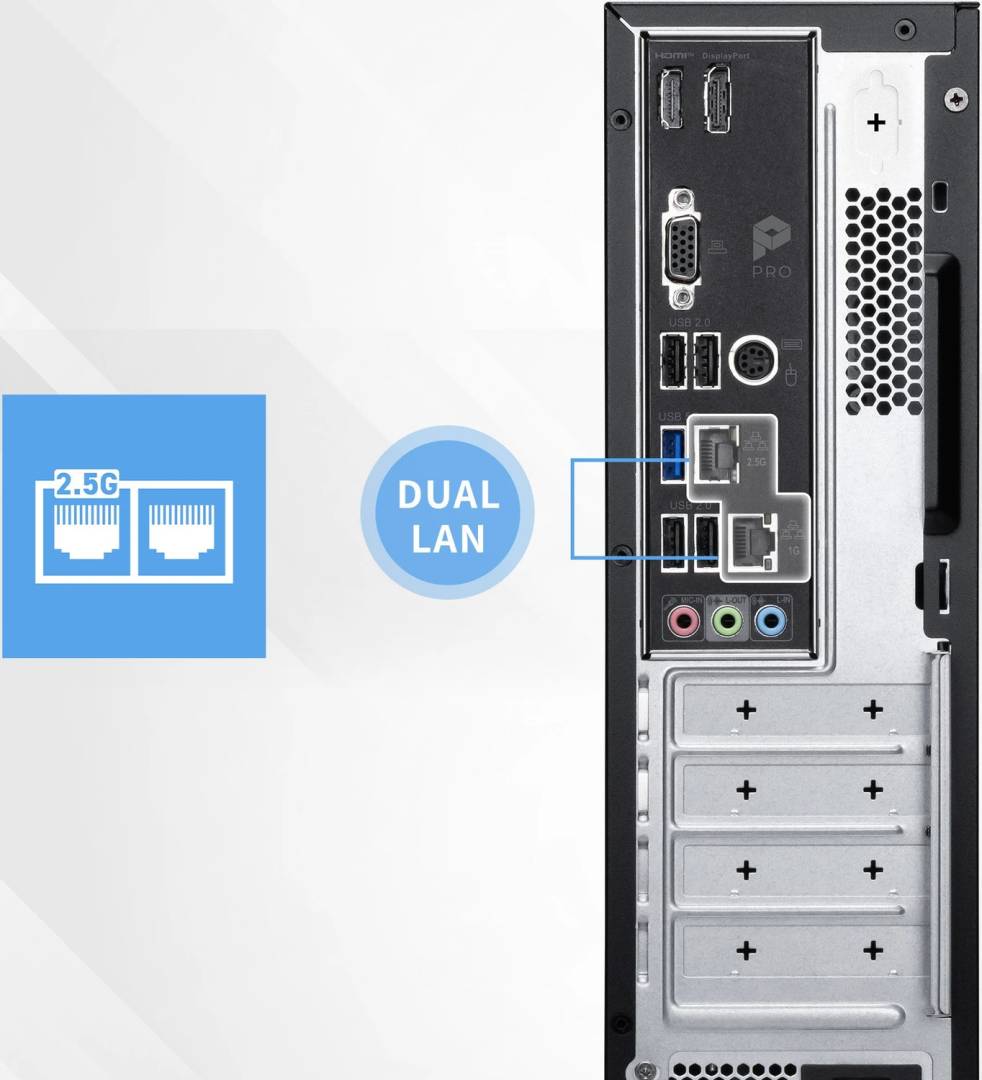

4x USB 2.0, 1x USB 5Gbps Type-A, 1x HDMI 2.1, 1x DP 1.4, 1x VGA, PS/2, 3x audio, 2x RJ45 |
| Wireless & Network |
| LAN |
Intel I226-V 2.5GbE + Intel I219-V 1GbE |
| Wireless |
Wi-Fi 6E + Bluetooth 5.3 (Intel AX211) |
| System |
| OS |
Windows 11 Home |
| Power supply |
Internal 300W 80 PLUS Bronze (TFX) |
| Dimensions |

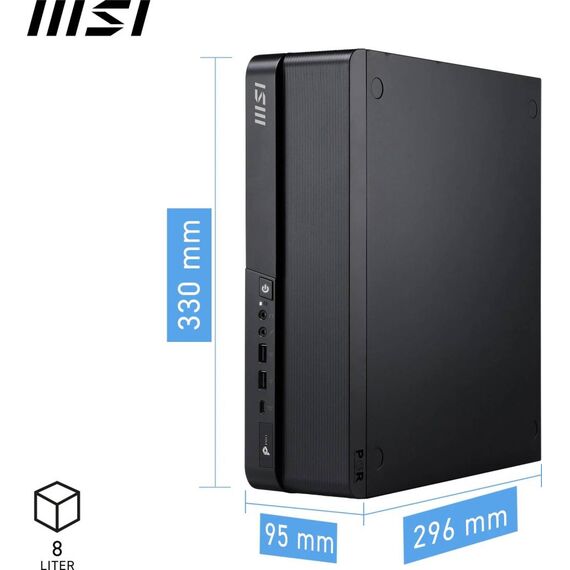

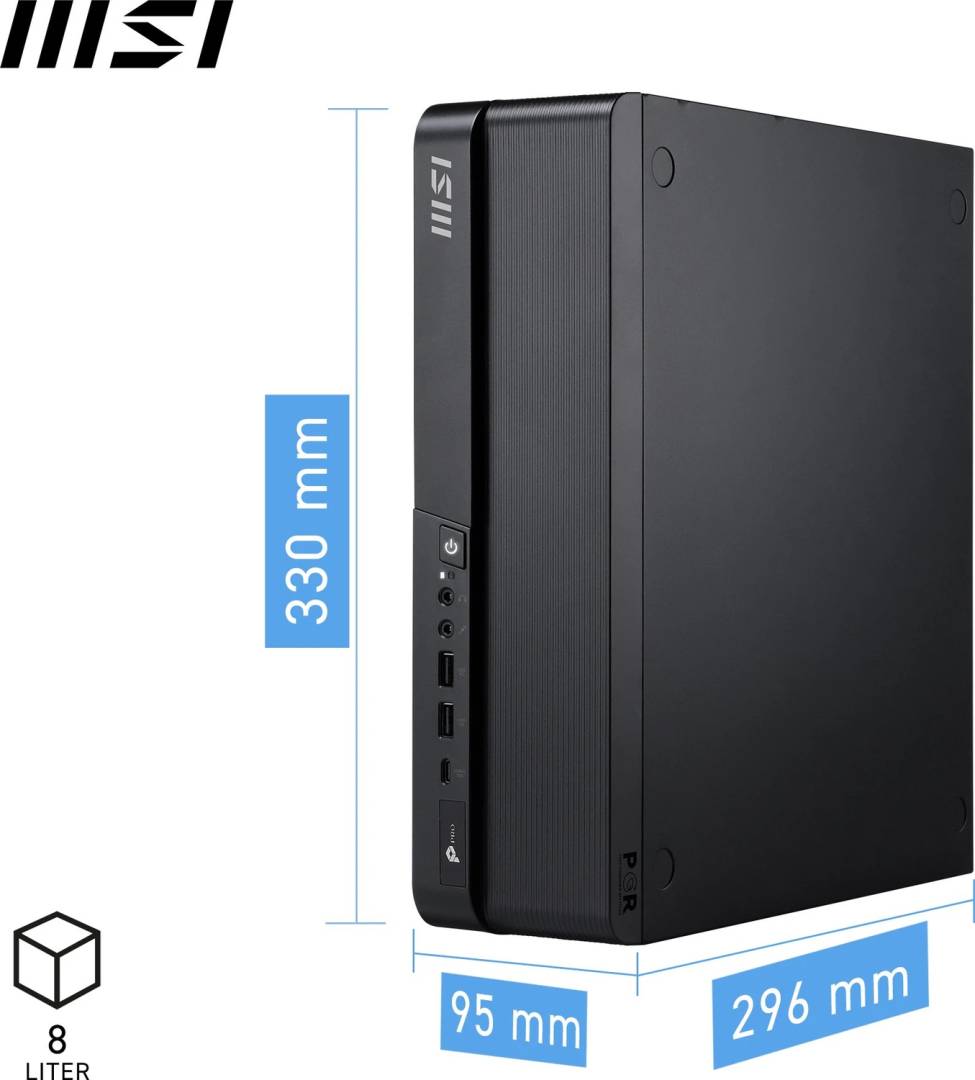

95 x 296 x 330 mm (8 L) |
| Weight |
3.7 kg |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
24-month warranty per MSI (2 years, MSI SKU spec sheet) — claims handled through Singular |
Frequently Asked Questions
Does it have a graphics card?
No, it uses the integrated Intel UHD Graphics 770.
Can I add RAM and drives?
Yes: one free DDR5 slot (max 64GB) plus free 2.5" and 3.5" bays.
Is it Windows 11 Pro?
No, Windows 11 Home.
Singular Expert Insight · Buyer's Guide
The DP80 gives full desktop i7 performance in a case a third the size of a classic tower, while keeping the upgrade paths (RAM, drives) that mini PCs lack. Add a screen from our
PC monitors if you need one.
✓ Buy it if you want a powerful, expandable office desktop in a small 8-litre case.
✕ Skip it if you need a discrete GPU for gaming/CAD or Windows 11 Pro out of the box.
→ Also consider the MSI Cubi NUC AI+ 3MG-006DE for a 0.5-litre Copilot+ mini PC with Windows 11 Pro.
Not sure it fits your workload? Tell us the software you run and how many screens you need, and we will check before you order.
