MSI SPATIUM M580 4TB M.2 2280 PCIe 5.0 NVMe Internal SSD up to 14,100 MB/s

Brand:
MSI
MSI SPATIUM M580 4TB PCIe 5.0 NVMe M.2 SSD
MSI SPATIUM M580 4TB M.2 2280 PCIe 5.0 NVMe Internal SSD up to 14,100 MB/s
€998.14 inc. VAT
Buy
S78-440R210-P83
€838.77 €931.97
€998.14 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
04:594431
EAN Code
4711377408899
Manufacturer
MSI
Quick Specs
Capacity
4TB
Interface
PCIe 5.0 x4 · NVMe 2.0
Speed
Up to 14,100 / 12,600 MB/s read/write
Form factor
M.2 2280 single-sided
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

MSI SPATIUM M580 4TB — PCIe 5.0 NVMe M.2 2280 SSD

PCIe 5.0 x4 · NVMe 2.0Up to 14,100 MB/s read8GB DRAM cache3,000 TBW · 5-yr warranty

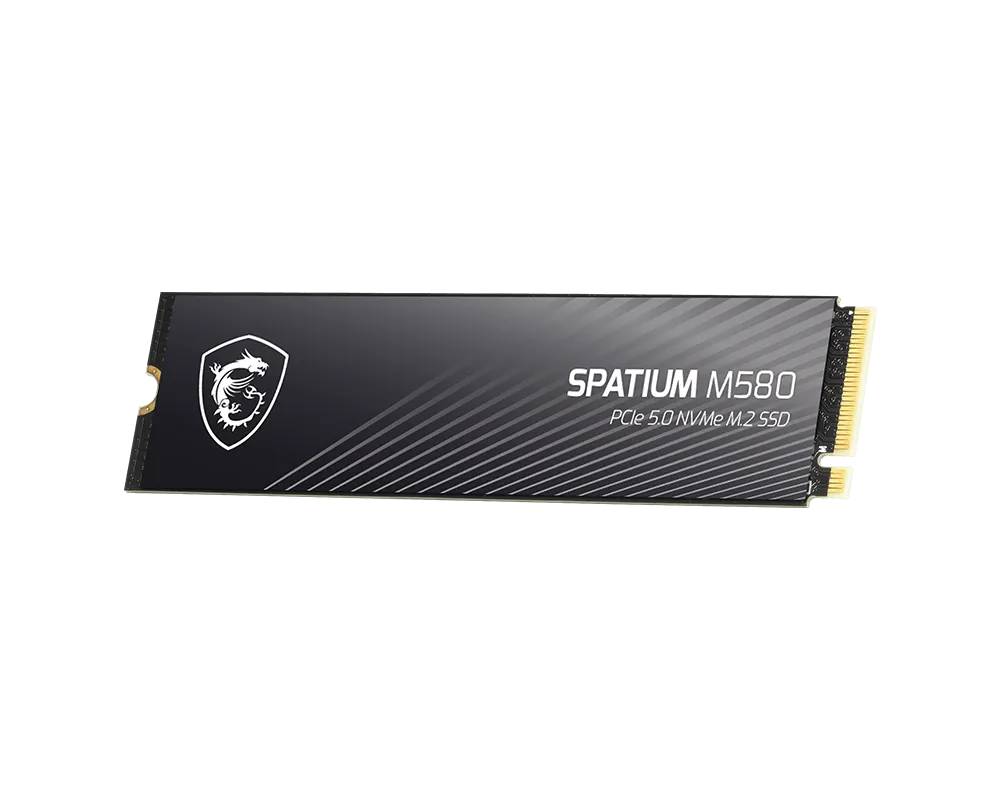

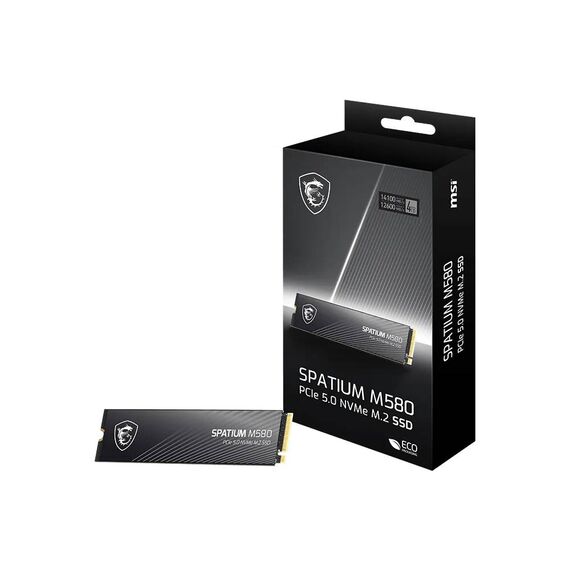

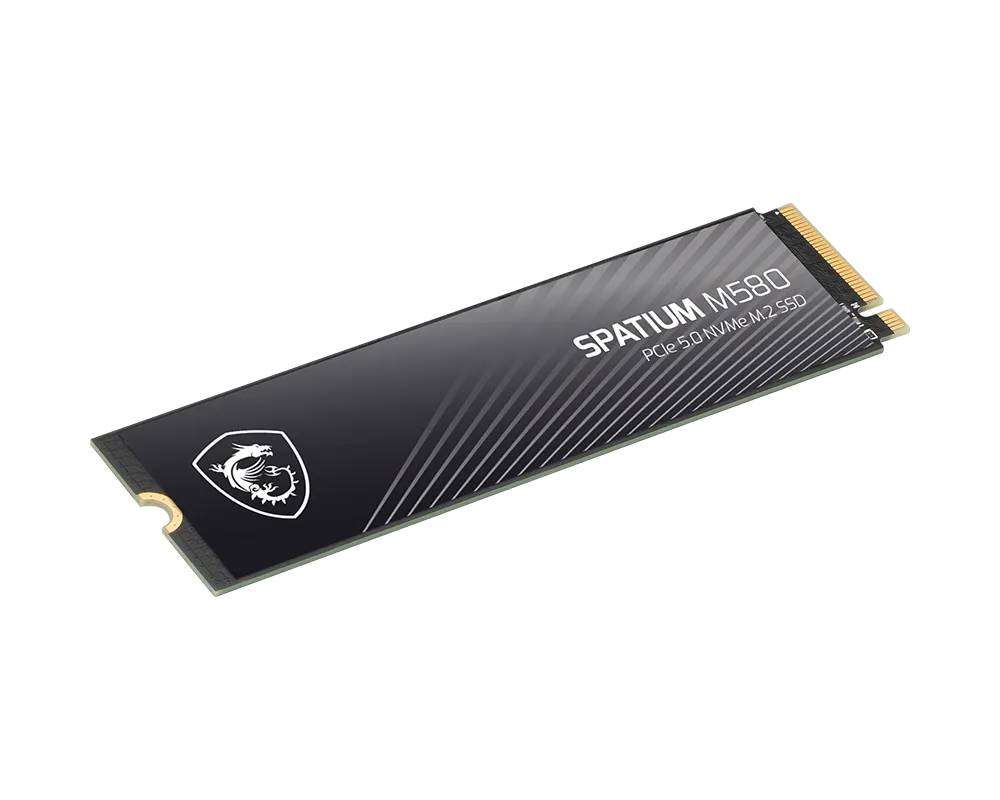

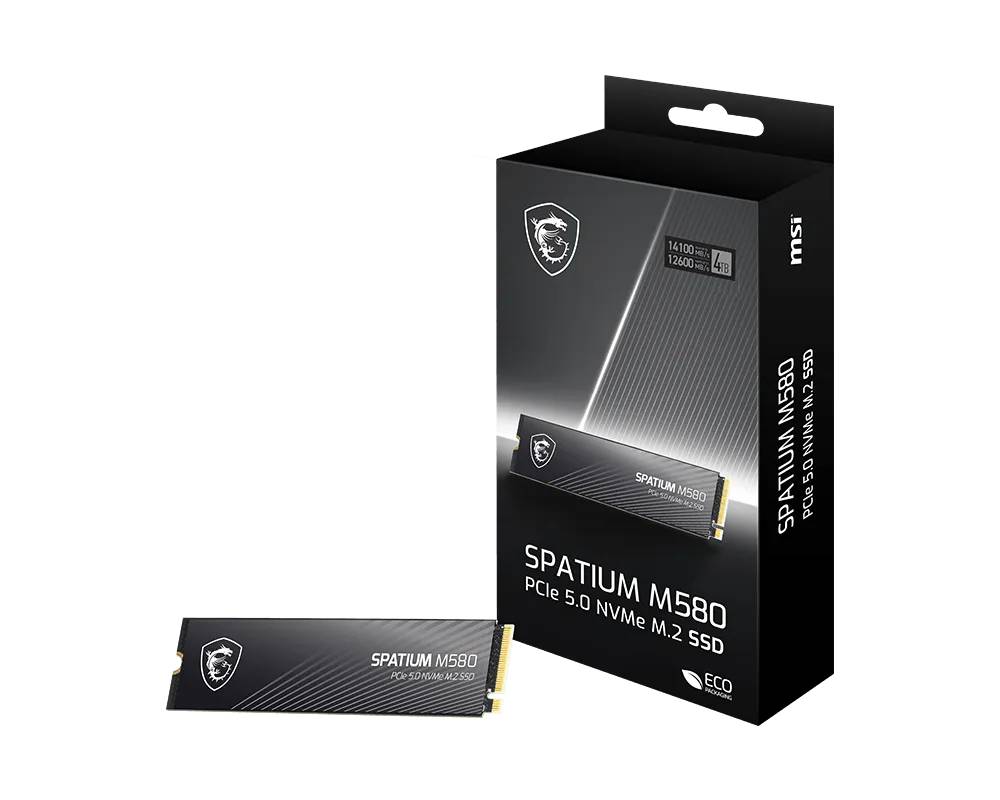

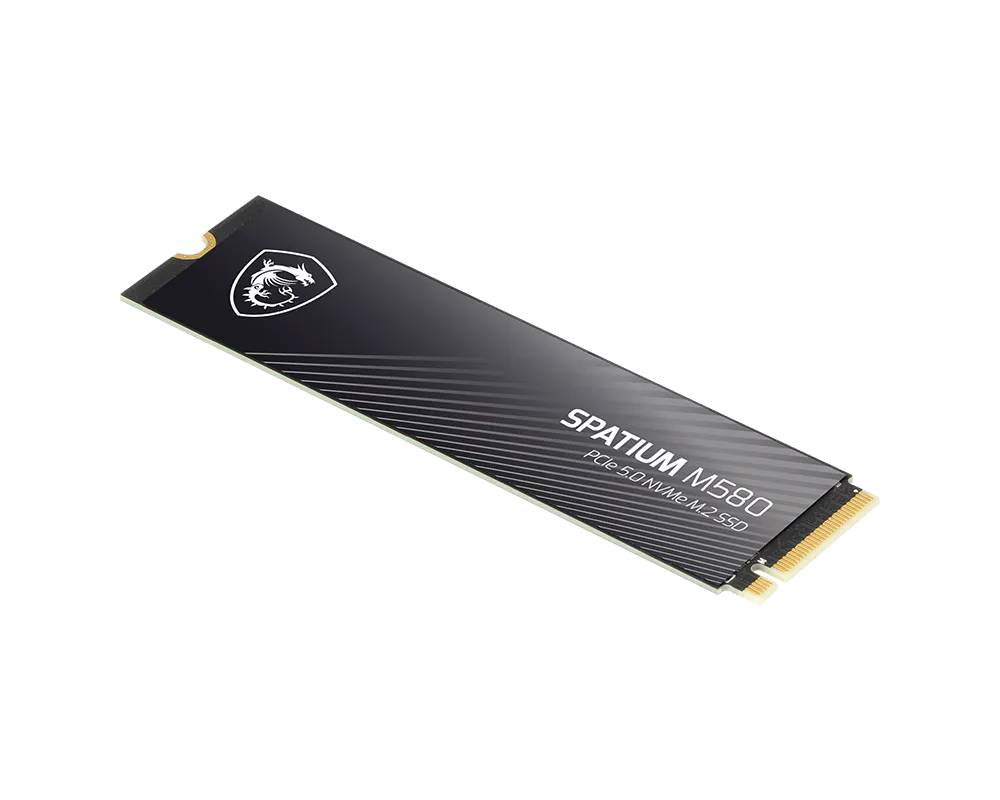

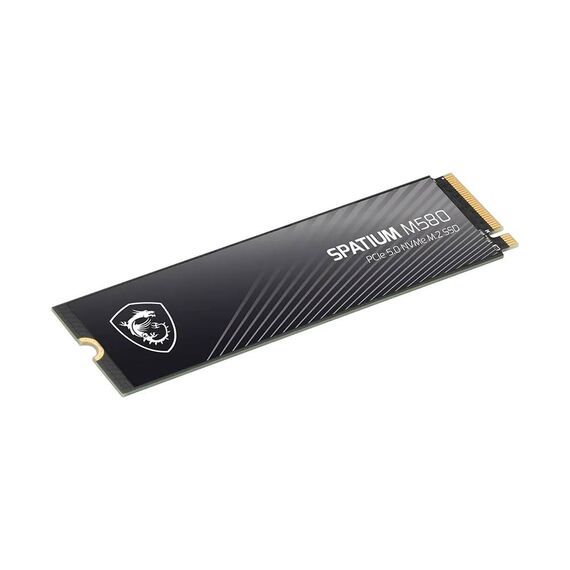

The MSI SPATIUM M580 4TB (part number S78-440R210-P83) is a PCIe 5.0 x4 NVMe M.2 2280 SSD with sequential speeds up to 14,100 MB/s read and 12,600 MB/s write, aimed at high-end gaming rigs and content-creation workstations.

This is the bare version of the M580 (no FROZR heatsink): it pairs the Phison E26 controller with 8GB LPDDR4 DRAM cache and 3D NAND, and is rated for 3,000 TB written with a 5-year warranty.

Compatibility note: Full speed needs a PCIe 5.0 M.2 slot (e.g. AMD X870/X870E/B850/B650E or Intel Z790/Z890 boards with a Gen5 M.2 socket); in a PCIe 4.0 slot it runs at Gen4 speeds. The drive ships bare — install it under the motherboard's M.2 heatsink to avoid thermal throttling — the E26 can draw up to 11.5 W under sustained load.

Key Features


Top-tier Gen5 writes
Up to 12,600 MB/s sequential write makes large video exports, game installs and scratch-disk work finish faster.

Large DRAM cache
8GB LPDDR4 cache with the Phison E26 keeps sustained transfers consistent and random IOPS up to 1.4 million.

High endurance
3,000 TBW, 1.6 million hours MTBF, LDPC ECC and end-to-end data path protection, backed by 5 years of warranty.

Technical Specifications

Identification
Part Number S78-440R210-P83
EAN/GTIN 4711377408899
MPN S78-440R210-P83
Brand MSI
Model SPATIUM M580 PCIe 5.0 NVMe M.2
Storage
Capacity 4TB
Controller Phison E26
NAND flash 3D NAND (NAND type not specified by MSI)
DRAM cache 8GB
Performance
Sequential read Up to 14,100 MB/s
Sequential write Up to 12,600 MB/s
Random 4K read / write Up to 1,400K / 1,400K IOPS
Interface & Physical
Interface PCIe Gen5 x4, NVMe 2.0 — backward compatible with Gen4 / Gen3 slots at reduced speed
Form factor M.2 2280 (80 x 22 x 2.15 mm), no heatsink
Reliability
Endurance (TBW) 3,000 TB written
MTBF Up to 1,600,000 hours
Warranty 5 years limited, or until the rated TBW is reached — whichever comes first
Features TRIM, S.M.A.R.T., LDPC ECC, end-to-end data path protection; max operating power 11.5 W

Frequently Asked Questions

Is the SPATIUM M580 in this listing the FROZR version?
No — this part number is the standard M580 without the FROZR heatsink. Use your motherboard's M.2 heatsink.
What is the difference between the SPATIUM M580 and the M571?
The M580 (Phison E26) offers higher sequential write speed and a larger DRAM cache. The M571 (Phison E28) reads slightly faster (14,500 MB/s), writes up to 11,000 MB/s and uses far less power (6.5 W vs 11.5 W).
Will the M580 run at full speed in a PCIe 4.0 slot?
No. It works, but a Gen4 slot caps it at about 7,000 MB/s. You need a PCIe 5.0 M.2 slot for its rated speed.

Singular Expert Insight

The M580 is the write-speed choice in MSI's Gen5 range — worth it for editors and power users who move big files all day. For most gamers, the SPATIUM M571 gives the same read speed with less heat. Make sure the M.2 slot you use has a good heatsink, because the E26 runs warm. Browse all internal SSDs.
✓ Buy it if you need the fastest Gen5 write speed and have a well-cooled PCIe 5.0 M.2 slot.
✕ Skip it if your M.2 slot has no heatsink or your system is PCIe 4.0 only.
→ Also consider MSI SPATIUM M571 DLP for cooler Gen5, or SPATIUM M480 PRO for Gen4 systems.
