Neomounts LED-VW1000BLACK Video Wall Mount for 40-75 inch Displays 50 kg with Micro Adjustment

Brand:
Neomounts
Neomounts by Newstar LED-VW1000BLACK - Bracket - for LCD display
Neomounts LED-VW1000BLACK Video Wall Mount for 40-75 inch Displays 50 kg with Micro Adjustment
€215.32 inc. VAT
Buy
LED-VW1000BLACK
€180.94
€215.32 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:123691
EAN Code
8717371444419
Manufacturer
Neomounts

Quick Specs

Screen size
40 to 75 in
Load capacity
50 kg
Distance to wall
5.6 to 21.5 cm
Adjustment
+/- 3 degrees micro
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

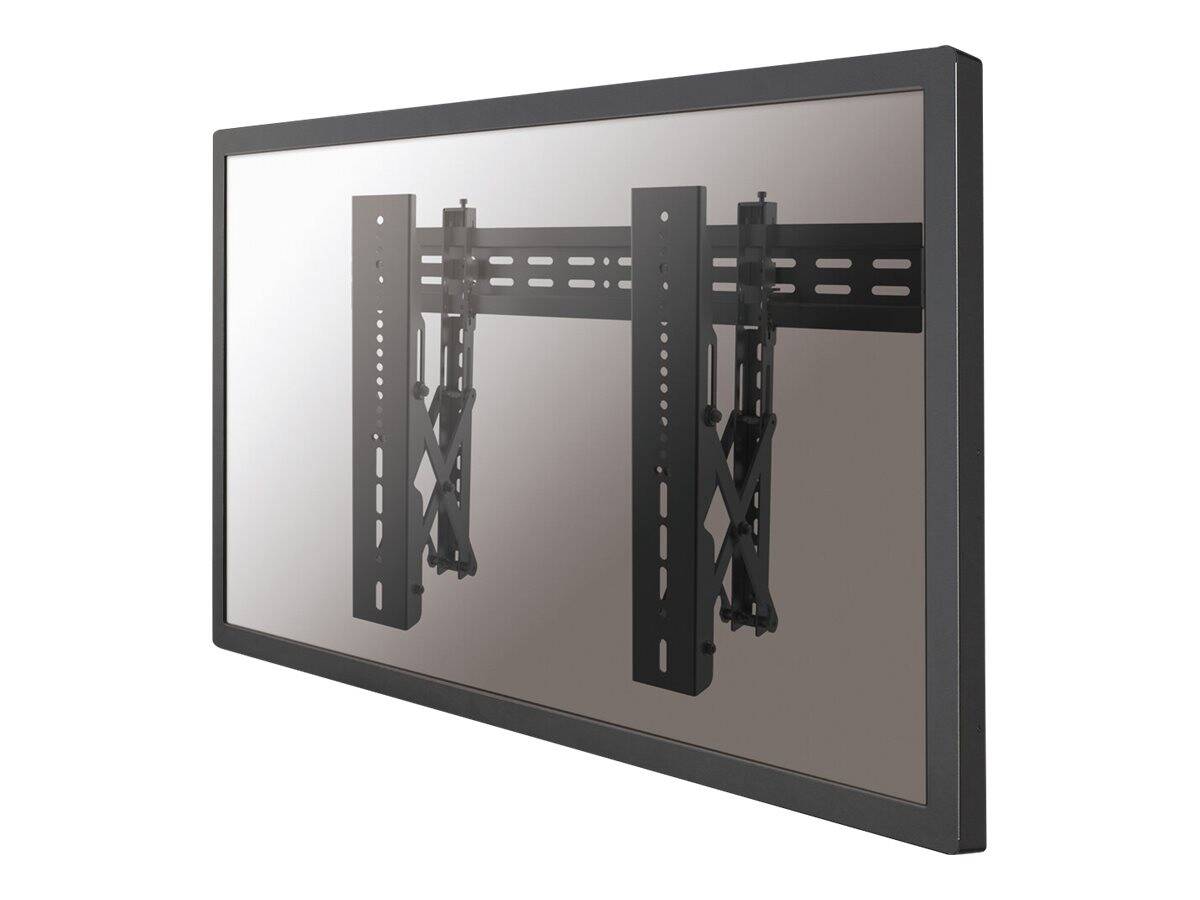

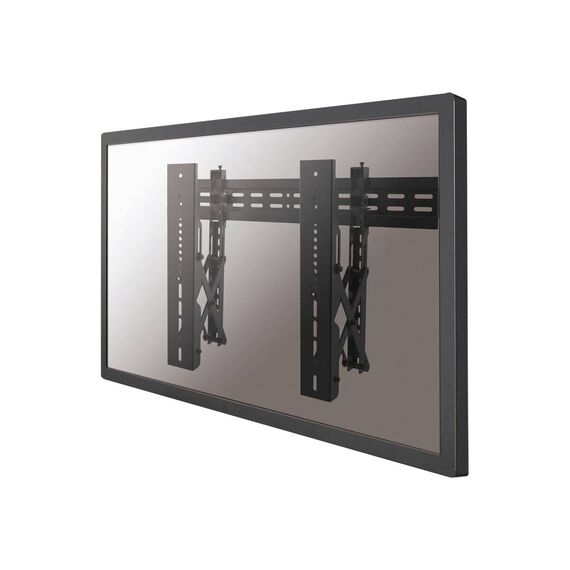

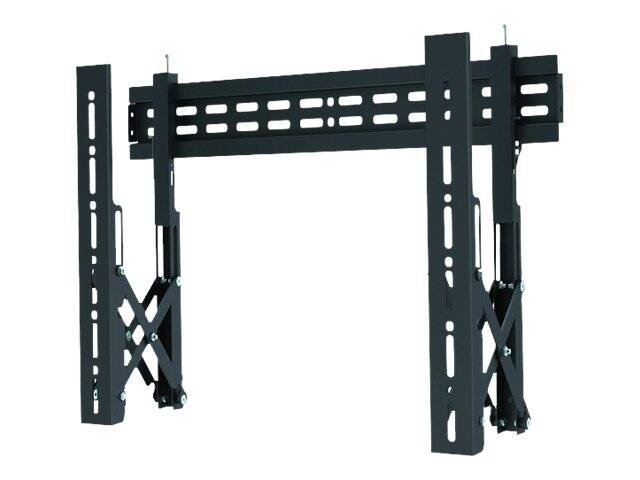

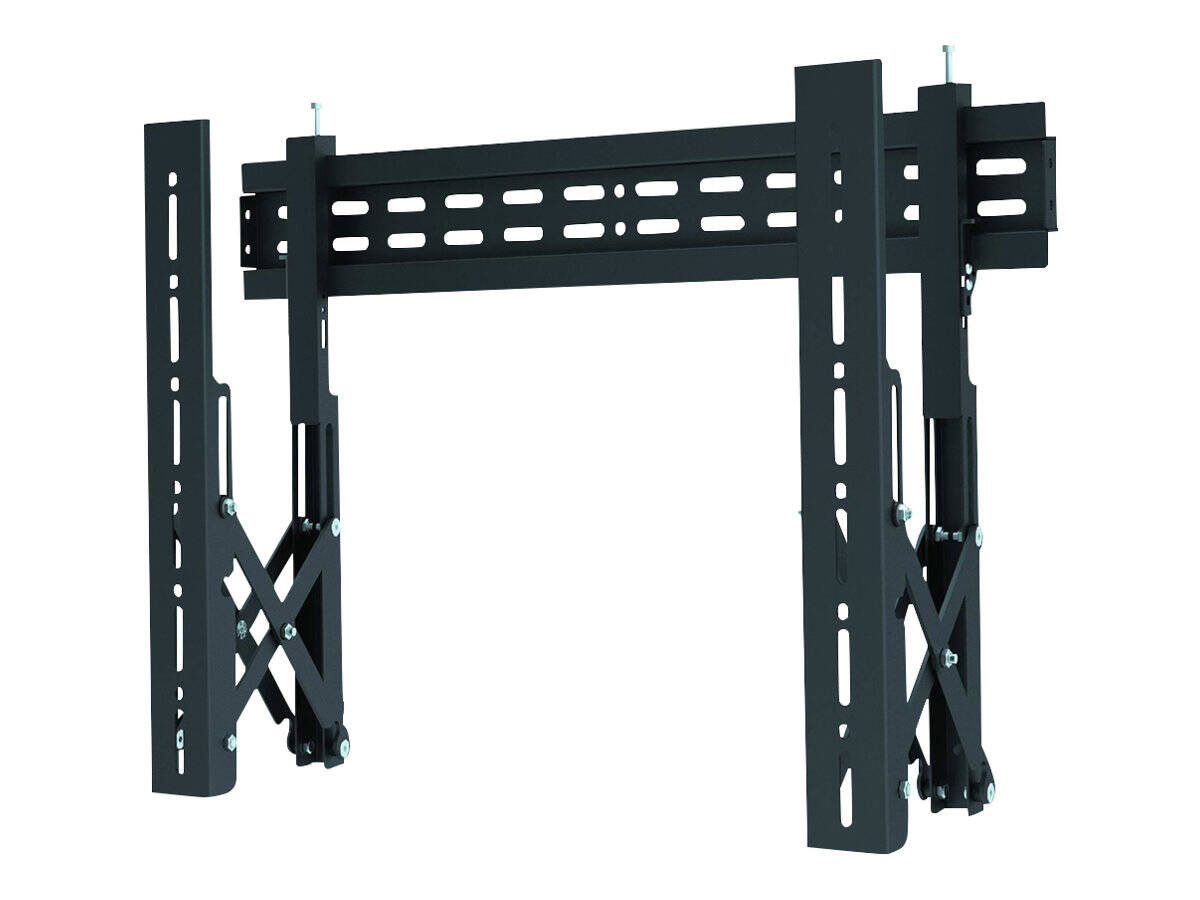

Neomounts LED-VW1000BLACK — Video Wall Mount

Displays 40 to 75 in, 50 kgFourteen VESA patternsPull-out service accessTakes a padlock

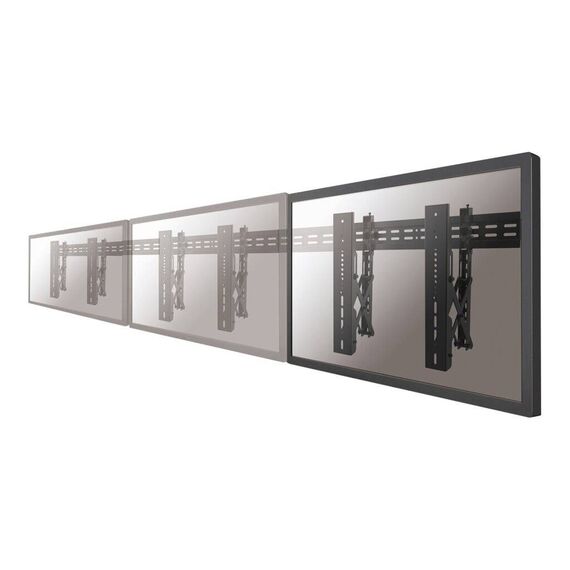

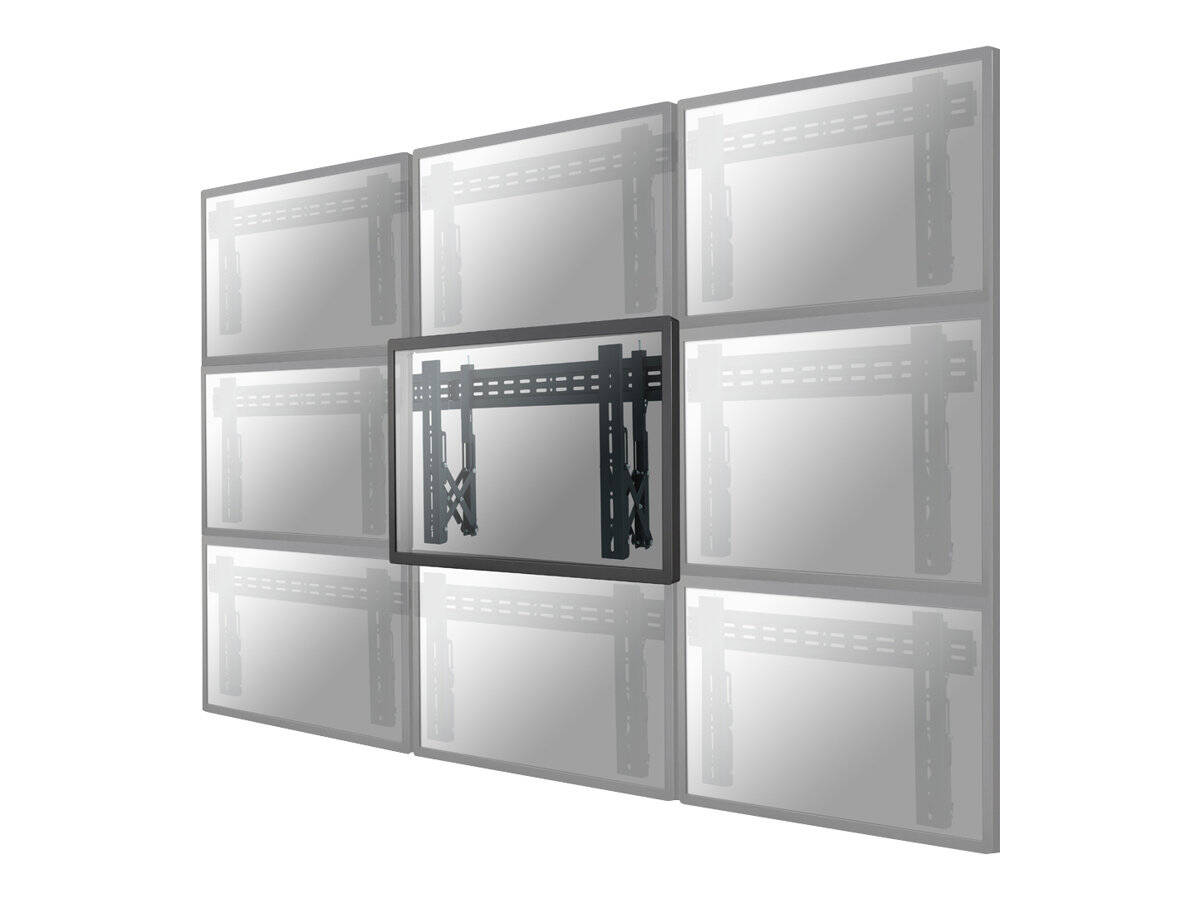

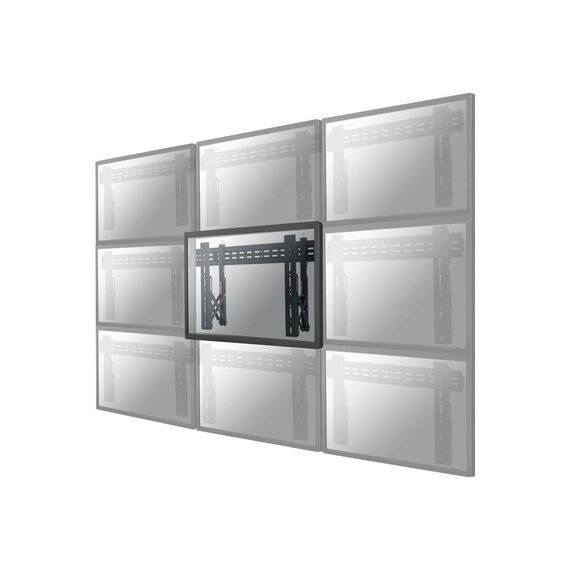

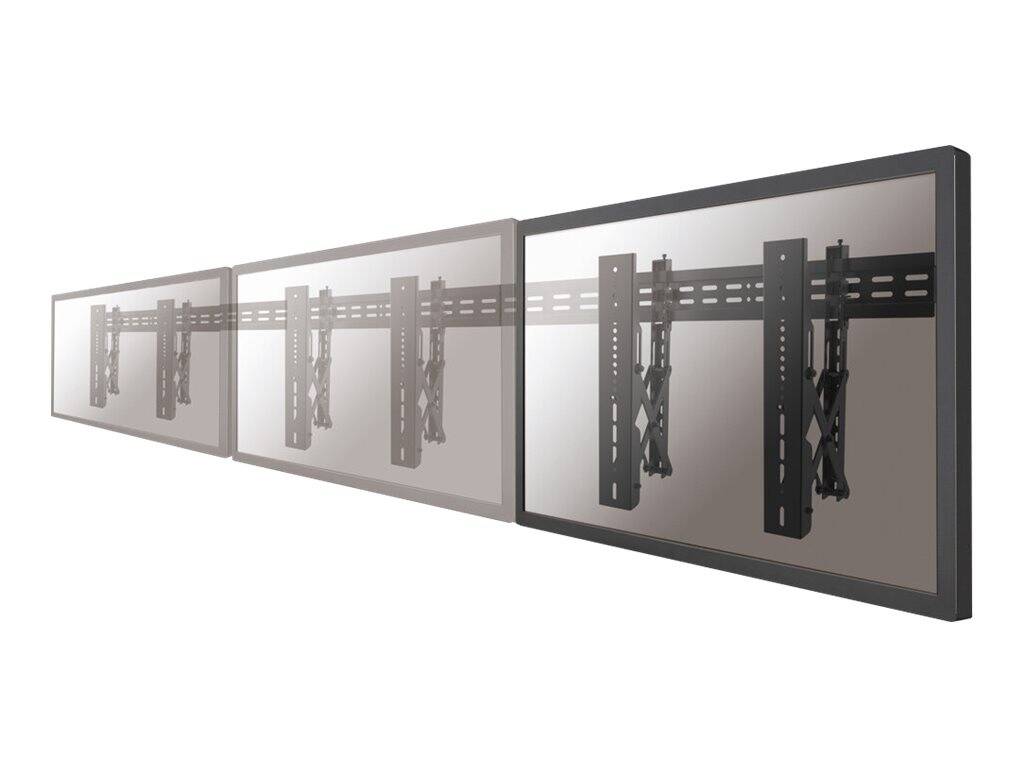

A video wall bracket, tiled one per screen to build a wall of displays. Each carries 40 to 75 inches up to 50 kg, sits between 5.6 and 21.5 cm from the wall, and offers 3 degrees of micro adjustment in every direction so the seams between panels line up exactly.

Compatibility — check before buying:
This is a fixed mount with micro adjustment, not a tilting or full-motion one — which is exactly right for a video wall, where every panel has to sit in the same plane. The 3 degrees of adjustment is what closes the gaps between screens after they are up, and it is the single most important feature on a wall of four or nine displays. The pull-out service access lets an individual panel come forward for maintenance without dismantling its neighbours. VESA covers fourteen patterns from 200 x 200 to 600 x 400 mm. On the wall: Neomounts’ manual specifies solid brick or concrete — a wood stud or drywall substrate is not an approved base for this mount. It is lockable with a padlock, which is not supplied. Two figures worth checking against anything you have read elsewhere: this model is 40 to 75 inches at 50 kg. The 32 inch figure that circulates belongs to the LED-VW2000BLACK, which is 32 to 75 inches at 70 kg and sits 14.3 to 30.6 cm from the wall with a push-to-pop-out action instead. Different mount, different part number.

Best For

✓ Video walls in retail and hospitality
✓ Control rooms and operations centres
✓ Airport and transport information walls
✓ Corporate lobbies and reception
✓ Digital signage installations
✓ Screens needing individual service access

Key Features


Micro adjustment, 3 degrees
The feature that makes a video wall look like one surface instead of several screens near each other. Panels are aligned after installation, not hoped into place beforehand.

Pull-out service access
One panel comes forward for maintenance while the rest of the wall stays put. On a nine-screen wall that is the difference between a ten-minute job and a day.

Fourteen VESA patterns
From 200 x 200 to 600 x 400 mm, including the intermediate patterns that a mixed or older fleet of commercial panels is likely to use.

Takes a padlock
A lock point is built in for public installations. The padlock itself is not supplied, so add one if the wall is somewhere unattended.

Technical Specifications

Identification
Brand Neomounts
Product LED-VW1000BLACK video wall mount
Part Number LED-VW1000BLACK
EAN 8717371444419
Colour and material Black steel
Display Support
Displays 1 per bracket, tiled to build the wall
Screen size 40 to 75 in
Load capacity 50 kg. Neomounts publishes a minimum of 0 kg.
VESA 200x200, 200x300, 200x400, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 440x400, 500x400, 600x200, 600x300 and 600x400 mm
Motion
Type Fixed with micro adjustment
Micro adjustment +3 to -3 degrees
Distance to wall 5.6 to 21.5 cm
Service access Pull-out
Installation
Wall construction Solid brick or concrete, per the Neomounts manual. Wood stud and drywall are not approved.
Security Lockable. A padlock is required and is not supplied.
Physical
Product dimensions and weight Not published by Neomounts
Cable management Not published by Neomounts
In the Box
Included Wall plates, adapter brackets, adjustment knob, M5, M6 and M8 bolts and washers. No padlock is supplied.
Warranty and Support
Warranty 1-Year Warranty (Singular)
Manufacturer Term Neomounts publishes a 5-year manufacturer warranty on this product. Singular direct warranty is 1 year; where the manufacturer offers cover beyond that, we assist you with the process for its full duration.

Frequently Asked Questions

How many do I need?
One per display. A 2 x 2 wall needs four, a 3 x 3 needs nine. Tell us the layout and the panel model and we will work out the quantity and check the VESA pattern with you.
Is this the 32 inch model?
No. This one is 40 to 75 inches at 50 kg. The 32 inch figure belongs to the LED-VW2000BLACK, which handles 32 to 75 inches at 70 kg and sits further from the wall. Check the part number against the screens you actually have.
Can I fit it to a stud wall?
Neomounts’ manual specifies solid brick or concrete for this mount, and does not approve wood stud or drywall. A video wall concentrates a lot of weight in a small area, so the substrate matters more than usual. Send us the wall details and we will advise.
Why does it not tilt?
Because a video wall must be flat. Every panel has to sit in the same plane for the seams to disappear, so the mount is fixed with 3 degrees of micro adjustment for alignment instead. If you want a single screen that tilts, we will point you at a different mount.
Singular Expert Insight
Video wall brackets are judged on two things: how precisely you can align the panels after they are on the wall, and how easily you can get one out again. This handles both — 3 degrees of micro adjustment in every direction and a pull-out action for service. That is the whole job. Note the wall requirement seriously: a video wall puts several hundred kilograms into a small area of wall, and Neomounts approving only solid brick or concrete is a specification, not a suggestion. Order one bracket per screen, add padlocks if the location is public, and get the substrate assessed. Related mounting is in our monitor arms and stands range.

Buyer’s Guide

Buy it if

You are building a video wall from 40 to 75 in panels up to 50 kg each on solid brick or concrete, and you need panels to align and to come out for service.

Skip it if

Your panels are under 40 in or over 50 kg — look at the LED-VW2000BLACK — or the wall is stud or drywall.

Also consider

The Neomounts LED-VW2000BLACK for 32 in panels and 70 kg, plus padlocks for a public installation.
