Neomounts WL40S-850BL16 Full Motion TV Wall Mount 40-70 inch 45 kg with Spirit Level and Template

Brand:
Neomounts

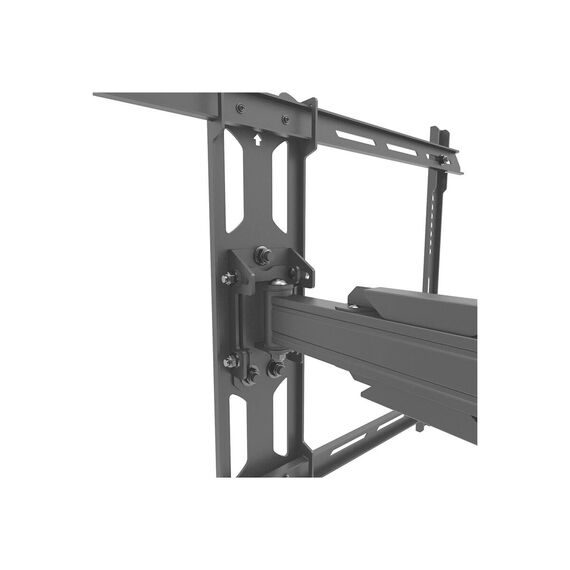

Neomounts WL40S-850BL16 - Mounting kit (cable cover, wall plate,
Neomounts WL40S-850BL16 Full Motion TV Wall Mount 40-70 inch 45 kg with Spirit Level and Template
€223.68 inc. VAT
Buy
WL40S-850BL16
€187.97
€223.68 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:406907
EAN Code
8717371448875
Manufacturer
Neomounts

Quick Specs

Screen size
40 to 70 in
Load capacity
45 kg
Distance to wall
4.7 to 55.5 cm
VESA
200x100 to 600x400 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Neomounts WL40S-850BL16 — Full Motion Wall Mount

Screens 40 to 70 in, 45 kg4.7 to 55.5 cm from the wallFourteen VESA patternsSpirit level and template supplied

A full-motion wall mount for 40 to 70 inch screens up to 45 kg, folding to 4.7 cm against the wall and pulling out to 55.5 cm. Neomounts supplies a spirit level and a drilling template in the box, and the easy-release system lets the TV hook on and come off without unbolting anything.

Compatibility — check before buying:
The letters at the front of the part number decide what you get, so check them. WL means wall (CL is ceiling), and WL40S is the full-motion tier — WL30S is fixed and WL35S tilts only. The trailing 16 is the size and VESA class: 40 to 70 inches, 45 kg, VESA to 600 x 400 mm. If your screen is larger or the pattern wider, the WL40S-850BL18 covers 43 to 86 inches at 60 kg and VESA to 800 x 400; the BL14 stops at 65 inches, 40 kg and 400 x 400. Get the number right and the mount is straightforward. Motion is tilt +12 to -2 degrees, swivel 45 degrees either way and 3 degrees of levelling after installation — useful, because a drill hole a millimetre out otherwise means a crooked TV for years. Note the body copy on Neomounts’ own page says "swivel 40 degrees" while the specification table says plus or minus 45; we publish the table. Two things Neomounts does not publish: the wall construction required, and a minimum screen weight. At 45 kg on a 55 cm arm the wall matters — tell us the construction and we will help you scope it. It is also not lockable.

Best For

✓ Living rooms and meeting rooms
✓ Corner and off-centre mounting
✓ Screens viewed from two sides
✓ Rooms where the TV must sit flat when idle
✓ Installations needing post-fit levelling
✓ Screens between 40 and 70 inches

Key Features


4.7 cm folded, 55.5 cm extended
The screen sits almost against the wall when nobody is watching it and swings well clear when the seating is off to one side. That range is the whole point of a full-motion mount.

Levelling after installation
Three degrees of correction once the mount is on the wall. It is the difference between a TV that looks right and one that quietly annoys you.

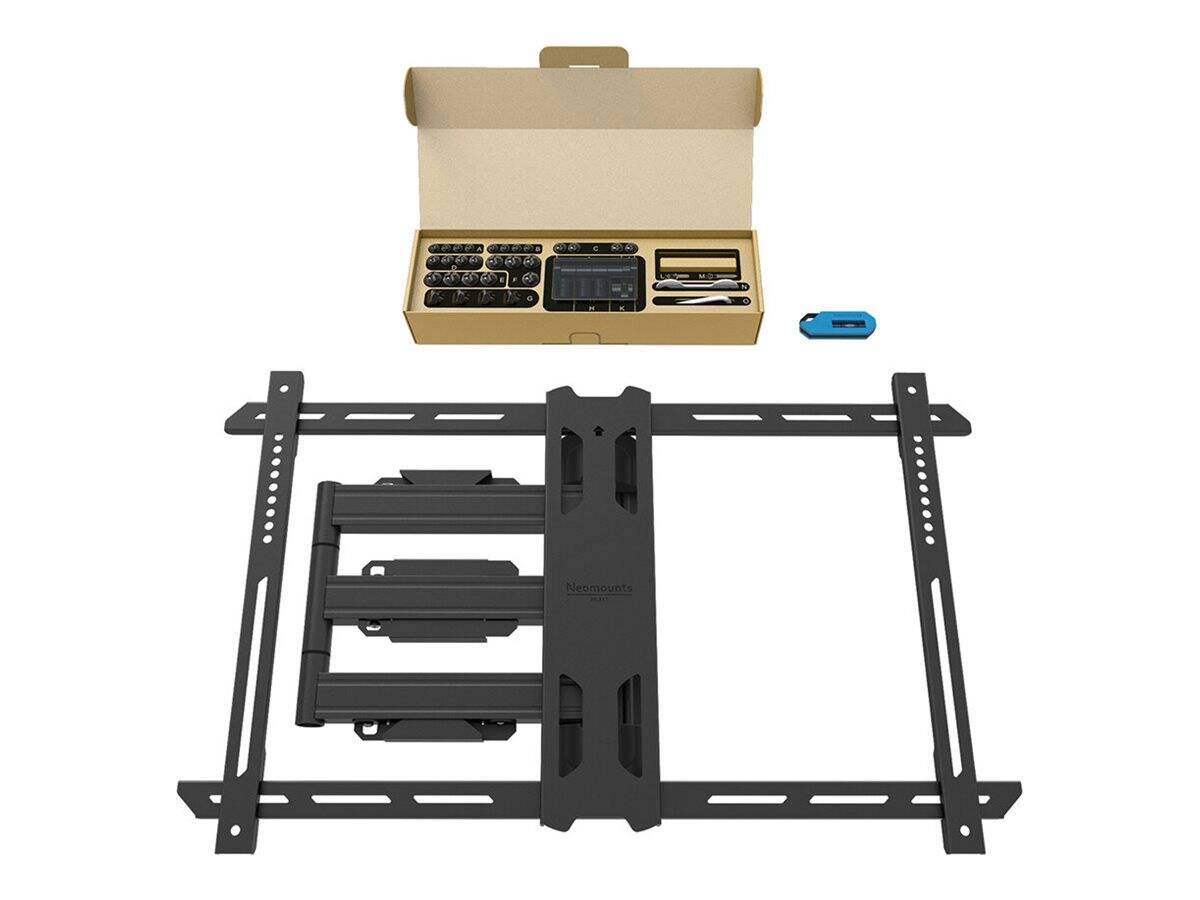

Spirit level and template in the box
Neomounts supplies the two things people usually improvise. On a 45 kg screen, drilling to a template rather than by eye is worth the ten minutes.

Easy-release system
The TV hooks onto the mount and comes off again without dismantling anything, which matters when you need to reach the ports behind it.

Technical Specifications

Identification
Brand Neomounts
Product WL40S-850BL16 full motion wall mount, LEVEL 850 series
Part Number WL40S-850BL16
EAN 8717371448875
Colour and material Black steel
Display Support
Displays 1
Screen size 40 to 70 in
Load capacity 45 kg. Neomounts publishes no minimum weight for this model.
VESA 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 400x200, 400x300, 400x400, 440x400, 600x200, 600x300 and 600x400 mm
Curved screens Not published by Neomounts
Motion
Type Full motion, manual
Tilt +12 to -2 degrees
Swivel +45 to -45 degrees per the specification table. Neomounts’ body copy says 40 degrees.
Levelling +3 to -3 degrees after installation
Distance to wall 4.7 to 55.5 cm
Installation
Wall construction Not published by Neomounts. A structural assessment is advisable at this weight and reach.
Supplied aids Spirit level tool and fixing template
Security lock Not lockable
Easy release Yes
Physical
Product dimensions 710 x 436 x 47 mm
Product weight Not published by Neomounts
Cable management Steel cable management
Warranty and Support
Warranty 1-Year Warranty (Singular)
Manufacturer Term Neomounts publishes a 5-year manufacturer warranty on this product. Singular direct warranty is 1 year; where the manufacturer offers cover beyond that, we assist you with the process for its full duration.

Frequently Asked Questions

Will my 75 inch TV fit?
No — this model is published for 40 to 70 inches at 45 kg. For larger screens the WL40S-850BL18 covers 43 to 86 inches at 60 kg with VESA up to 800 x 400 mm. Send us your model and we will confirm the size, weight and pattern.
What wall do I need?
Neomounts does not publish a wall specification for this mount, and we will not invent one. A 45 kg screen on a 55 cm arm puts real leverage on the fixings, so solid masonry or a properly engineered backing is the realistic answer. Tell us the wall build-up and we will advise.
Is the swivel 40 or 45 degrees?
The specification table says plus or minus 45; the marketing copy on the same page says 40. We publish the table. Either way it is enough to angle the screen toward seating that is off to one side of the room.
Can I lock it so nobody moves it?
No. Neomounts publishes this model as not lockable. If you need the screen secured or fixed in position — a public area, for instance — the tilt-only WL35S-850BL16 is lockable and takes heavier screens, though it does not swing out.
Singular Expert Insight
Full-motion mounts are usually judged on the extension figure, and 55.5 cm on a 70 inch screen is generous without being unwieldy. What sets this one apart in practice is the small stuff Neomounts puts in the box — a real spirit level and a drilling template — plus three degrees of levelling to fix what the template did not. The gap is the wall specification, and it is a real one at this weight: get the wall assessed rather than trusting a rawlplug. The other thing to be careful about is the part number, because the LEVEL 850 range runs from 32 inch to 86 inch models whose codes differ by two digits. Send us the TV model and we will pick the right one. Our range is under monitor arms and stands.

Buyer’s Guide

Buy it if

Your screen is 40 to 70 in and up to 45 kg, you want it to swing out from the wall and sit nearly flat when idle.

Skip it if

Your TV is larger than 70 in or heavier than 45 kg, or you need a lockable mount.

Also consider

The WL40S-850BL18 for 43 to 86 in screens, or the tilt-only WL35S-850BL16 if the screen never needs to swing out.
