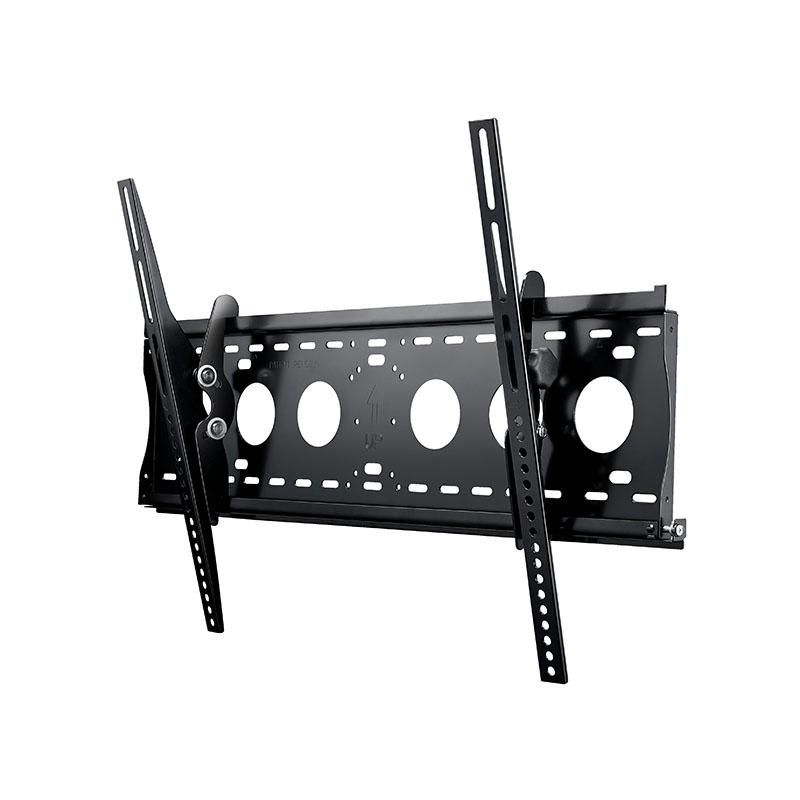

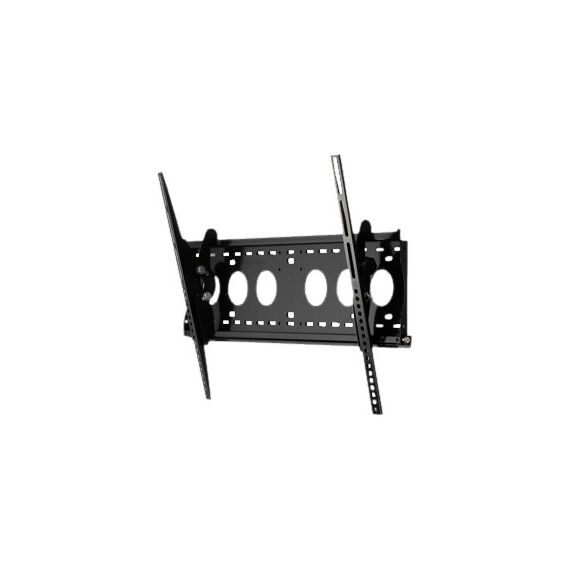

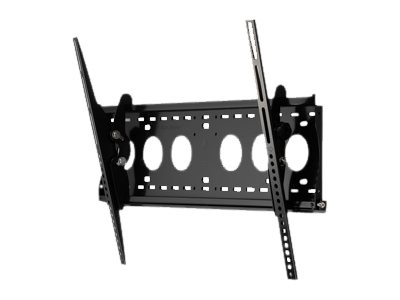

AG Neovo LMK-03 Adjustable Tilting Wall Mount 100kg VESA 75x150 to 800x500 Safety and Anti-Theft Lock Black

This mount is specified by VESA pattern and weight, not by screen size. AG Neovo publishes no screen size range for the LMK-03 at all — fitment is determined by the 75 x 150 mm to 800 x 500 mm VESA range and the 100 kg load limit. Resellers quote four different and mutually contradictory size ranges for this part, from “98 inch only” through “65 to 98 inches” and “42 to 98 inches” to “32 to 65 inches”; none of them comes from AG Neovo, and the 32 to 65 inch figure in particular belongs to a different product in the range. Measure your display’s VESA pattern and check its weight rather than relying on any of them. If you want us to confirm fit for a specific model, ask before ordering.

Note also two inconsistencies in AG Neovo’s own documentation. The product description states a profile of “0.75 mm” between display and wall, which is a decimal error — the specification table gives the depth as 75 mm, and that is the figure we publish. The same description calls it a fixed wall mount while the product name and the specification both give it tilt; it does tilt. On the tilt range the documents disagree between 0 to minus 15 degrees and plus or minus 15 degrees, so we state only that it tilts downward by up to 15 degrees, which both sources support.

Wall fixings are supplied, but the approved wall type is not published, and no TUV, GS or UL load certification exists for this product. Six plastic plugs and six lag bolts are in the box, but no sizes are given and no substrate is specified. A 100 kg display is a serious load: have the fixings assessed against the actual wall by a competent installer, and do not assume the supplied plugs suit every wall.

✓ Large and heavy flat panels up to 100 kg with VESA patterns from 75 x 150 up to 800 x 500 mm

✓ Commercial and public spaces where the safety lock and anti-theft lock matter — retail, transport, hospitality, education

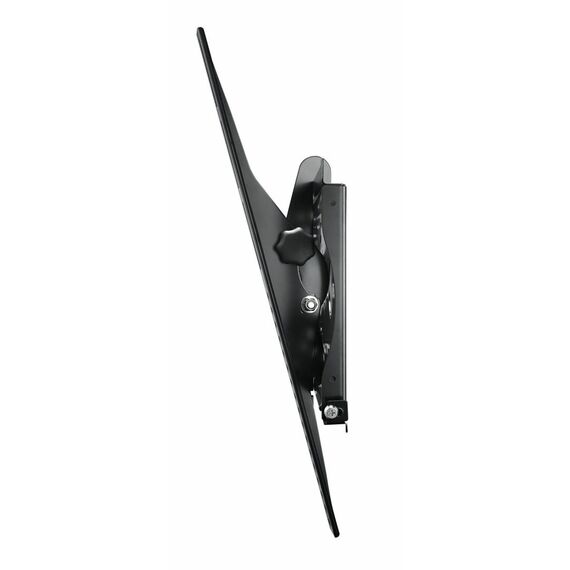

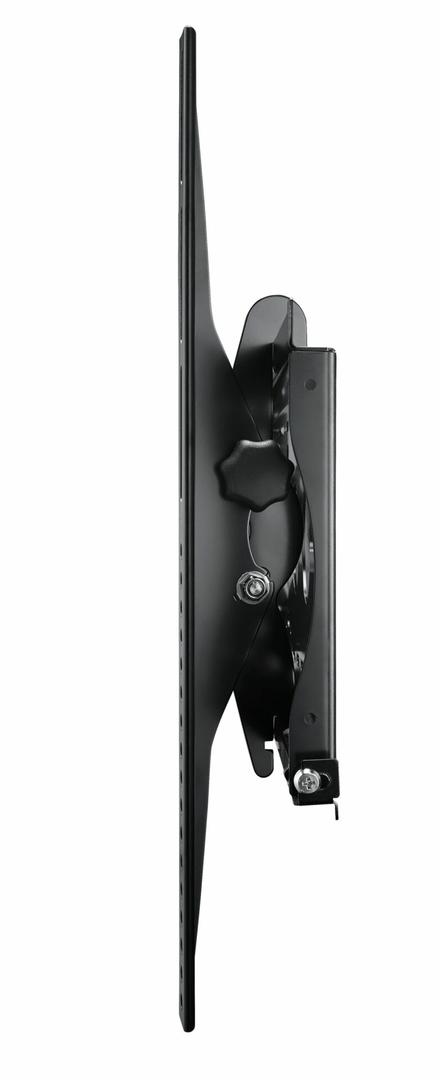

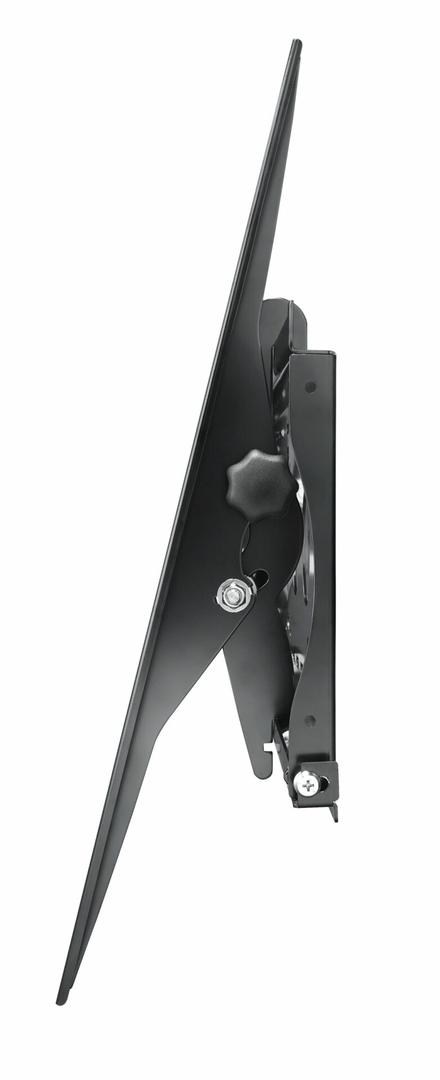

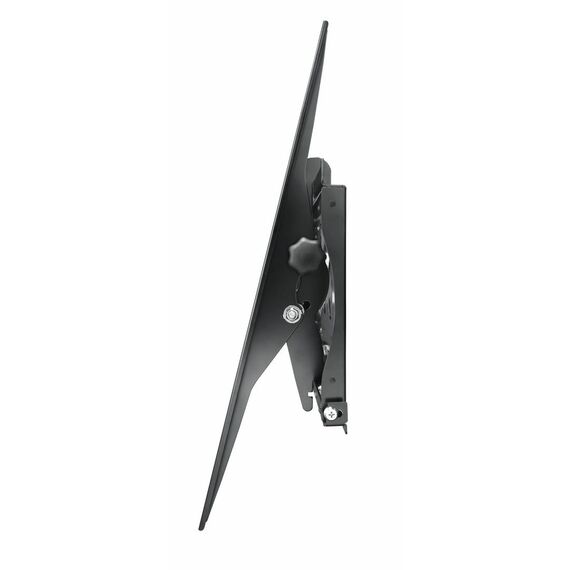

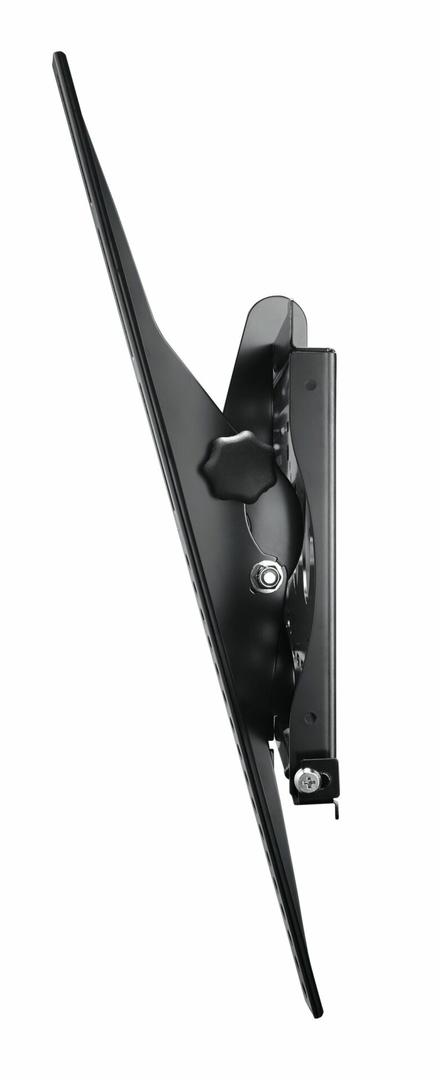

✓ Installations wanting the display close to the wall, at a 75 mm profile, with tilt to control viewing angle and reflections

✓ Screens mounted above eye level that need to be angled downwards

✓ Projects where lateral shift on the wall plate is useful to centre the display after fixing

The LMK-03 is the heavy end of AG Neovo's wall mount range and it is specified in an unusual way: there is no screen size anywhere in the datasheet. Fitment is entirely a function of VESA pattern and weight — 75 x 150 mm to 800 x 500 mm, up to 100 kg. That is actually the more honest way to specify a mount, because screen size tells you very little about either the mounting pattern or the mass, and it explains why the reseller listings for this part are such a mess. We found four different size ranges in circulation, from ninety-eight inches only to thirty-two to sixty-five inches, all invented downstream. Ignore all of them, get the VESA pattern off the back of the panel and the weight off the spec sheet, and the fit is unambiguous.

What you are buying at this rating is a plate that holds a very large display 75 mm from the wall with locks fitted as standard. The 100 kg capacity is roughly double what an articulating arm of similar footprint manages, and the trade-off is movement: it tilts and it shifts laterally, but it does not swivel and it does not extend. For a screen in a retail unit, a station concourse, a school corridor or a hotel lobby, that is usually the right trade. The safety and anti-theft locks are the feature that distinguishes it from a generic heavy plate, and the lateral shift is quietly valuable in real installations — it lets you centre the display after the fixings are in rather than re-drilling because a bracket landed a few centimetres off.

Two caveats about the documentation, and one genuine credit. AG Neovo's own copy contains a decimal error, describing a 0.75 mm profile where the specification table says 75 mm, and it calls the mount fixed in one sentence while naming it Adjustable Tilting in the next; the tilt range is given inconsistently as 0 to minus 15 degrees in one place and plus or minus 15 degrees in another. We have published only what both sources support. The credit is that this is the one mount in the entire AG Neovo accessory range that publishes an itemised box contents list and actually ships wall anchors — six plastic plugs and six lag bolts. Every other product we have documented in this range leaves the installer to source their own.

That credit has a limit, though. The plugs are supplied, but no sizes are published and no approved wall substrate is stated, and there is no TUV, GS or UL load certification for this product any more than for the rest of the range. A 100 kg display on a wall is not a place to assume the supplied plugs are adequate: have the fixings assessed against the actual substrate by a competent installer. If a tender demands certified load figures, this product will not meet it. The datasheet dates from December 2016 and has not been revised since, but distribution across Europe and the United States is active and stocked.
