Neovo TX-10 / 10" Class (10.1" viewable) LED display / interactive / with touchscreen (multi touch) / 720p 1280 x 800 | TX100011E0100

Neovo TX-10 / 10" Class (10.1" viewable) LED display / interactive / with touchscreen (multi touch) / 720p 1280 x 800 | TX100011E0100
Description

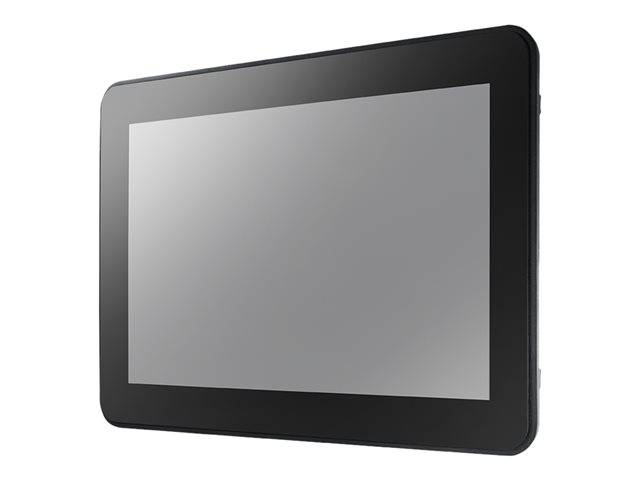

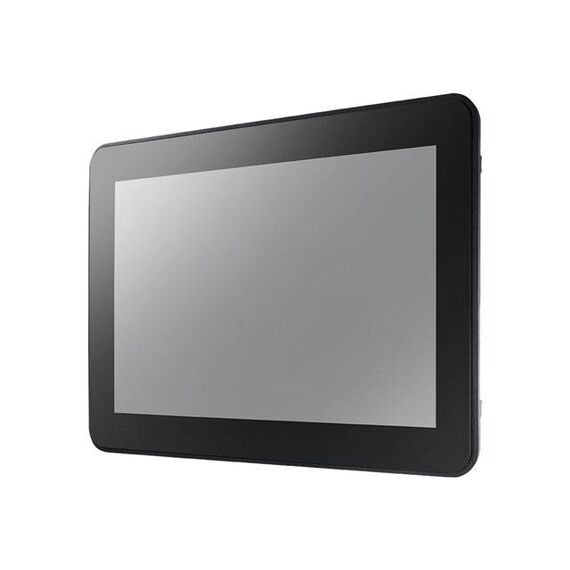

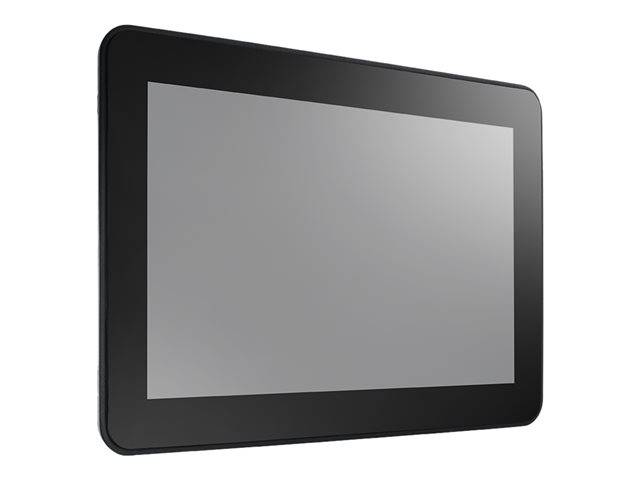

The TX-10 multi-touch interactive display, with its 10.1-inch, 10-point touch screen, brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in a wide variety of application environments - in a meeting room as a scheduling display or in a number of public, commercial, and industrial interactive applications. Allowing for either landscape or portrait orientation, the TX-10 multi-touch interactive display is the perfect fit.
Neovo TX-10 / 10" Class (10.1" viewable) LED display | TX100011E0100
Special Features
- Fit for any scenario
- Functional and reliable for real-world, round-the-clock use
Product features
- Fit for any scenario
Knowing that each user's need is different, AG Neovo equipped its TX-10 multi-touch interactive display with external open frame brackets that allow users to mount their monitor in their unique environment and for their particular purpose - in either landscape or portrait orientation. Cleanliness and orderliness are key in commercial and industrial settings. A lockable power adapter and cable managers at the back end of the monitor keep cables neat and in order, preventing loose, messy, or disconnected cords. - Functional and reliable for real-world, round-the-clock use
Using Projected Capacitive Touch Technology, the TX-10 interactive display has 10-point multi-touch capability and gives the user a higher-precision, seamless touch experience. And this functionality is backed by a high level of reliability for 24/7 use. Front-side IP65 rating protects the screen from water and dust. On the outer edge of the monitor are a plastic resin bezel and a foam seal finish, ensuring a seamless, airtight fit and impact protection. Finally, with its high operating temperature (up to 50°C or 122°F), the TX-10 multi-touch interactive display can keep working in adverse environments. - Corporate, retail, public, industrial: the TX-10 covers all environments
With its trifecta of versatility, functionality, and durability, the TX-10 touch screen can fit a wide variety of user environments and applications, whether it is a schedule display in a meeting room, an e-catalog in a retail boutique, a self-serve system in a restaurant, a check-in display at a hotel, an information kiosk at the mall, or a screen in an automated industrial setting.
Product Specification
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class A |
Power Consumption (On mode) | 7 W |
Energy Consumption per Year | 11 kWh |
Diagonal Class | 10" |
Diagonal Size | 10.1" |
Commercial Use | Yes - interactive |
Combined With | Touchscreen (multi touch) |
TV Tuner | No tuner |
TV Tuner Presence | No |
Video Interface | HDMI |
HDMI Ports Qty | 1 ports |
PC Interface | VGA (HD-15), DisplayPort |
Dimensions | Without stand |
Width | 26.07 cm |
Depth | 3.94 cm |
Height | 18.34 cm |
Weight | 1.4 kg |
LCD Display Technology | VA |
Resolution | 1280 x 800 |
Display Format | 720p |
Image Aspect Ratio | 16:10 |
LCD Backlight Technology | LED backlight |
Coating | Anti-reflection, 3H Hard |
Image Contrast Ratio | 1300:1 |
Brightness | 500 cd/m² |
Viewing Angle | 170 degrees |
Viewing Angle (Vertical) | 170 degrees |
Touchpoints Qty | 10 |
Response Time | 5 ms |
Features | Projected Capacitive Touch (PCT) |
Flat Panel Mount Interface | 100 x 100 mm |
Connector Type | VGA input ¦ HDMI input ¦ DisplayPort input ¦ Audio line-out ¦ USB |
Cables Included | VGA cable ¦ USB cable ¦ DisplayPort cable |
Compliant Standards | Plug and Play, RoHS, WEEE, REACH, IP65, LVD |
Power Device | Power adapter |
Power Consumption Stand by | 0.5 Watt |
Power Consumption (Off Mode) | 0.5 Watt |
Width (Shipping) | 37 cm |
Depth (Shipping) | 16 cm |
Height (Shipping) | 32.5 cm |
Weight (Shipping) | 2.4 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
